Macropad with knobs and OLED screen
Print Profile(1)
Bill of Materials
- Raspberry pi pico USB C x 1: https://www.aliexpress.com/item/1005007393927221.html?spm
- USB C extender x 1: https://www.aliexpress.com/item/1005009041660867.html?pdp_npi
- Redragon switches x 9: https://www.aliexpress.com/item/1005005818790193.html?spm
- 0.91" OLED display x 1: https://www.aliexpress.com/item/1005006701323078.html?spm
- 1N4148 diodes x 9: https://www.aliexpress.com/item/1005008577093447.html?spm
- KY-040 rotary encoder x 2: https://www.aliexpress.com/item/1005009578504178.html?spm
- 24AWG 5x10m wire x 1: https://www.aliexpress.com/item/1005007671008743.html?spm
- Brass heat insert and screw (M3x5x4.2+M3x6) x 6: https://www.aliexpress.com/item/1005008503719148.html?spm
Description

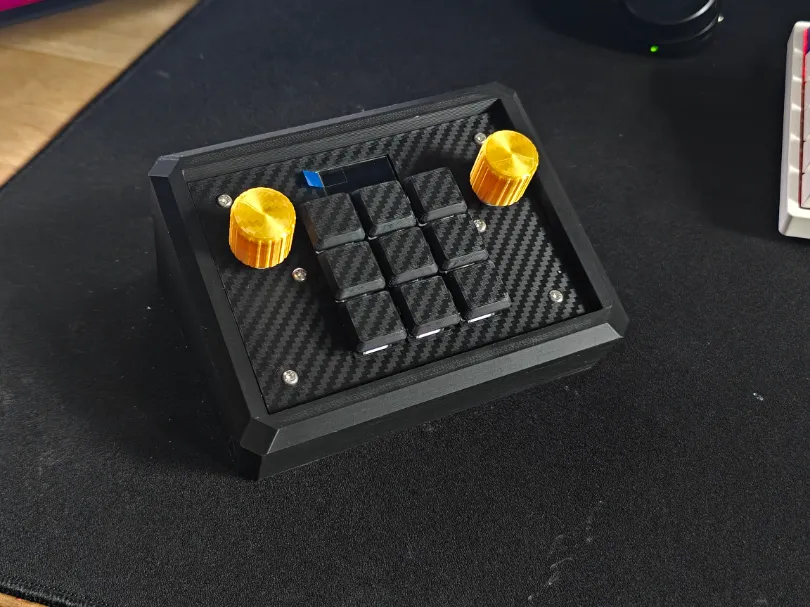

Macropad with 3x3 pattern for switches, 2 rotary encoders and a 0.91" OLED screen. Coded using Circuitpython.
Rotary encoder knobs made by @Parragorious
Keycaps made by @heiso
