Modular Rig Board

🎣 Rig Board 2.0 | The ultimate modular Mounting System

Precision at the tying table is key to fishing success! The Rig Board 2.0 is a highly functional Mounting System specially designed for the efficient and precise tying of fishing rigs. Whether it's carp rigs, predator leaders, or complex sea rigs – this modular system adapts to any project. Cutting leaders to the same exact length is also no problem.

💎 High-End Construction & Stability

This board was designed with a focus on durability and mechanical resilience:

•

  🧱 Solid Edge Design: The outer 5 cm on each edge are designed for printing with 100% infill. This guarantees maximum stiffness of the connections when tightening knots.



•

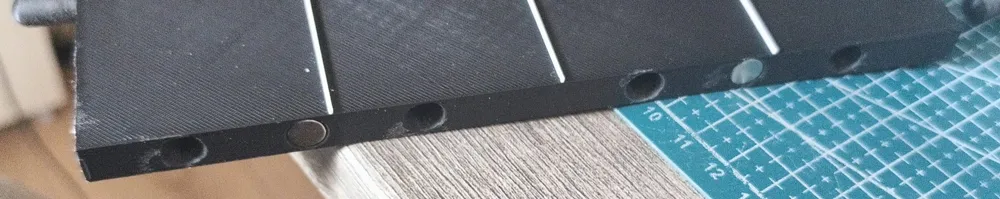

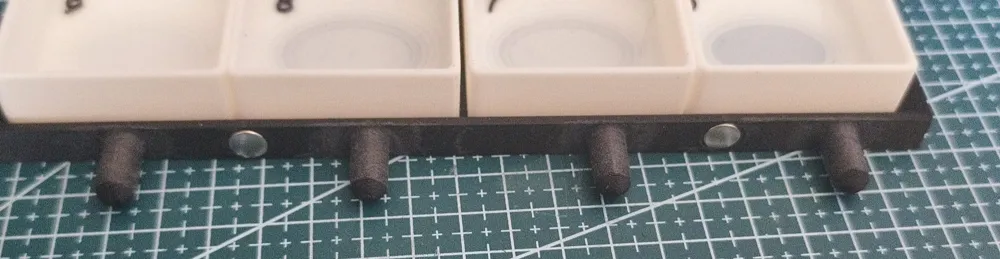

  🧲 Magnet-Pin Coupling: A hybrid system of centering pins and strong 8x2 mm neodymium magnets ensures rock-solid cohesion of the segments.



•

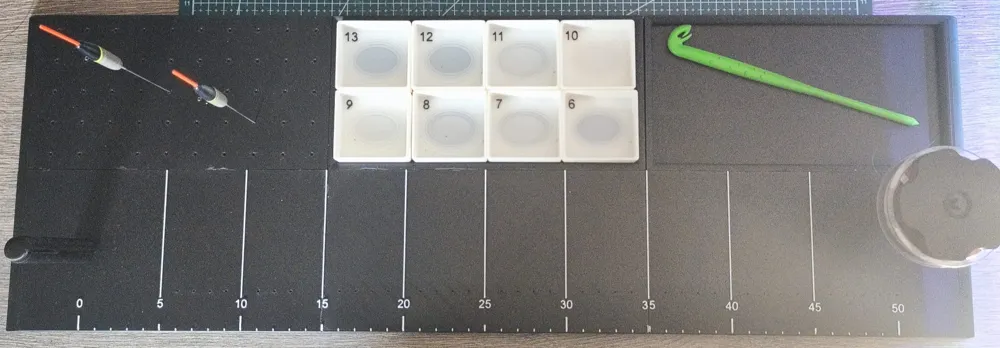

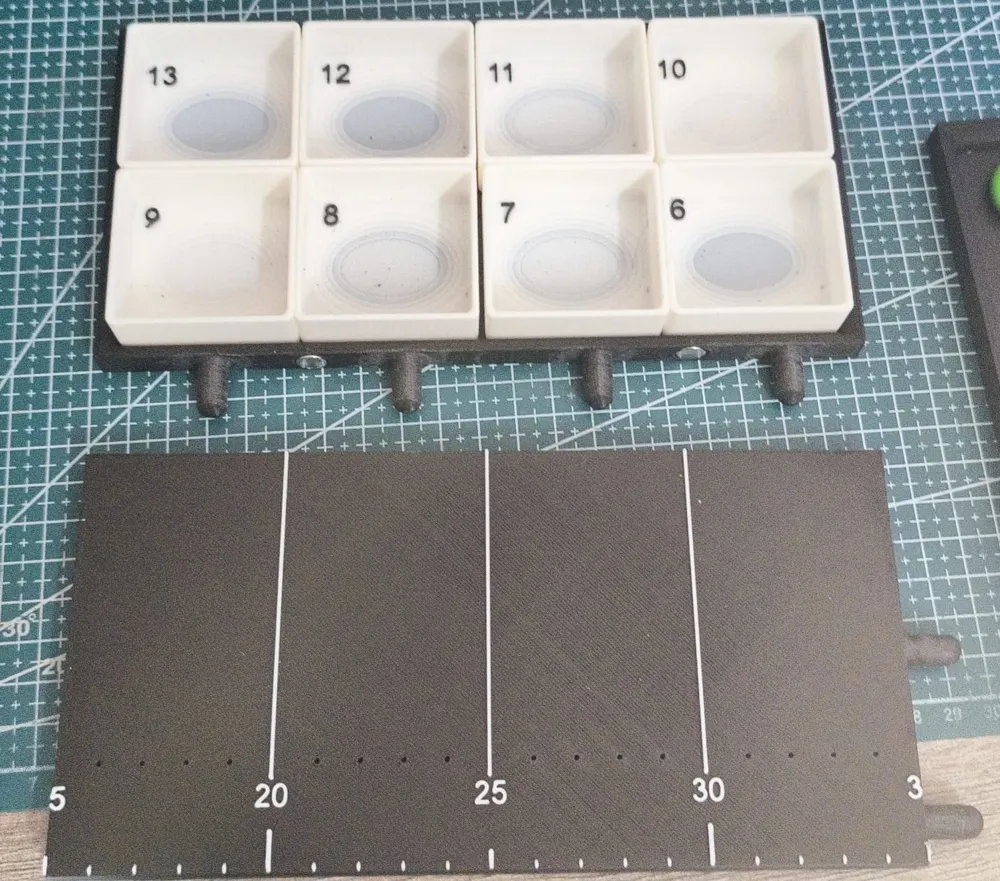

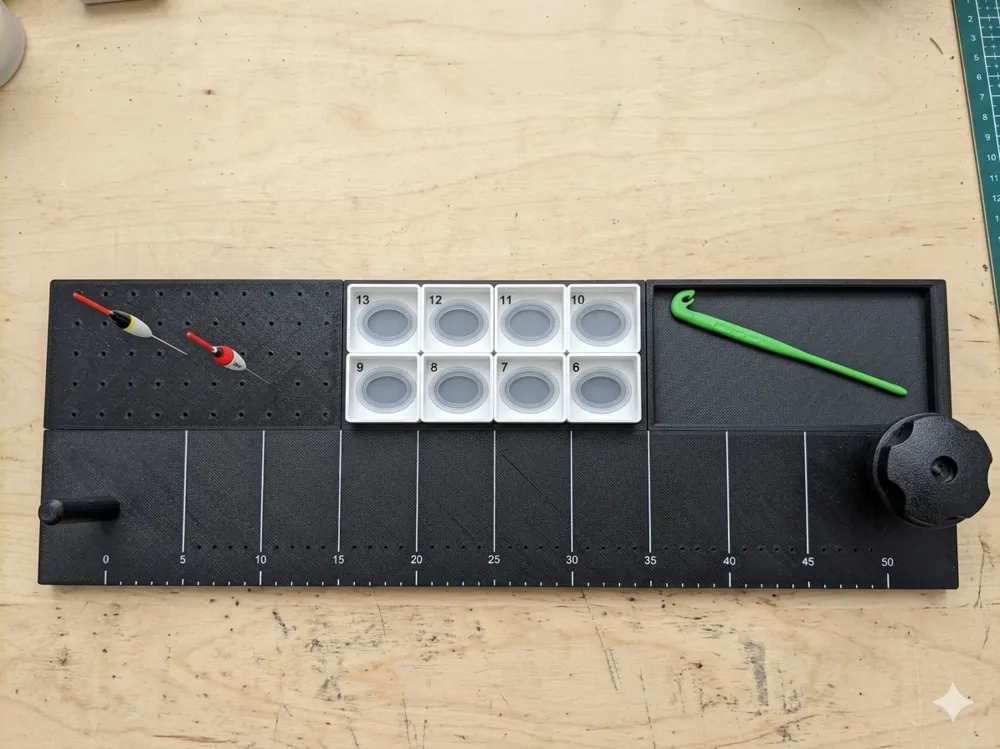

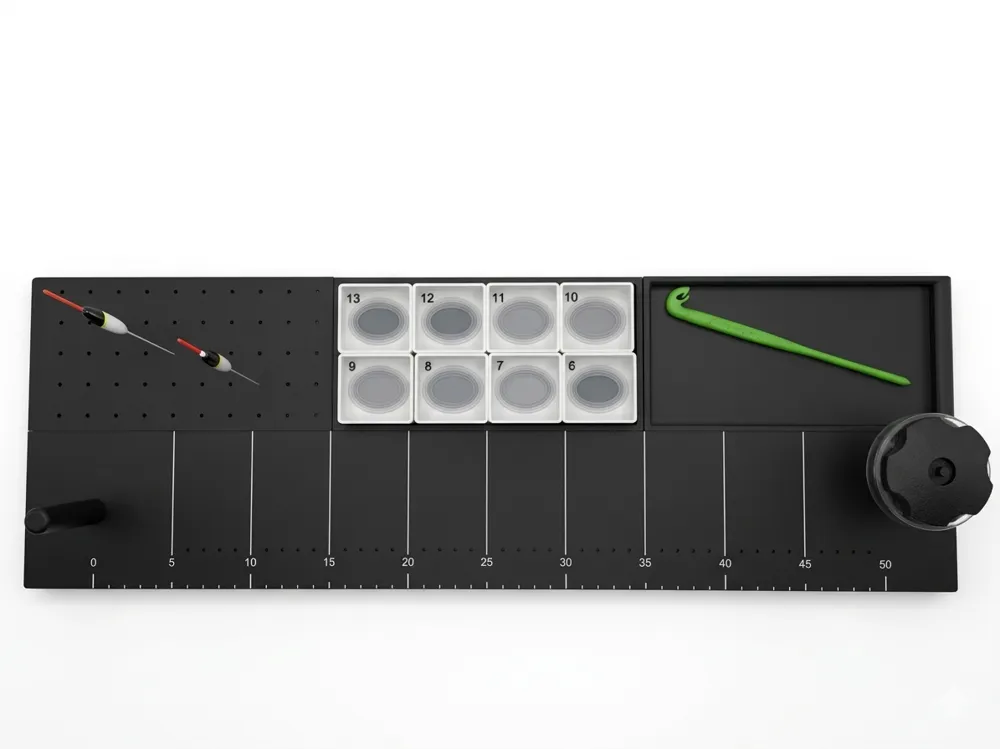

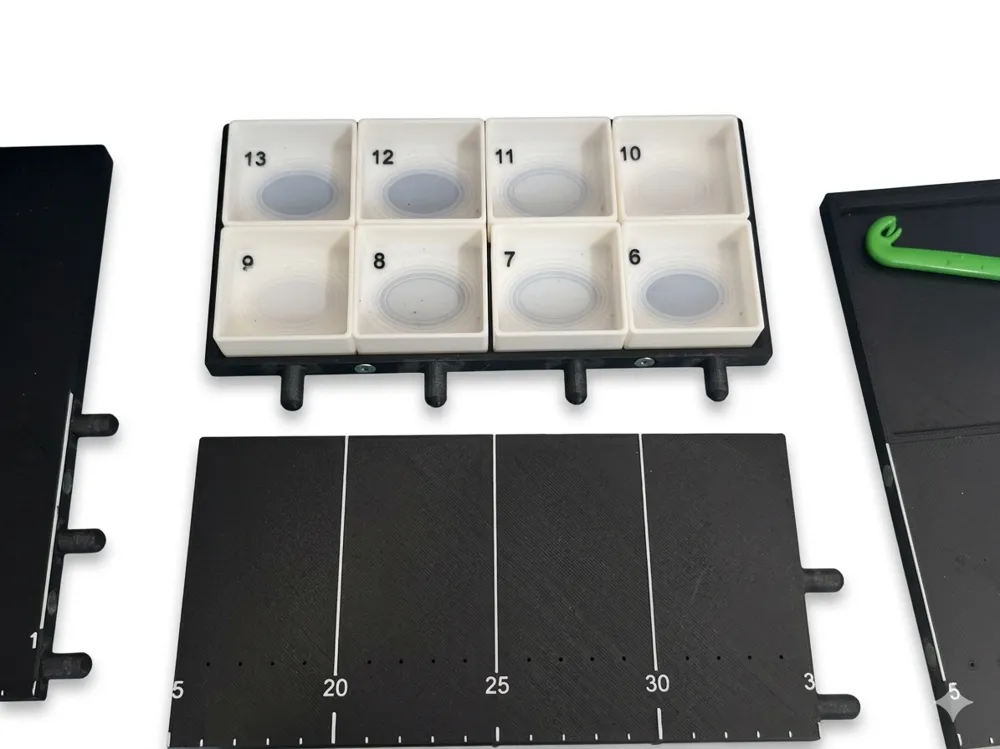

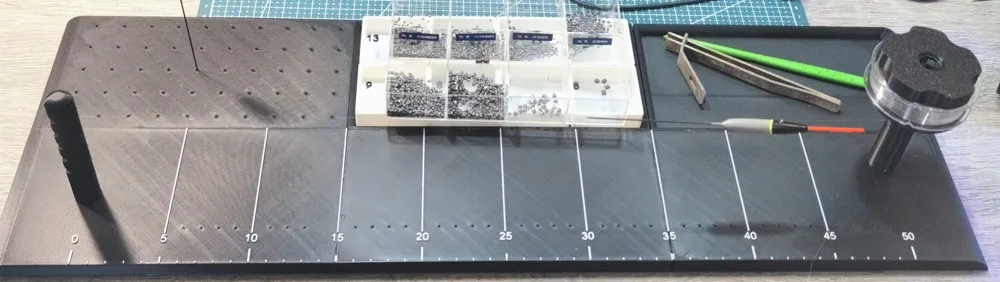

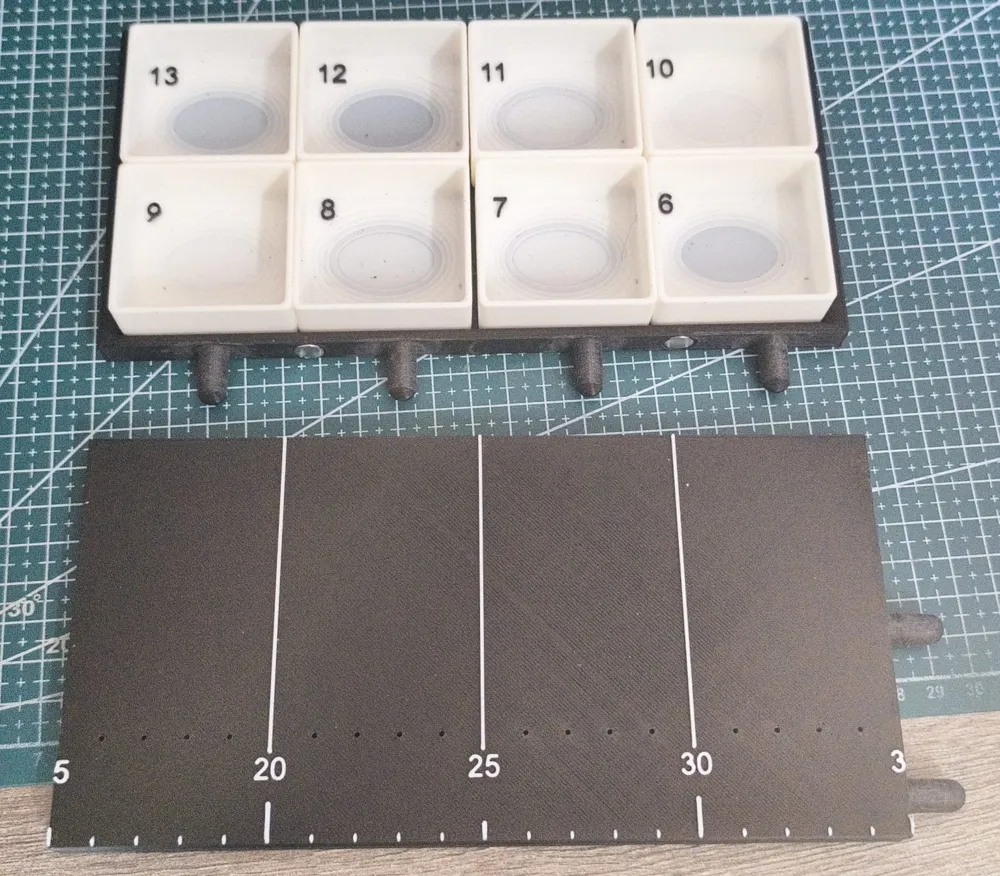

  📏 Modular : Thanks to the precisely fitting plug connections, you can combine the modules as desired to have the perfect base even for extra-long leaders. As can be seen in the pictures, this system consists of 6 individual parts



• 🔥 Top Feature: Integrated Length-Setting Function

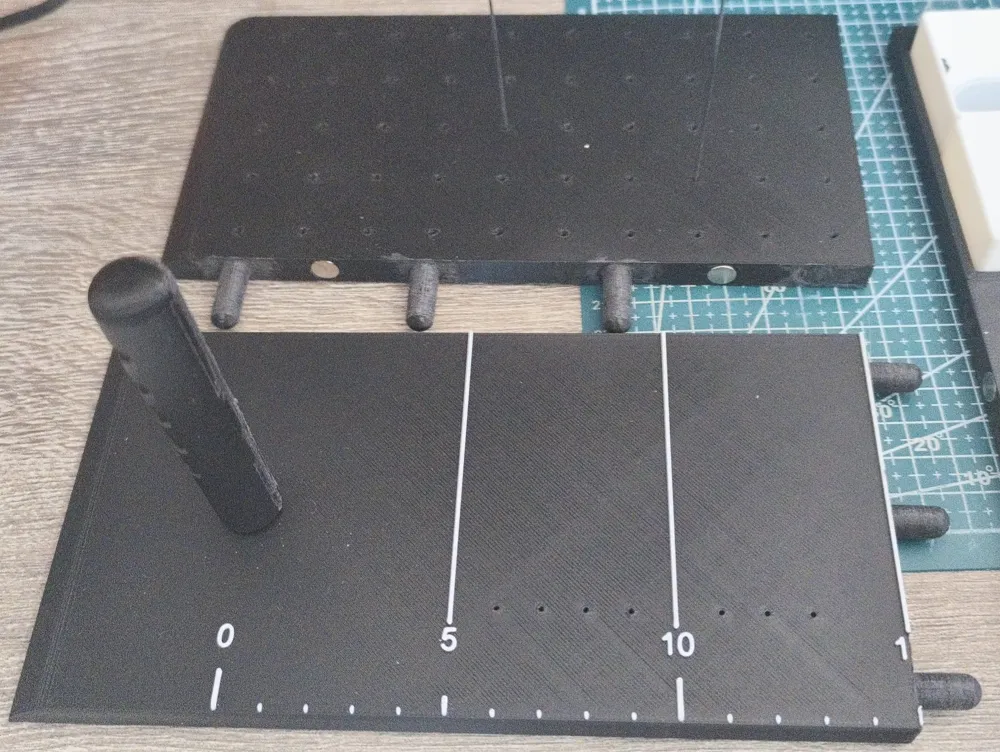

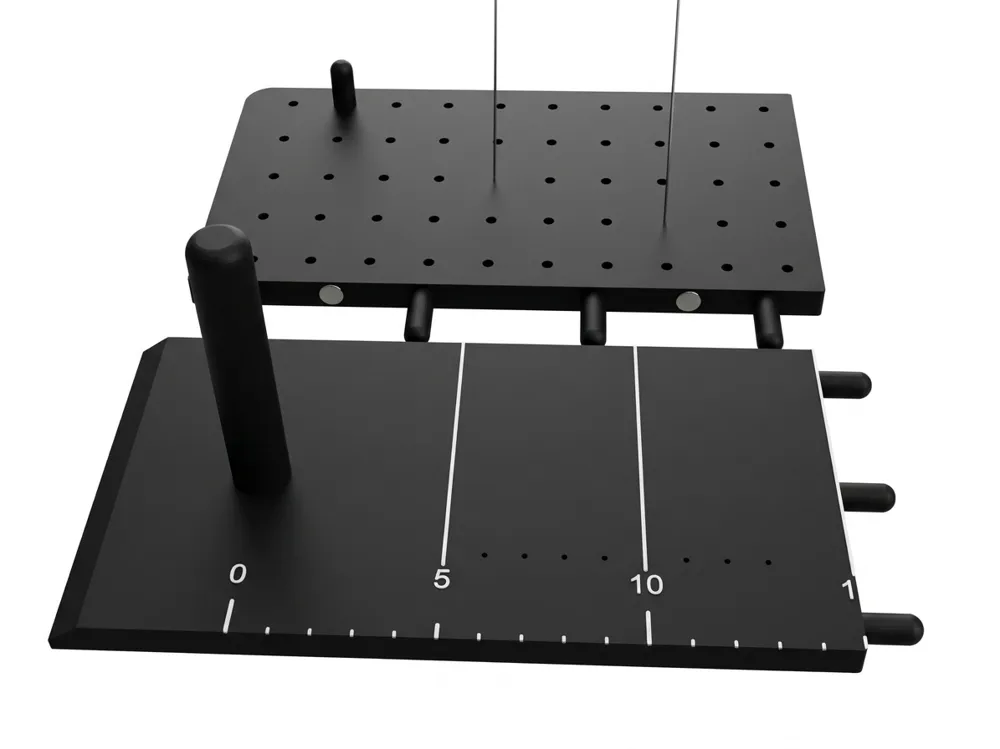

• The main rig features a special grid of small holes:
• Precision Pins: Insert small metal pins into the holes to precisely cut your leaders to length.
• 100% Repeatability: Tie 10 or 20 rigs to the exact same length – perfect for hair rigs, chod rigs, or competition leaders.

⚙️ Everything in its Place (Rig Management)

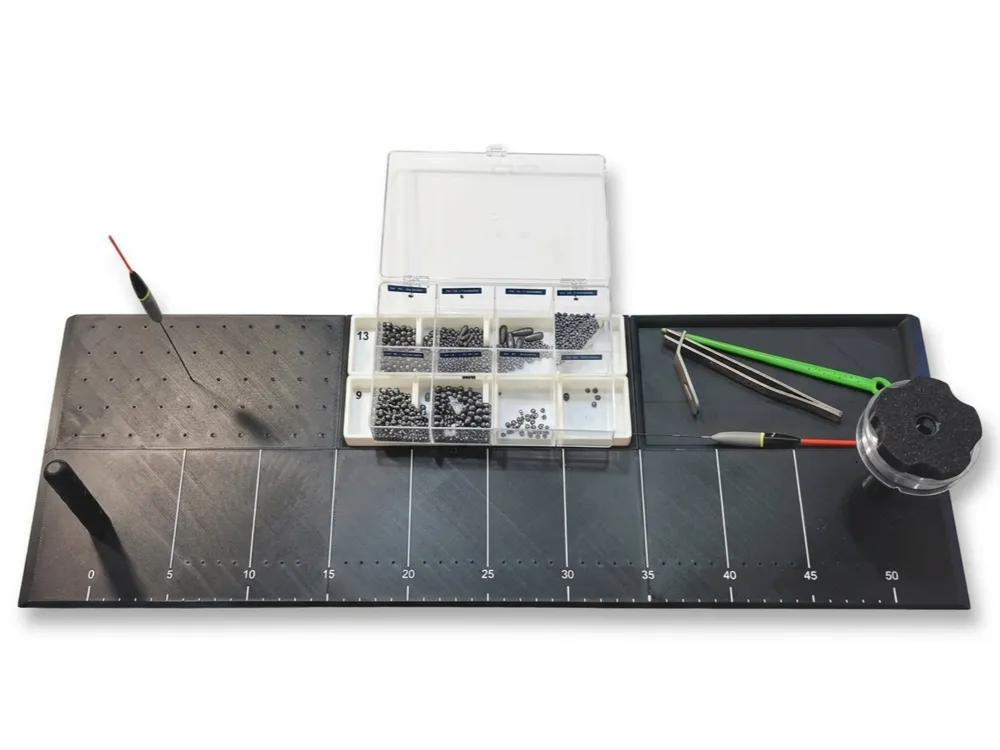

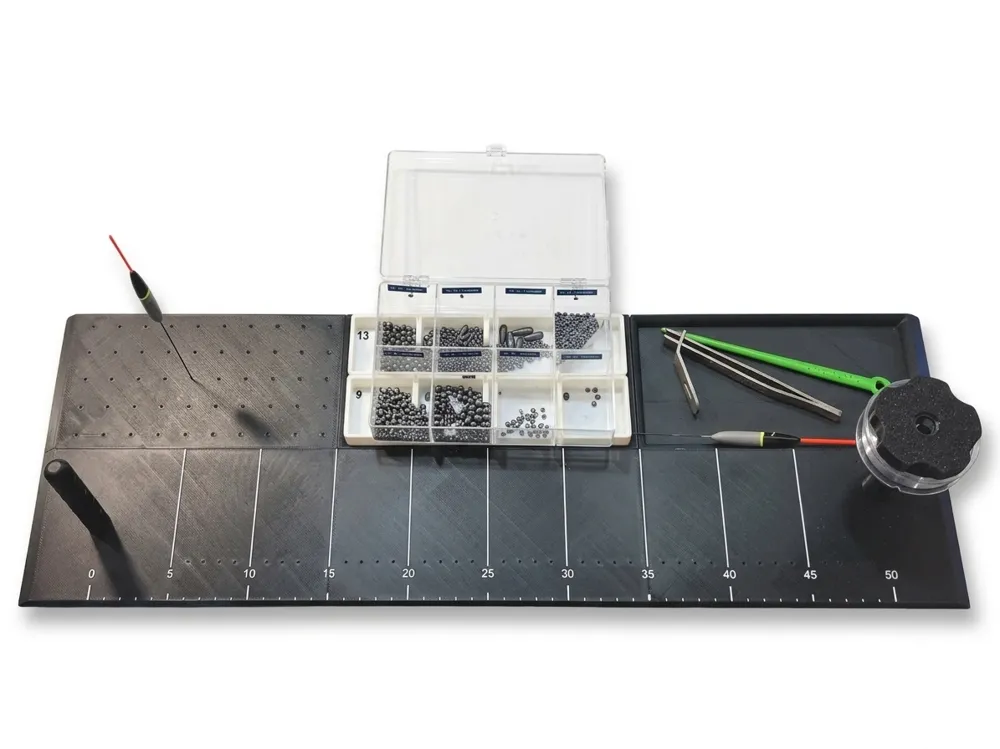

No more chaos with small parts! The integrated compartments and holders offer space for:

• Hooks & Swivels: Securely fixed for easy tying.



• Weights: Special recesses for split shots or tungsten weights.

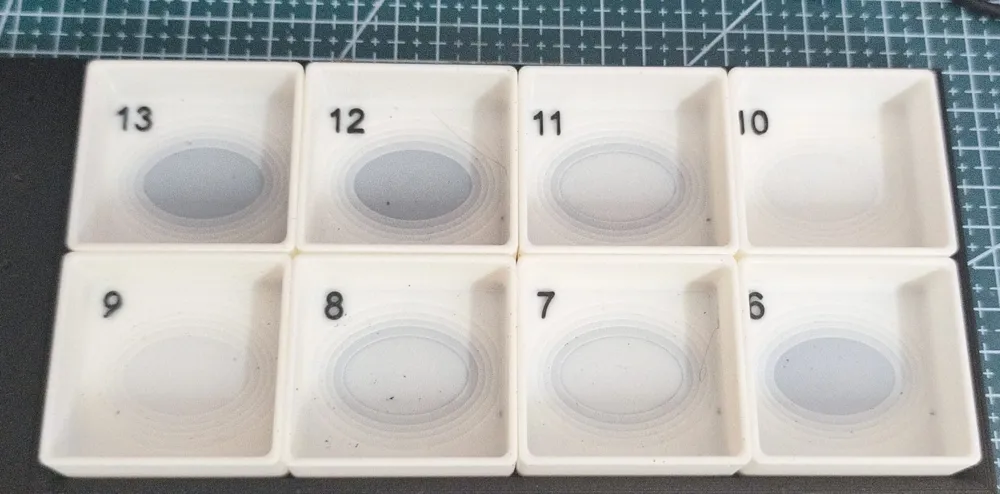

• Rubber pieces: Perfect organization for beads, stoppers, sleeves, and silicone tubes.



• Line Protection: All edges are rounded to prevent damage to monofilament or braided lines.





🖨️ Print Recommendations

The model is optimized for easy assembly with little post-processing:

💡 Tips for Makers

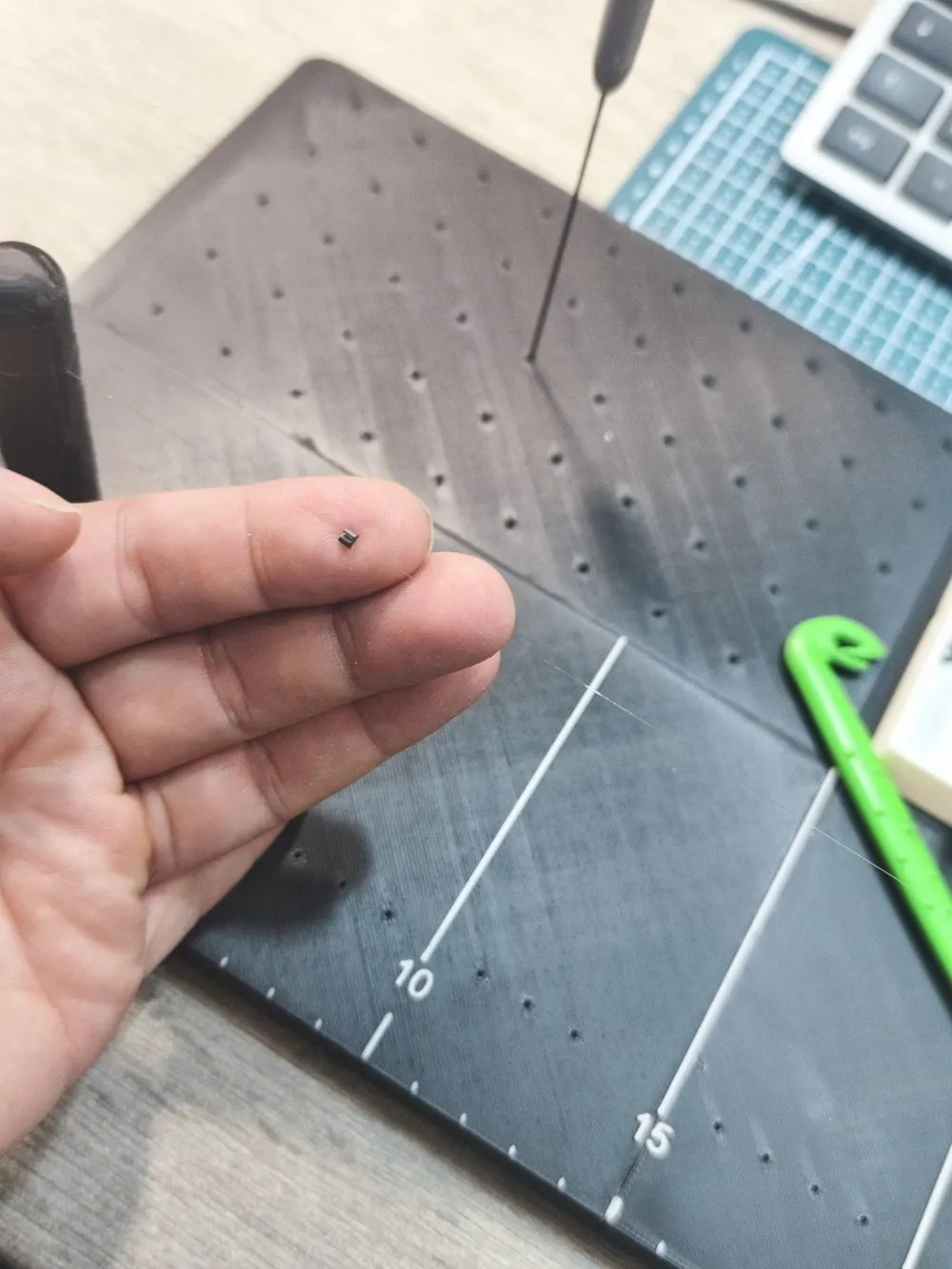

1. Assembly: A small drop of superglue in the magnet pockets permanently secures the 8x2mm magnets.



2. Modifier: Use a "Modifier Box" in your slicer to specifically set only the edge area to 100% infill and save material.



3. Video: Watch the attached video to see the easy handling and "snap-in" of the modules.

Good luck with fishing! 🐟

I look forward to your pictures (Makes) and feedback. If you like the Rig Board, feel free to leave a like or a subscription!
