Portable Tripod
Print Profile(1)
Description

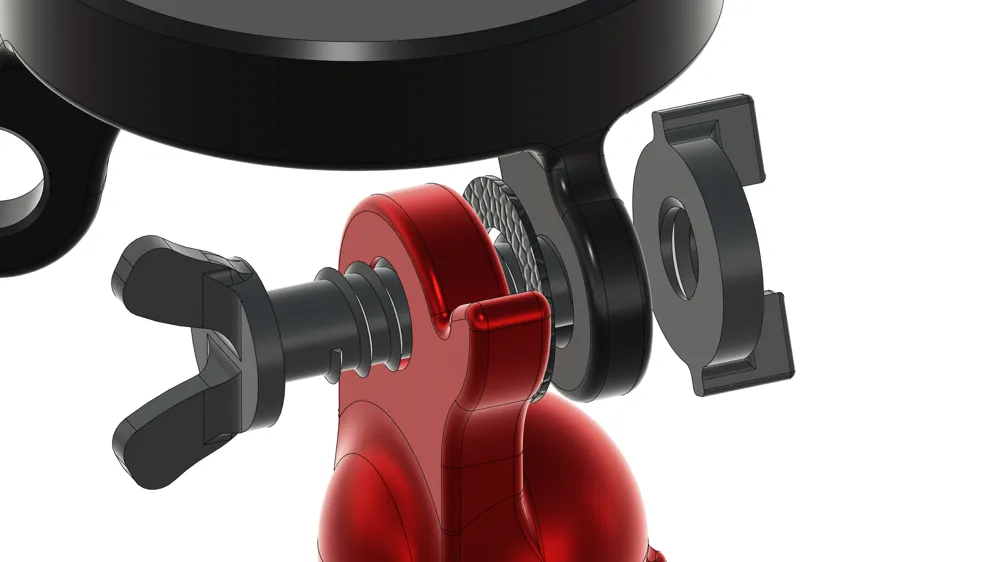

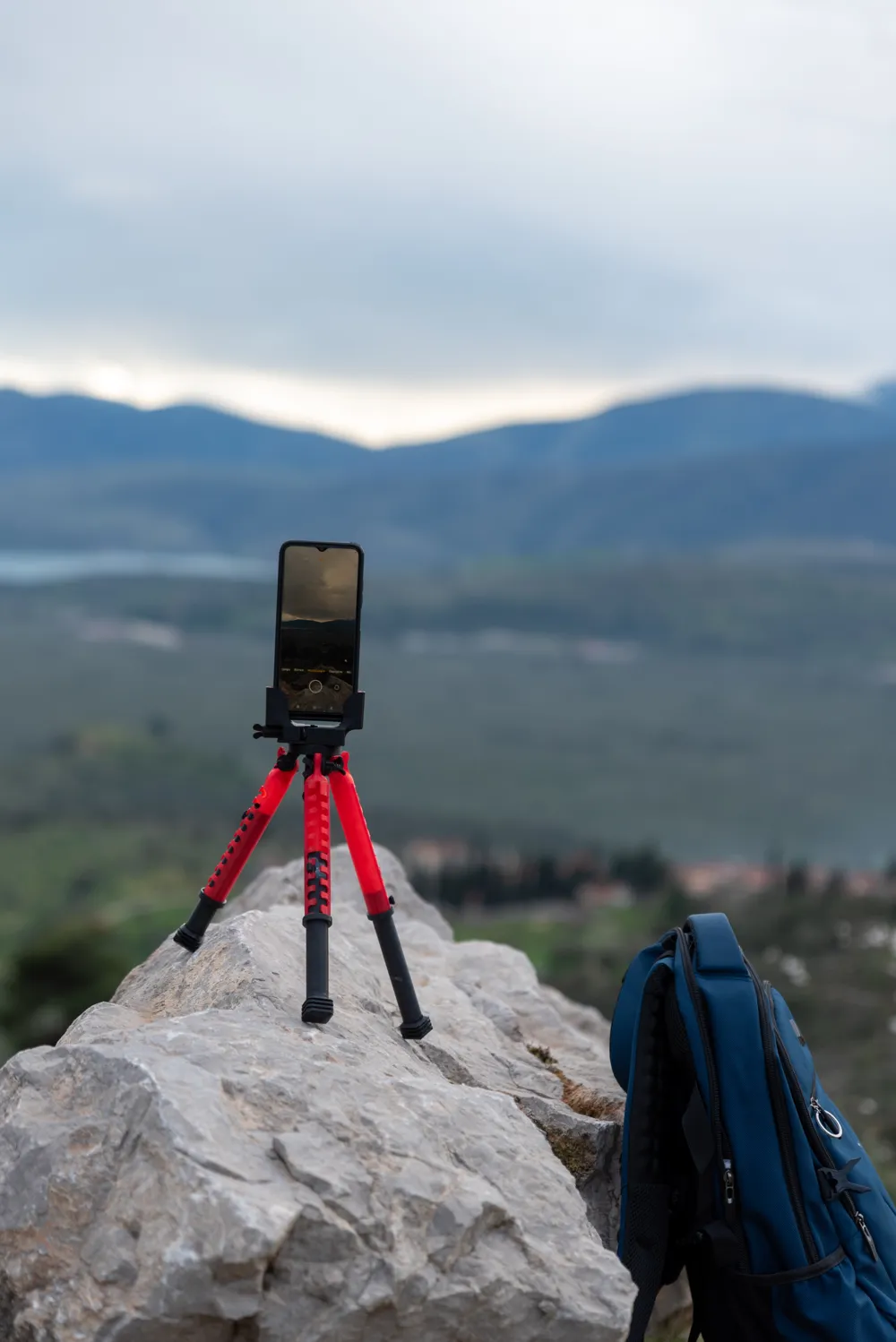

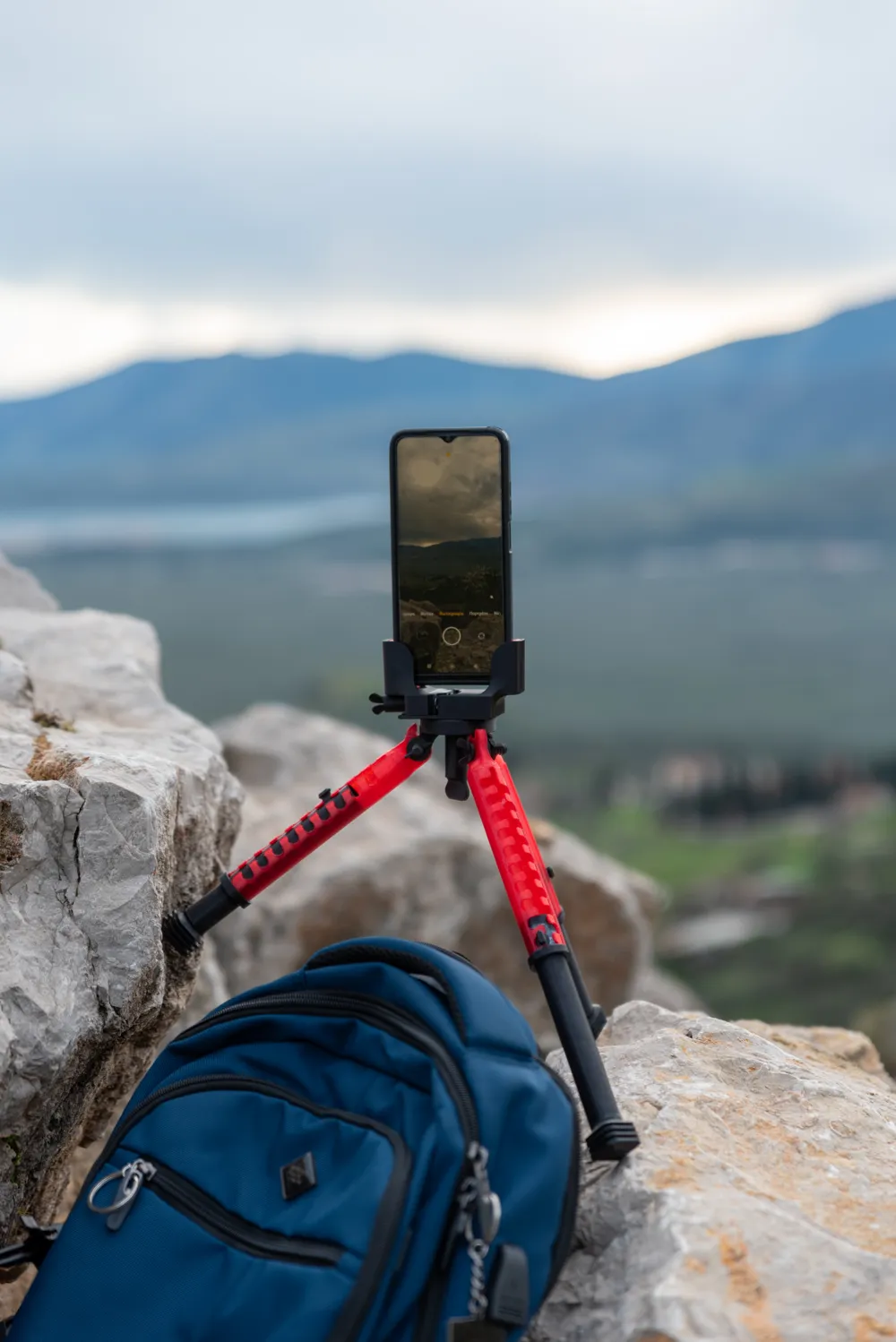

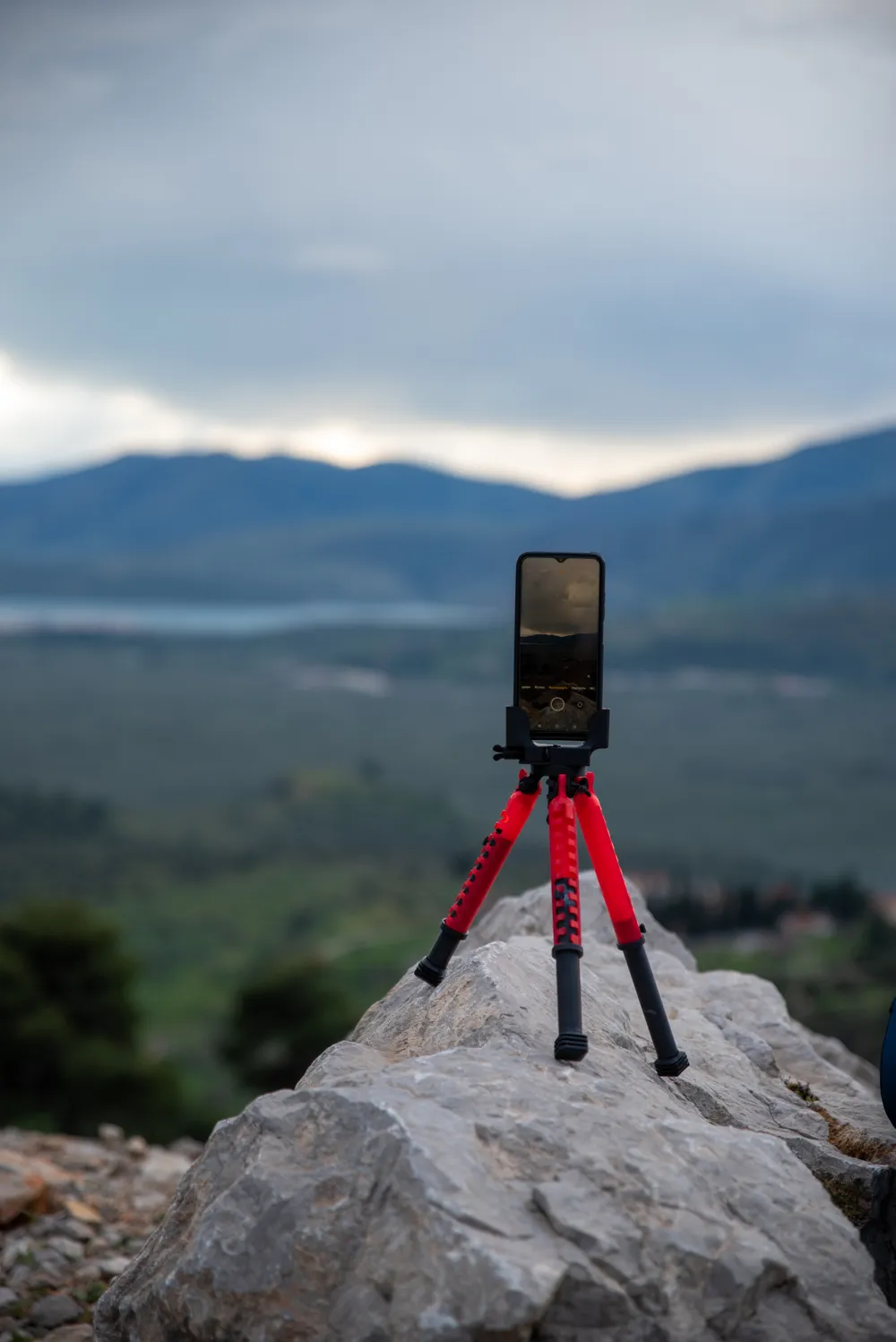

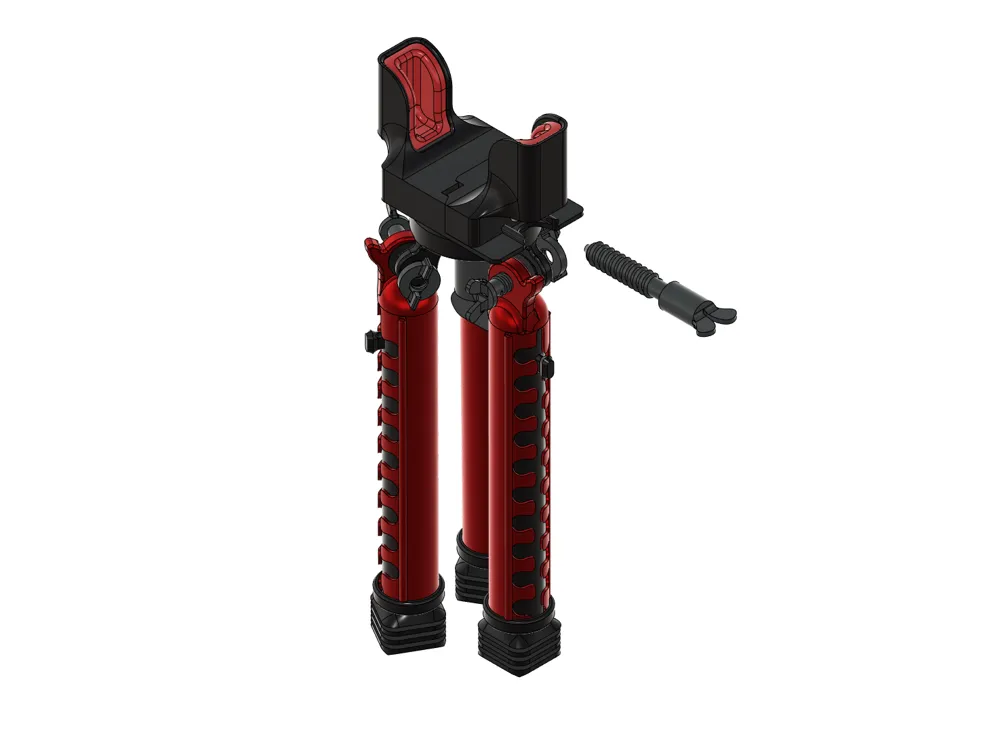

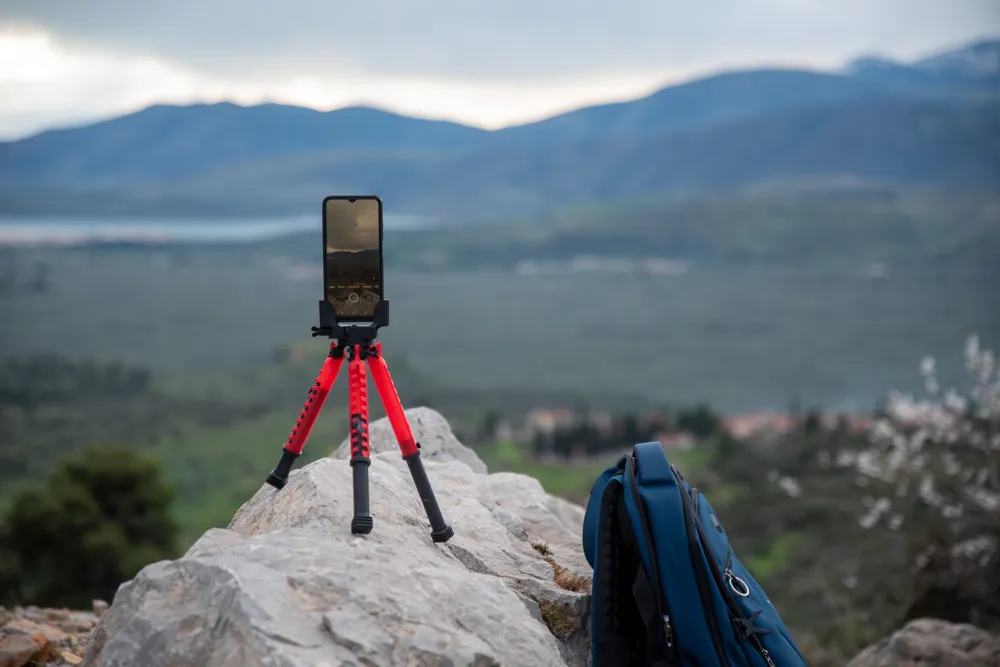

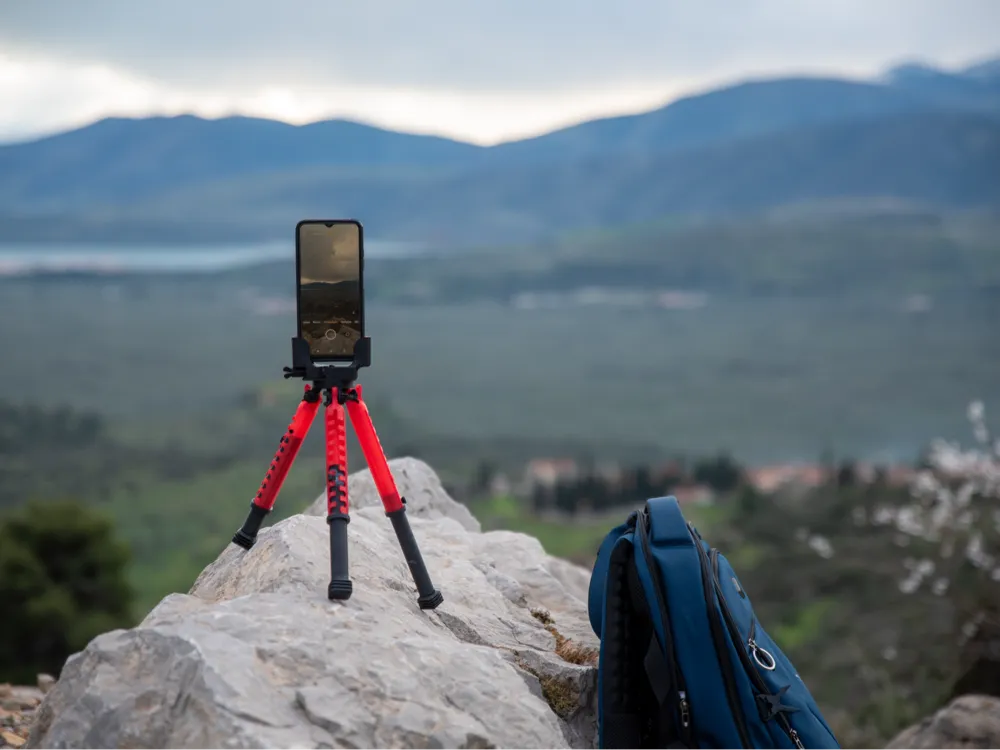

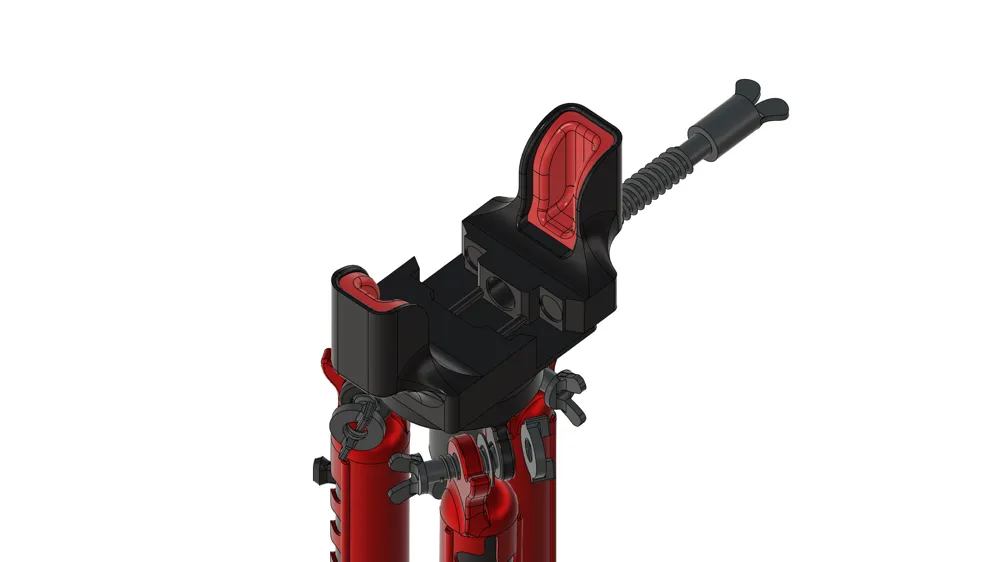

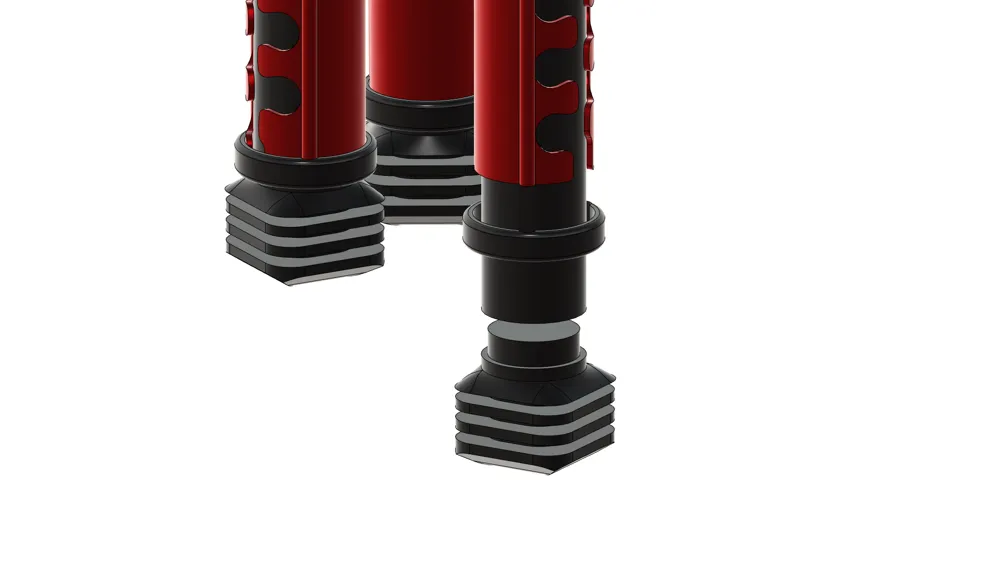

It's a portable tripod. Can be used and adjasted for any photografic terrain as shown in the picture. The height is adjusted by rotating and pulling the black legs down and locking them on the grooves. the legs open and get tightened from the 3 screws shown in the base and the TPU rolls add extra grip. Finally the bottom screw can be tightened locking the adaptor in the right horizontal angle.

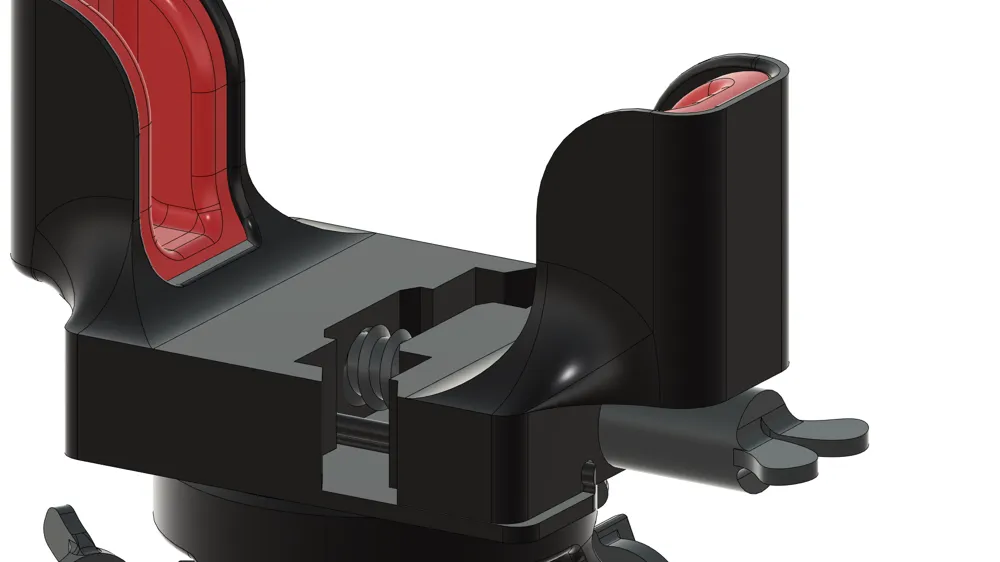

Extra parts needed: 2 x 8mm diameter springs to glue on the screwing part of the adaptor
Printing proccess:
(It's recommended to leave the parts with the orientation provided by the 3MF file)
Plate 1 : PLA CF black
Plate 2 : PLA black
Plate 3 : PLA red
Plate 4 : TPU black
Plate 5 : TPU red
Tip: For better support removal you can adjust the top z distance depending on your printer.
For Creality printers: 0.29mm
For Bambu printers: 0.25mm
