Mini Easter Diorama

Mini Easter Diorama

It's easter time so here is a cute and fun Easter Diorama that I designed that you can put together yourself and its quick to print, and A1 Mini friendly :-)

Profiles:

I have included 3 profiles:

• For the A1 Mini; Everything fits on 1 plate, single white version but if you want color you can copy painted parts from the AMS profile into the A1 Mini Profile.



• A Mono Profile For Other Models; Single white color parts that you can later paint as you wish.



• An AMS Profile; Painted parts per plate that can be printed in color as a whole (plates 1-8), or by object to save on purge waste and towers (plates 1, 4 & 9-16)

Printing:

Its important to have a clean bed plate, ideally textured for better adhesion of the small parts but the smooth plate works too, and I recommend keeping the brim and supports on where I have enabled them for better stability and adhesion.

Also a good calibrated printer is essential for good tolerance and fitting of parts, or you can use a craft knife carefully if some parts fit too tight.

If you have some liquid glue this will also help for better bed adhesion, although it is not required!

The A1 Mini and Mono Profiles are straight forward. I have set everything to white as a base for all parts so that they can be painted later.

You need to always print the Base (Plate 1) and the Fence (Plate 4) from the AMS profile, no matter if you chose to print by object or parts as a whole.

For the AMS profile, Plate 2 (Bunny), I have not painted the bunny eyes and mouth on purpose as otherwise this would require 5 colors that some people might not have.

If you do have more than 1 AMS unit, then you can paint the eyes and mouth in Bambu Studio before printing, otherwise you can use a fine black marker to color these in after, which is quick to do.

Post Print & Assembly:

If you decide to print by object to save on time and waste, some parts will require gluing with some super glue.

I also recommend using tweezers to put the small parts on easier.

Most parts will snap fit in tightly and won't require glue and these are, chick eyes, bunny eyes, nose and mouth, carrot stem in the carrot, flower stems will fit in the base snuggly in the holes provided).

All objects should fit on the base nicely with no glue required but you can add glue if you want to permanently leave them stuck on the base and not change their placement.

You can position the carrot, egg, chick, and bunny on any of the pins of the base as you wish, and even angle them, and same for the flowers.

The fence slots in the back and may require some glue, but I did not glue mine.

The rest of the parts will will need to be glued carefully and again this is where tweezers come in handy! :-)

For the egg I designed some flowers to attach on the egg so that it is not plain, but this is optional.

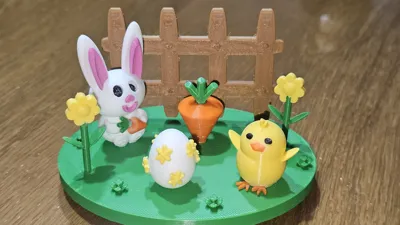

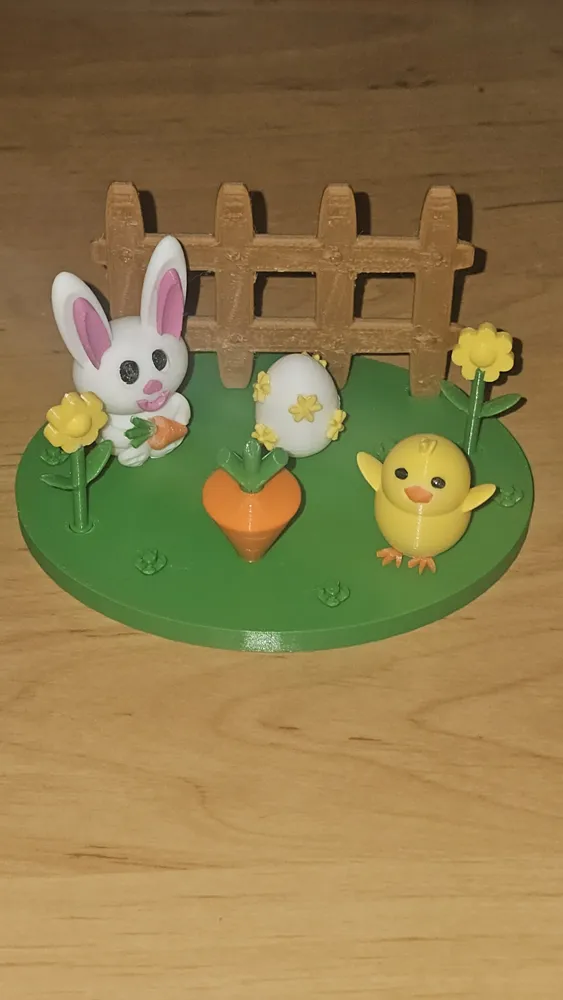

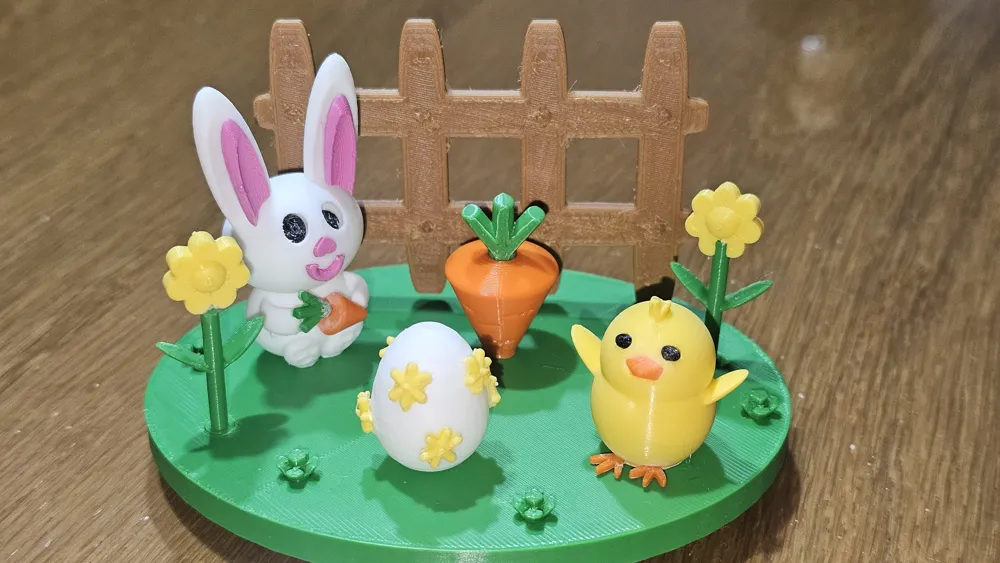

I have printed 2 sunflowers for my diorama as seen in the pictures but I have also included the tulip for variety if you like that better.

Happy printing and let me know what you think about this print and I hope you enjoy this cute little easter diorama!

Last but not least:

!! Please do not give this to young children due to the small parts that could be a choking hazard !!
