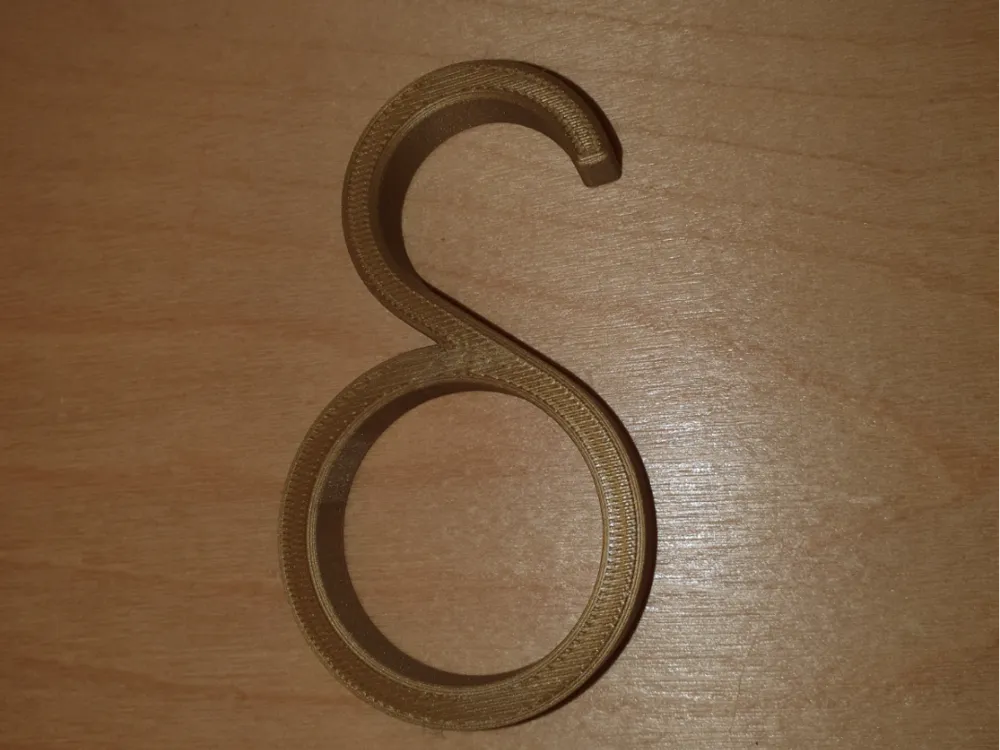

Customizable Eyelet-Hook (Link to customizable S-Hook https://makerworld.com/de/models/2509877-customizable-s-hook#profileId-2760028)
| Parameter | Unit | Description |
| hook_1_radius | mm | Radius of the Hook (middle of Body) min > body_thickness / 2 [decimals possible] |
| hook_1_angle | degree | Angle of the upper Hook Circle not possibel max = near 310 +/- depends on radius [270 always possibel] |
| eyelet_radius | mm | Radius of the Eyelet (middle of Body) min > body_thickness / 2 [decimals possible] |
| bridge_length | mm | Bridge between Hook and Eyelet min near 10 depends on eyelet radius [decimals possible] |
| body_thickness | mm | Body Thickness (on the plate) > body_rounding * 2 [decimals possible] |
| body_width | mm | Body Width (Z-Axis) > body_rounding * 2 [decimals possible] |
| body_rounding | mm | Rounding of all Edges > 0 and max < body_thickness / 2 and max < body_width / 2 [decimals possible] |
