Drafting Scale Tabs
Print Profile(2)
Description

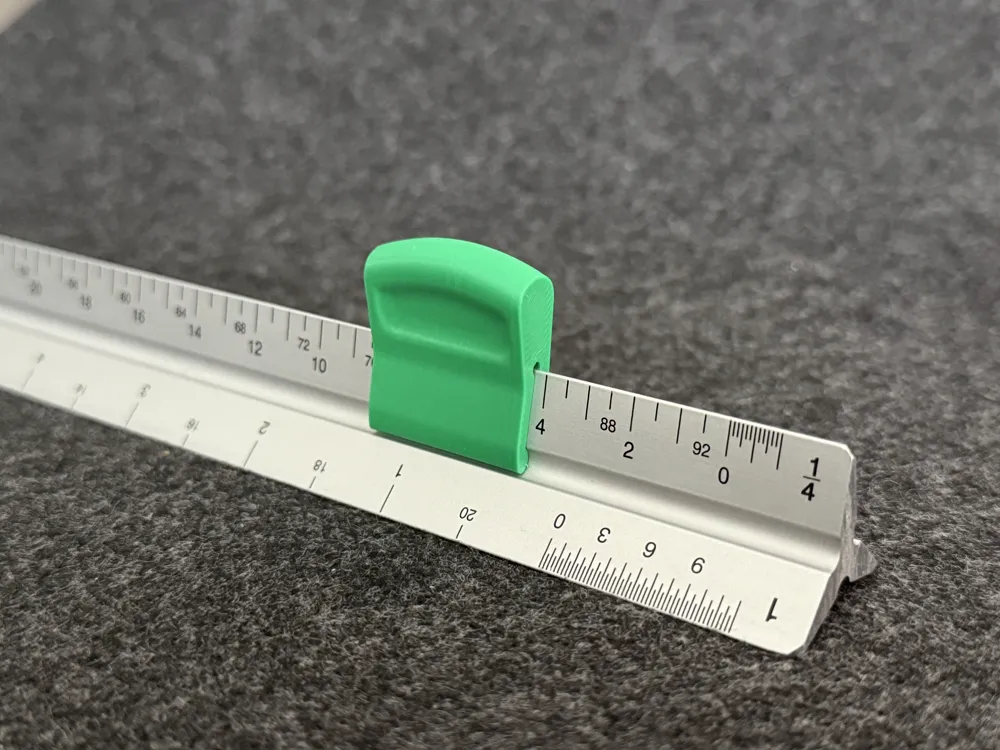

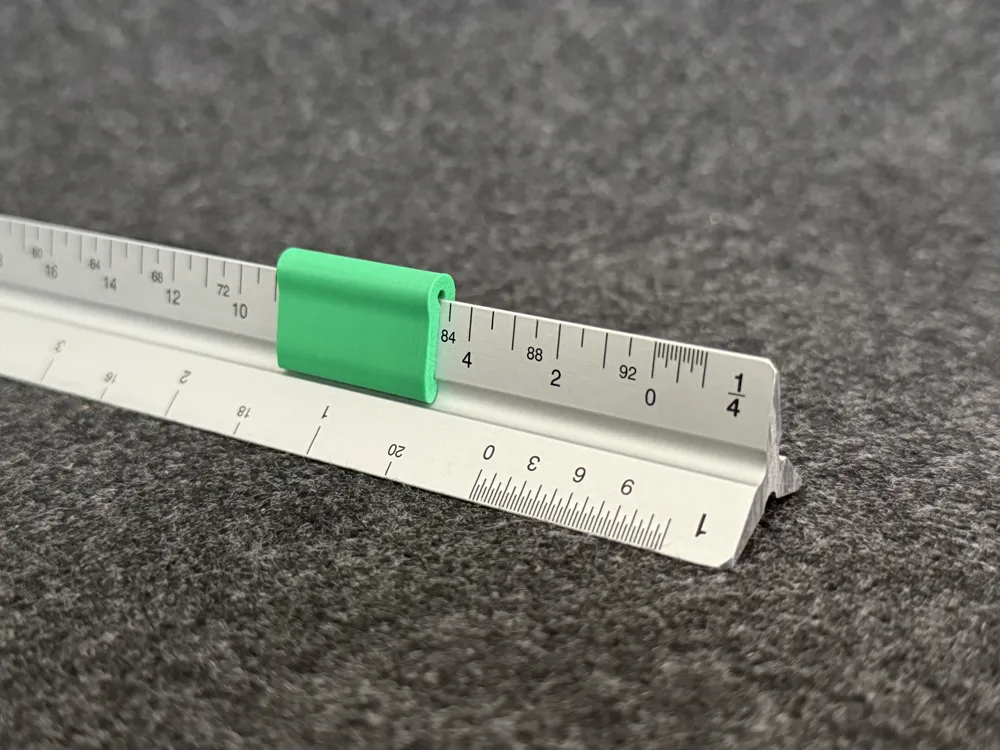

These scale tabs are clip-on accessories for standard triangular drafting scales. They attach to the upward-facing edge to improve handling and help maintain orientation of the scale while drawing. Two versions are included: a low-profile Simple tab and a larger Ergonomic tab with side indents for easier grip.
Key Features
- Clips onto standard triangular scale edges

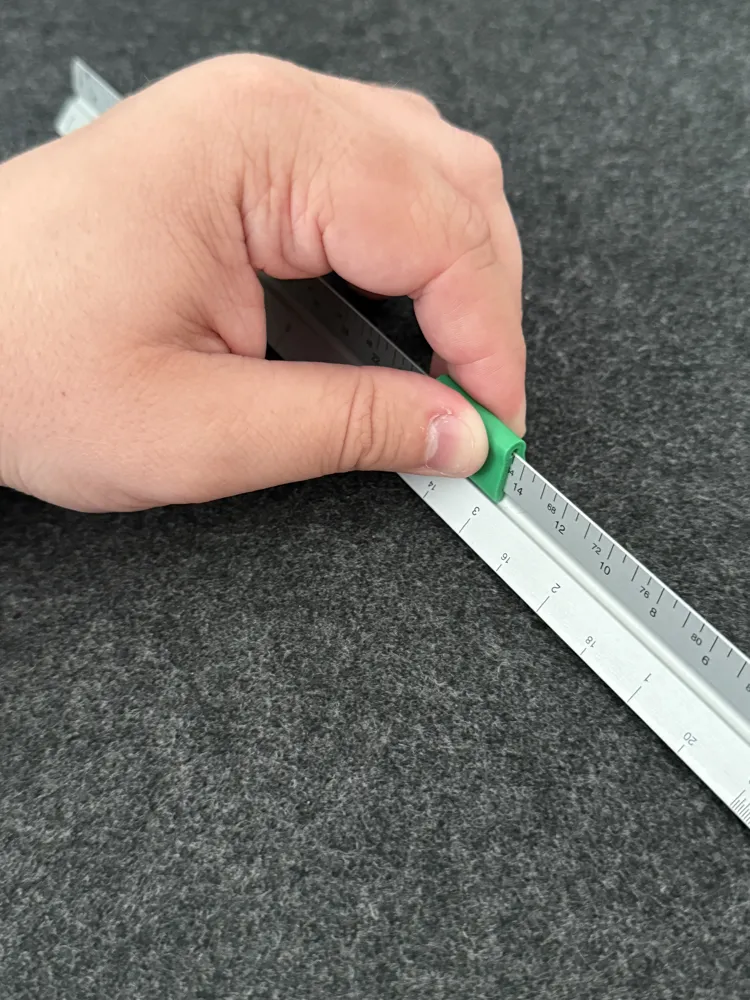

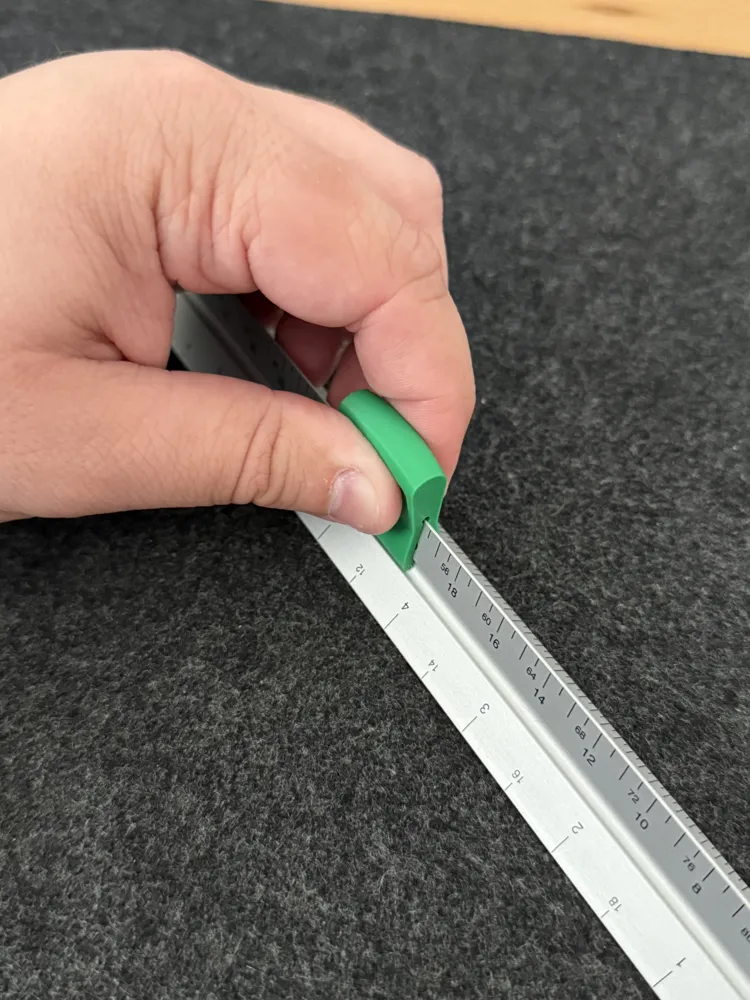

- Improves pickup and repositioning
- Helps keep you oriented to the scale you are using

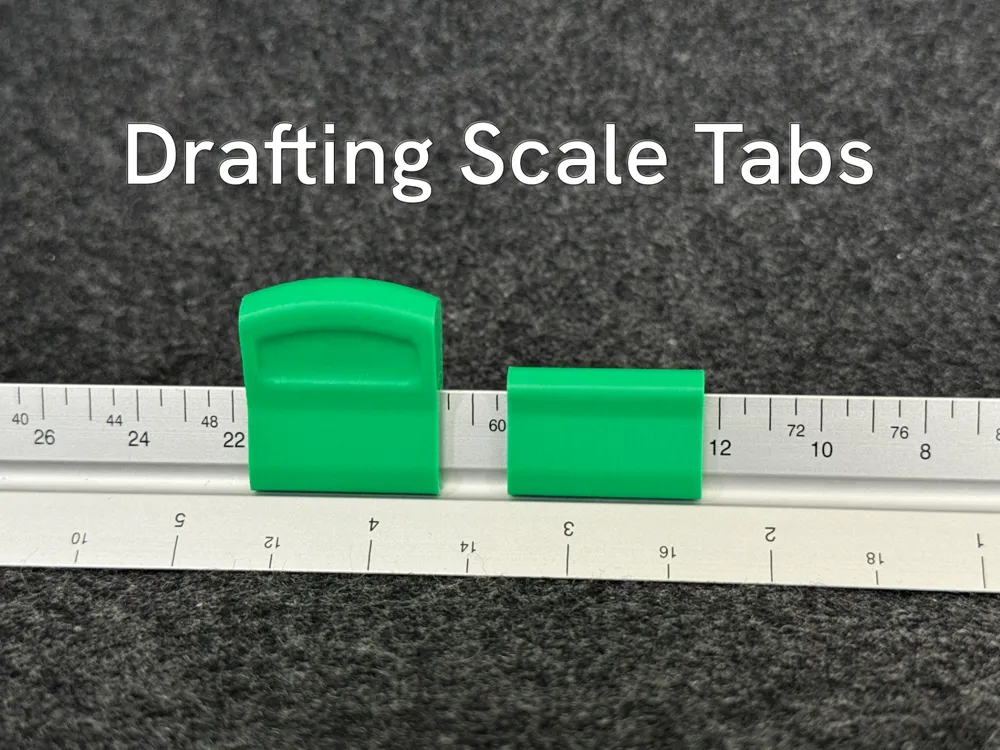

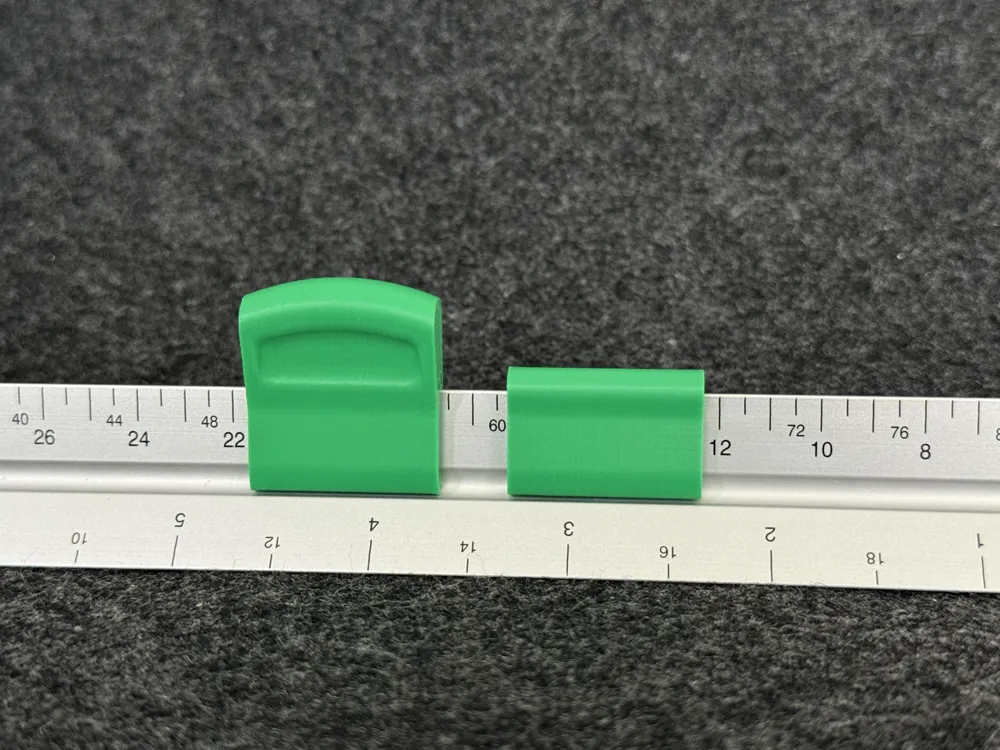

- Two variants: Simple (low profile) and Ergonomic (enhanced grip with side indents)
Print Information
- Approximate size (based on the larger, Ergonomic version): 14 mm x 29 mm x 25 mm
- Materials tested: PLA, PETG
- Printer tested: Bambu Lab X1C
