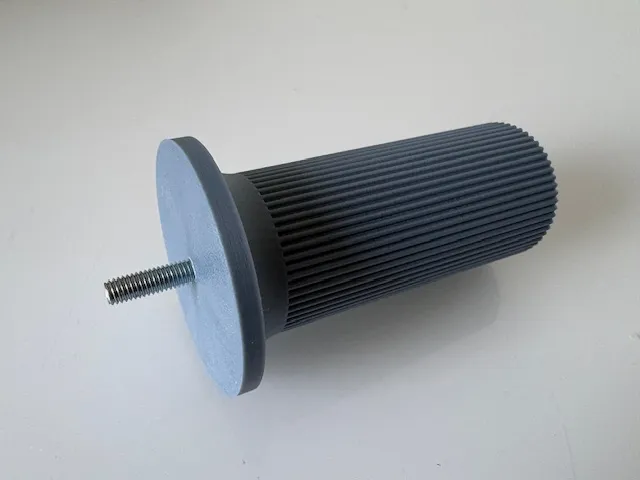

This 3D printed handle is designed as a sturdy grip for machines, fixtures, and DIY projects.
It features a round shape with a diameter of approximately 40 mm and a height of 95 mm. The textured surface provides a comfortable and secure grip, even during extended use or when wearing gloves.
The bottom includes a flat mounting surface for easy installation. Internally, a continuous channel allows a hex bolt to pass completely through the handle and the workpiece. The bolt can then be secured on the opposite side using a nut, ensuring a strong and reliable connection.
Alternatively, the handle can also be used with a threaded rod and matching nuts, providing another flexible and stable mounting option.
Multiple versions or mounting plates are available for different screw sizes ranging from M6 to M12, making the handle adaptable to various applications.
Thanks to its solid design, the handle is suitable for everyday mechanical use and performs well under load.
Features:
- Diameter: approx. 40 mm
- Height: approx. 95 mm
- Through-hole for hex bolt mounting
- Compatible with threaded rods and nuts
- Secured with a nut on the opposite side
- Variants for screw sizes from M6 to M12
- Textured surface for improved grip
- Flat mounting base
- Durable and practical design
