Infinity Blast Template
Print Profile(1)
Description

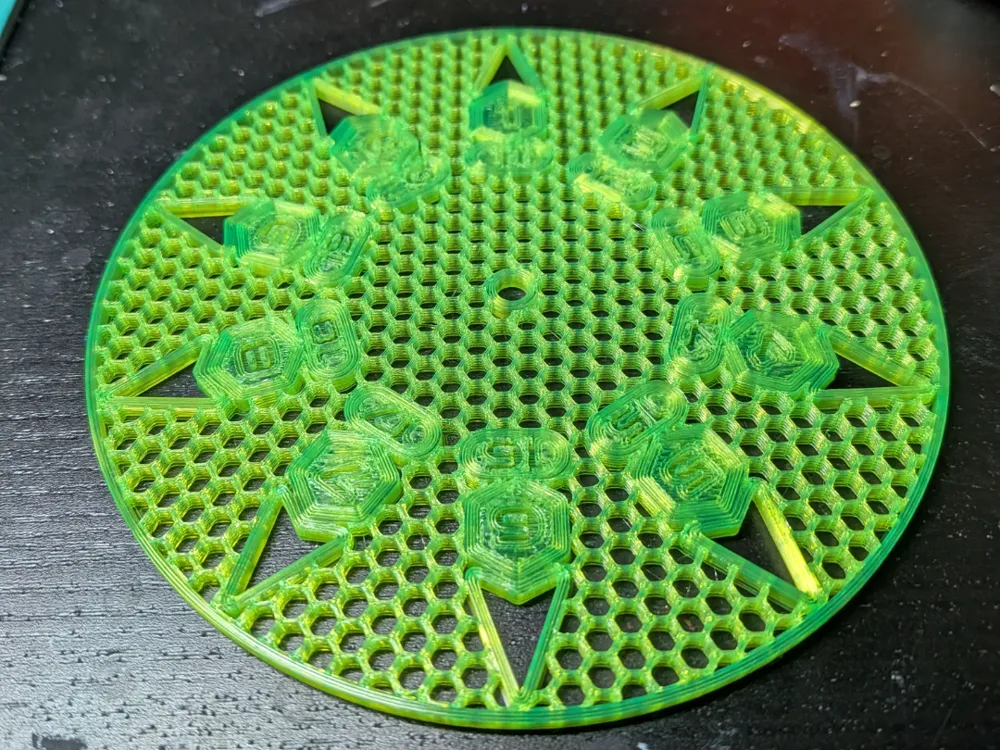

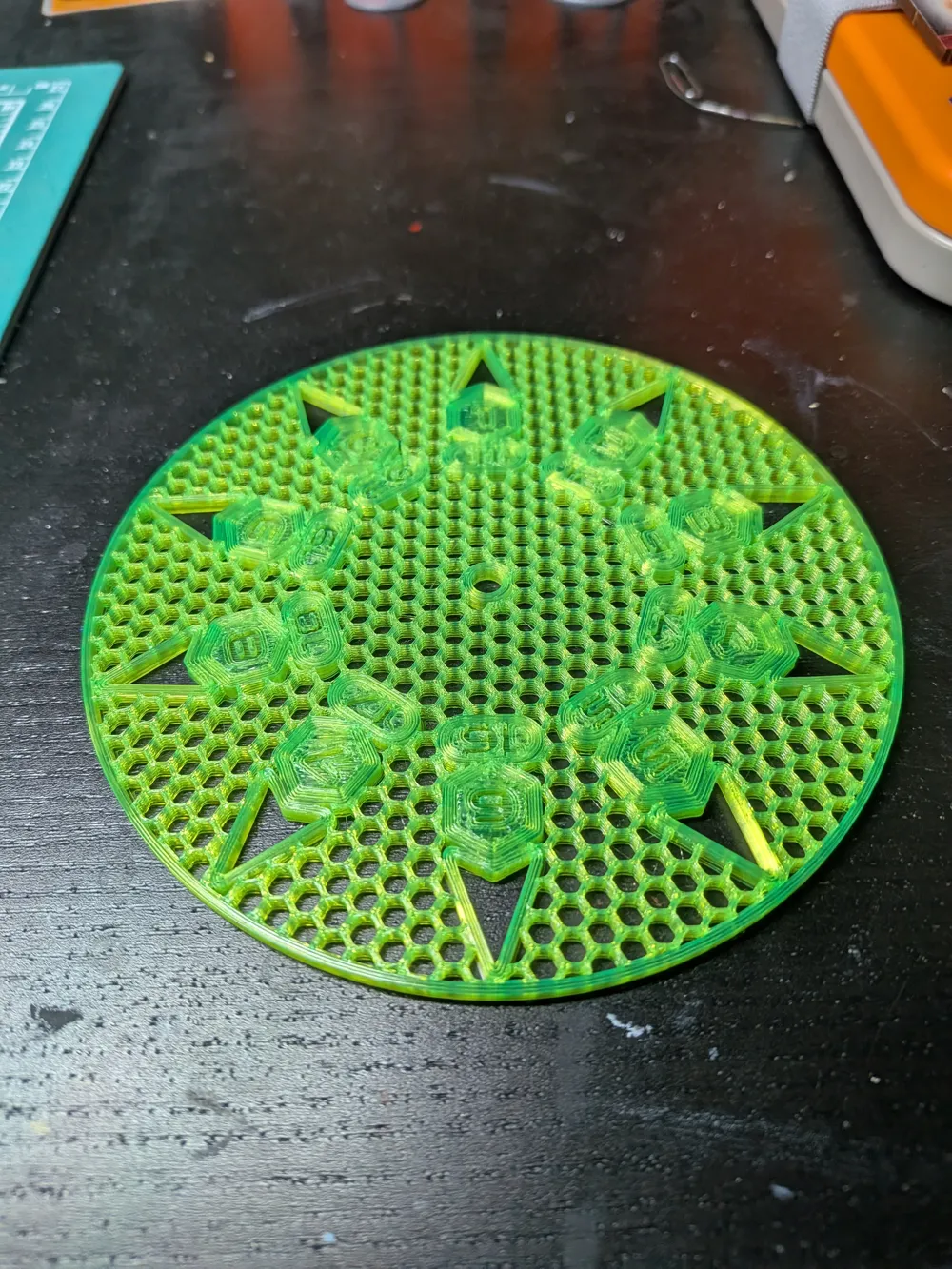

Blast/Smoke Template for Infinity by Corvus Belli
120mm Round template
10 evenly-spaced directional markings with numbers
Printing (for hex pattern and translucent filament)
I created this as 2 parts to let the slicer handle the creation of the hex pattern. The ‘Shell’ is actually solid geometry. Import both and when asked if you want it to be a single model with multiple parts, select Yes. You will then need to set the following setting for each part:
Shell
- Wall Loops: 3
- Top Shell Layers: 0
- Bottom Shell Layers: 0
- Sparse Infill Density: 20%
- Sparse Infill Pattern: Honeycomb
- Maximum Length of Sparse Infill Anchor: 0
Numbers
- Wall Loops: 1
- Top Shell Layers: 0
- Bottom Shell Layers: 0
- Sparse Infill Density: 100%
- Sparse Infill Pattern: Aligned Rectilinear
Obviously You can print it however you want. I just think this looks really nice!
