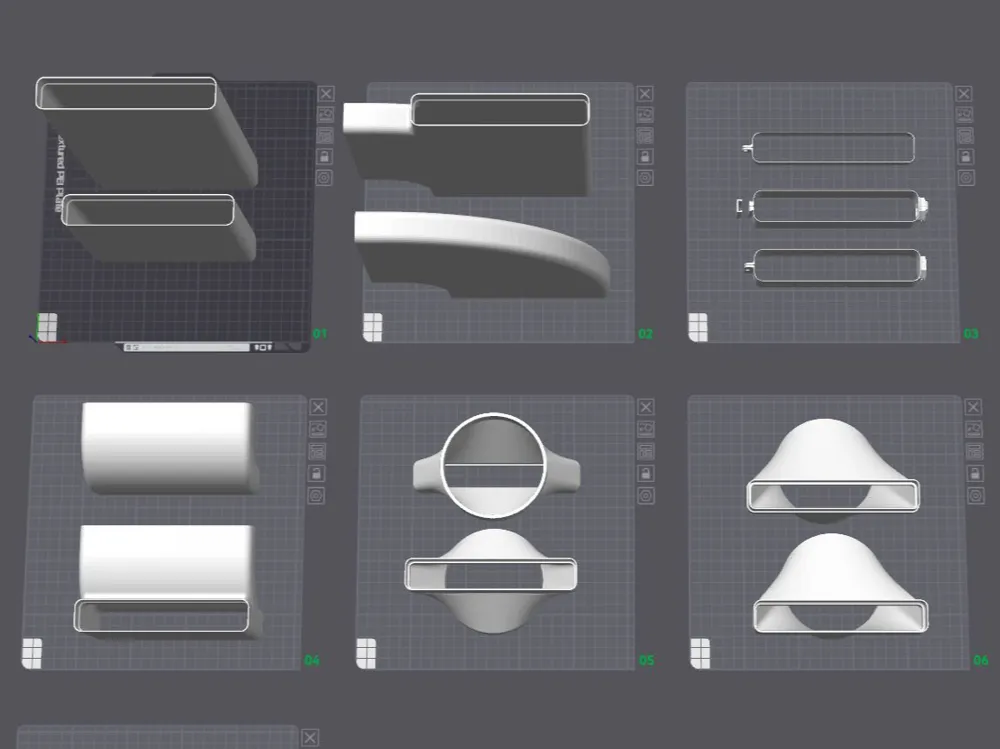

7 plates

Open in Bambu Studio

Boost

Released

Description

Flat Ventilation Duct System – Modular DIY Duct Parts

This listing includes a modular set of flat duct parts for custom ventilation systems.

The set includes a range of parts to help build and route a flat duct setup, including turns, connector adapters, and mounts. It’s designed for makers who need a compact and customizable ventilation solution for workshops, enclosures, filtration systems, or other DIY airflow projects.

Includes

Flat duct parts
Turn pieces
Connector / adapter parts
Mounting parts

Please note

Performance depends on print quality, sealing, and your setup

vent

ventilation

ventilation accessory

ventilation adapter

ventilation adaptor

ducts

Comment & Rating (5)

@PDLegend

I was just going to try to figure out how to design this exact stuff! Awesome print..How did you make these? Is there a way to change the size? I need to make duct work to route A/C vents through a drop ceiling in my basement..

The designer has replied

@3dkeycap

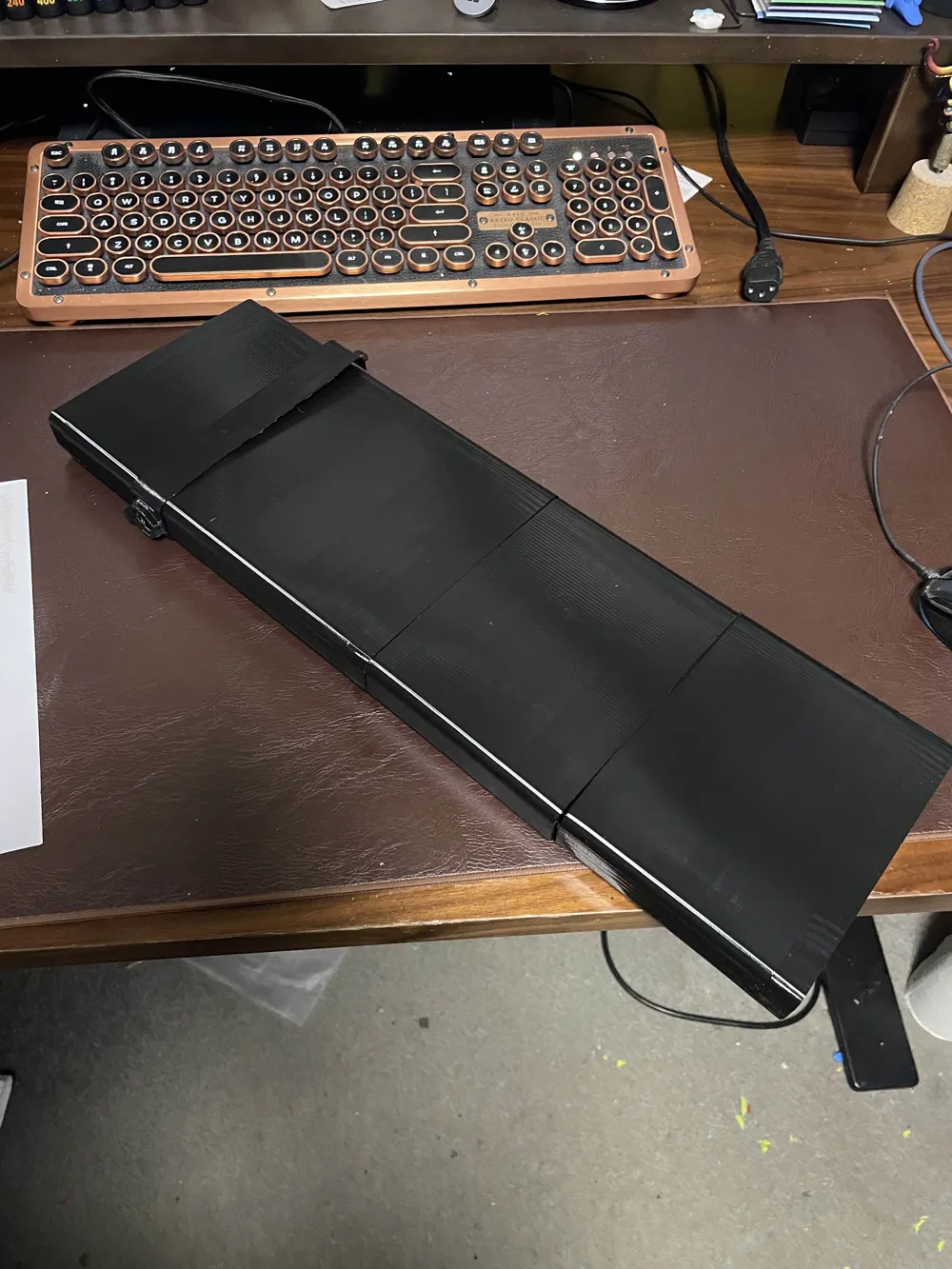

thanks! I designed these from scratch, for a fellow youtuber. He printed them and installed them at his place. waiting on his pictures and videos to share them on this listing. In the meantime, his feedback is that tye printed well and fit together. If you need a specific part, please do a hand drawing with measurements and I could very likely create more parts/adapters when I have some time.

@PDLegend

Replying to @3dkeycap :

Thanks...I need to get to this project soon with the warm weather coming. I am going to print a couple of these the way they are on the plate and also modifying one just a little bigger to see how they work. I'll let you know how it goes...

@user_2885657054

I tried to print a larger bow, unfortunately the walls are far too thin, so they probably wobble during printing and the filament is simply poured next to it. Whereas the sides are far too massive. roughly 4cm vs 2mm wall or material thickness. Very sad :( maybe someone can correctly modify the objects

Show original

@redline7500

The print profile is no longer public
