7" Raspberry Pi Display Case with Mounting Options
Print Profile(2)
Bill of Materials
Description
A case for a generic 7-inch display for the Raspberry Pi (example module: https://de.aliexpress.com/item/1005006739026067.html).

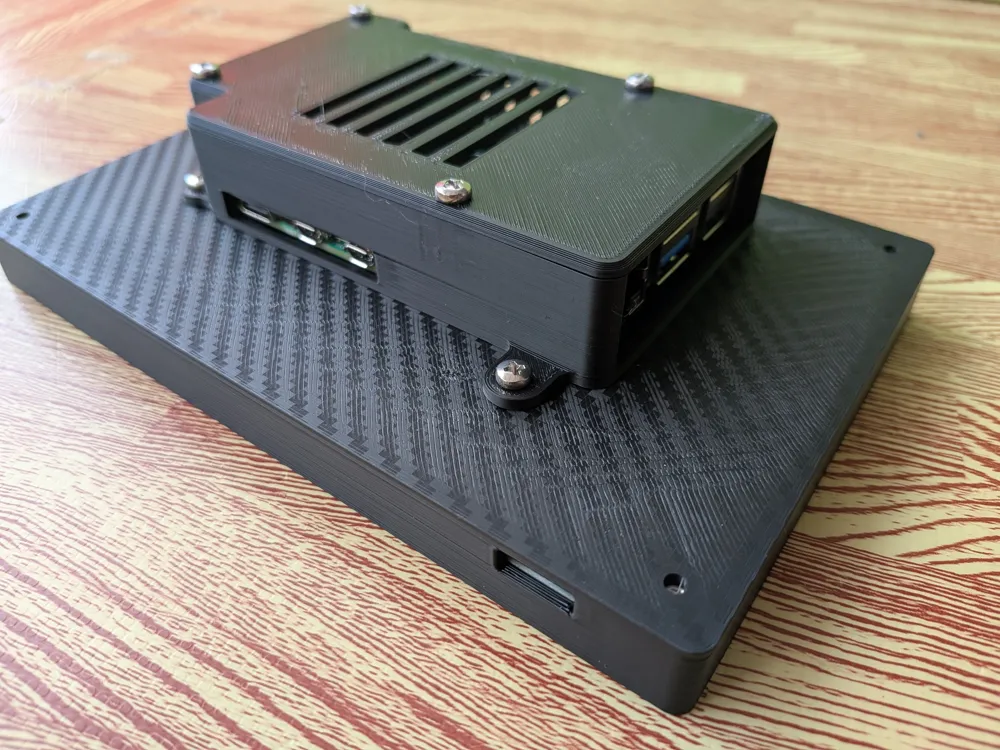

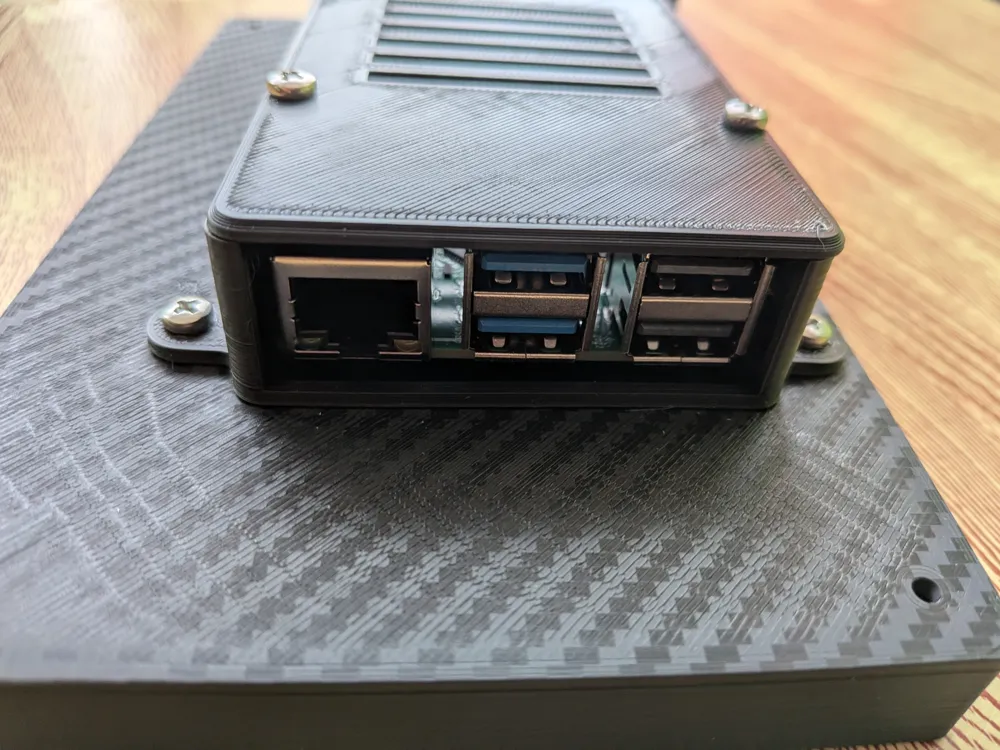

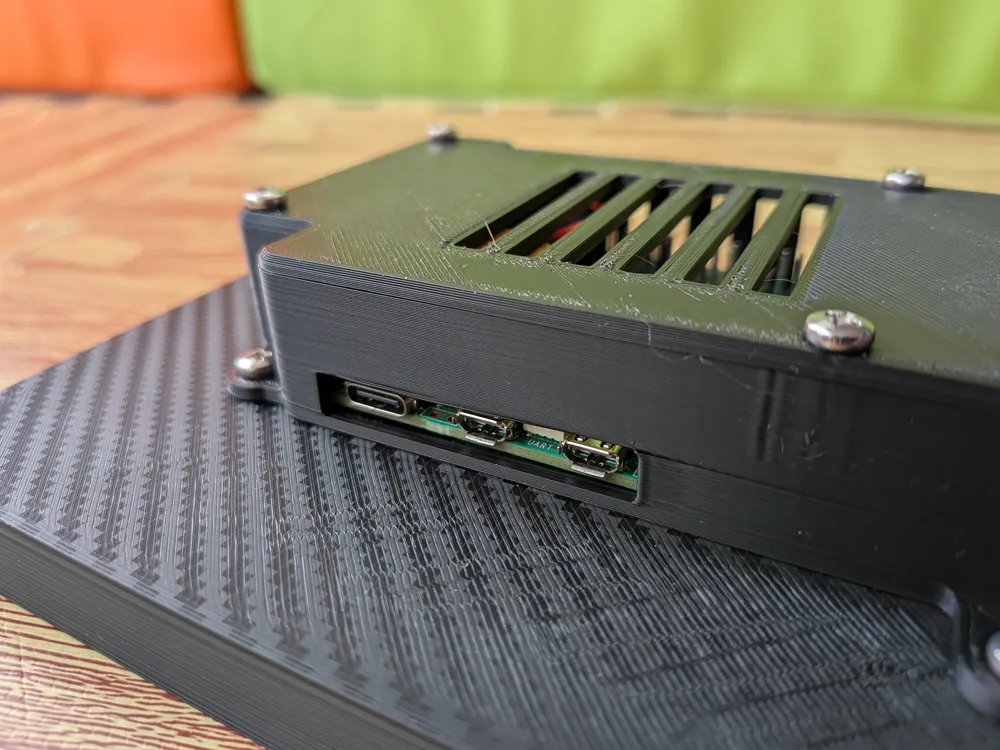

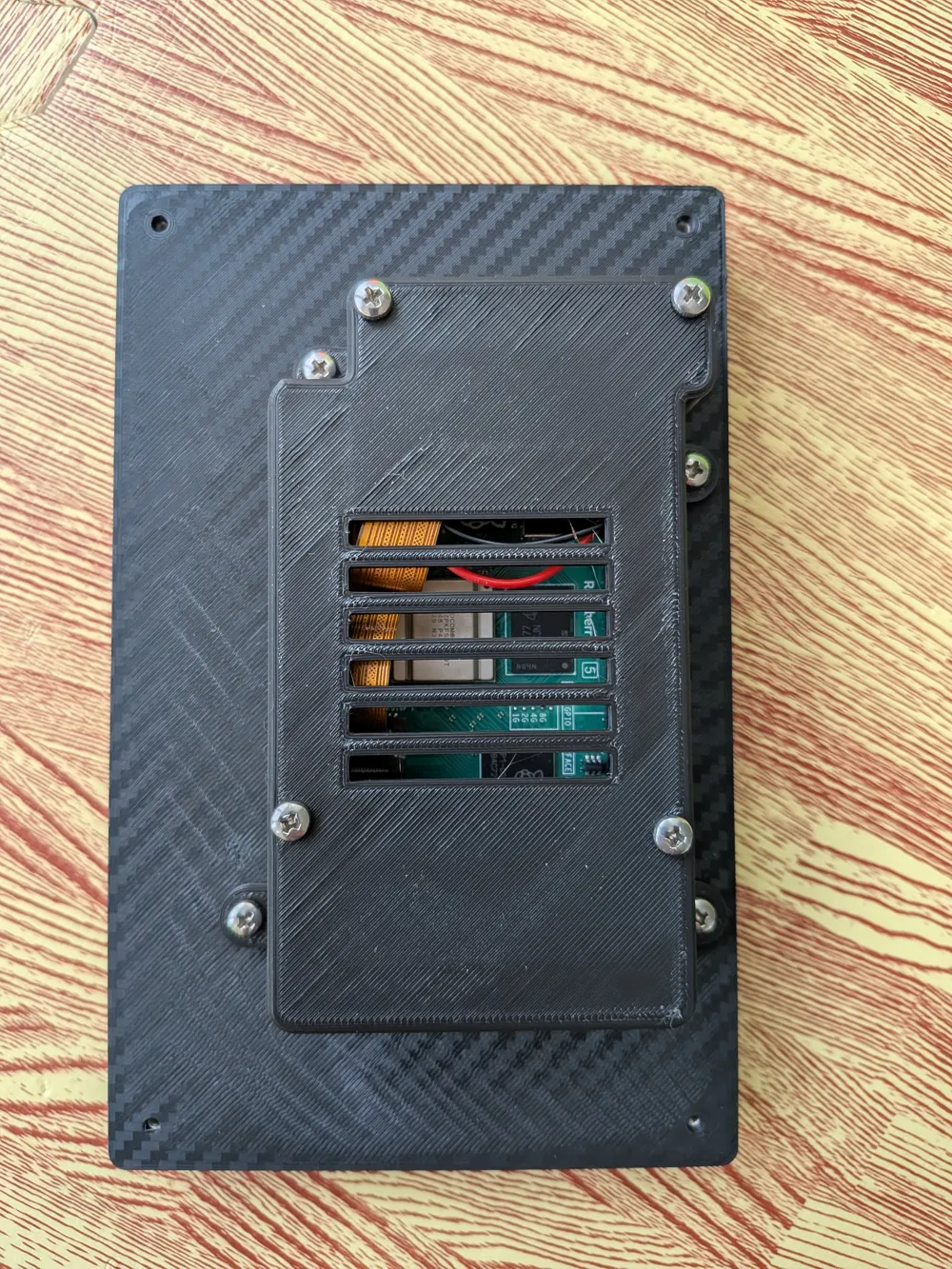

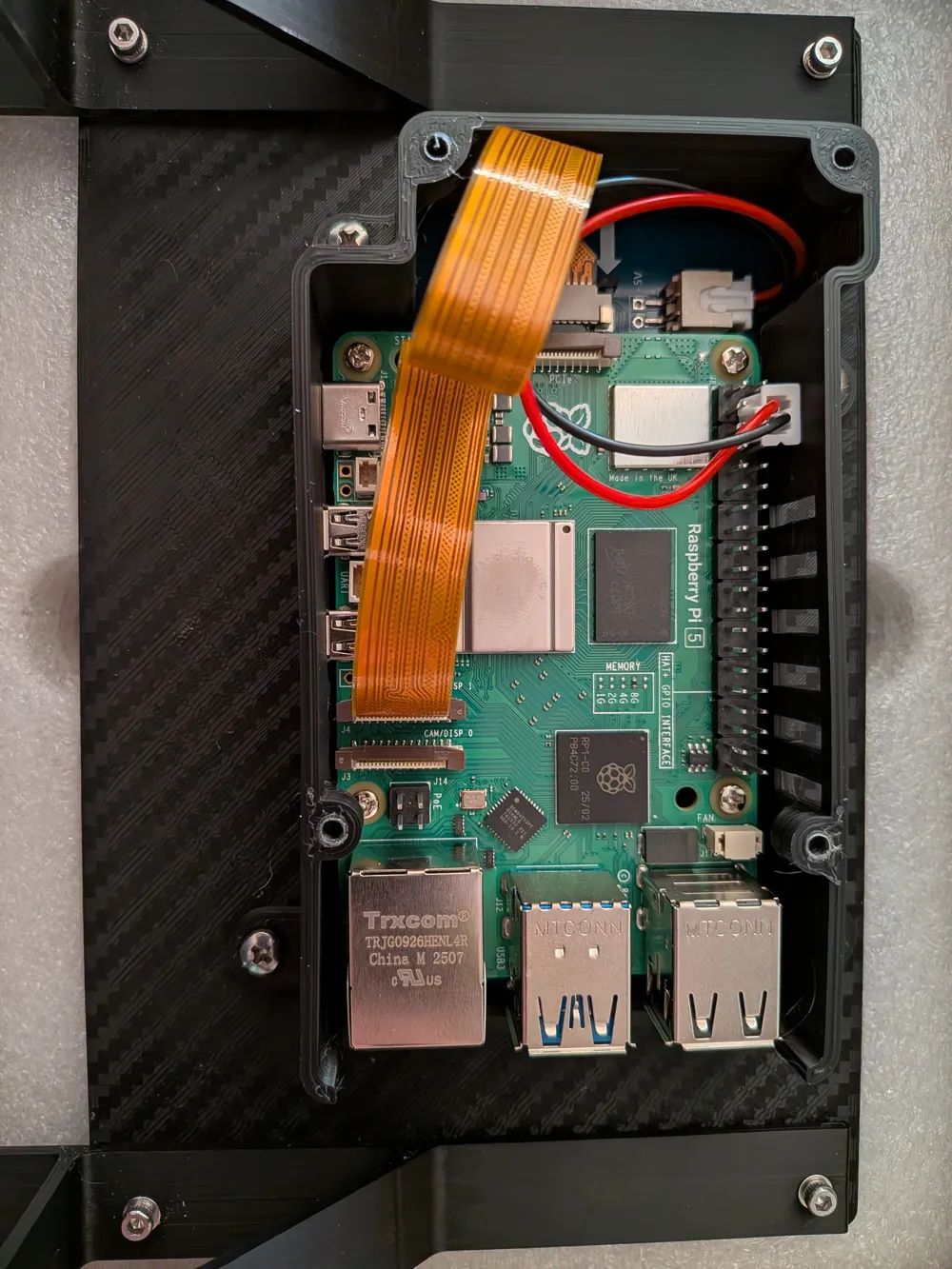

The Raspberry Pi is mounted on the back of the display, and the Pi enclosure is designed for a Raspberry Pi 5.
The display housing allows different mounting brackets to be attached on the back.
Included options:

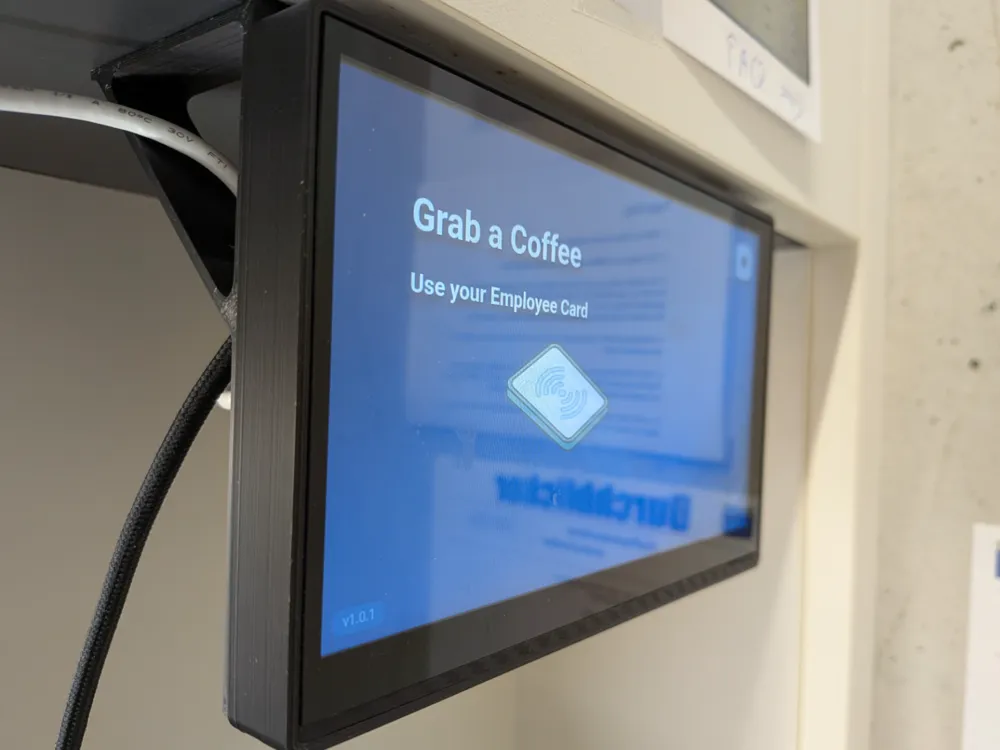

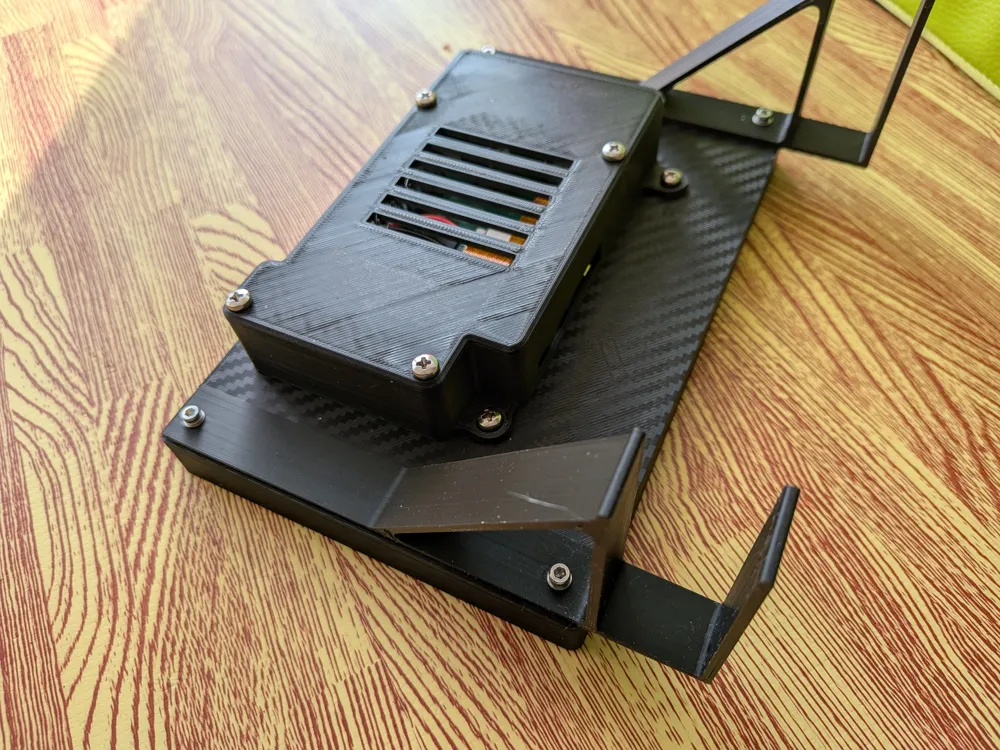

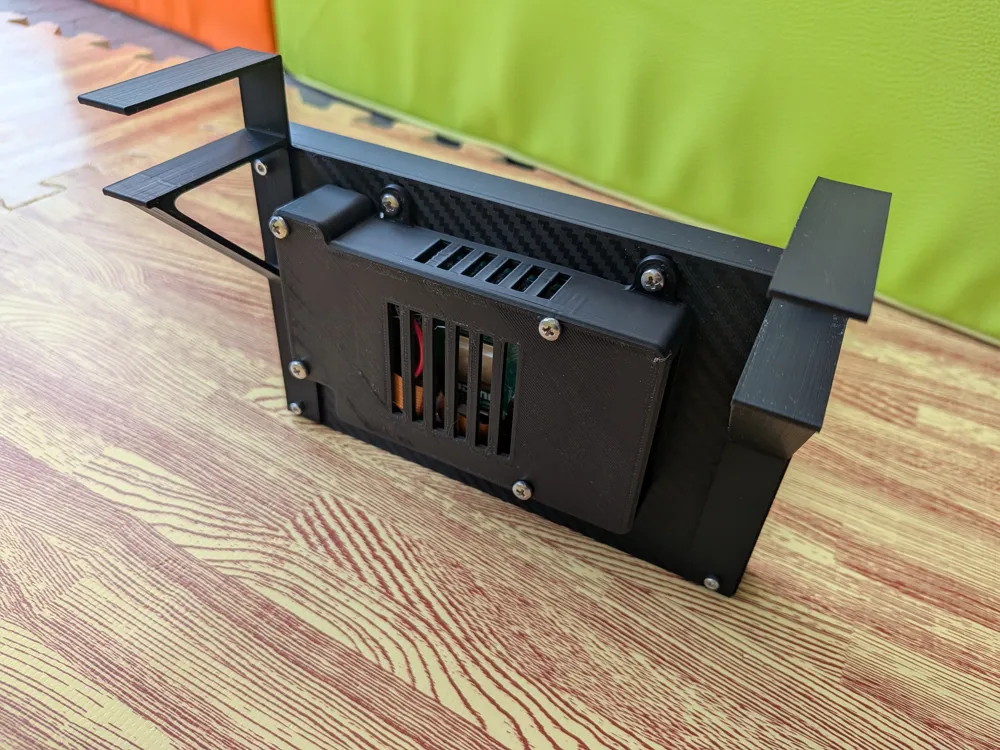

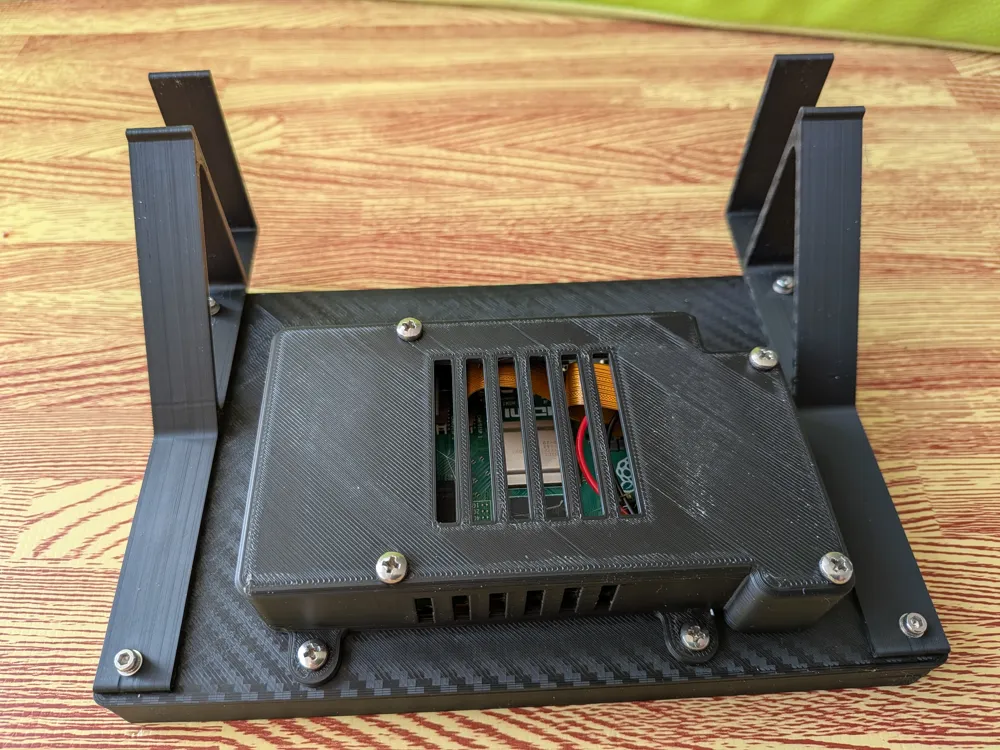

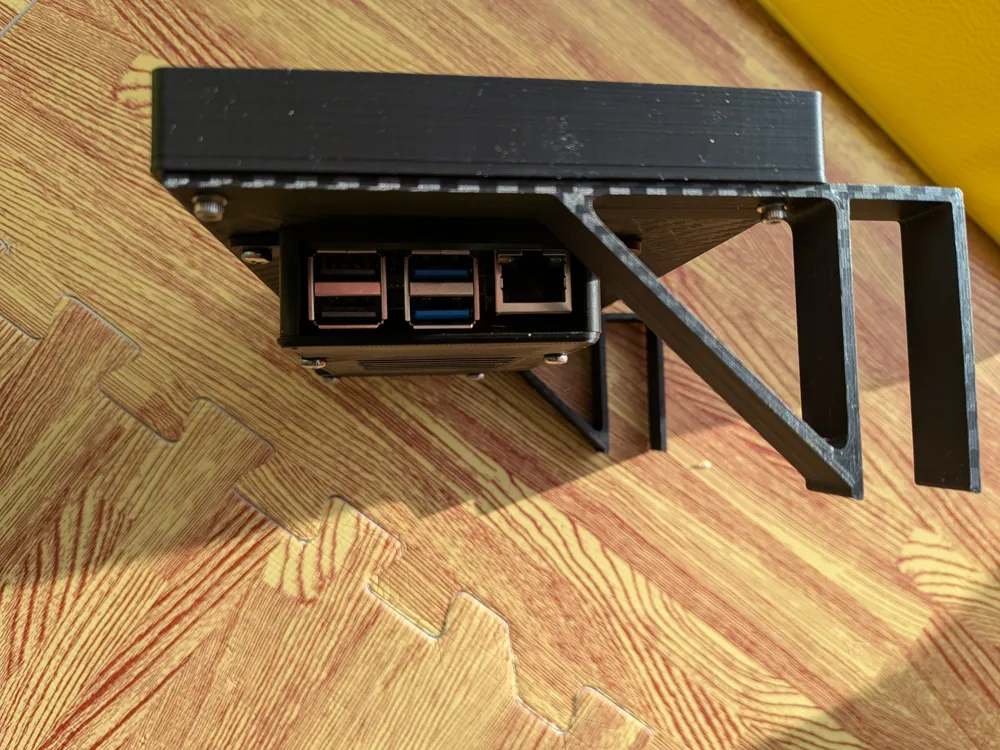

- Shelf mount – tested on a 20 mm board/shelf
- Desk stand – designed but not tested - tell me if it works for you
- Wall mount – designed but not tested (see separate print profile) - tell me if it works for you
The Raspberry Pi case is mounted using M3 heat-set inserts, although it should also be possible to screw directly into the plastic.
If needed, I can provide a version optimized for that — just contact me.
Additional hardware details:
- Raspberry Pi case lid: screwed directly into the plastic
- Mounting brackets / display housing: M2.5 screws
