Modular Stackable Multi-purpose Rectangular Organizer

Modular Stackable Multi-purpose Rectangular Organizer V1 2026

Continuing with my collection of models focused on shelf or cabinet organizers, a new model arrives. It consists of organizing containers vertically, allowing easy access to their contents.

 Features:

• Design.- Its rectangular design distributes the weight of the upper containers, preventing cracks between the walls. It also allows efficient use of the surface where it is placed.
• Variants.- The model has two variants, which are:

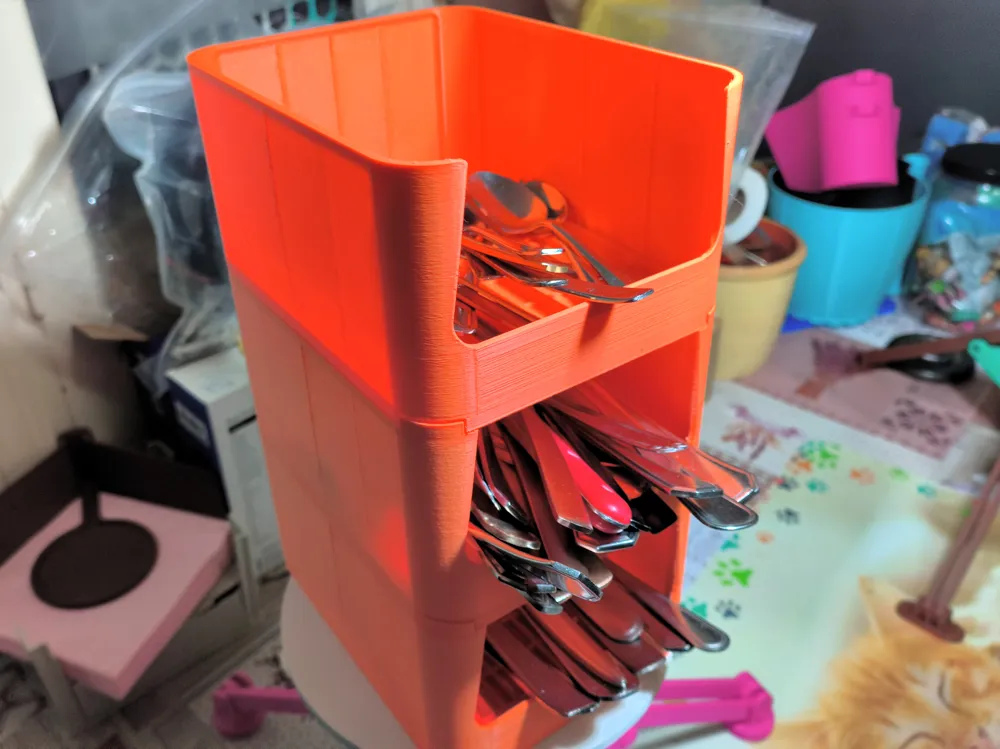

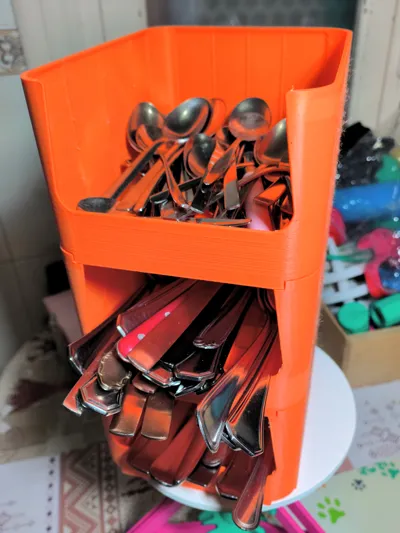

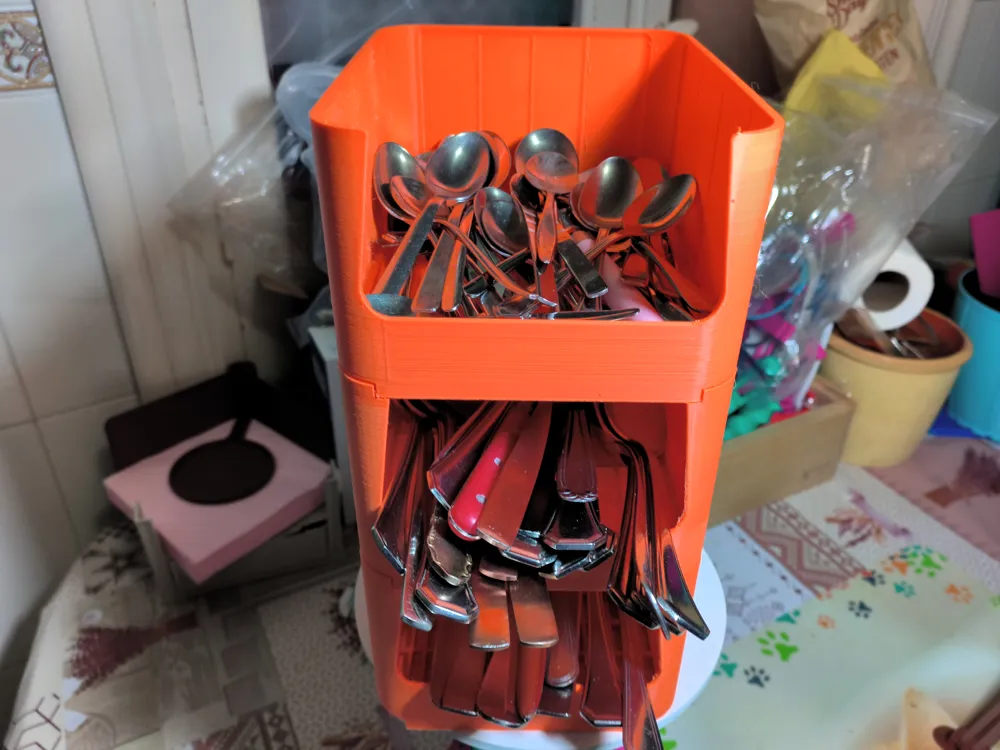

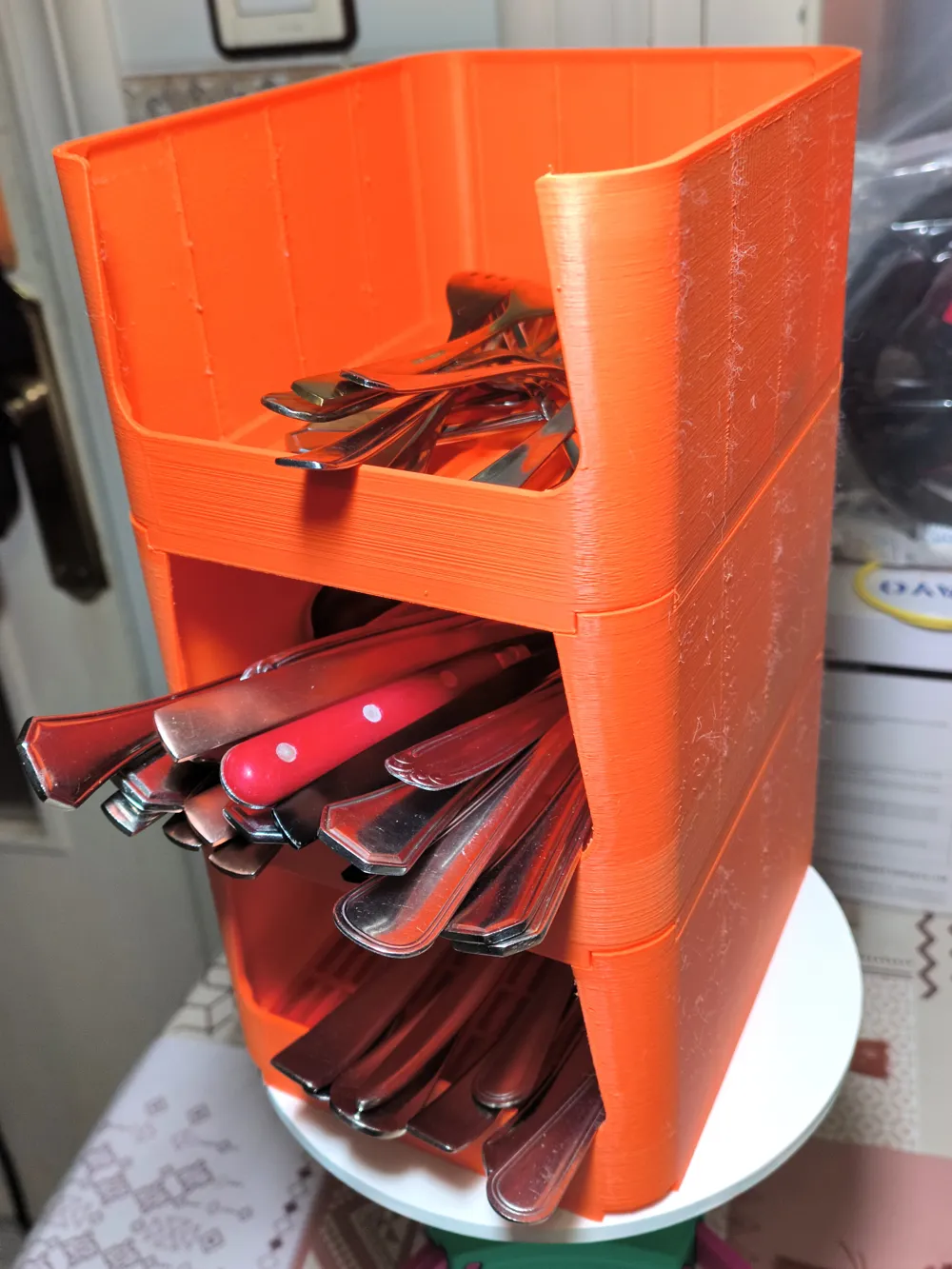

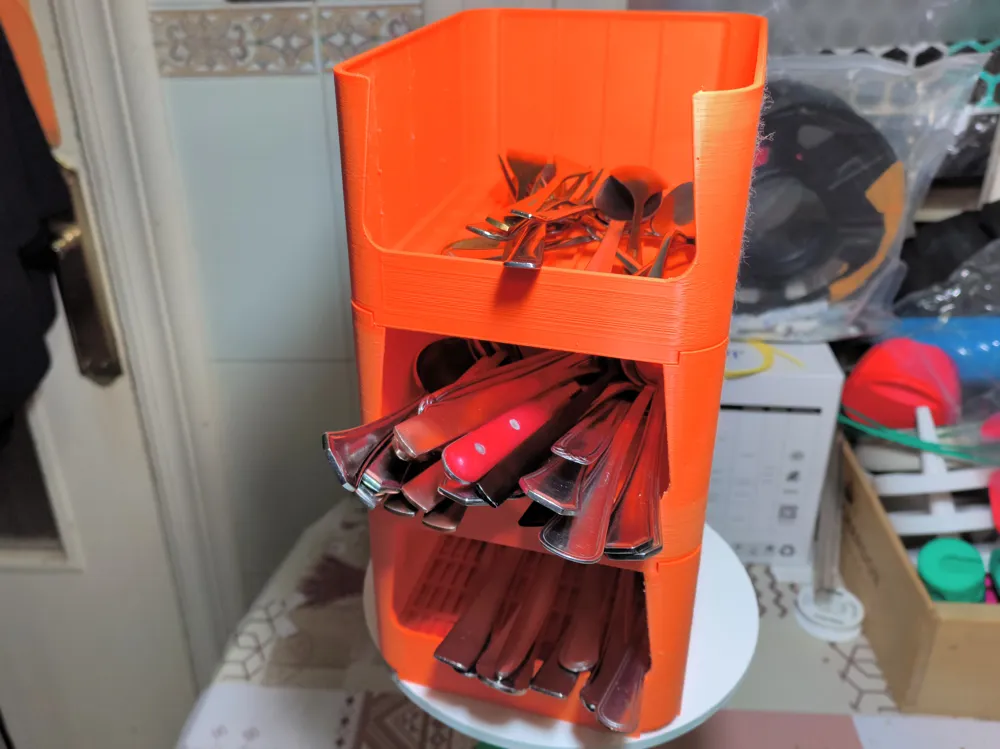

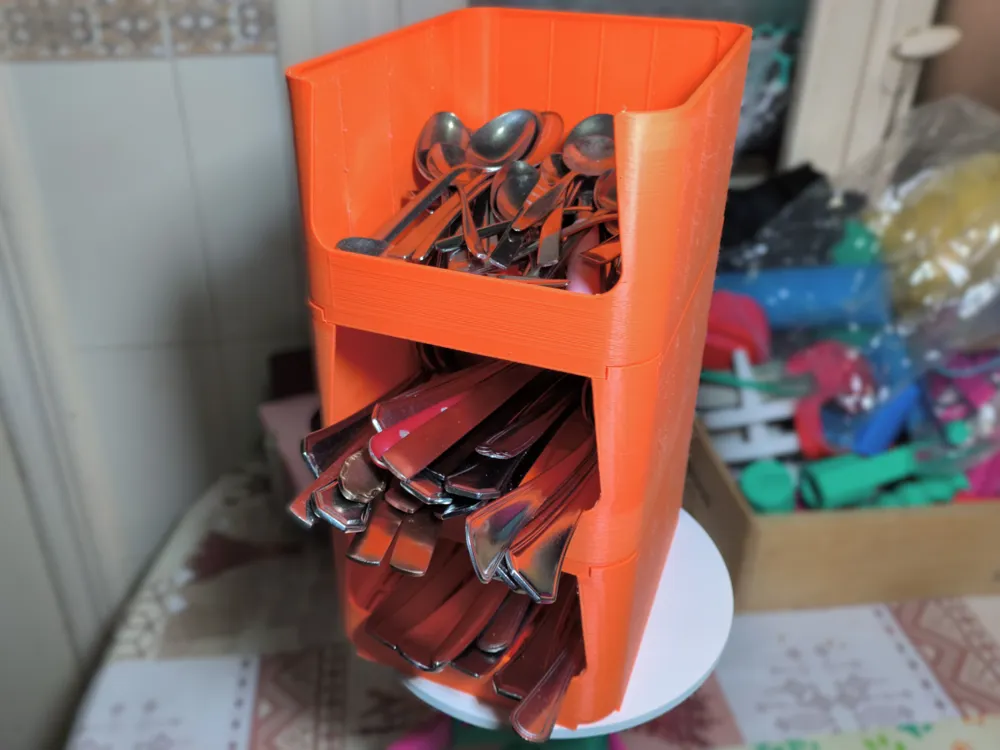

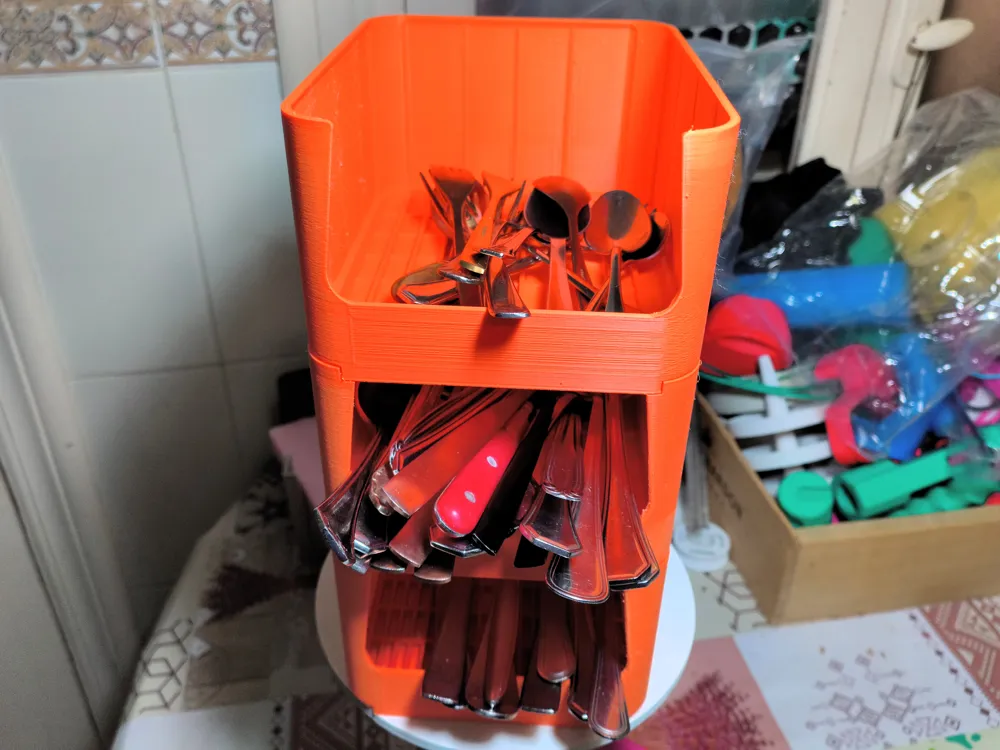

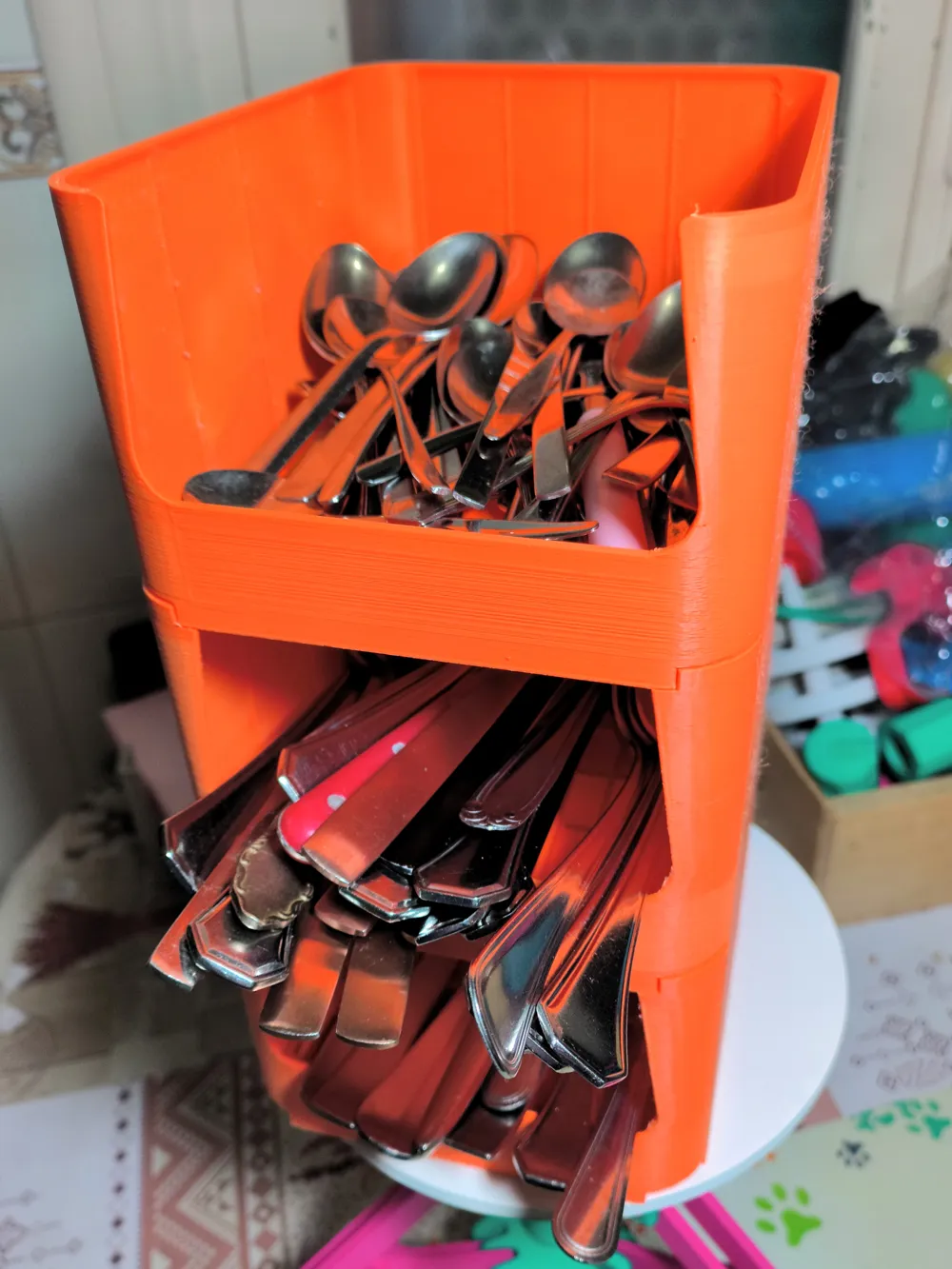

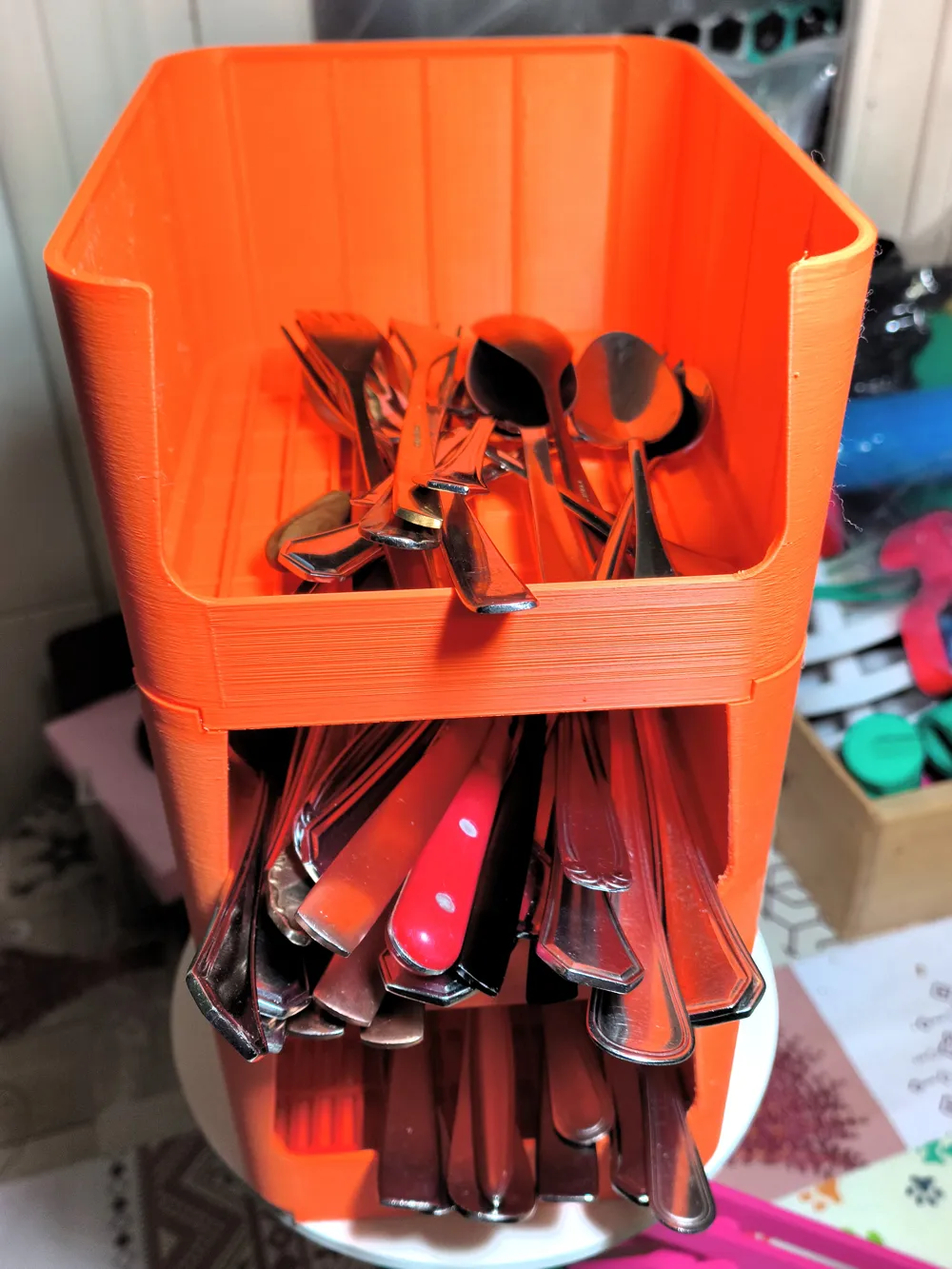

  • v1.0 Separate Grid.- This model variant has its grid separate from the container body. This feature is designed with the aim of organizing and storing table cutlery, as its grid is thicker and more resistant, allowing cutlery to drain easily.

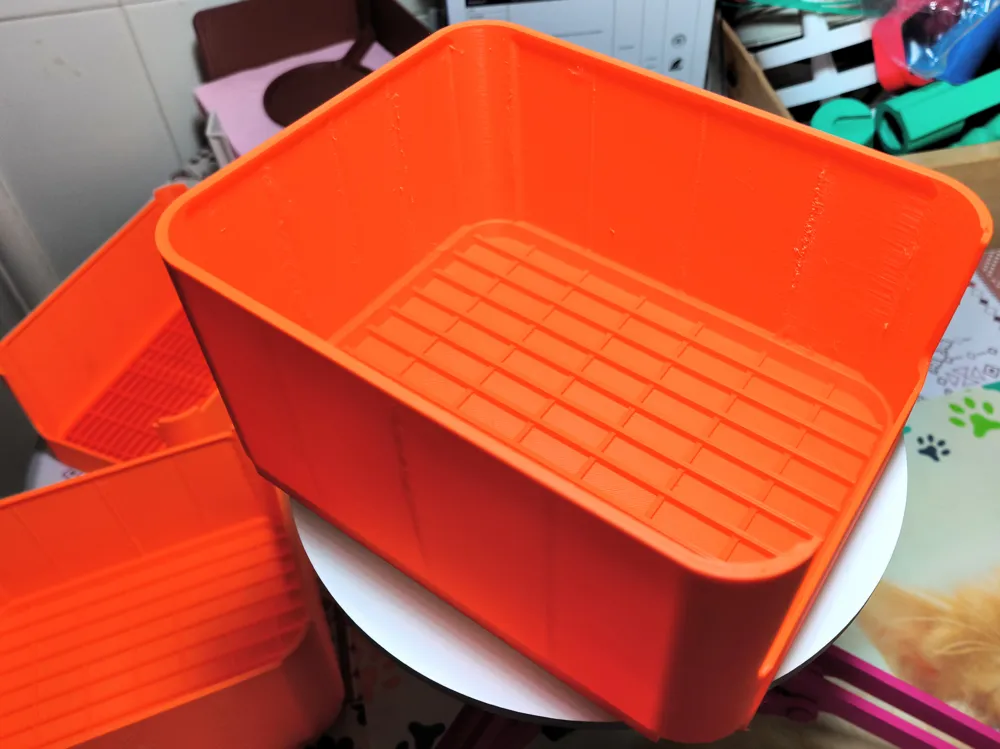

  • v1.1 Attached Grid.- By having the grid incorporated into the main body, it has greater resistance because it can better distribute the load inside. Its main purpose is daily use for storage in homes or workshops.
  • Note: the variation is focused on reducing printing time and improving material usage. Both maintain their fundamental characteristic and can be used as the user wishes.
• Size.- Its dimensions are 178mm long, 140mm wide, and 90mm high. Although it may seem small, the model is not. Its measurements were carefully considered for various objectives and needs that users may have when using them.
• Capacity.- Its capacity volume is 2.2L, sufficient for all types of uses.
• Strength.- The model does not require high strength as its focus is mainly organizational. Although its walls appear thin, they are designed to be flexible. The model is designed to distribute loads through its columns. It is important to emphasize that the weight in the upper containers should not be exceeded.
• Efficient Design.- The model is designed to keep filament usage to a minimum and printing times low. The model can still be improved and have better features in the future; everything will depend on the support the model receives.

Printing Characteristics:

Recommended Filament: PLA or PETG.

Tolerance: 0.2mm

Walls 3, Infill 10%.

Supports: Yes (Normal - only touching build plate).

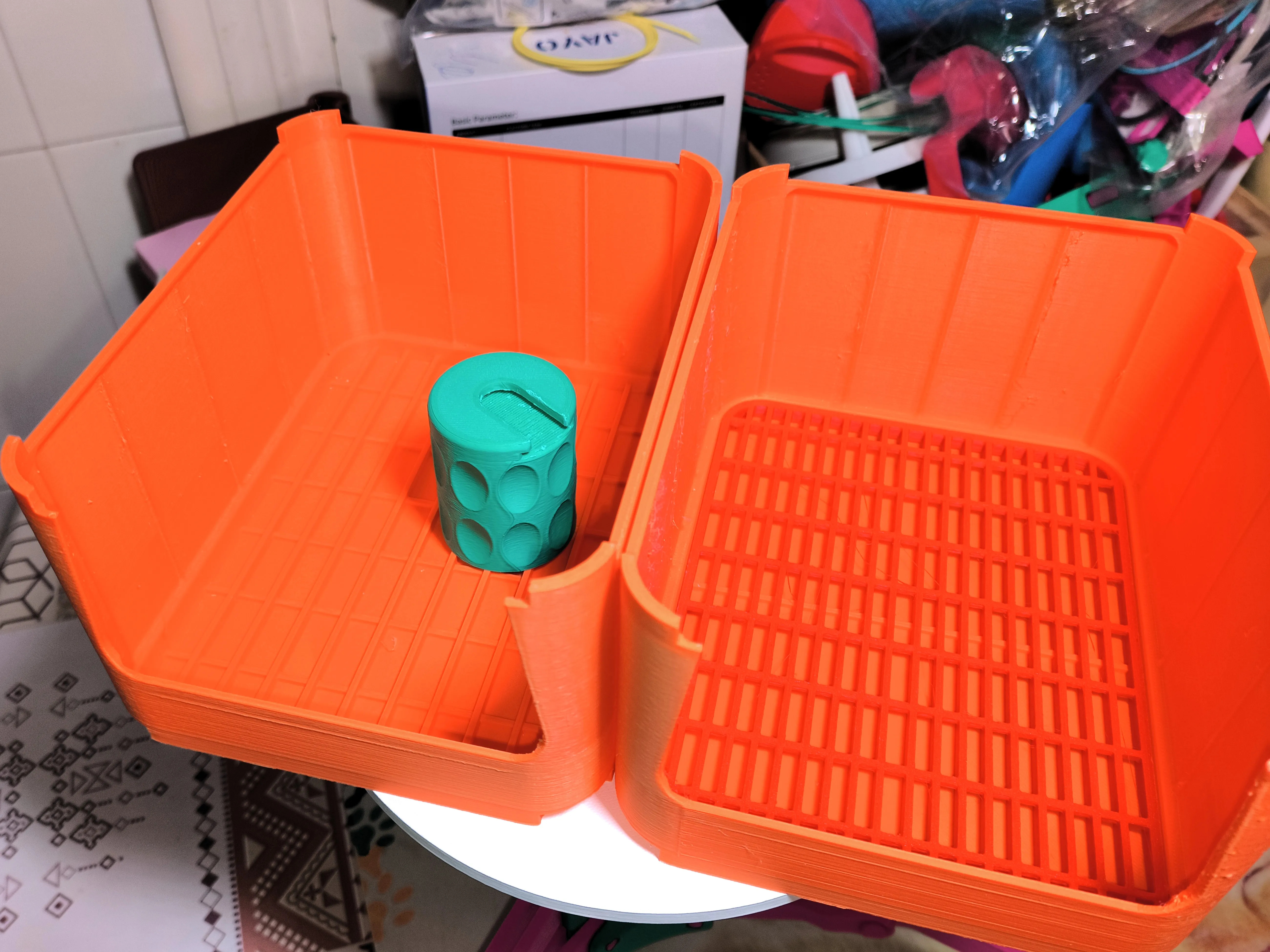

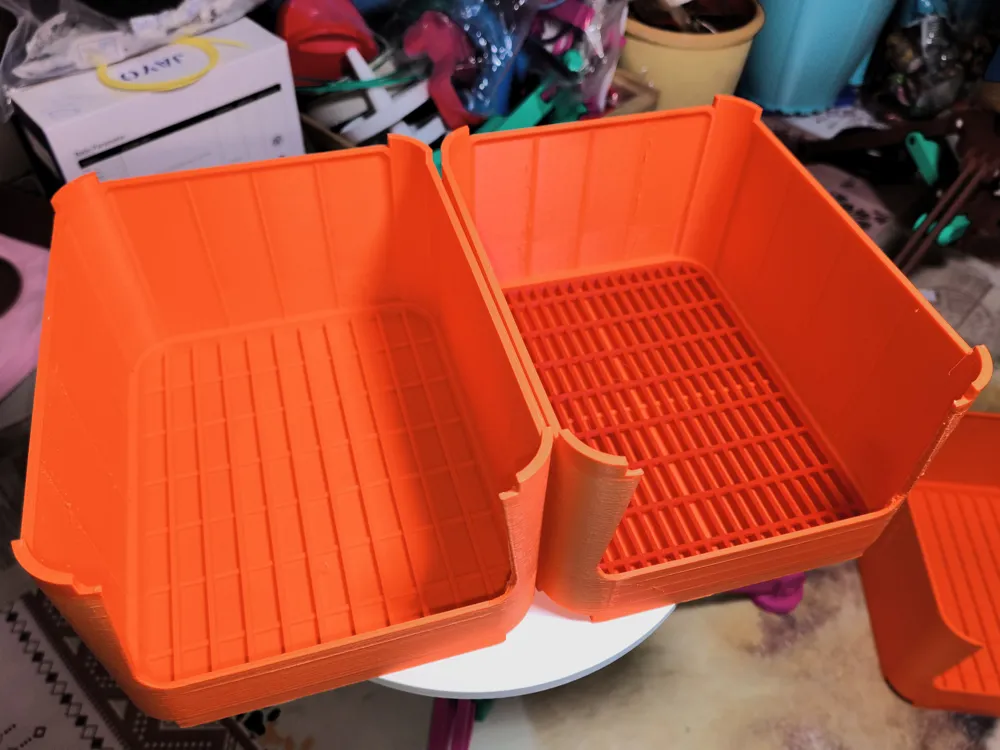

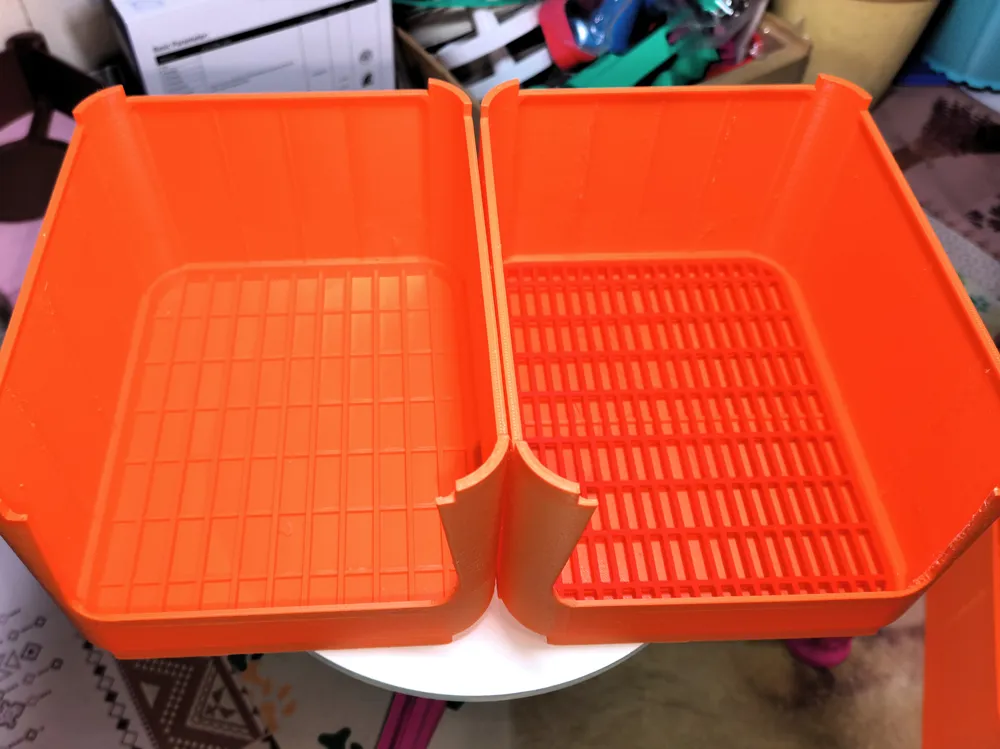

Comparison between Variants 1.0 and 1.1

The only difference between the two is the printing time and that v1.0 requires more build plates, leading to a longer printing time for variant v1.0.

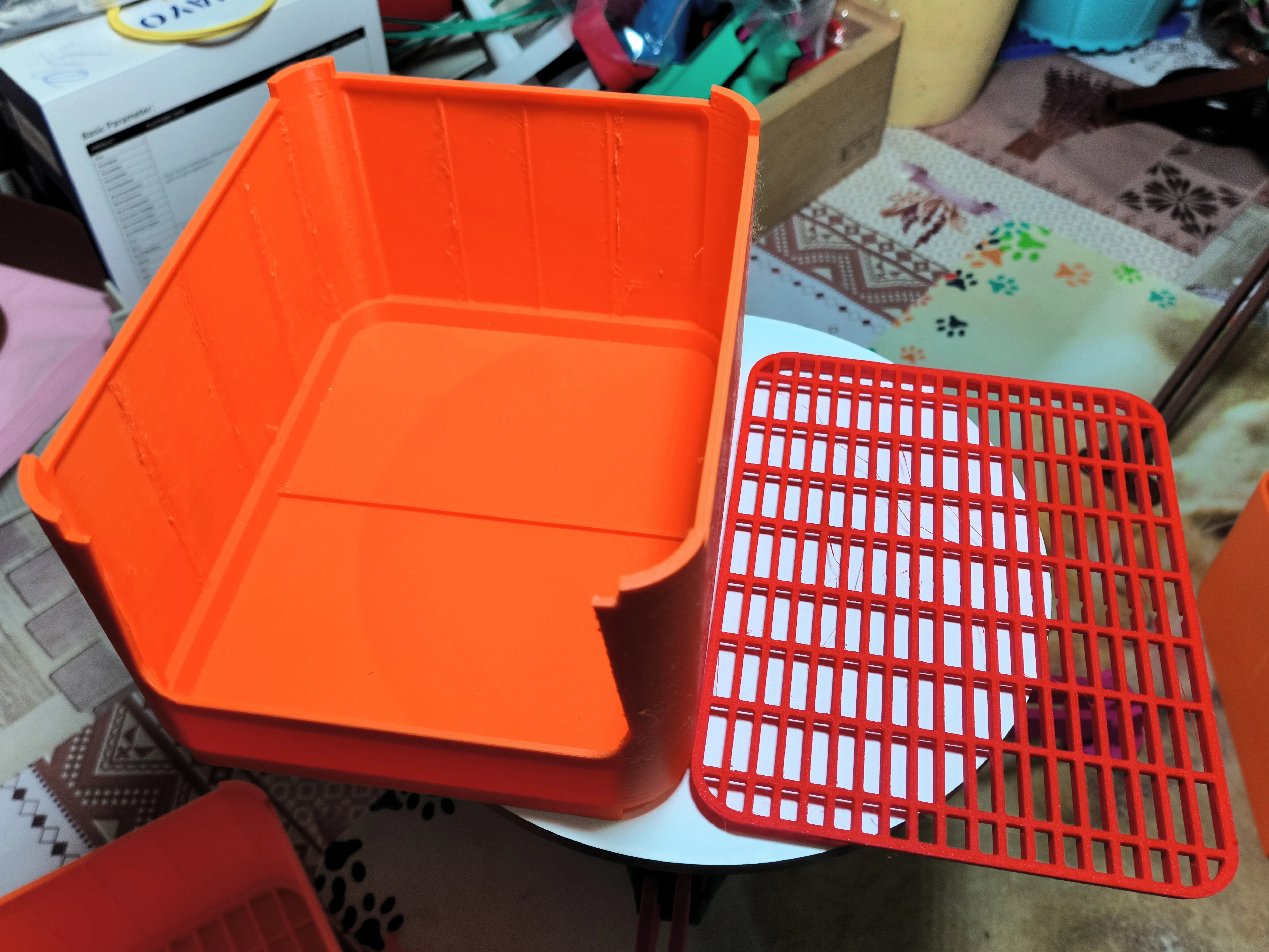

Grid Assembly

Only version 1.0 requires placing the grid inside the model. It is simply placed inside the model without orientation.

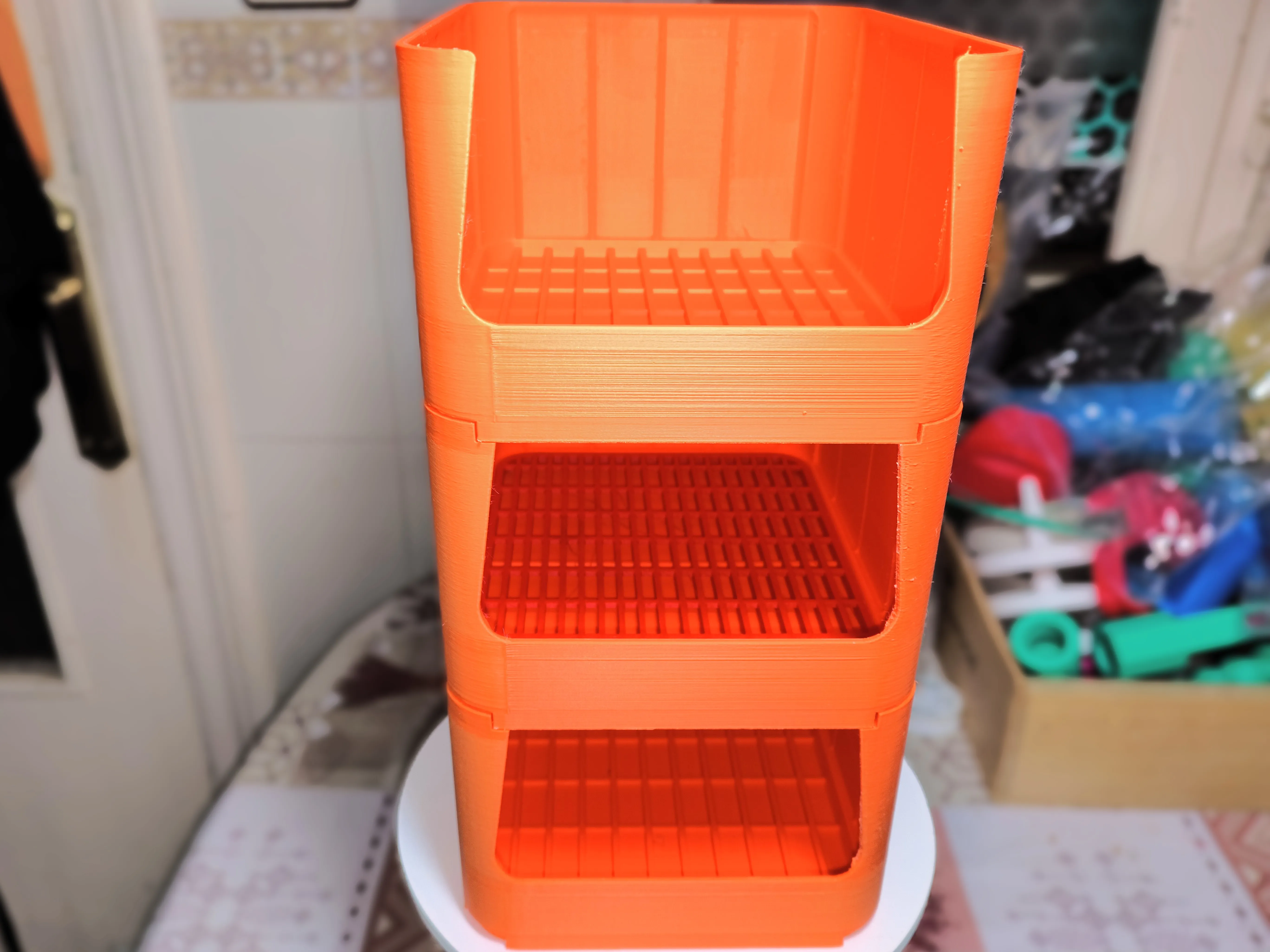

Container Assembly

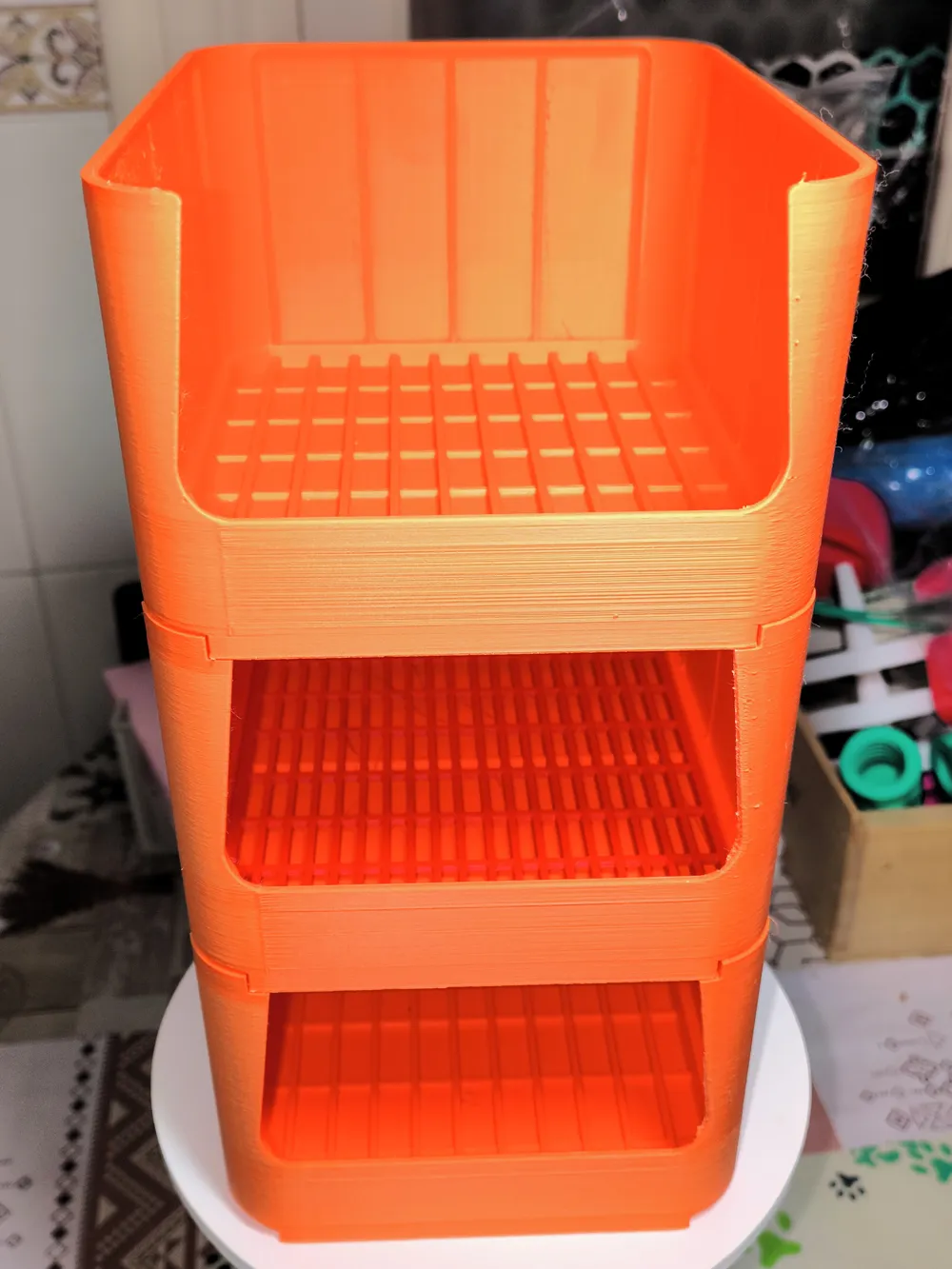

Assembly is simple: remove the supports from the base and stack the containers one on top of the other.

Note: There is a top container that does not have the protrusions that align the upper containers with the lower ones.
