Spool Rack Mount
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
2 h
1 plate
Open in Bambu Studio
Boost
0
1
0
0
0
1
Released
Description

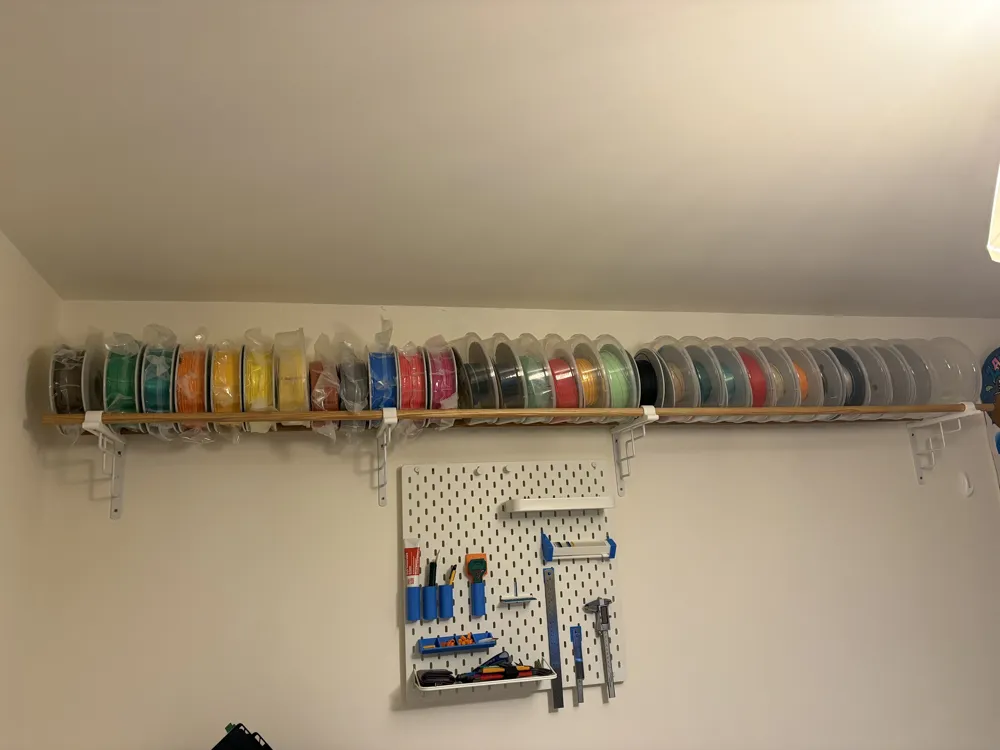

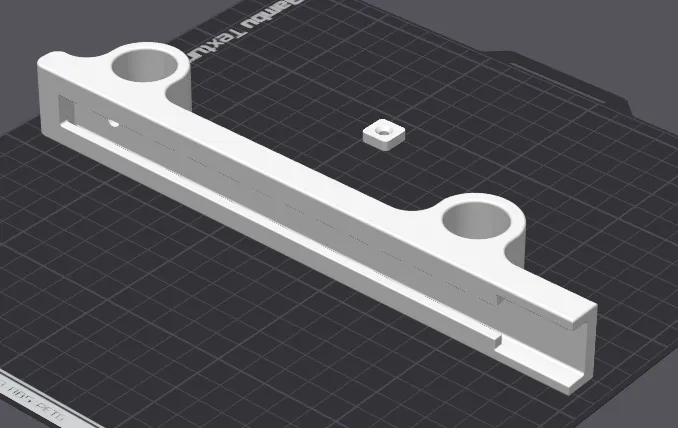

Designed to turn Screwfix's ESSENTIALS STEP SHELF BRACKETS WHITE 230MM X 180MM 4 PACK (233VJ) into a spool rack with B&Q's Oak Dowel Doweling (L)2400mm (Dia)21mm. The hole size is parametric as I found I needed different sizes front and back because of tolerance difference with the dowels.
I have nothing against the fully 3D printed spool racks. I just didn't want to buy a roll of PETG when I could buy nicer and stronger shelf brackets for less than £10 and combine them with a PLA print.

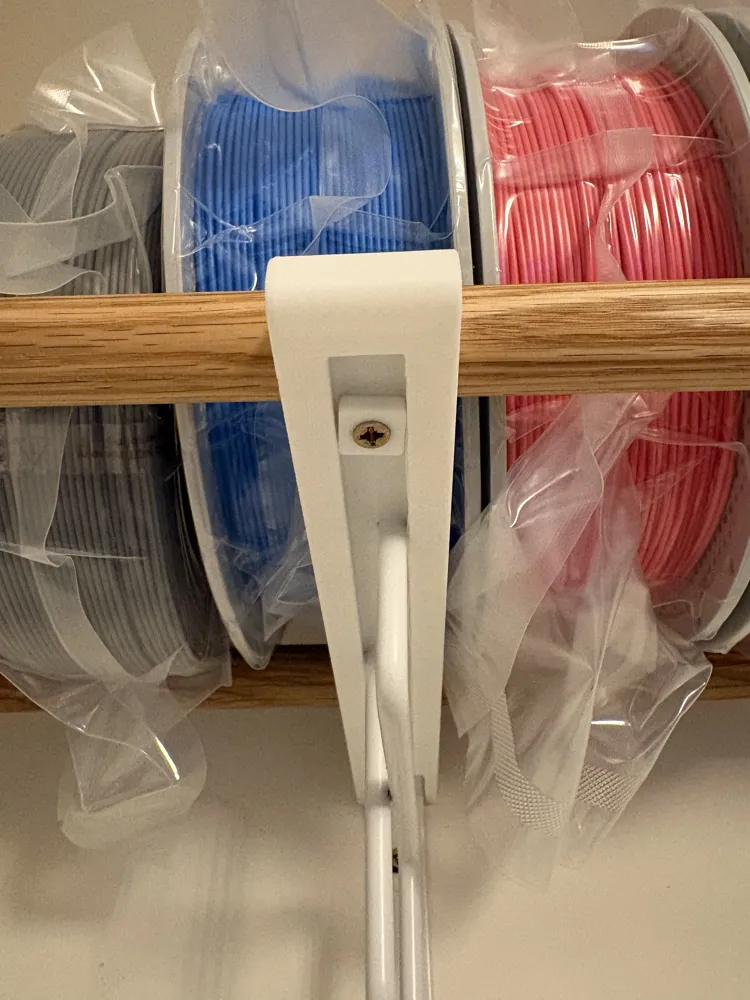

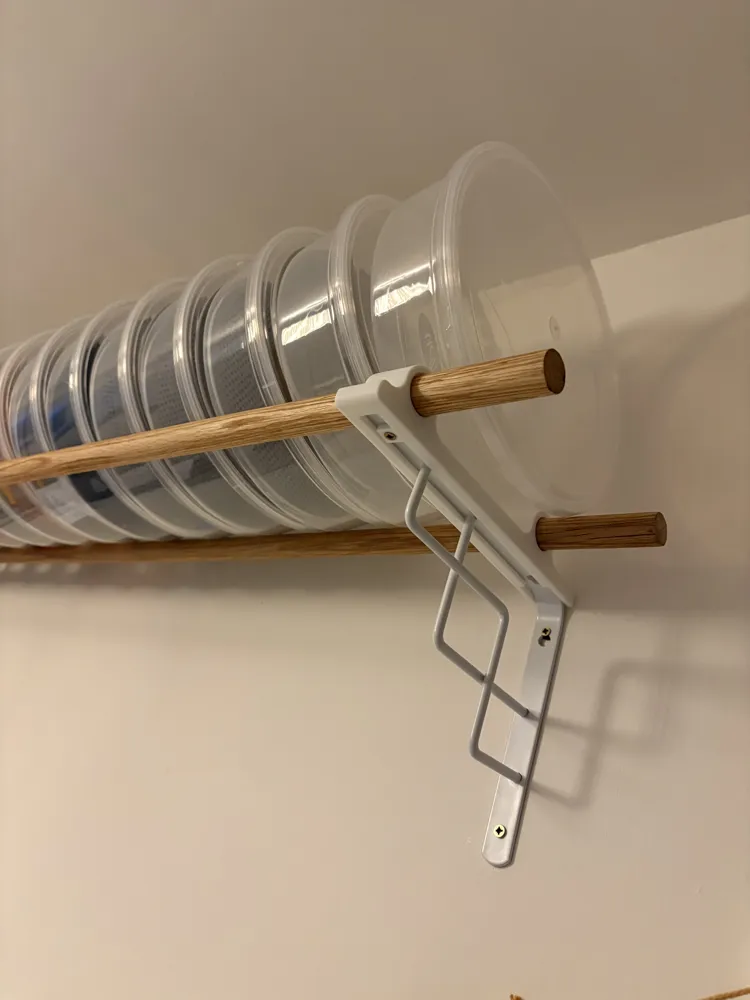

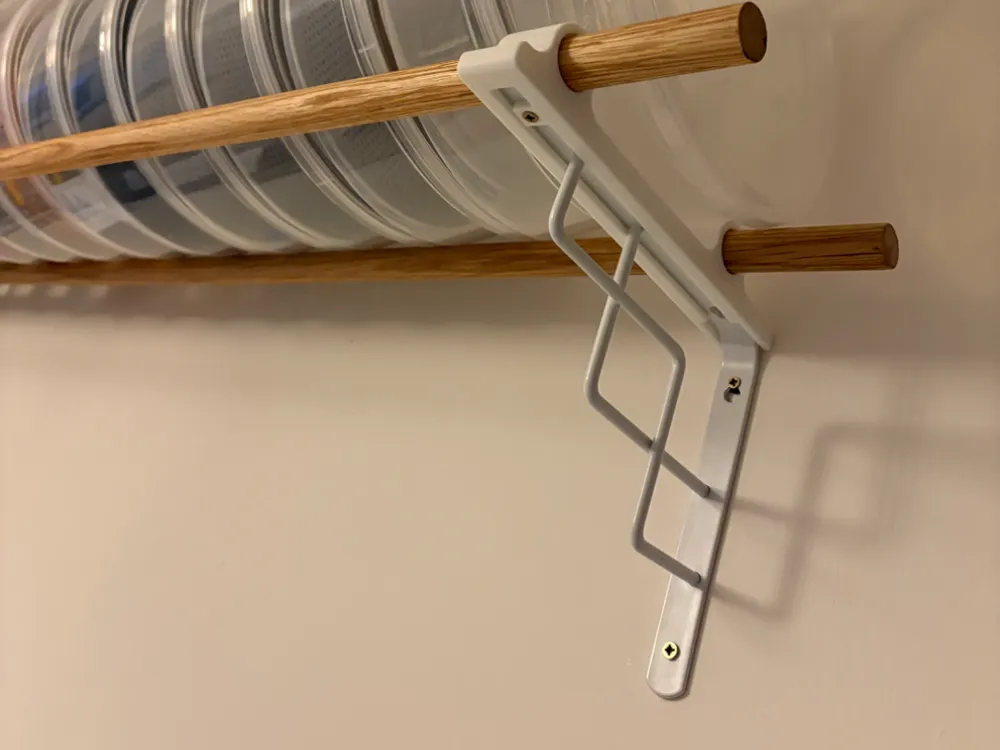

The front pole is secured from the underside and the back pole is secured from the top with 4mm wood screws. There is an optional washer if like me you have countersunk woodscrews.
