Xtool M1 Riser

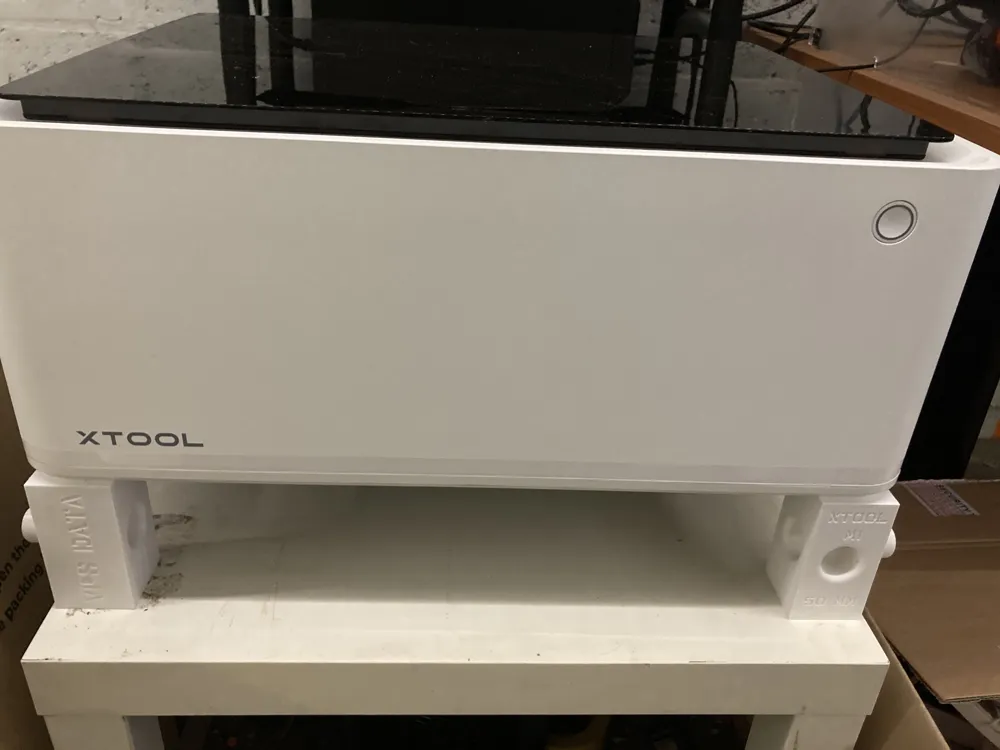

This is a simple riser designed for the Xtool M1
it allows you to rise 50mm or 100mm or even beyond that as it is designed to extend itself
there is a tolerance of 0.4mm to make sure it can fit the extension

please use at own risk

it can be printed with out supports
but make sure you put the “knob” at the top for the best print result
the holes can be easy bridged and even if they are not bridged nicely it will still work

Settings i used:
5% infill
3 top/bottom layers
2 walls
Gyriod
PETG

to increase rigid you could increase infill , but in my case it is strong enough with 5%
Enjoy
Greetings from PowerChaos
