Arca-Swiss Camera Tripod Quick Release Adaptors
Print Profile(1)
Description

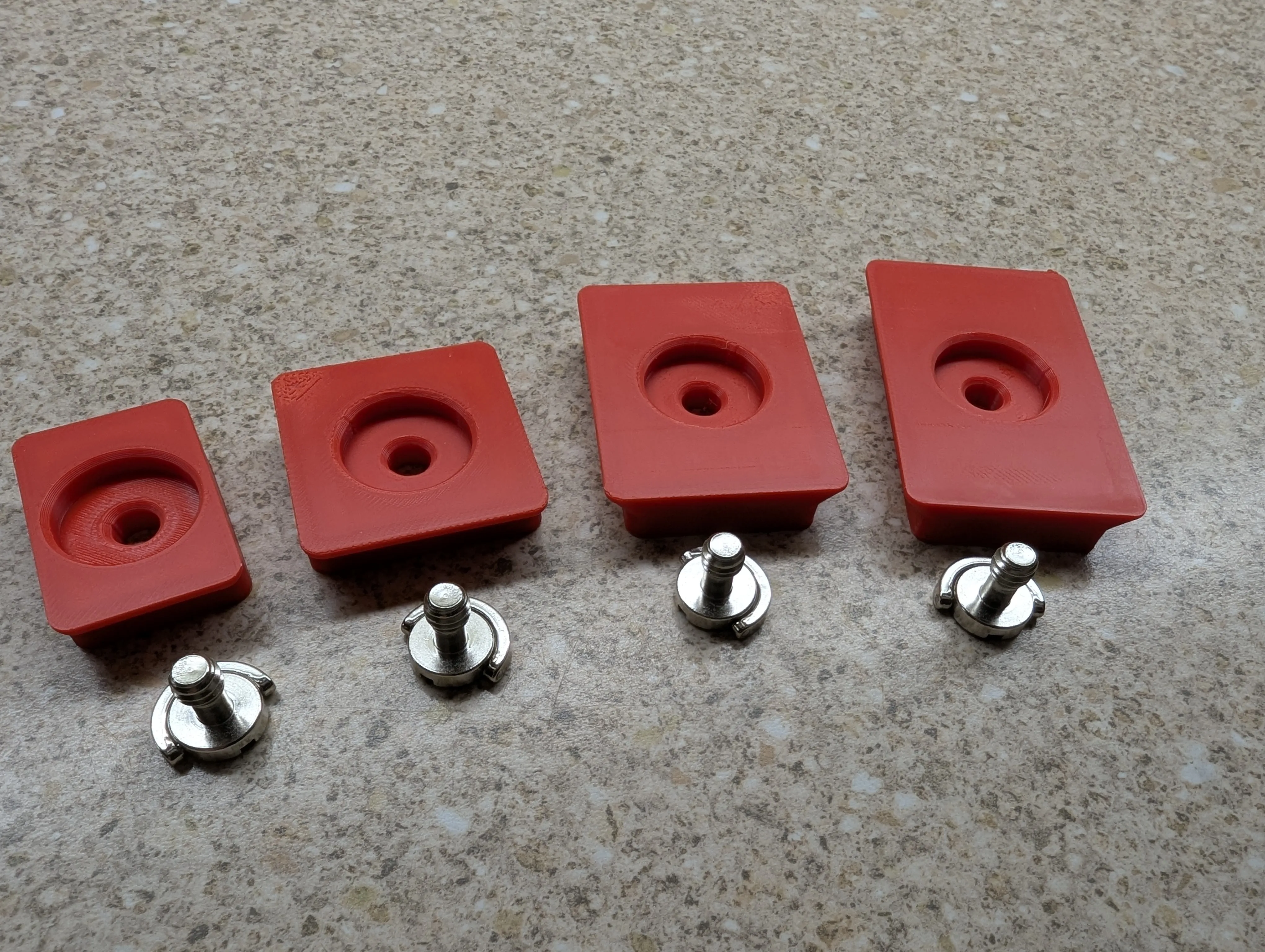

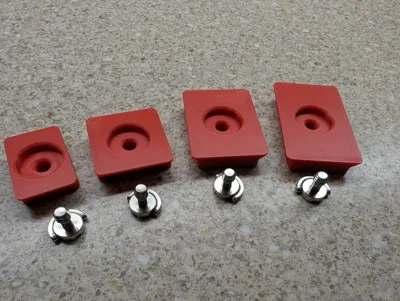

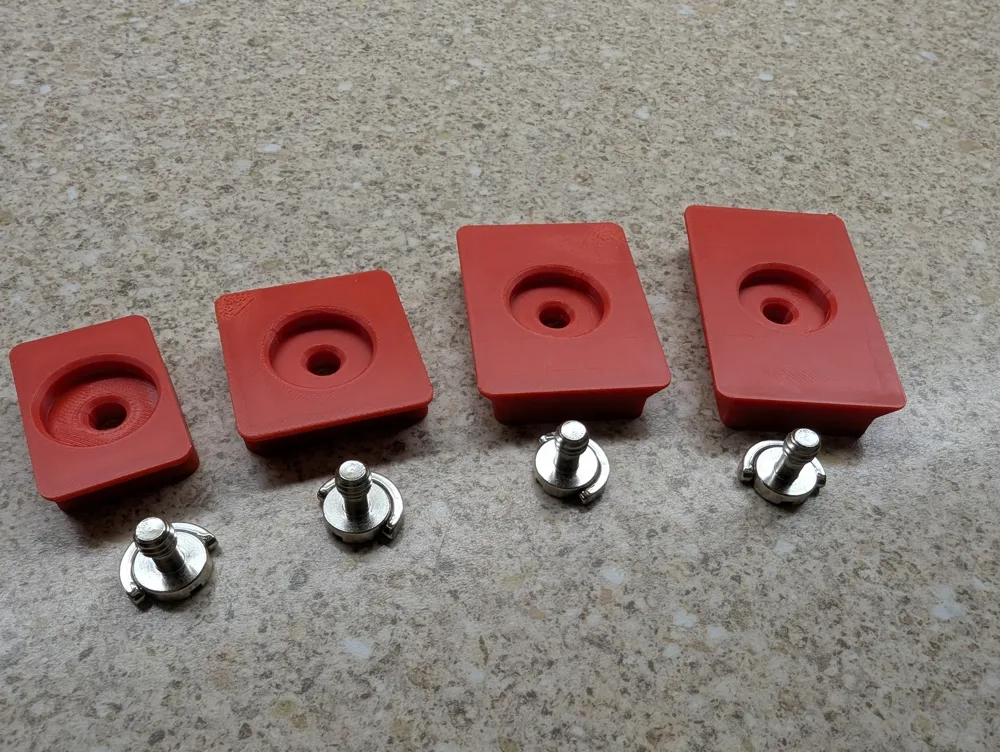

Arca-Swiss quick release camera tripod adaptors in 4 different sizes (25mm, 36mm, 50mm and 60mm). Designed to be attached to the bottom of your camera, or other gear you want to mount on a compatible tripod. You will need a ¼" Whitworth threaded bolt (can easily just search for camera tripod fixing bolt) which pushes through from the underside.
These are designed to be printed with no supports, and it's recommended they are printed solid for strength.
The bolt must be 10mm long, with at least 5mm of thread.
You can use regular bolts, or I like to use the ones with with the fold out handles for easy screwing.

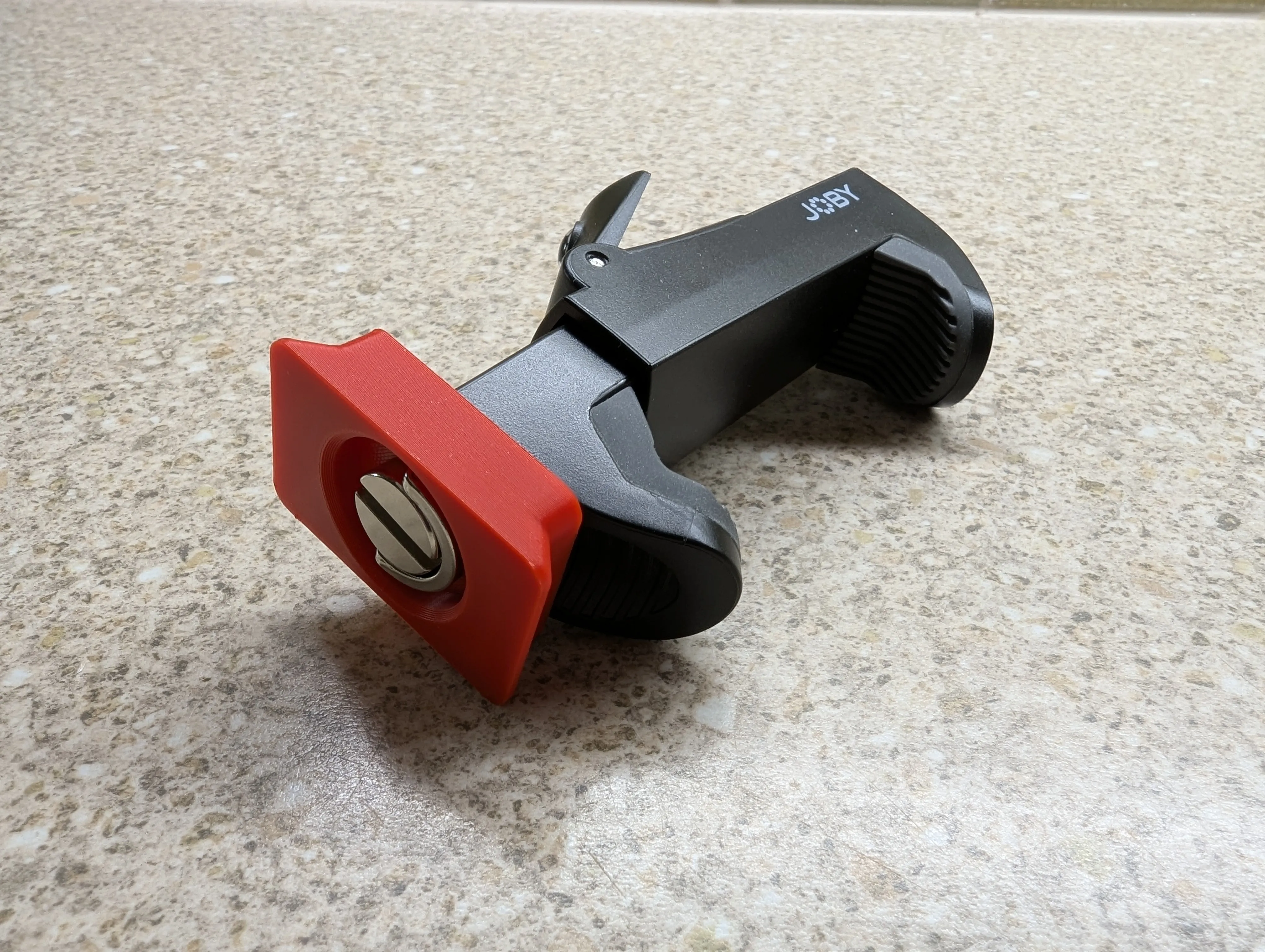

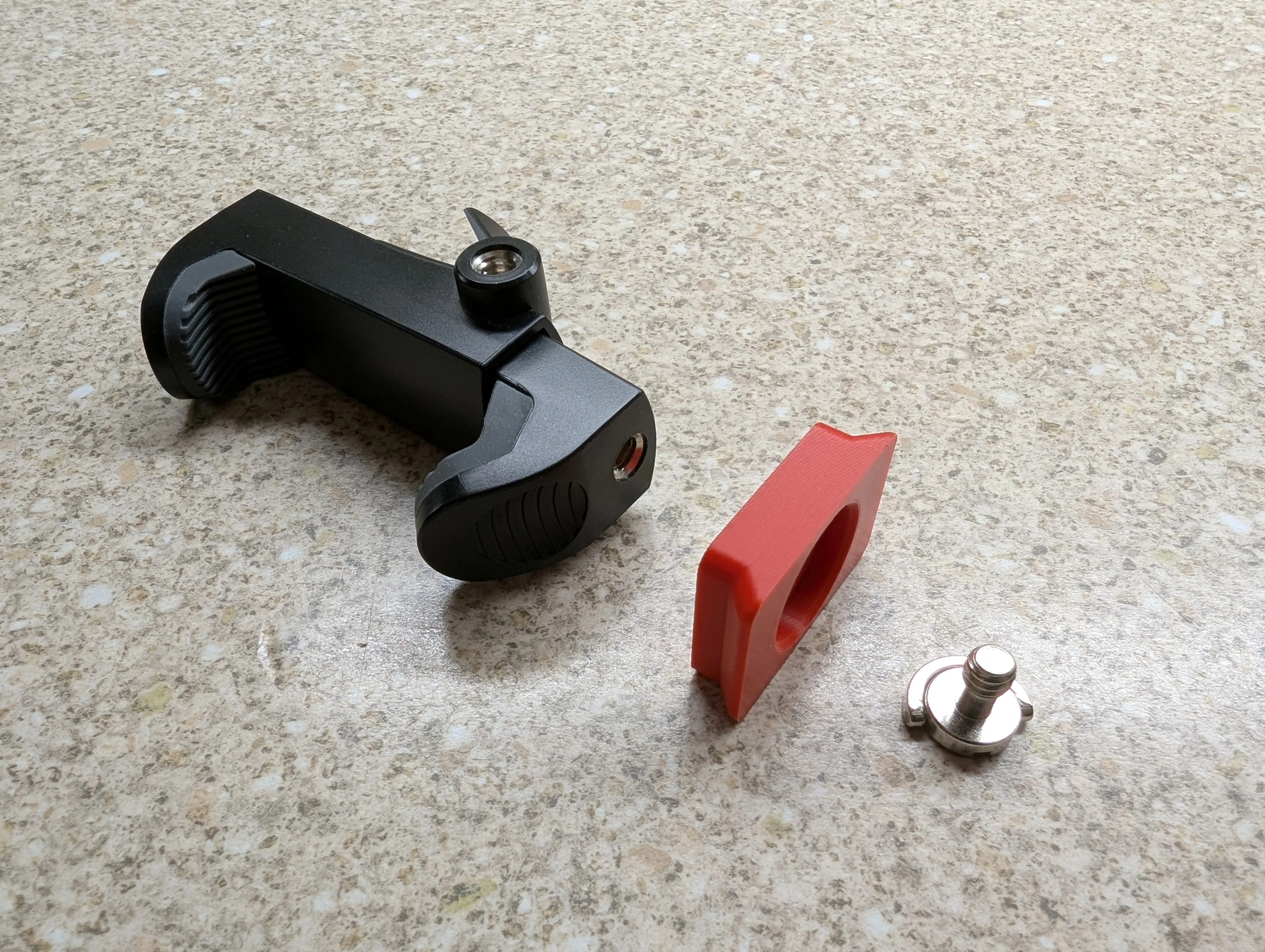

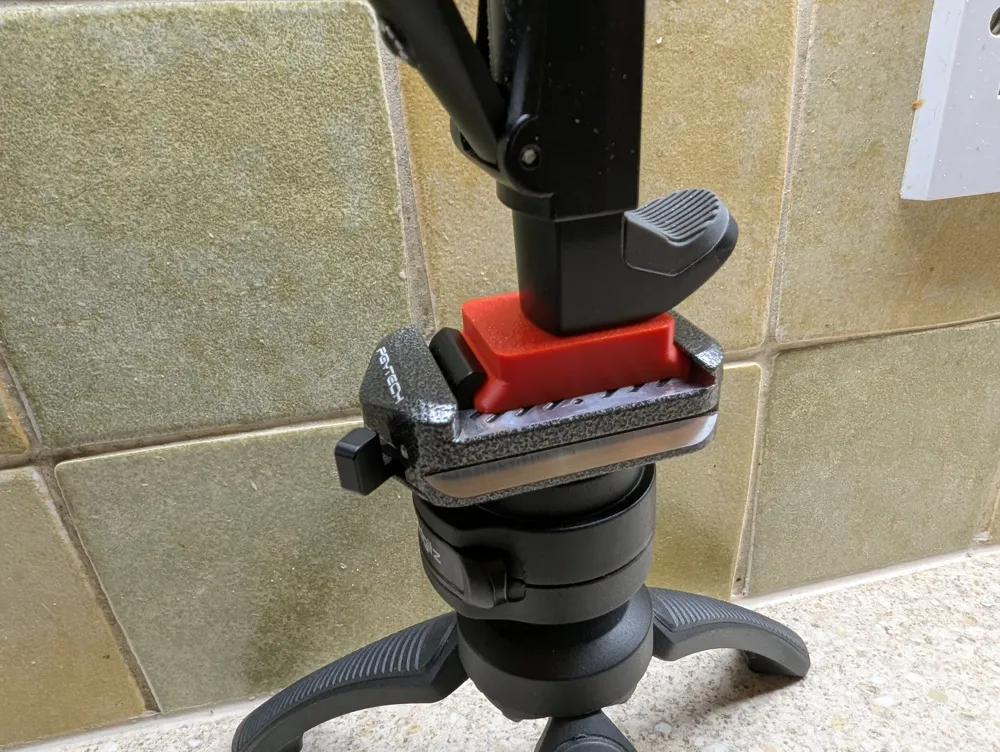

To use, choose a size and the item you want to to attach it to. In this case it's a mobile phone mount.

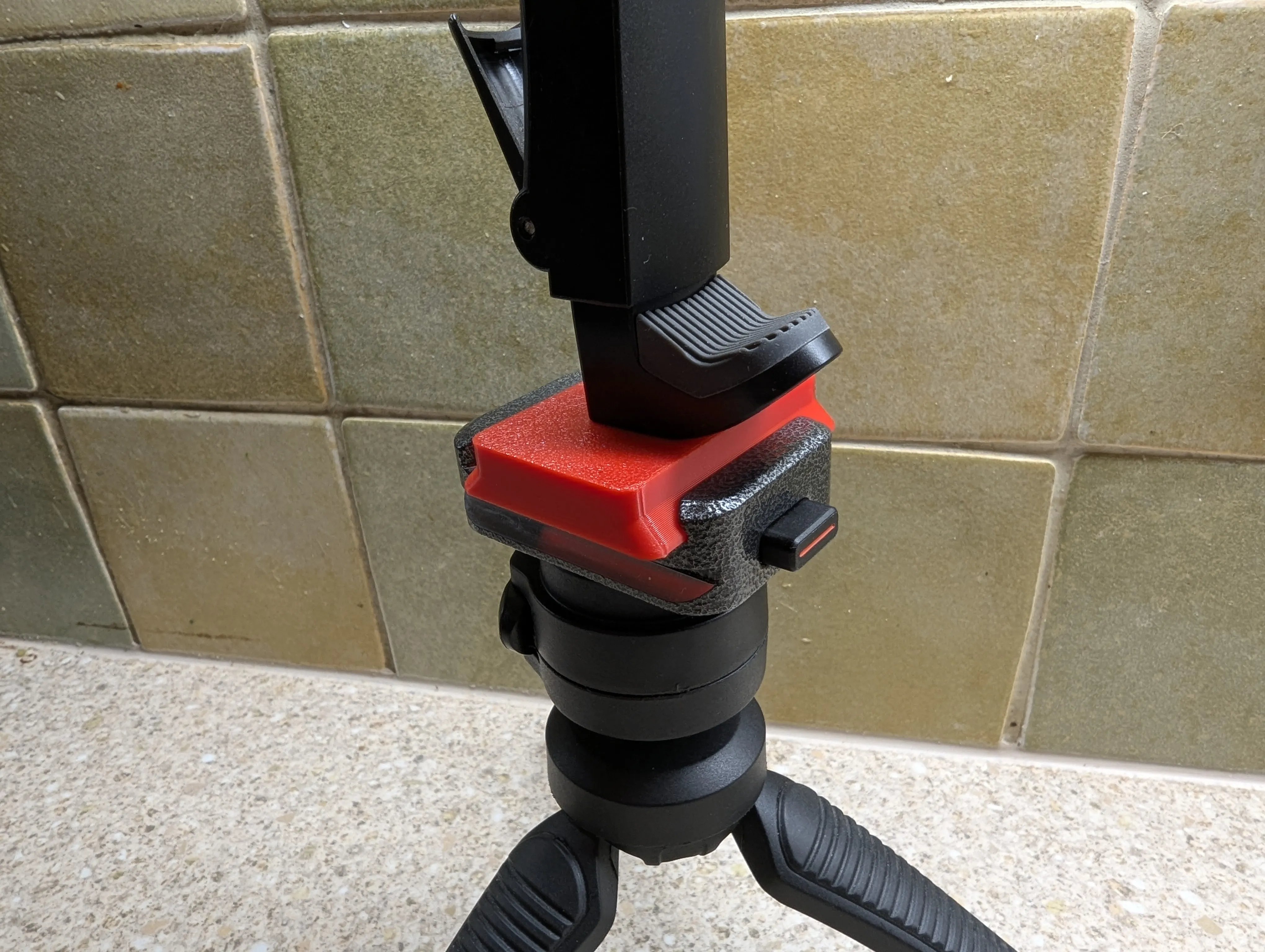

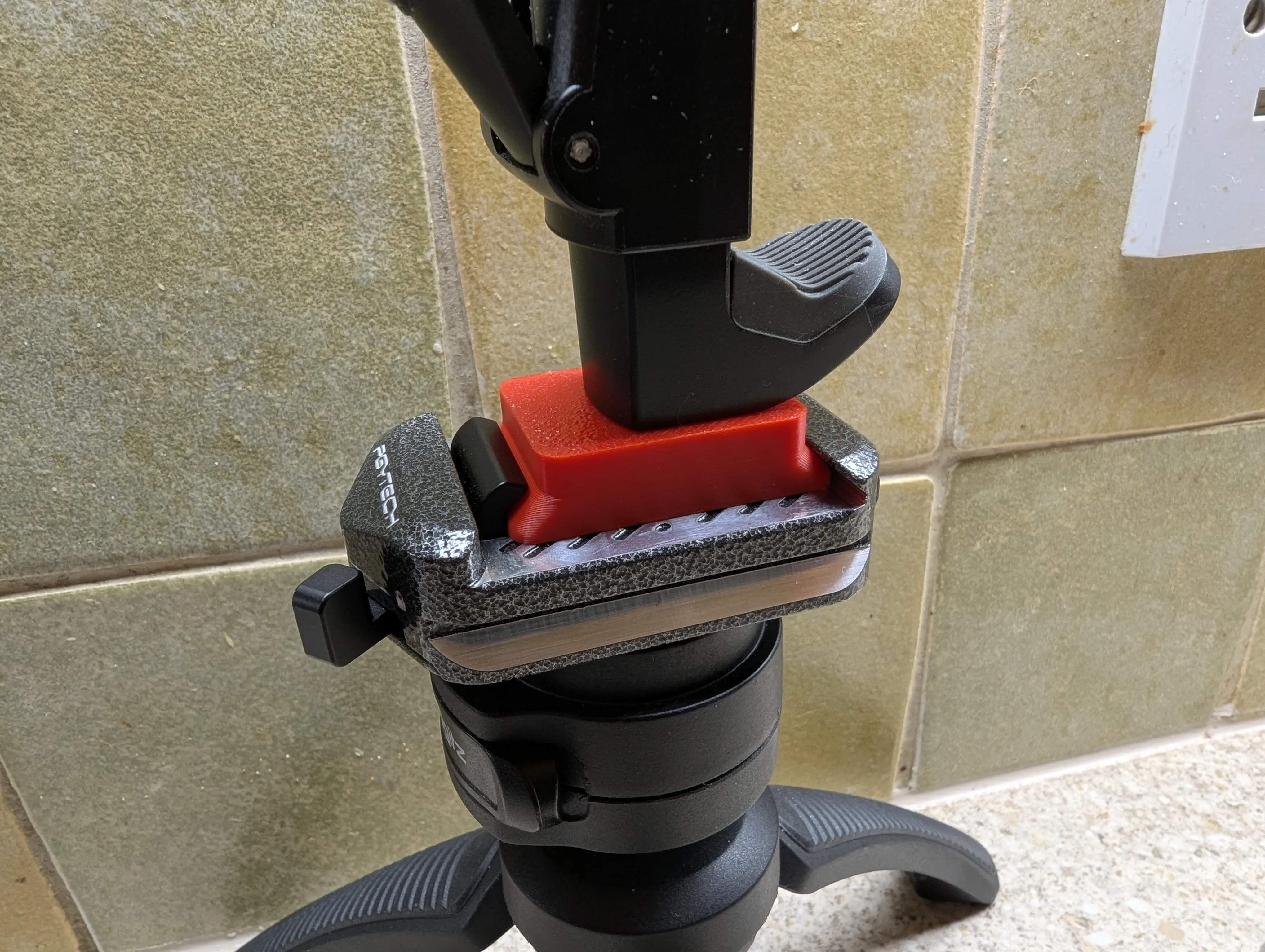

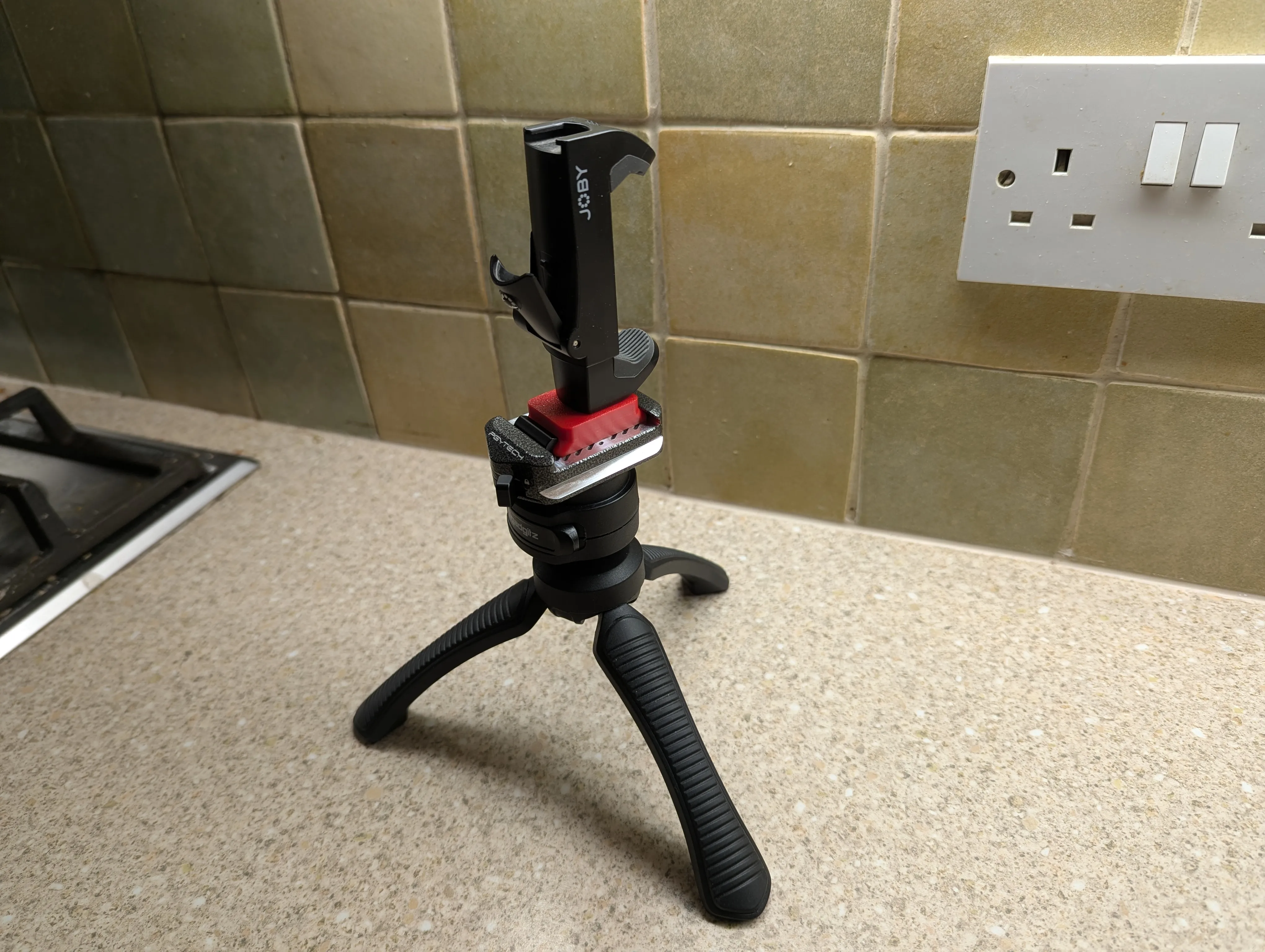

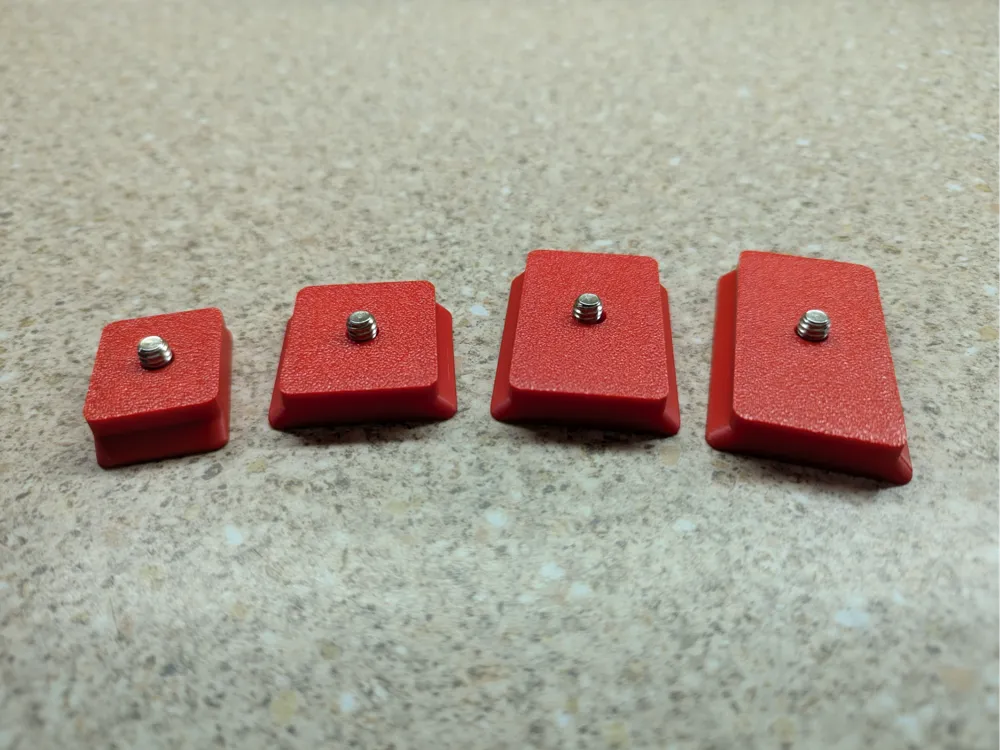

Simply screw through the hole and tighten. The wider part of the mount faces downwards. You can then easily add and remove from a compatible tripod
The larger sizes will also fit smaller items, but they will just stick out a bit.
