Microscope Ring Light Full Replacement
Print Profile(2)
Description

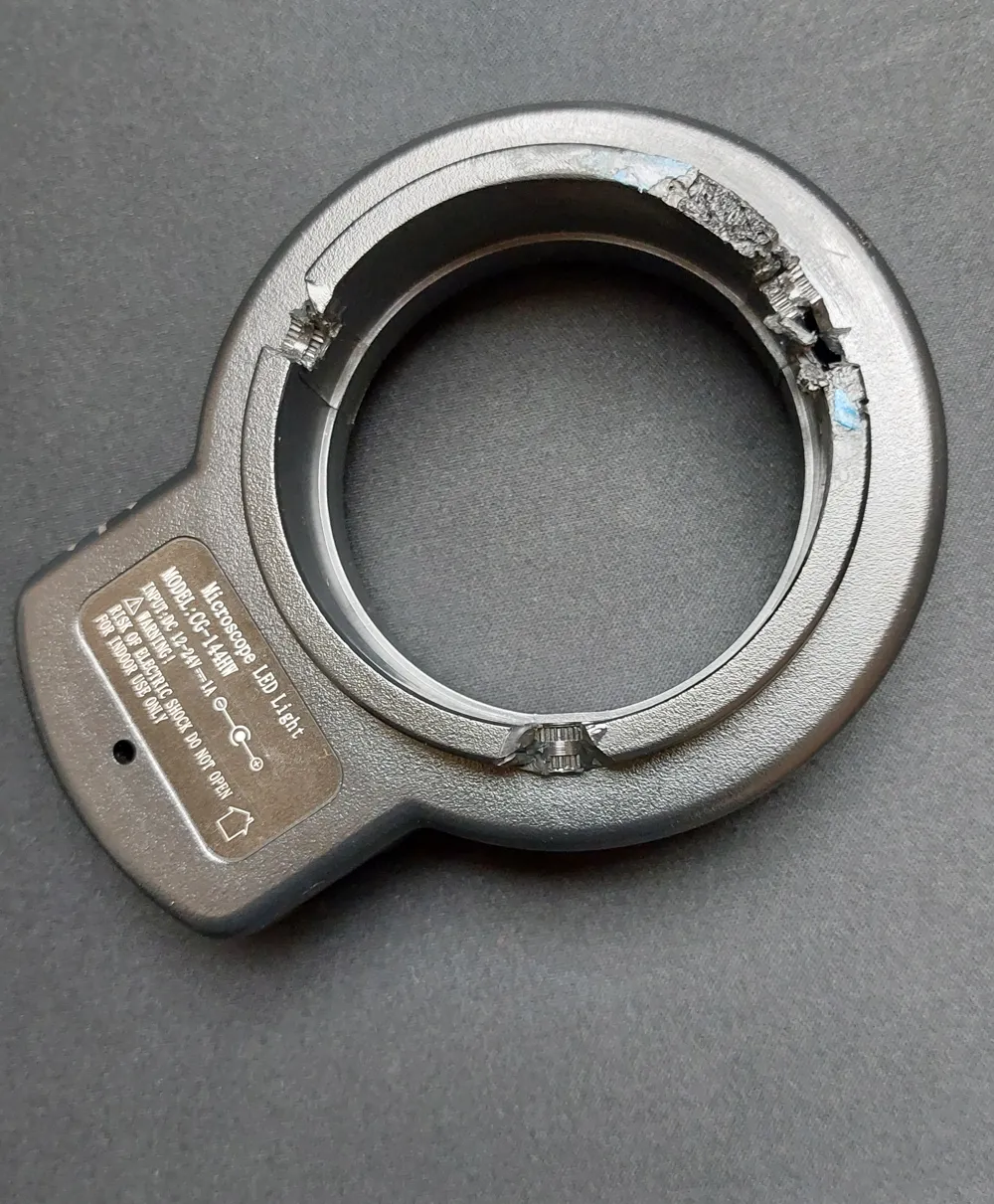

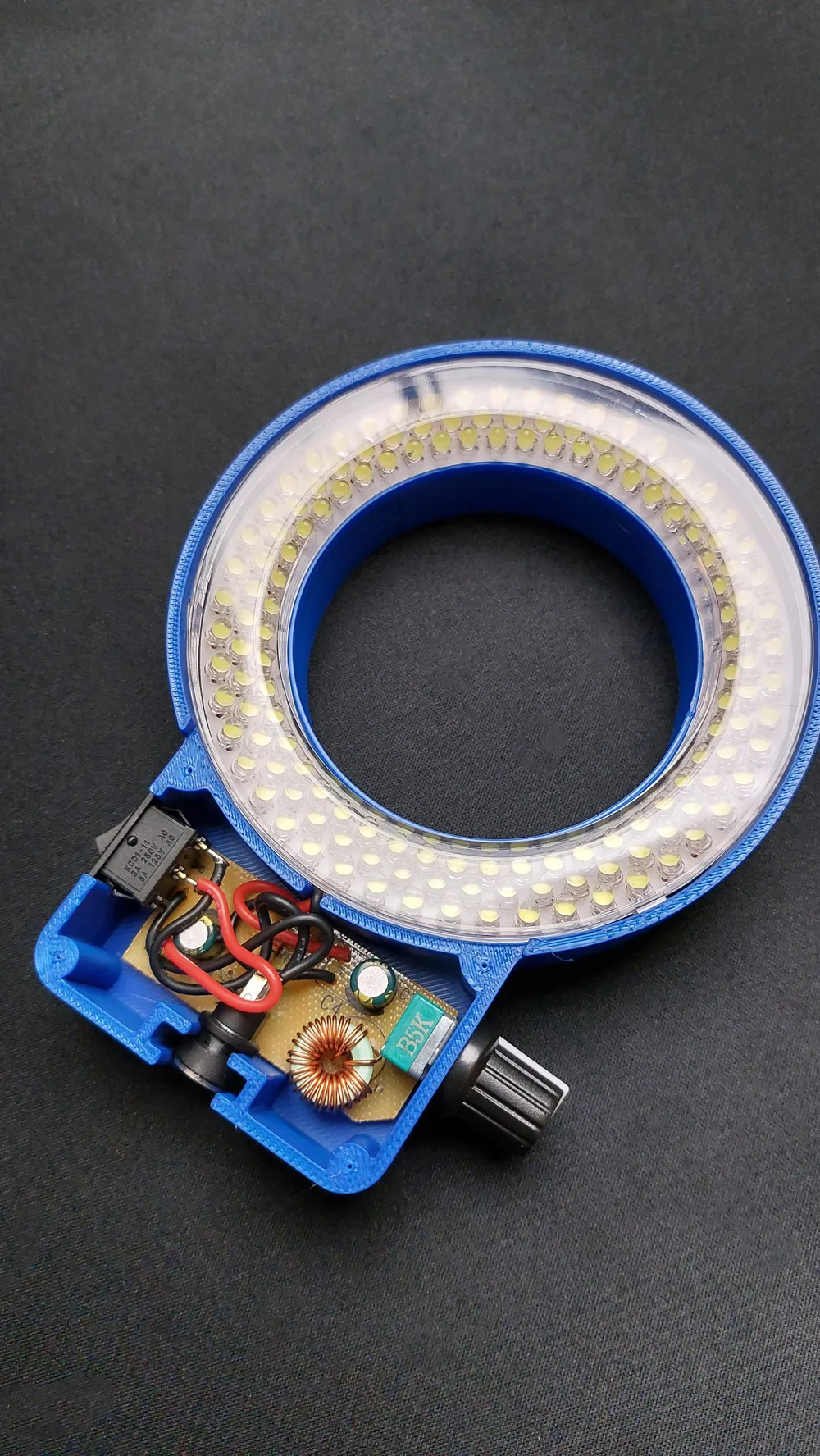

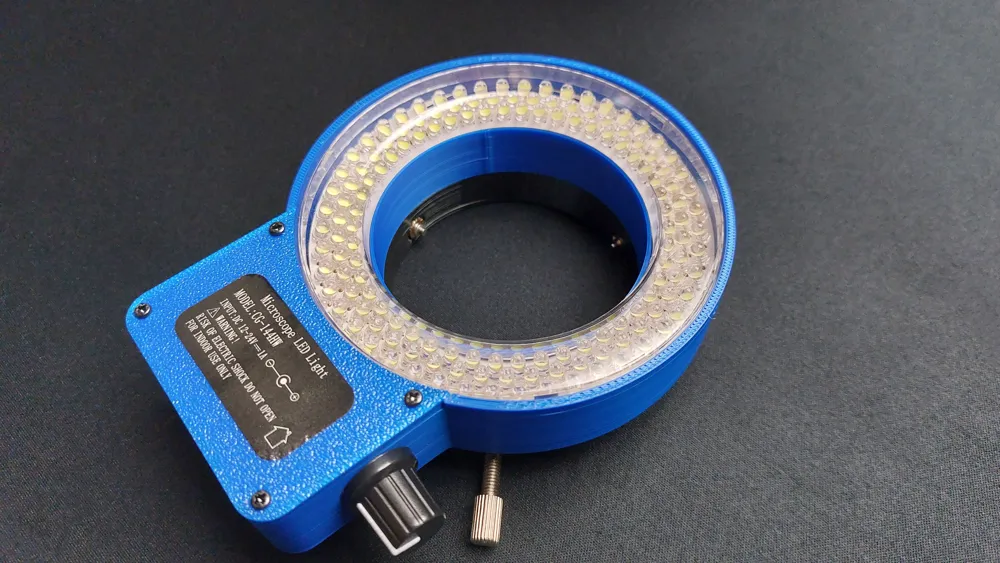

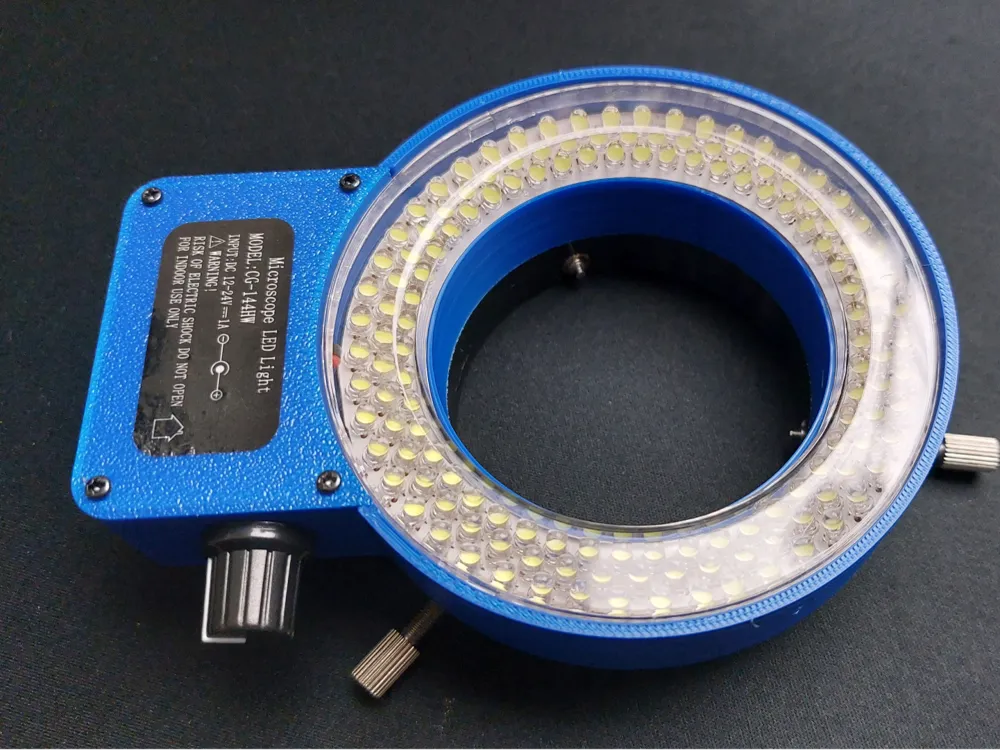

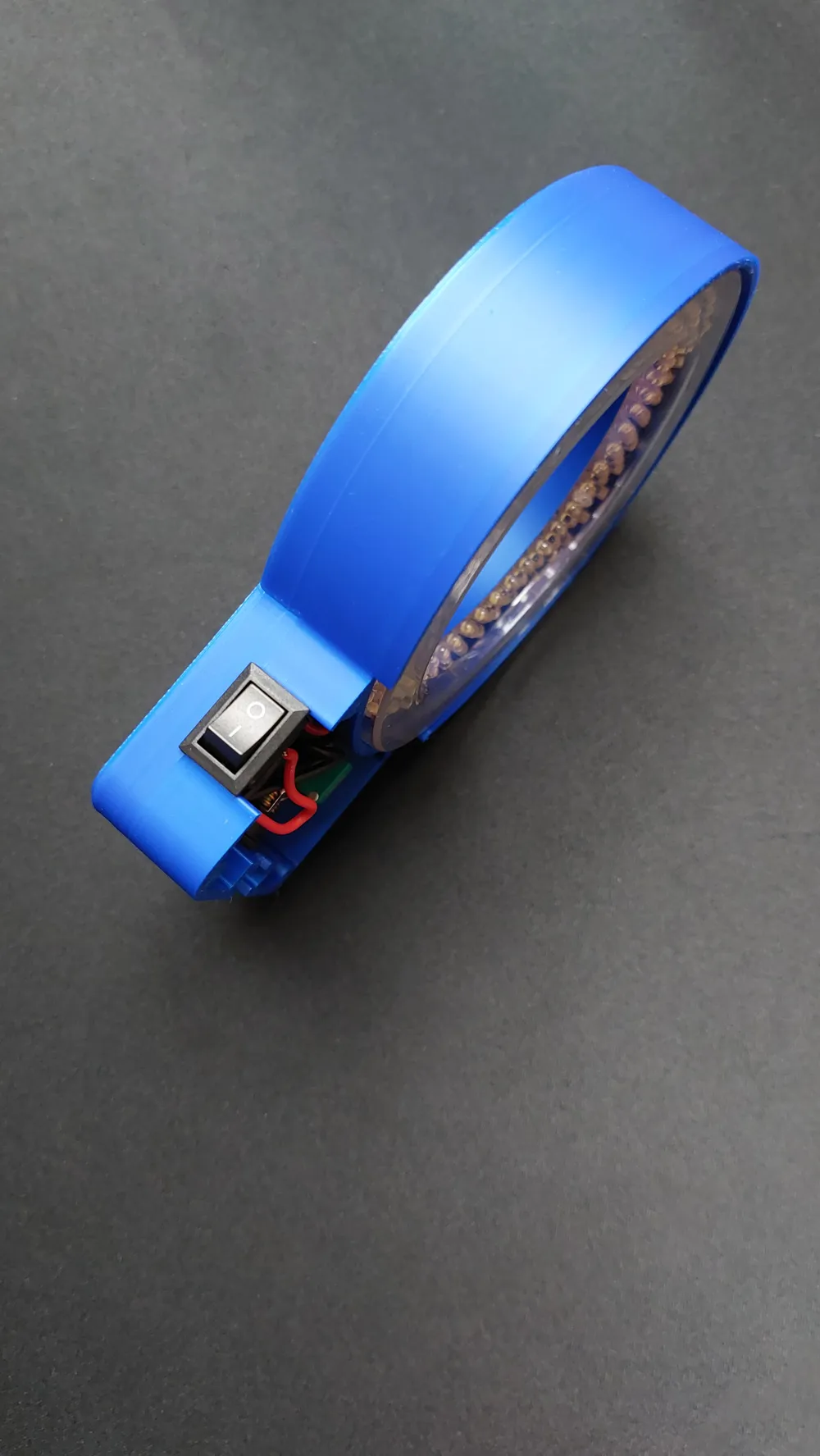

This is a full enclosure replacement for the Microscope Ring Light sold on Aliexpress, 96 LED, damaged original enclosure visible on the first photo.
There are two separate 3MF files, because the attachment ring is advisable to print in PETG for extra resistance.
You will need the following materials.
4x M3x5 Inserts (to be placed on the blue enclosure)

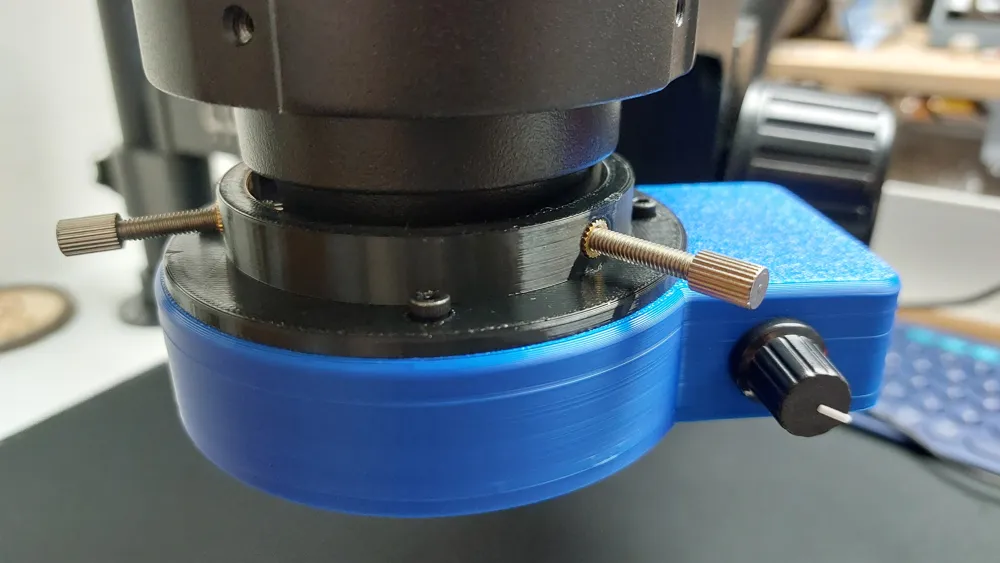

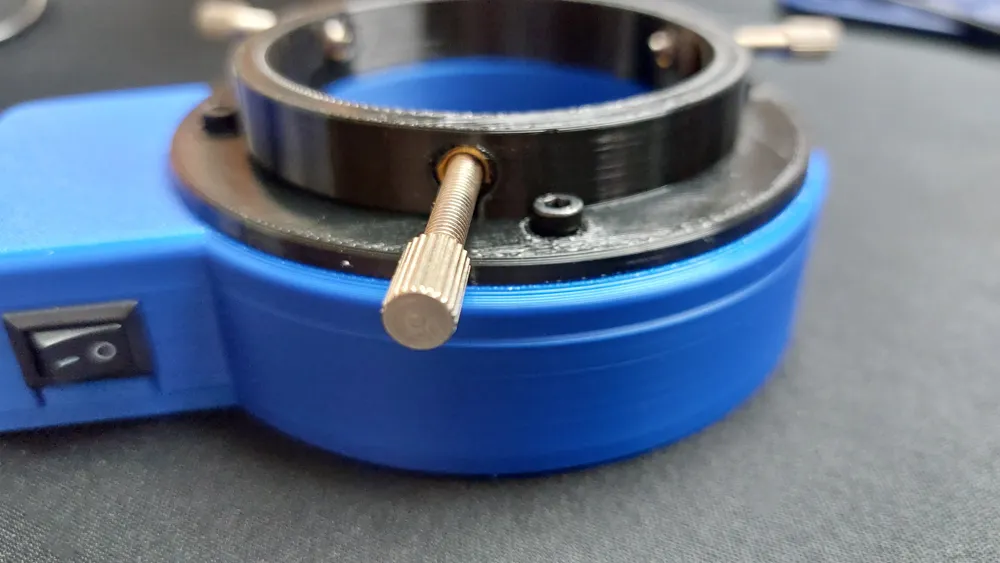

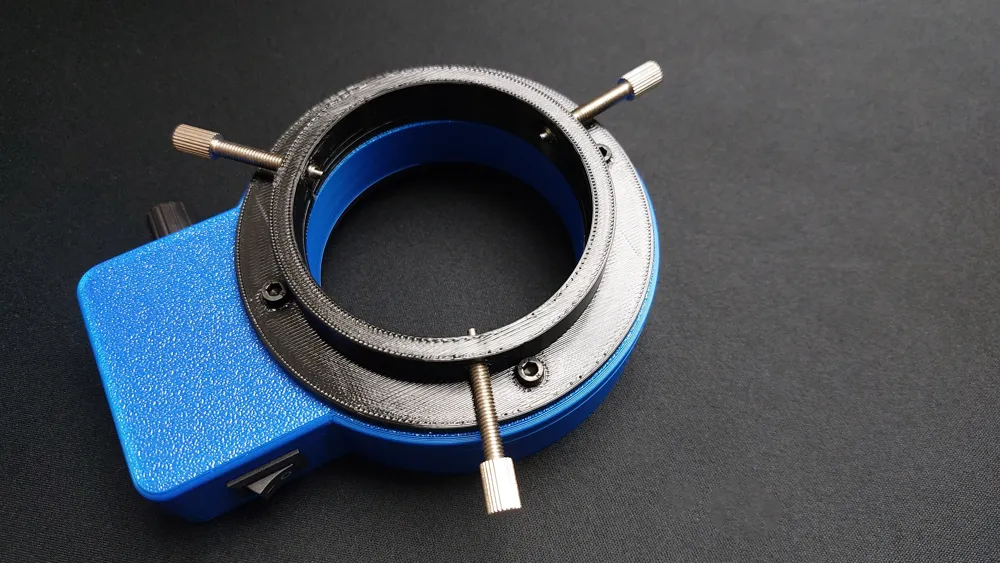

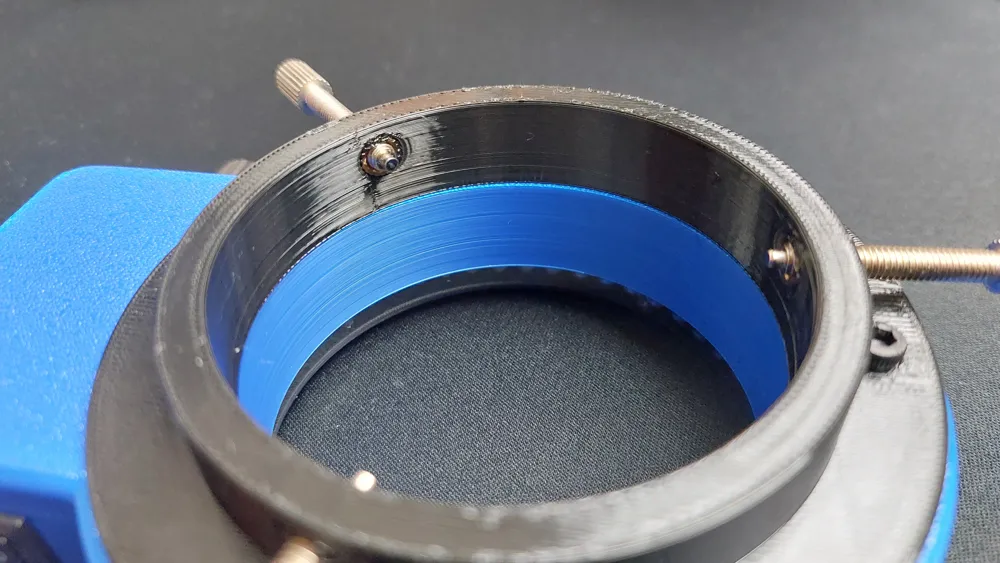

4x M3x6 Screws (to screw the black attachment ring to the enclosure)

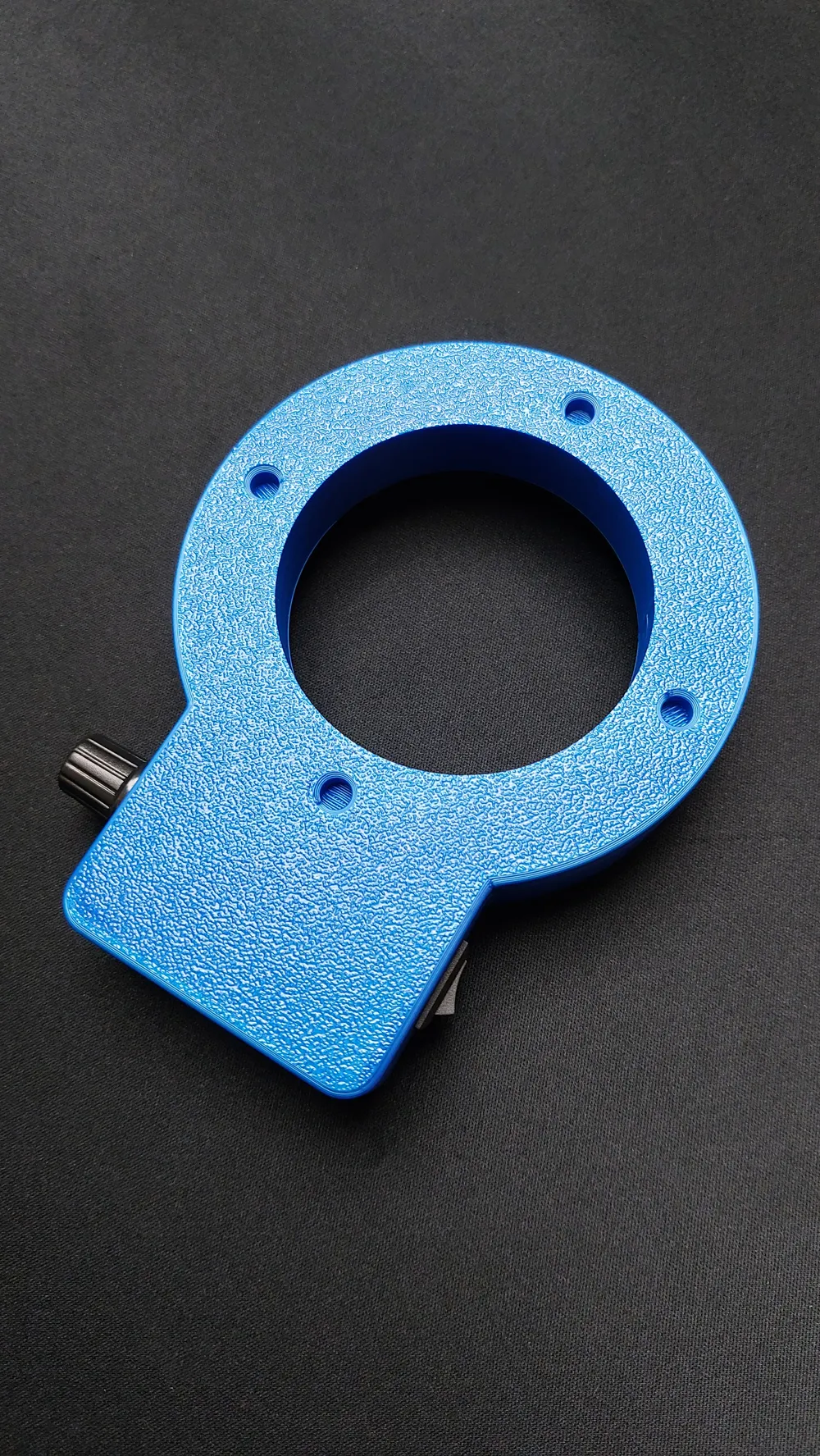

4x M2x8 Self-Tapping screws (to screw the lid of the enclosure)
Use the original inserts for the black attachment ring.
