Puzzle Cube

Update 05.04.26:

Based on your feedback, I have revised the assembly instructions and the solution. I noticed that in step 3 of the instructions, two U-shaped parts were swapped (top left and bottom right), making puzzle 2 unsolvable. I have corrected this and apologize for the error.
If you have already assembled the cube: If the cube is open, you can carefully loosen the clips and swap the parts.

Welcome to the 3D Printed Puzzle Cube!

Experience a mechanical challenge of a special kind. This puzzle cube is not just a simple puzzle, but a complex mechanical work of art with a total of 9 consecutive puzzles. Each of the 6 sides holds its own secrets: from precise gear mechanisms and intricate labyrinths to hidden sliding mechanisms and cryptic codes.

Your goal: Crack the codes, master the mechanics, and find your way to the hidden interior. There, a hollow space awaits you (height: 70 mm, diameter: 58 mm), perfect for vouchers or small gifts.

DO YOU WANT TO BUILD THE CUBE?

Assembly is part of the experience. I would rate the difficulty of assembly as medium to high – ideal for experienced crafters and puzzle enthusiasts.

Please note the technical details for a good result:

Print Specifications:

• Support-free: Designed for prints without any support structures.
• No AMS/MMU needed: Color accents through simple manual filament changes (0.2 mm layer height recommended).
• Print time: Approx. 17 hours | Infill: 15% | Material: PLA.

Information on Colors & File Format (3mf)

To make it as easy as possible for you to get started, the 3mf file is already optimized:

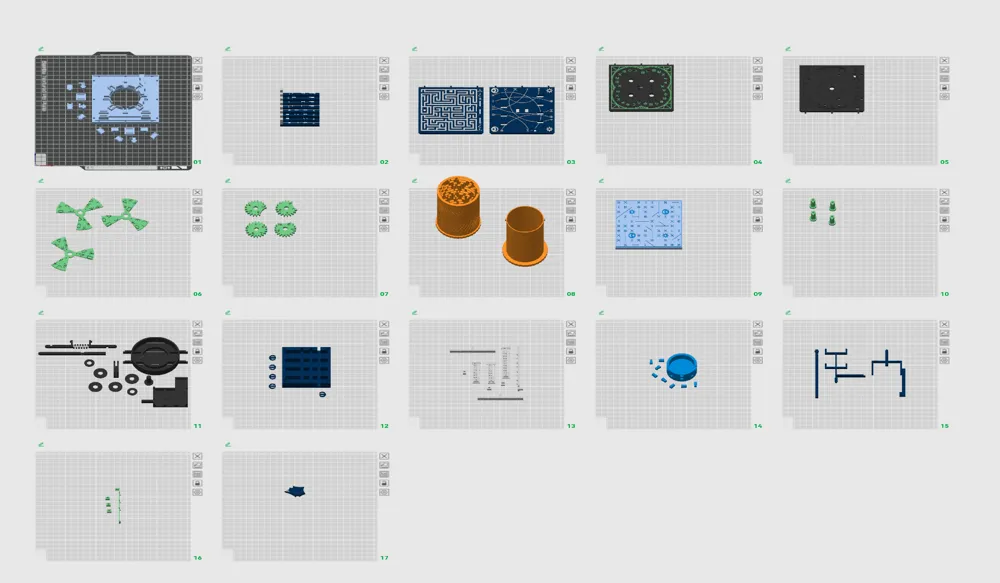

• Color Management: 7 colors are pre-set. The print plates are sorted so that printing without AMS is easily possible and minimizes filament waste.

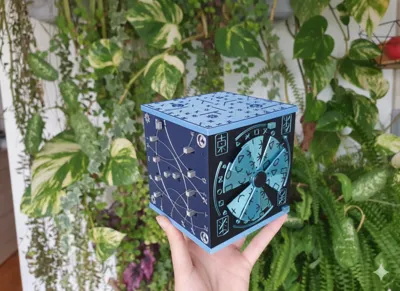

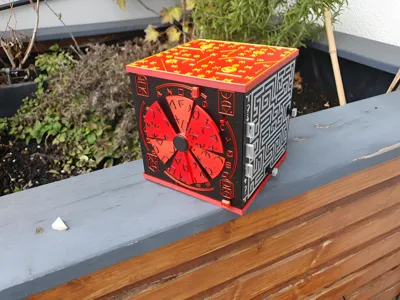

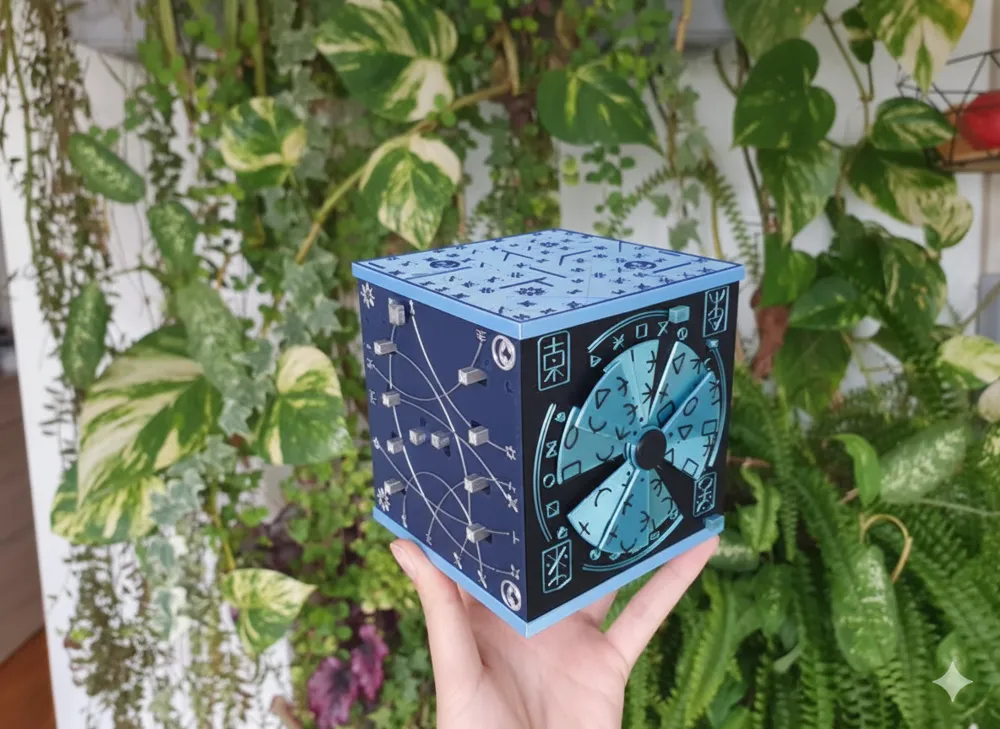

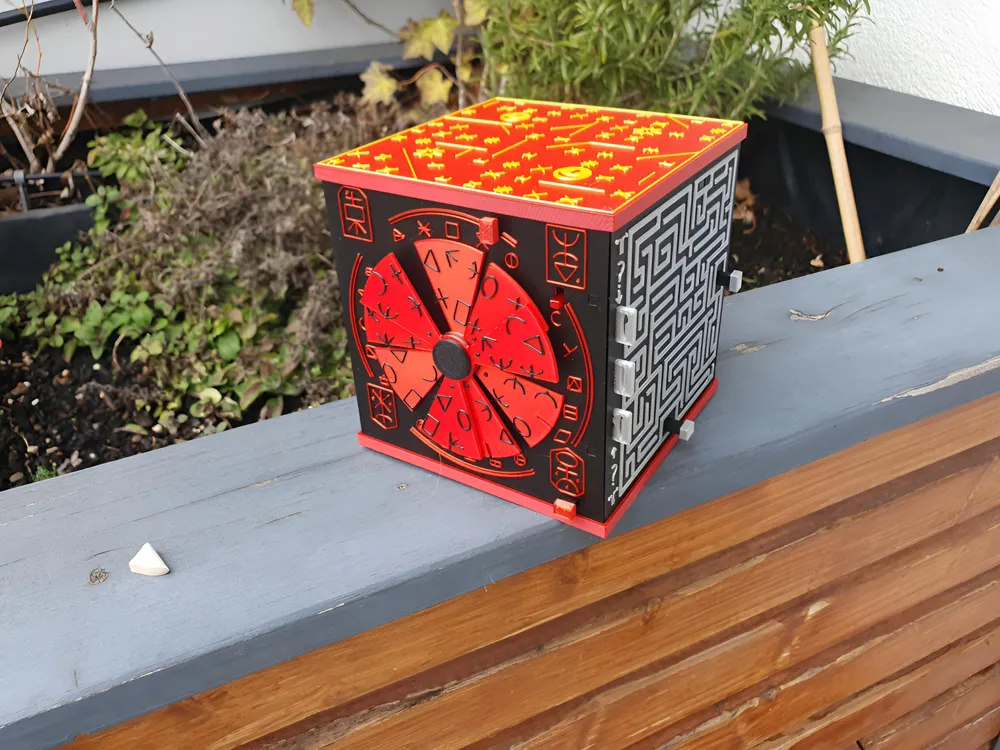

• Flexibility: The number of colors can be reduced as desired. For example, my red model (see pictures) uses 5 different colors, my blue one uses 7.

Assembly Checklist:

1. Instructions: Be sure to use the assembly instructions

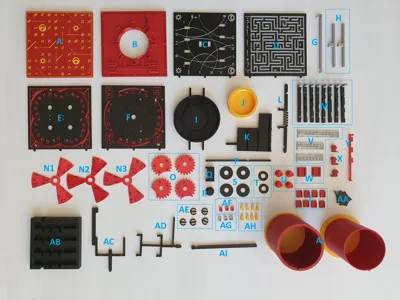

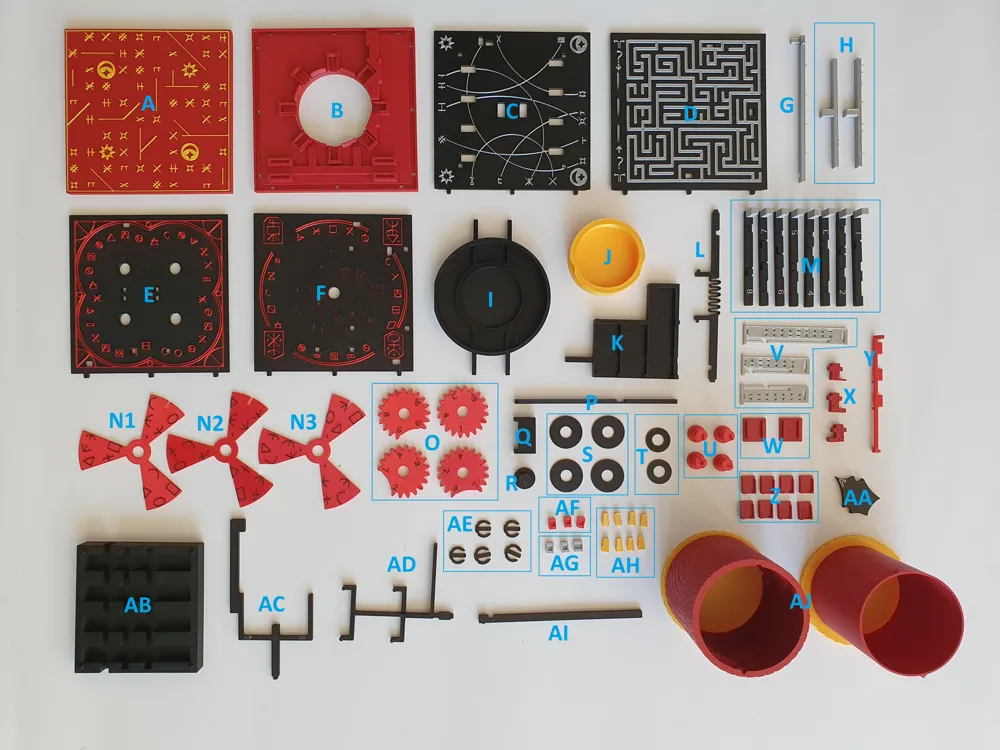

2. Parts Check: Identify parts A to AI using the overview image.
3. Tools: You will need super glue (areas are marked light green in the instructions) and a craft knife for deburring.

DO YOU WANT TO SOLVE THE PUZZLE

Are you stuck or did you receive the cube as a gift? No worries!

• The Solution File: Download the file Layer-Logic_Loesung.pdf.
• The Concept: The solution is structured in stages (Hint 1, Hint 2... then the solution), allowing you to gradually approach it without immediately spoiling yourself.
• Starting Aid: Each side of the cube is marked with a letter (A to F) so you can easily find your way around the guide.

A Personal Word from the Designer

The Layer-Logic Cube is my first complex 3D model. It started as a passion project for a birthday gift. As this is my debut work, I rely on your feedback:

• Found an error? Write to me directly, I am continuously improving the model!
• Feedback & Photos: I am thrilled to see your "Makes" and pictures of your color combinations.

Note: The design and mechanics are entirely my own. As writing is not my strong suit, the layout and wording have been optimized with the help of AI to ensure maximum clarity for you. Similarly, the title image and the English translation were created with the help of AI.
