rotating memory chess
Print Profile(1)
Bill of Materials
- 9v blockbatterie x 1: power
- drehzahlsteller x 1: https://www.amazon.de/dp/B098TH7Q2K
- 9v getriebemotor 105 U/min x 2: https://www.amazon.de/dp/B081JN8ZCP
- kugellager 693zz x 2: für die führungsrollen und den deckel
- gummi dichtring 3mm x 16mm aussen x 2: zur monage um die antriebsräder
- m1,6x4 x 4: zum montieren der motoren
- m2x4 x 2: für halter 9v batterie
Description

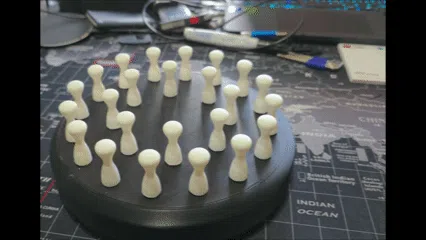

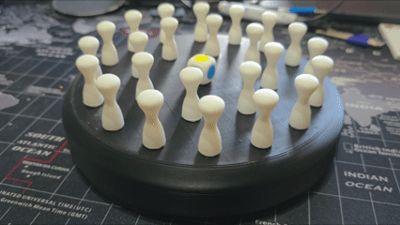

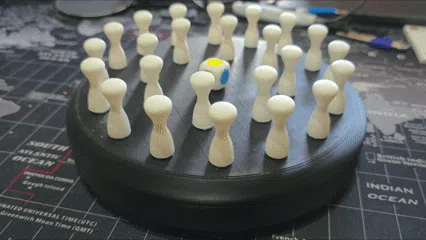

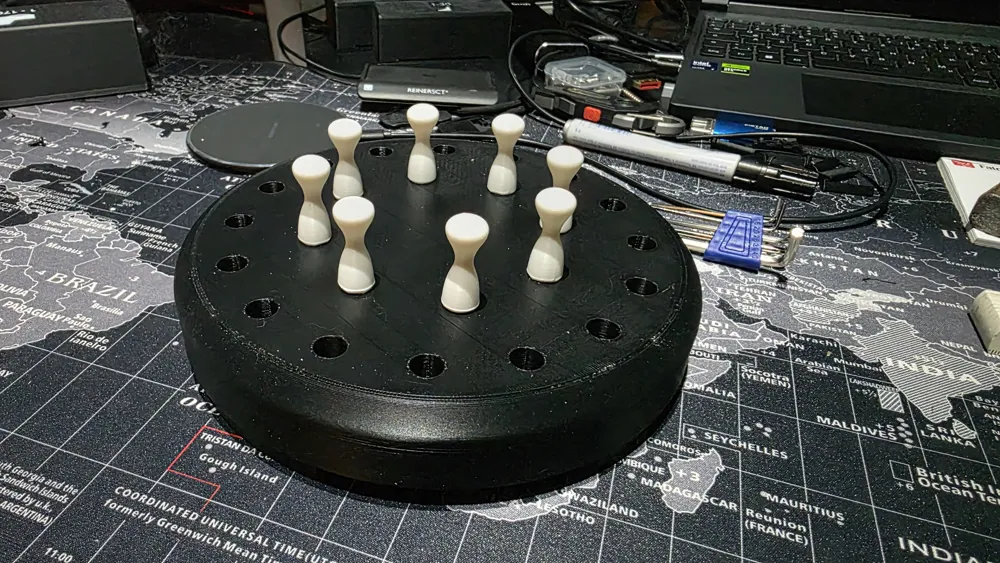

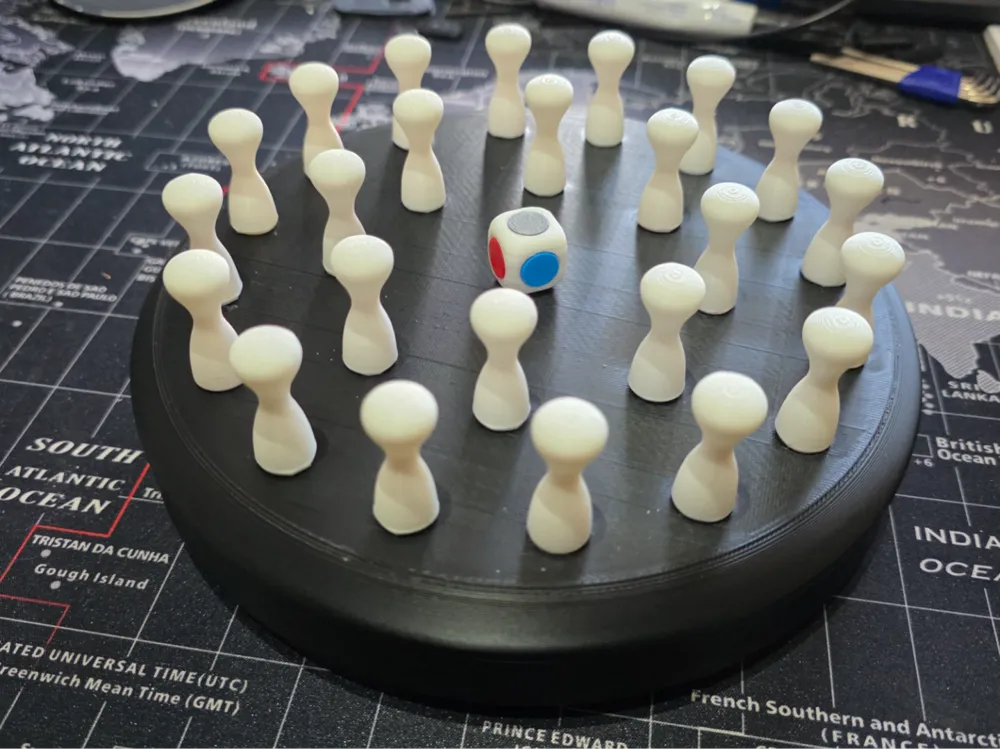

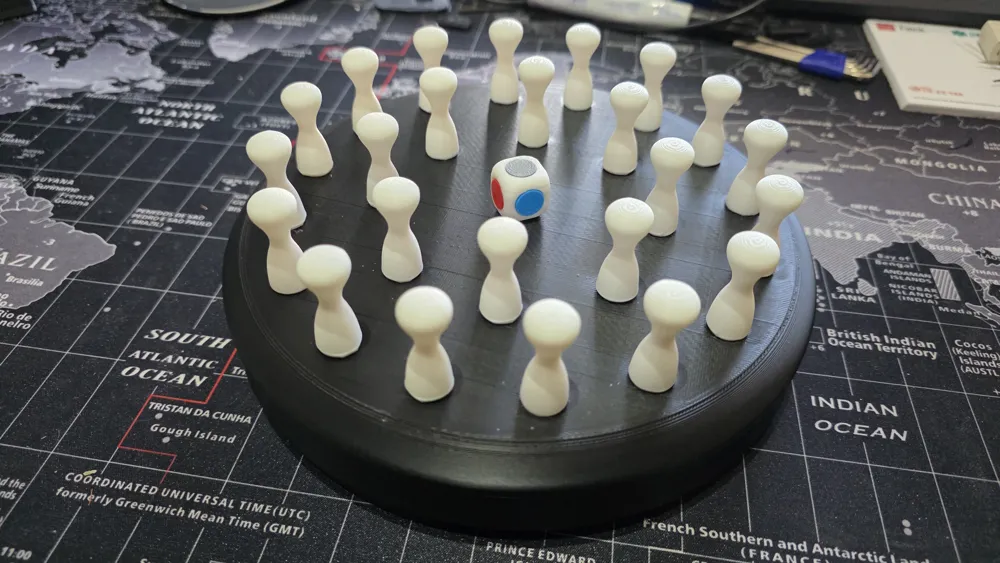

I designed a rotating memory chess game to make the gameplay more exciting

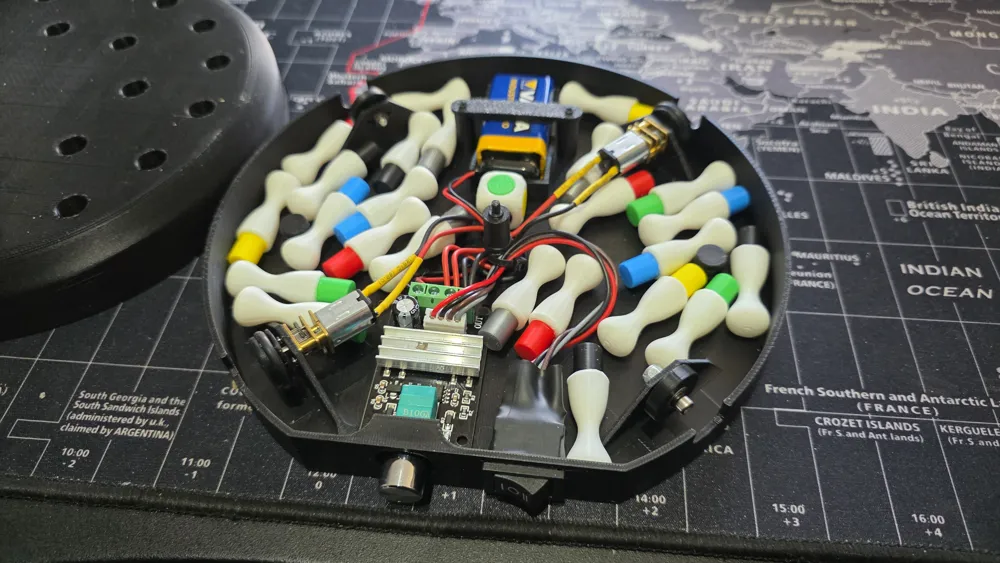

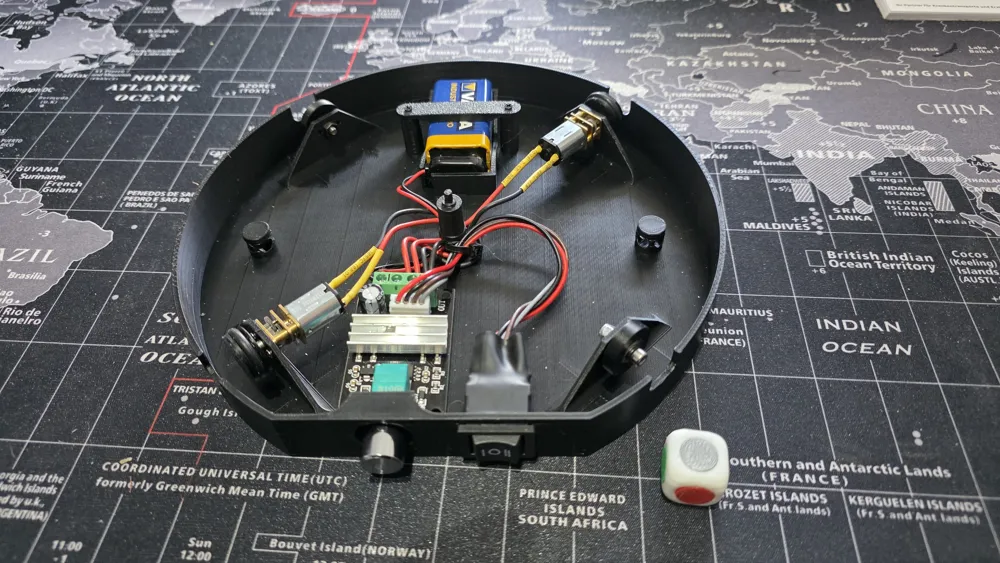

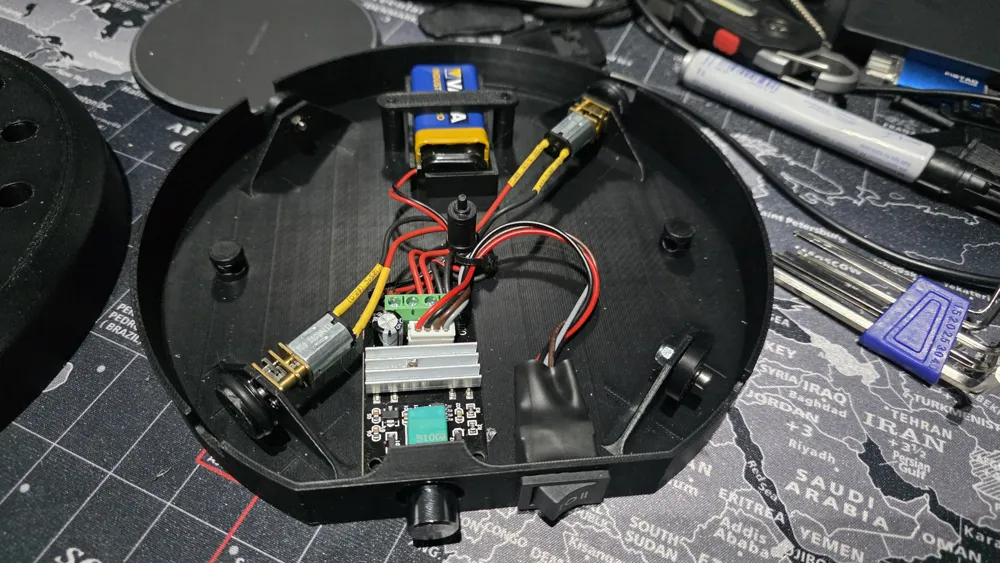

I used the following parts
2x 9v geared motor 105 rpm (you can also try a faster one)

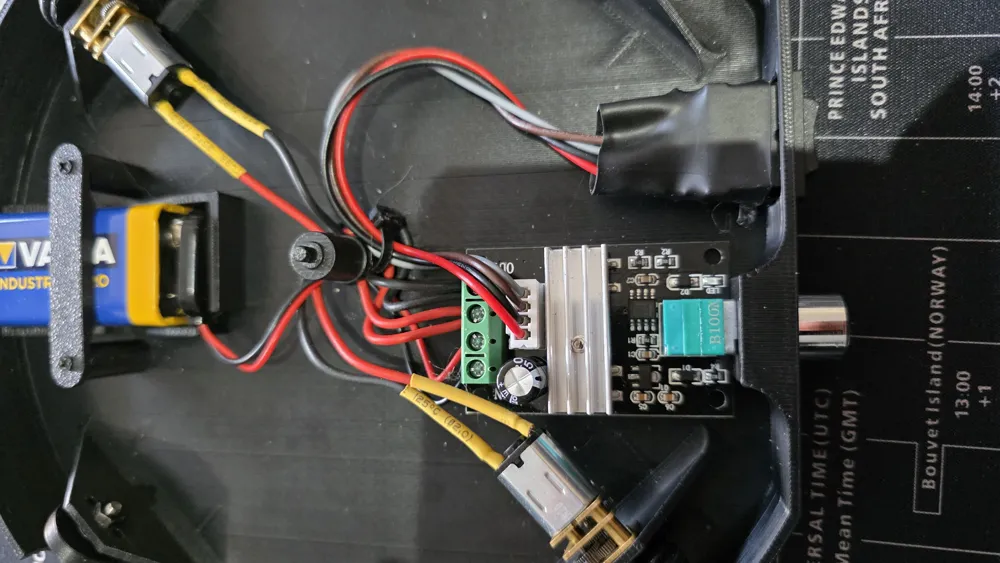

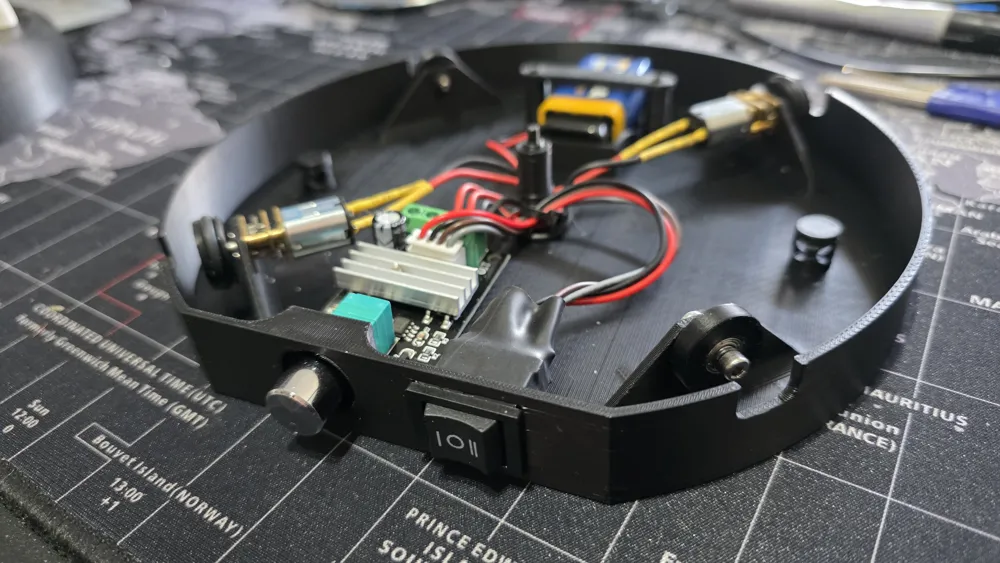

1x speed controller
4x m1.6x4mm screws for the motors
2x m2x40 for the battery holder
1x 9v block battery
3x ball bearing 693zz (for the guide rollers and one is mounted under the lid)

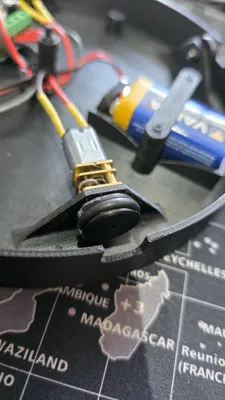

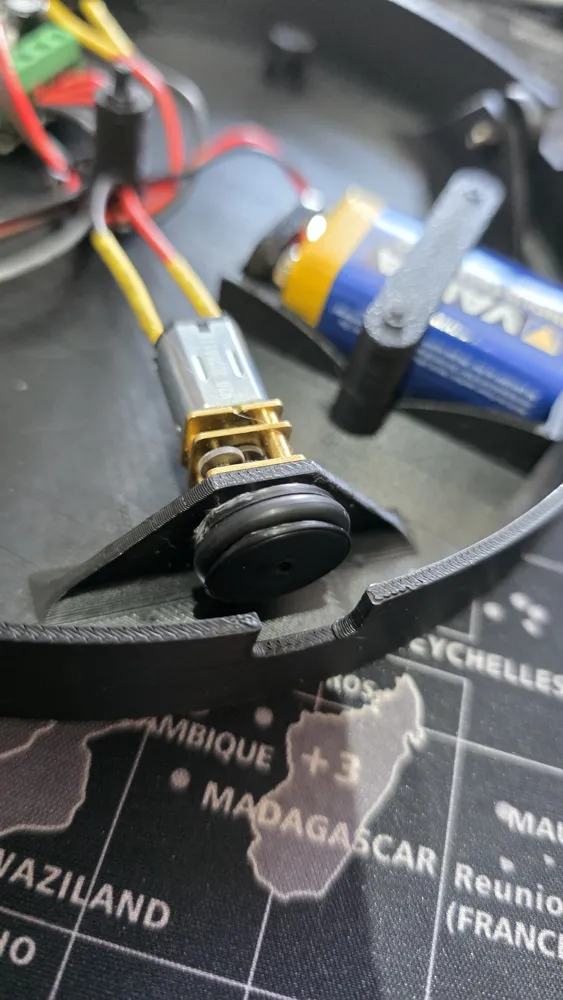

2x rubber sealing ring 3mm thick 16mm outer diameter (for the drive wheels)

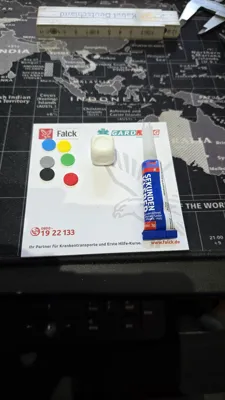

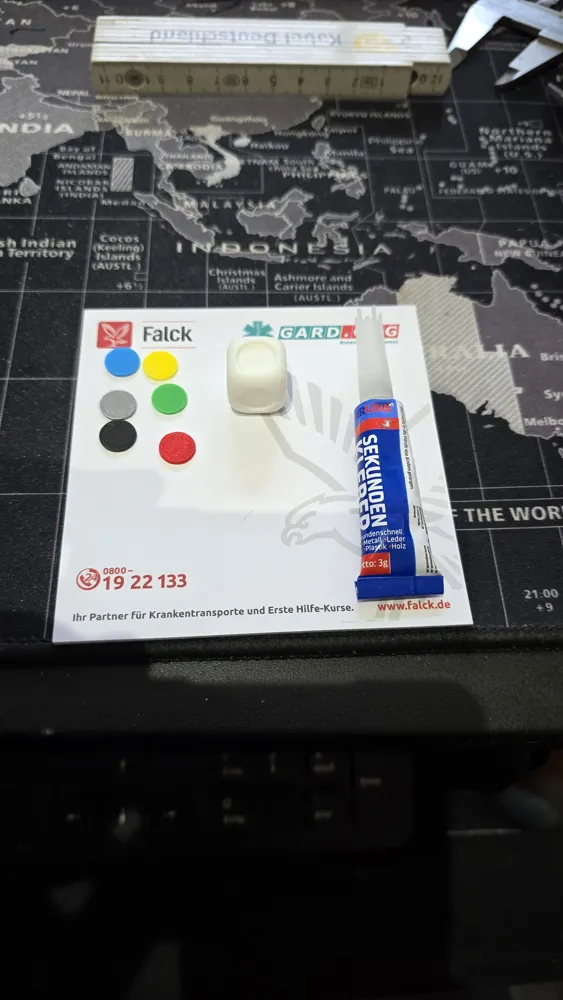

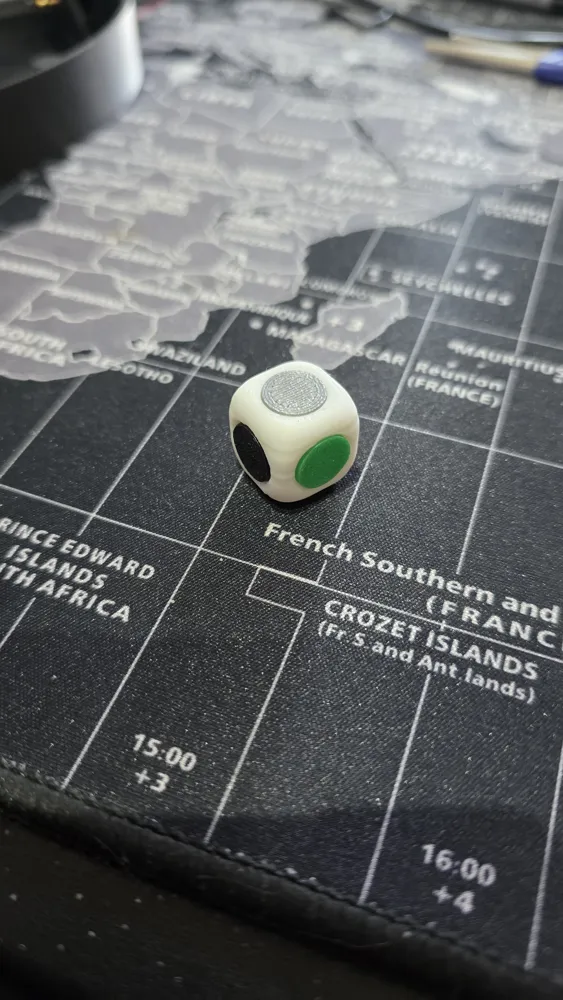

the colored tiles for the cube are best glued with superglue
