⚾ Dugout Diamond Dock: The Ultimate Baseball Gear Organizer

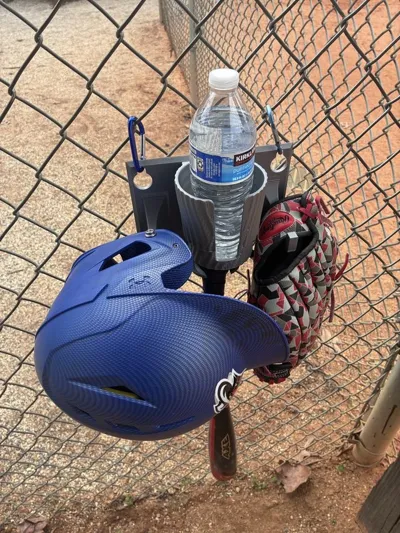

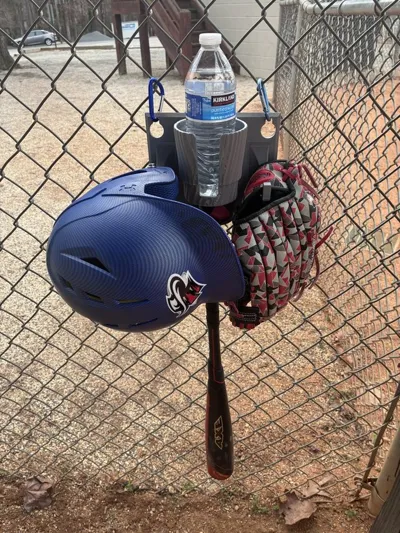

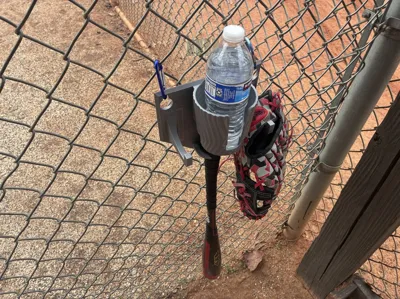

Tired of seeing gear scattered across the dugout floor? The Dugout Diamond Dock is a rugged, all-in-one storage solution designed to keep a player’s essentials—Water Bottle, Glove, Bat, and Helmet—organized, clean, and within arm's reach.

🛠️ Detailed Description & Functionality

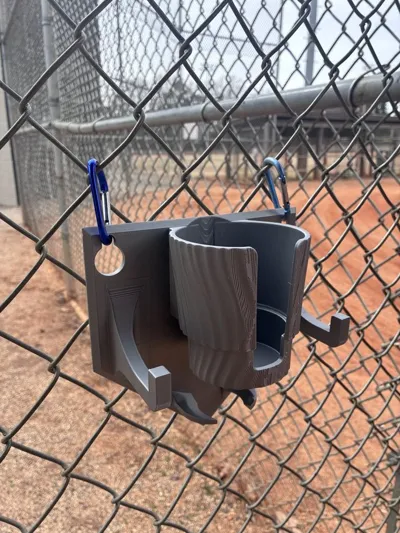

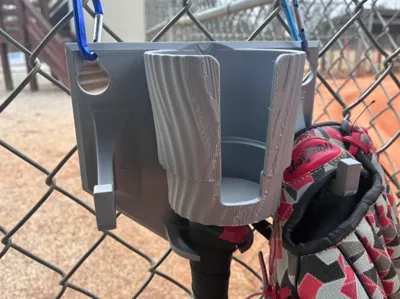

The Diamond Dock features a heavy-duty backplate with integrated "keyhole" mounts designed to fit standard chain-link fences using common dugout hooks or carabiners.

Integrated Features:

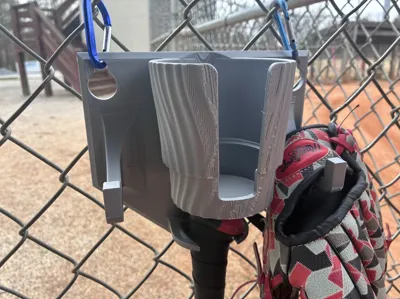

• Central Cup Holder: Deep, fluted design to accommodate standard sports bottles and reusable tumblers.
• Dual Utility Hooks: Two reinforced side hooks perfectly spaced to hold a fielding glove and a batting helmet.

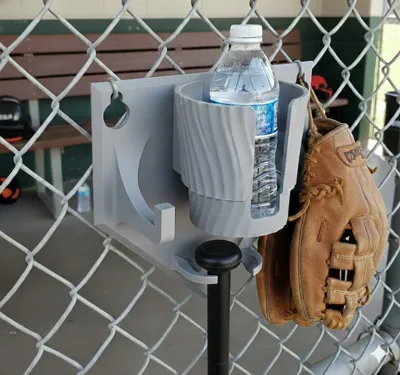

• Bat Cradle: A secure, bottom-mounted notch that supports the knob of the bat, keeping it vertical and preventing it from tripping teammates.

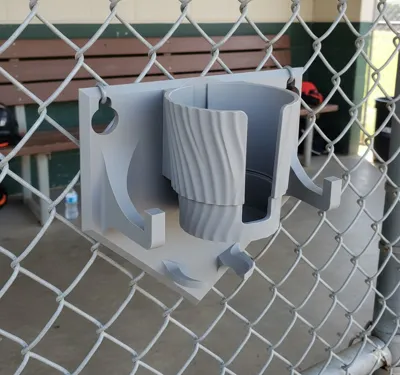

• Reinforced Geometry: Features built-in gussets to handle the weight of heavy leather gloves and full water bottles without sagging.

📖 The Backstory

This design was born out of "Dugout Chaos." After watching players constantly hunt for their gloves between innings and seeing expensive bats get scuffed up in the dirt, I designed the Diamond Dock. It went through several iterations to ensure the hooks were deep enough so gear wouldn't fall off if the fence was bumped, and that the bat cradle was universal for different bat sizes.

⚠️ Critical Printing Recommendations (Material Matters!)

Since this model will be living outdoors on a hot metal fence, choosing the right filament is vital:

1. ASA (Highly Recommended): This is the gold standard for this print. ASA is UV-resistant and has a high heat deflection temperature, meaning it won't warp or "creep" under the weight of your gear when the sun is beating down on the dugout.
2. PETG (Secondary Option): If you don't have the setup for ASA, PETG is your next best bet. It offers better heat resistance than PLA, though it may still soften in extreme triple-digit temperatures.
3. Avoid PLA: Do not use standard PLA. It will likely warp or melt within the first hour of a summer afternoon game.

🔄 Remix Potential & Alternative Uses

While designed for the ball field, this is a versatile organizer! With a simple scale-up or down in your slicer, it can be remixed for:

• The Garage: Organize spray cans, work gloves, and flashlights (Keyword: Workshop Organizer).
• Gardening: A perfect dock for a water bottle and hand trowel on a backyard fence (Keyword: Garden Tool Caddy).
• Cleaning: Mount it to a utility cart to hold spray bottles and rags (Keyword: Janitorial Hook).

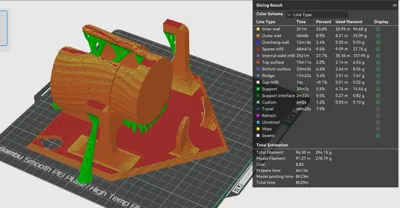

💡 PRO TIP: If you need to scale this model to fit a specific oversized bottle or a thin "T-Ball" bat, check out my guide on how to size and scale models directly in the slicer! Watch here: How to size, scale, cut, and orient models in Bambu Studio
