Handlebar Stand

Handlebar Stand – 10 cm Tall TPU Workshop Protector

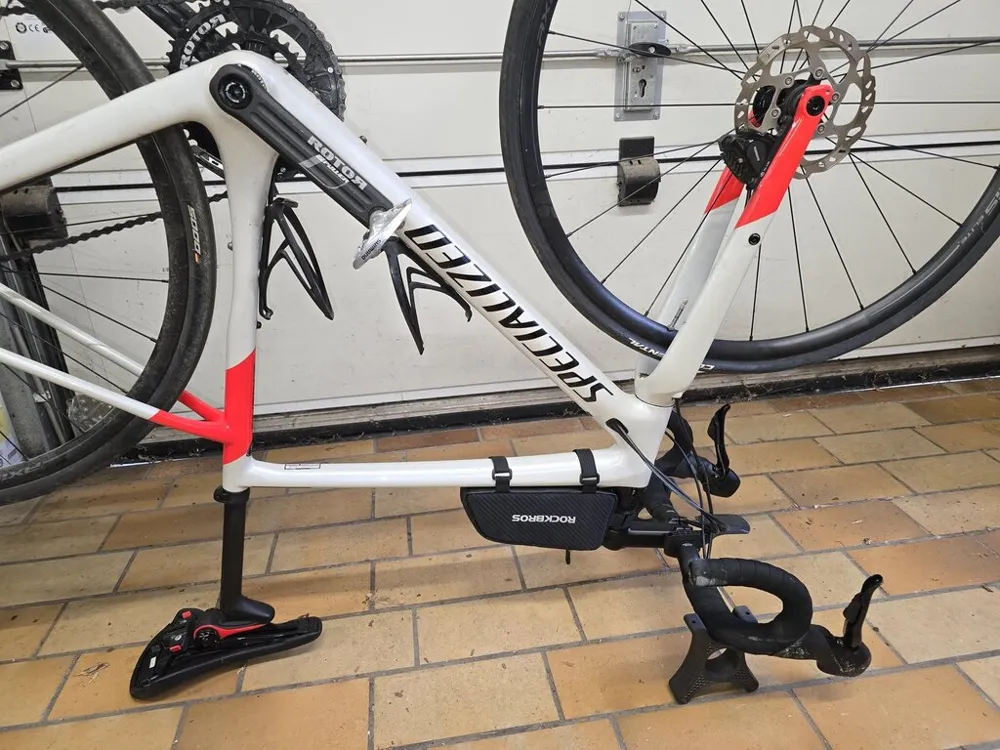

No more scratches on your brake levers, shifters, dropper-post levers or expensive computer when you flip your bike upside down for maintenance!

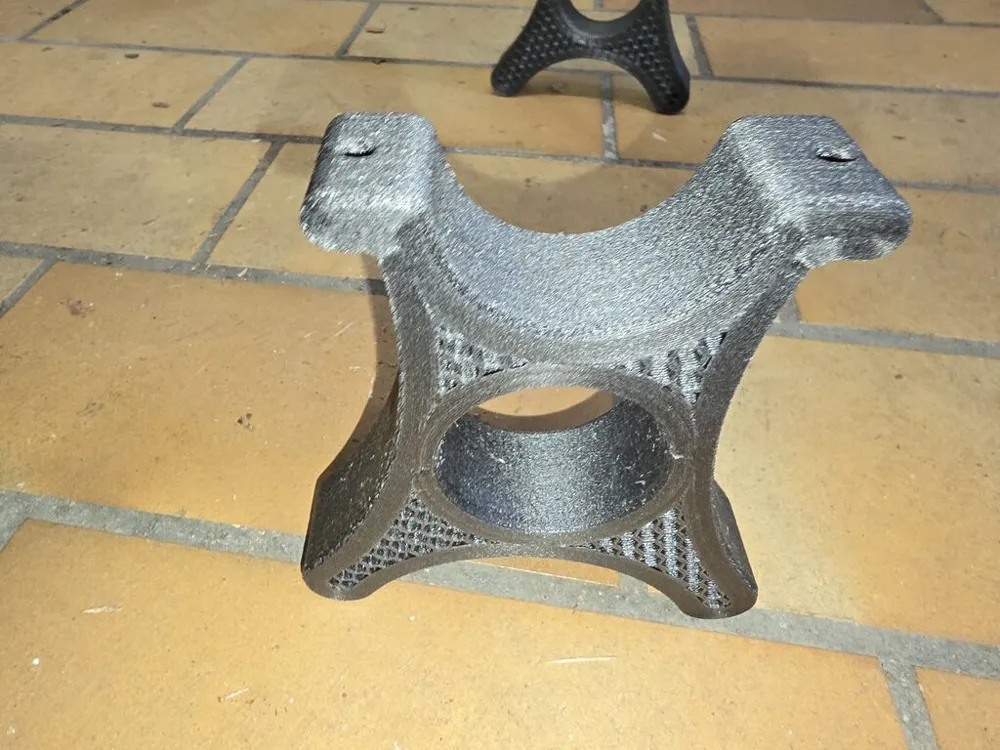

This clever Handlebar Stand (also called grip lifter or handlebar protector) simply slides under the grip ends and lifts the bars safely off the floor. Perfect for road cyclists and mountain bikers who want fast chain lubing, tire changes or brake adjustments without any risk.

Why you need this set

• Protects grips, levers and displays from hard floors
• Stays put thanks to flexible TPU
• On and off in seconds

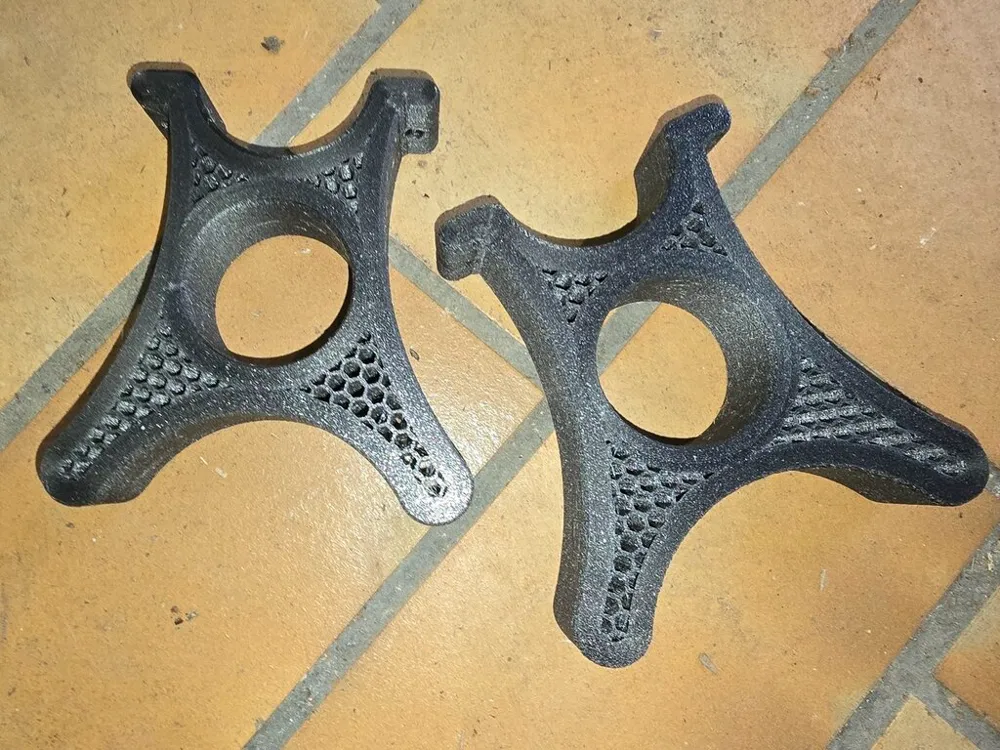

• Print two pieces (left + right) for complete protection
• Fits handlebars and grips up to 50 mm diameter – perfect for big road-bike bars, aero extensions and thick MTB grips (no scaling needed for most bikes!)

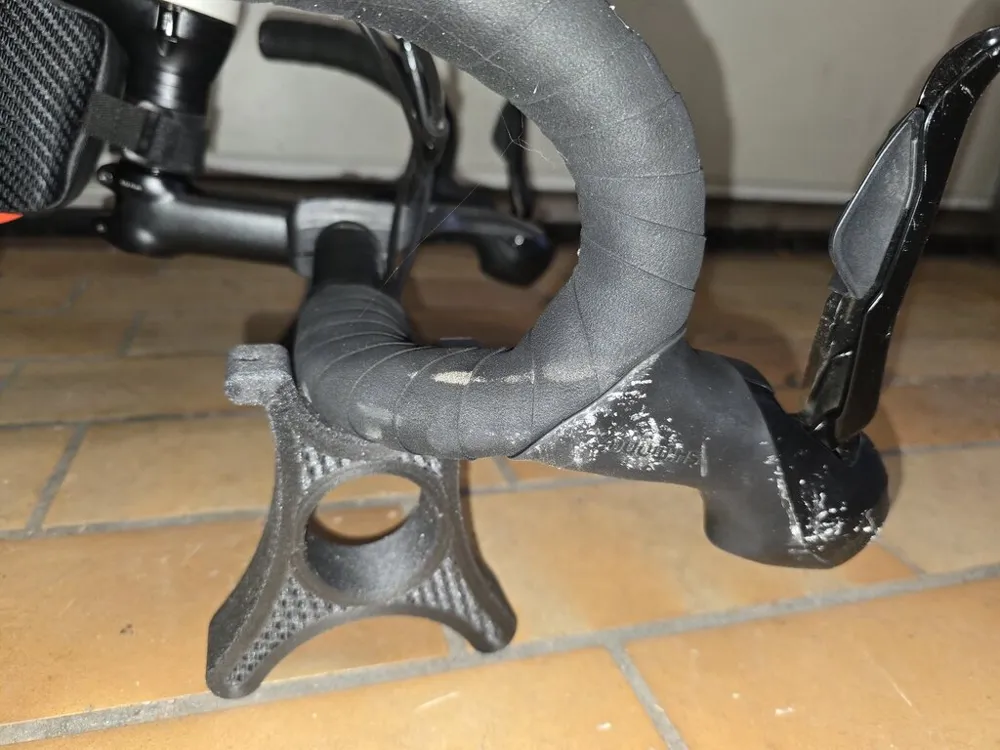

• Unique 10 cm height – unlike other stands, this keeps even road-bike drop-bar brake and shift levers completely clear of the ground!

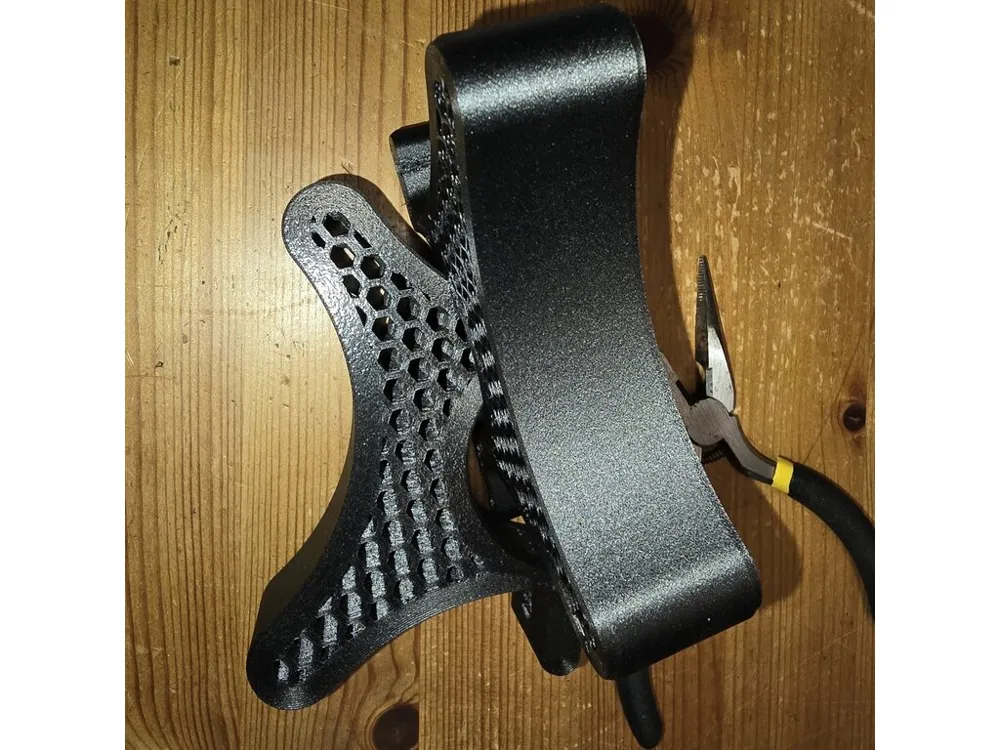

• Large central hole in each stand for easy hanging and storage – just hook them on a pegboard or tool wall.

Included files

• 3MF files – ready-to-print with all settings optimized for • PrusaSlicer • Orca Slicer • Bambu Studio

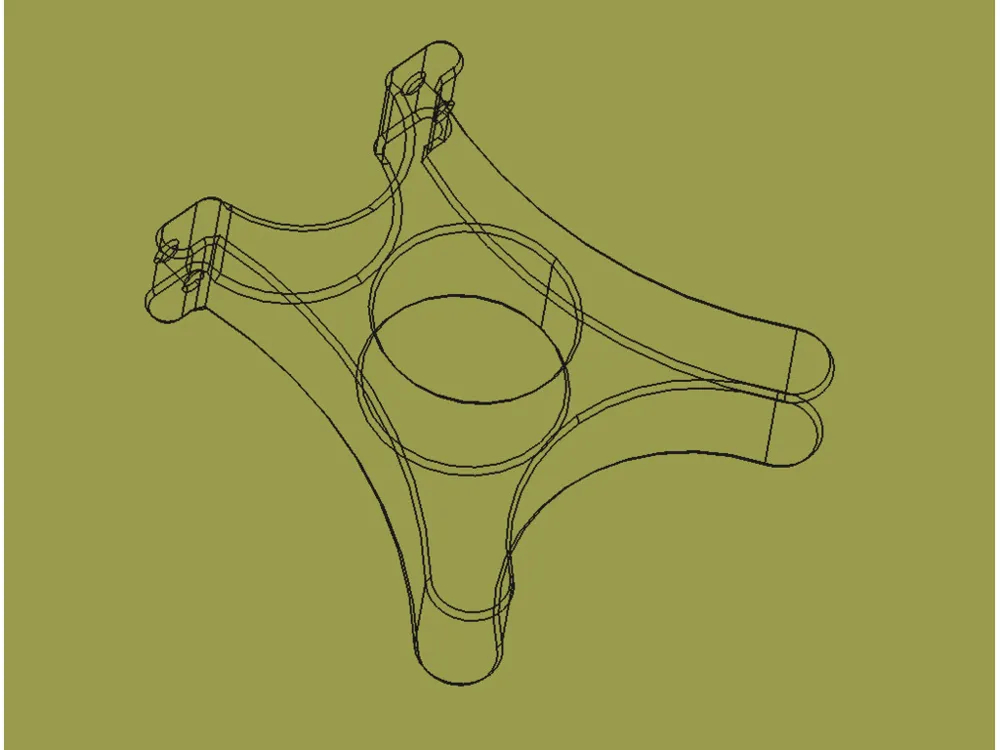

• STEP file – clean CAD for easy scaling, remixing or modifications

Recommended print settings (TPU 95A–98A)

• No supports required
• Layer height: 0.2 mm
• Perimeters: 10 (extra strong – easily carries heavy e-bikes!)
• Infill: Honeycomb 15 %
• Top layers: 0

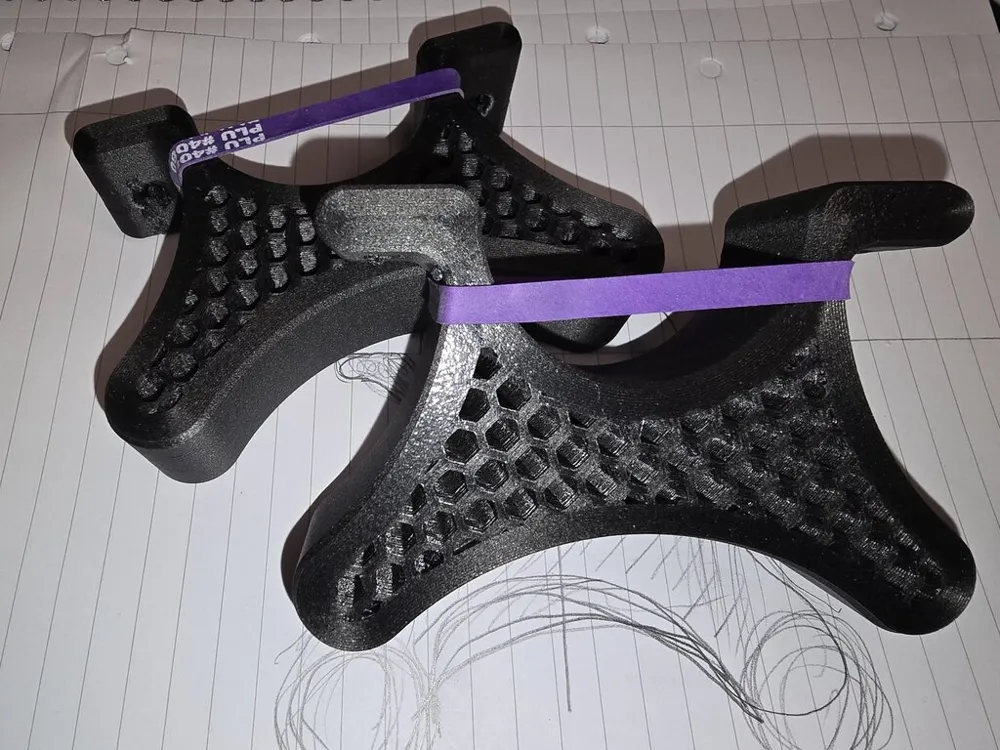

• Bottom layers: 0 (so you can see the beautiful honeycomb structure from both sides!)
• Print speed: 30–50 mm/s (slow for best TPU quality)
• Bed temperature: 50–60 °C
• Build plate: PEI or textured (excellent adhesion)

Pro tip Print them in bright colors – you’ll spot them instantly in the workshop.

Share your makes

Happy scratch-free wrenching – your handlebar (and your levers) will thank you! 🚲🔧
