Makita Trimmer Router Stability Base Plate
Print Profile(3)
Description

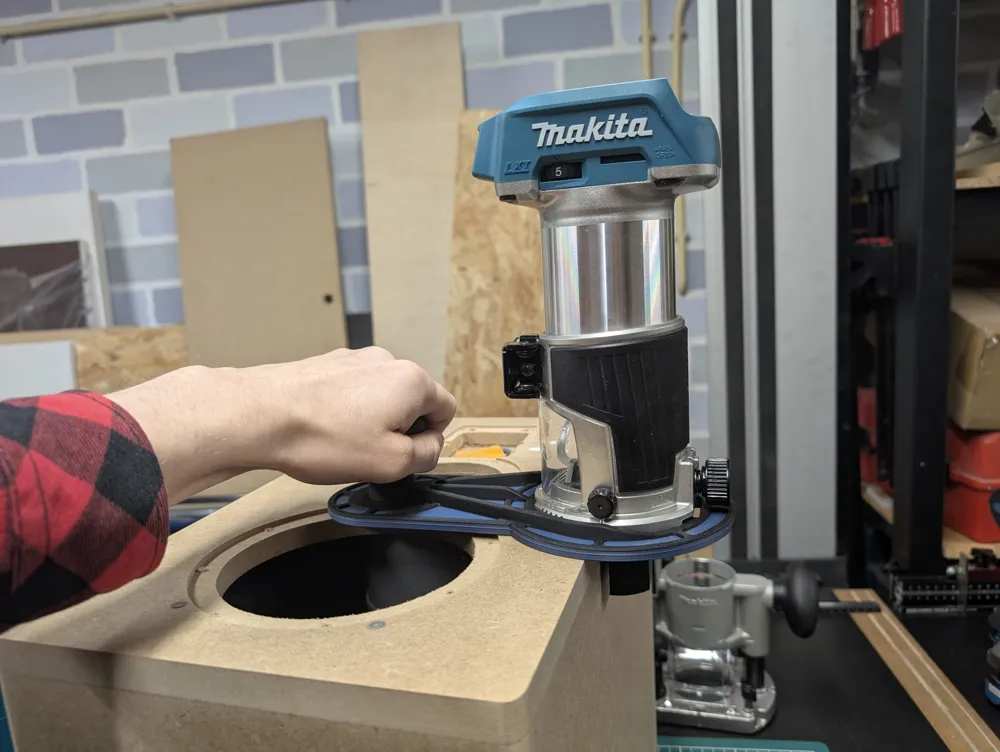

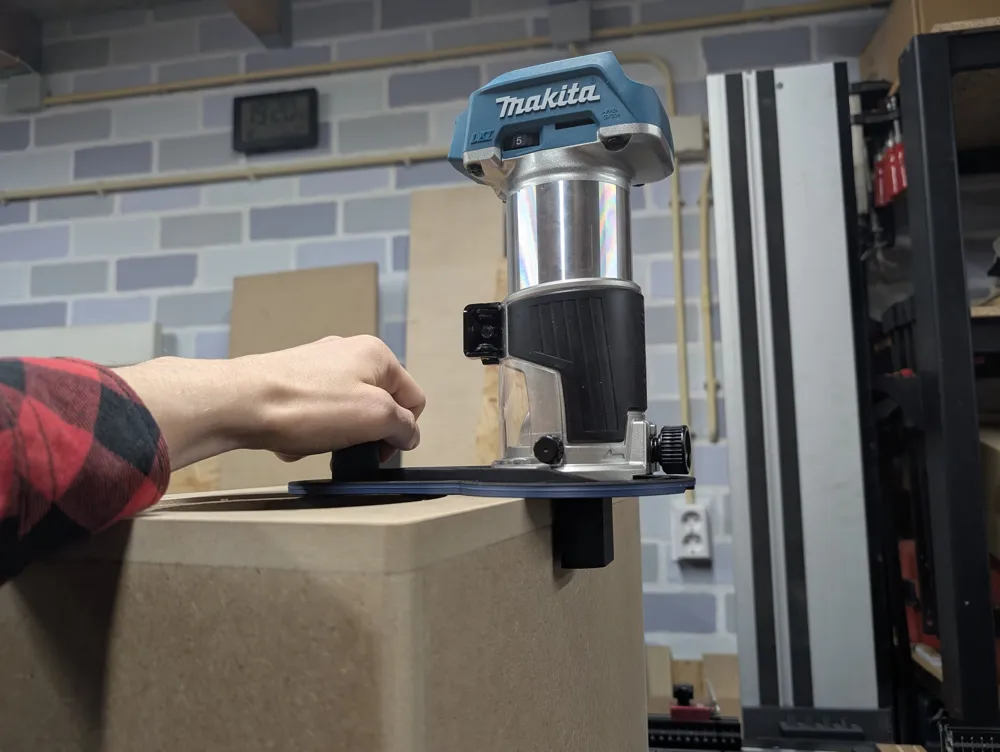

I made this router base plate because I wasn't satisfied by existing models.
Boost Me (for free)
Boosting supports more high effort models in the future!

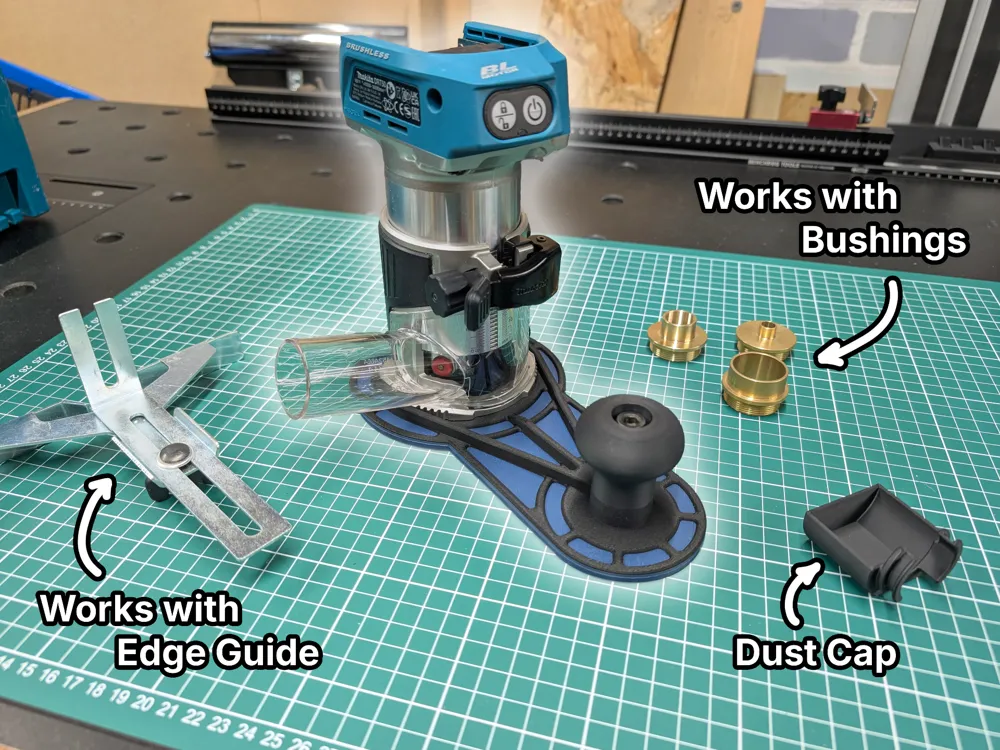

My model has the following unique features:

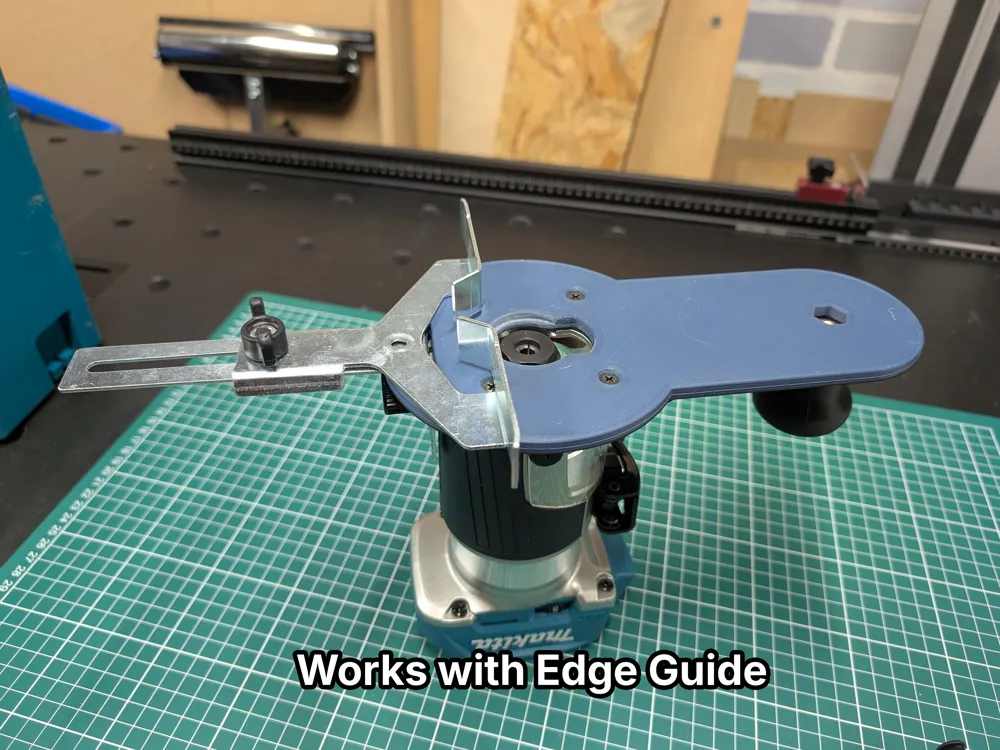

- Works with the edge guide

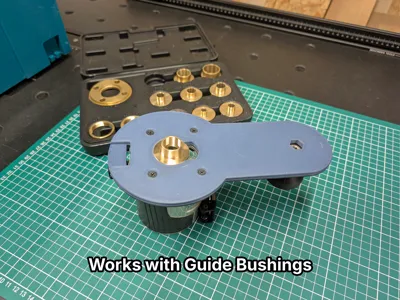

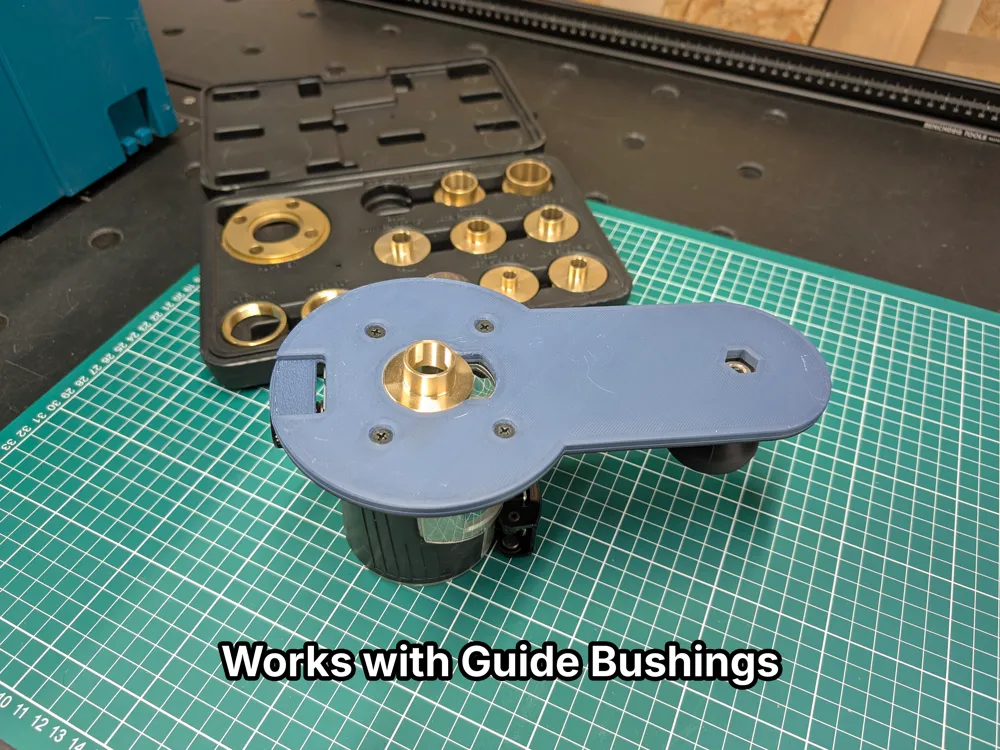

- Works with Guide bushings

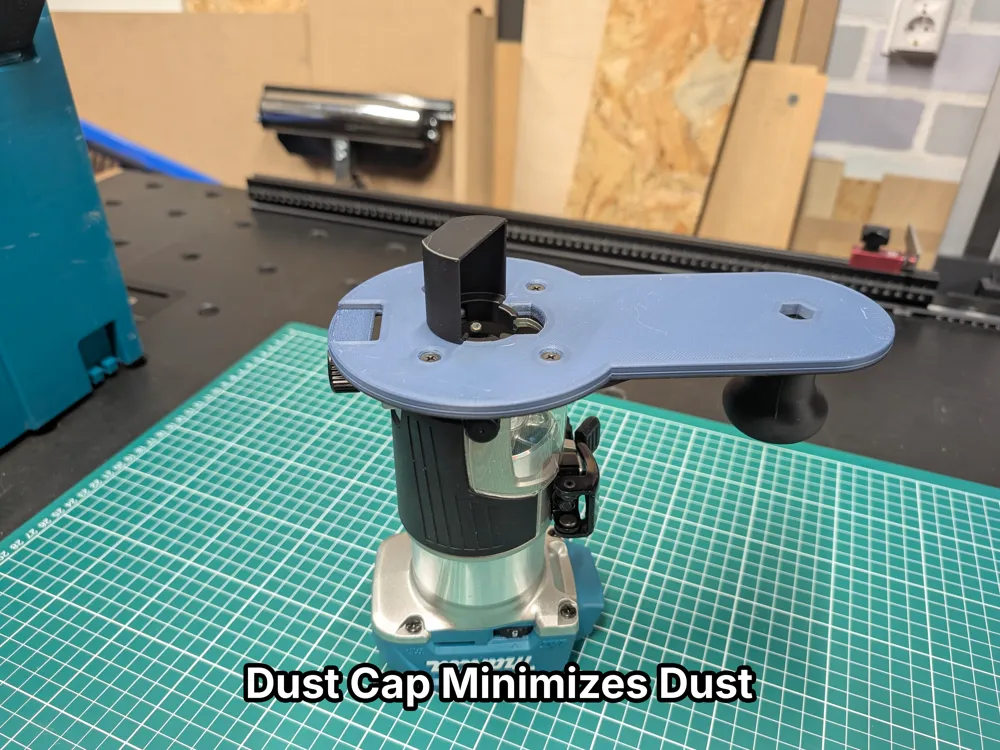

- Has a dust cap to minimize dust
- Makita knob can optionally be used
- Can be used as a mini router table (clamp it)
This base plate should work with the following routers:
- Makita LXT 18V DRT50 / XTR01
- Makita RT0700 / RT0701 / RT0702
- Makita XGT 40V RT001G / RT002G
- Vevor routers that mimic Makita
- Katsu routers that mimic Makita

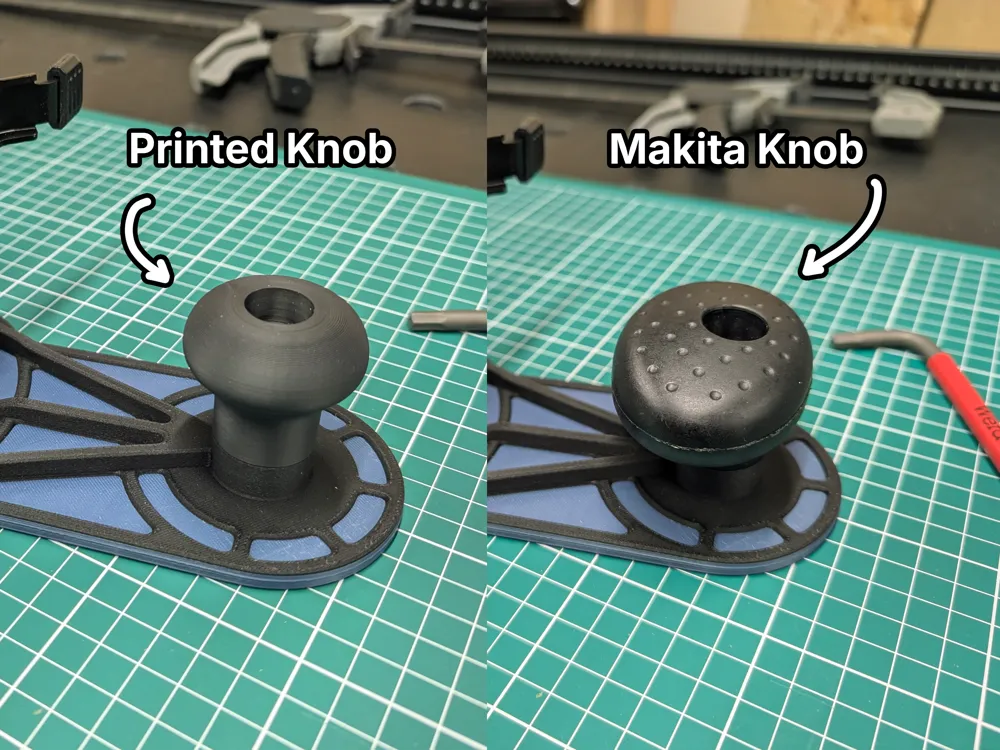

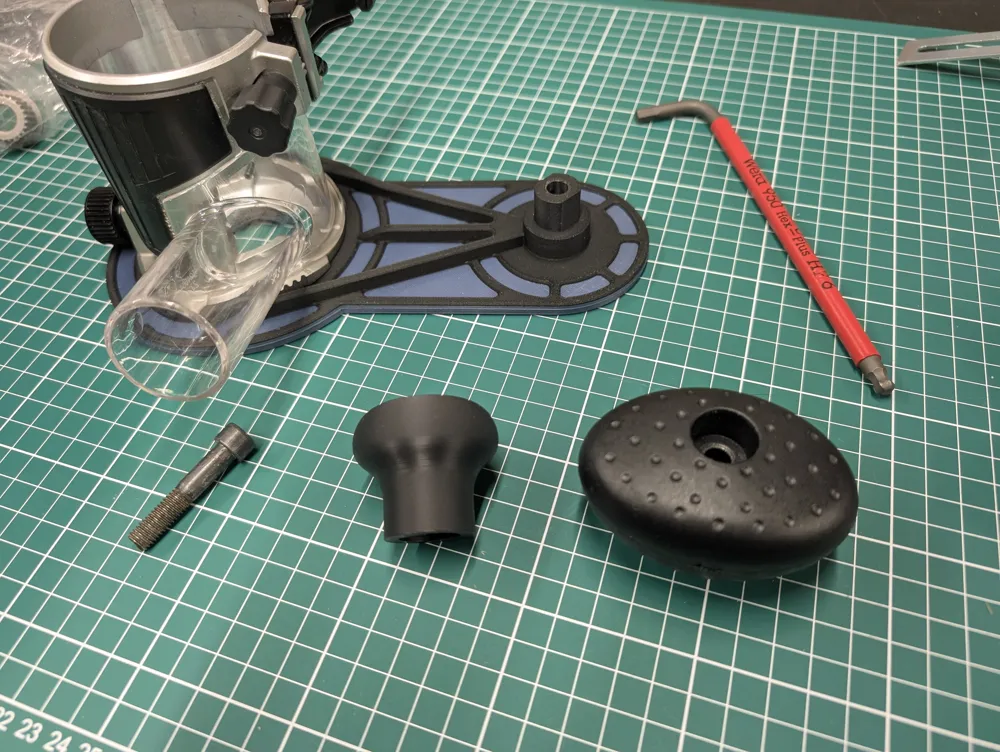

There are multiple options for the Handle
- Print the base plate and the handle as one piece. (No bolt required)
- Print the base plate and knob separately and attach them with an M8×40 bolt and M8 nut
- Print only the base plate attach a Makita knob (from the offset base) with M8×40 bolt and M8 nut
