Tomtom rider 550 GPS Mount Thruxton 1200 R
Print Profile(1)
Description

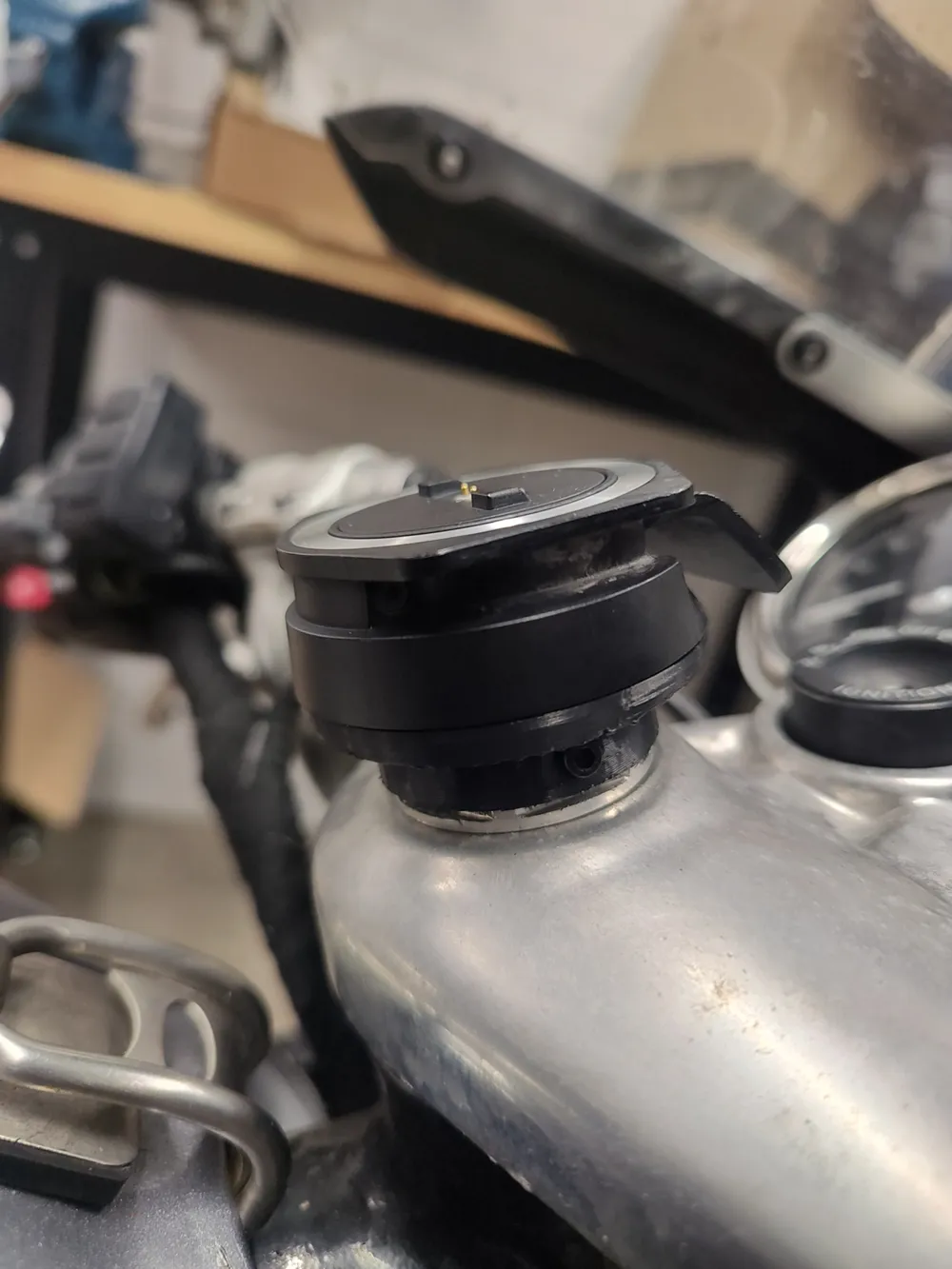

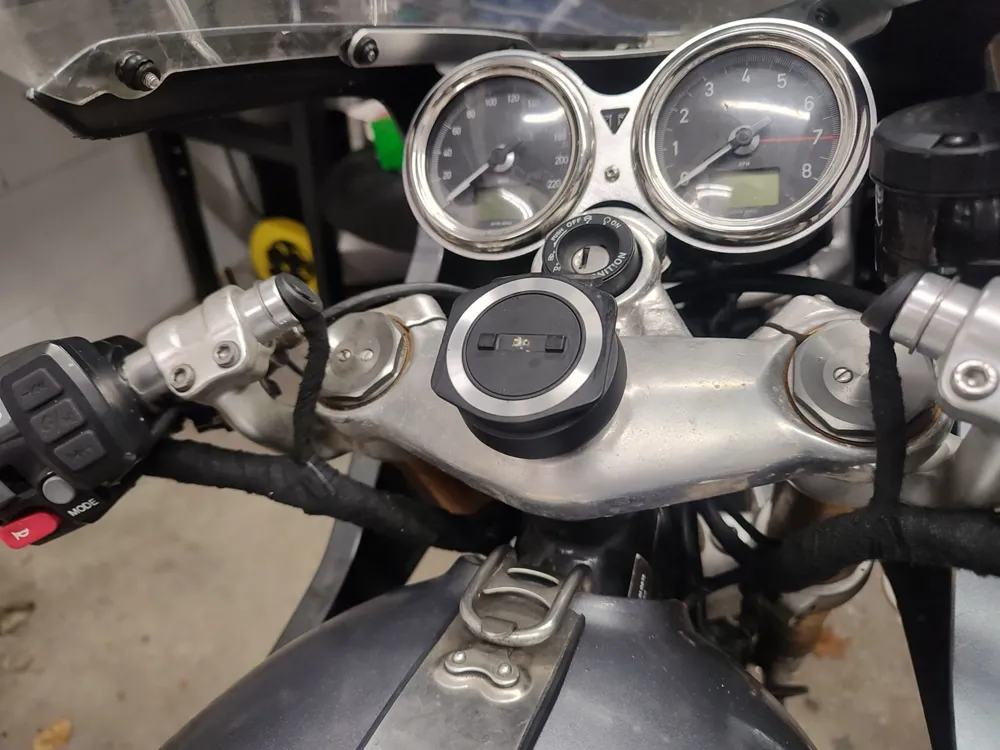

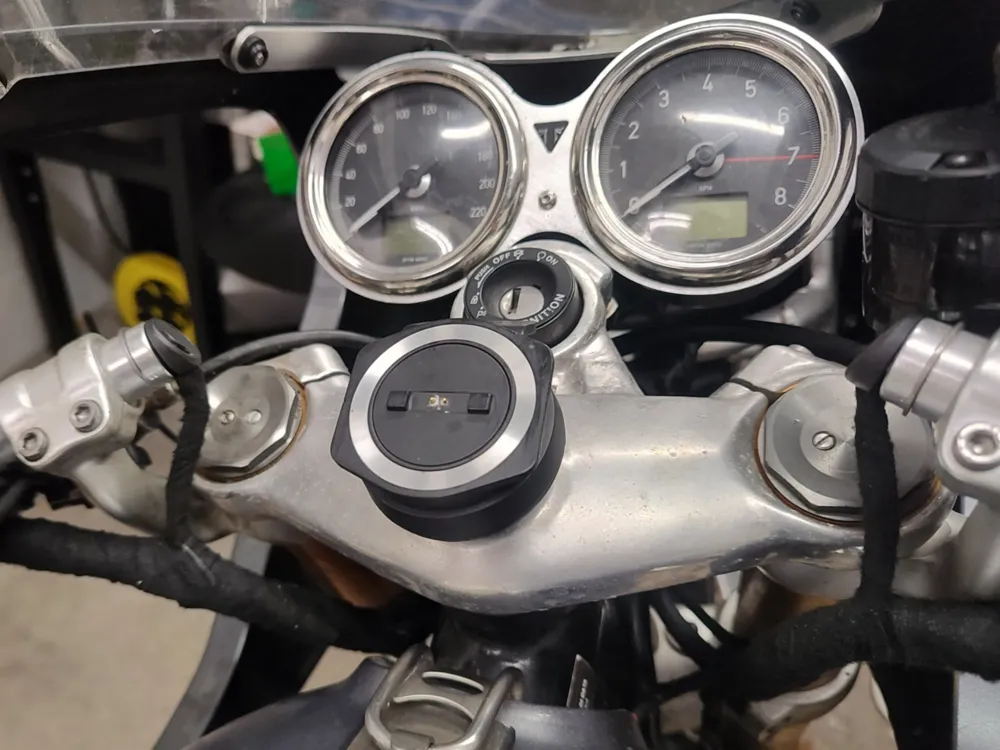

Tomtom Rider 550 mount for the Triumph Thruxton 1200 R for use with a hollow stem nut like this one https://www.probolt-germany.com/alu-honda-gabelbruckenzentrallenkkopf-mutter-10-gebohrt-ltyokeo20/ from probolt (also available from other places)
Will require disassembly of the original rider 550 charging mount, supergluing the springs into their places on the printed mount for easier reassembly along with soldering a longer cable unto it. Then just resolder the stock connector on the other side of the extension and lead it through the fork stem.
Will preferably require drilling and tapping an m4 hole into at least 1 side, preferably all 6 to make alignment easier. Along with a short 10mm m4 bolt to secure the mount.
It CAN friction fit very snugly without any drilling required, but I didn't risk it.
