Self Watering Seed Starter/Planter with Splittable Pots and Greenhouse Dome by Makefy

Makefy

Household>Garden

Print Profile(10)

All

X1 Carbon

P1S

P1P

X1E

A1 mini

0.16mm layer, 2 walls, 15% infill

Designer

12.5 h

5 plates

4.9(274)

Greenhouse Dome

Designer

2 h

1 plate

4.9(98)

A1 mini - resolves adhesion issue 0.16mm, 2 walls,15% infill

14.2 h

7 plates

5.0(34)

0.2mm , 2 walls, 15% infill, fast print

5.1 h

6 plates

4.9(26)

Click to see more

Boost

2076

3621

768

247

3.7 k

4.8 k

Released

Description

It's planting season!

TIP: Use a cotton pad in the bottom of each pot to keep the dirt from spilling into the bottom tray!

This is a new version of a design I made and tested last season. Turned out to work great.

The assembly consists of the following parts:

Bottom Tray:

This is the main part which holds water. It has guides for the pots and slots for the connecting beams.
It should have enough solid bottom layers to avoid any infill. Just to make sure it's completly watertight.

Connecting Beam:

This is the part that supports the top plate. You will need 4 of these

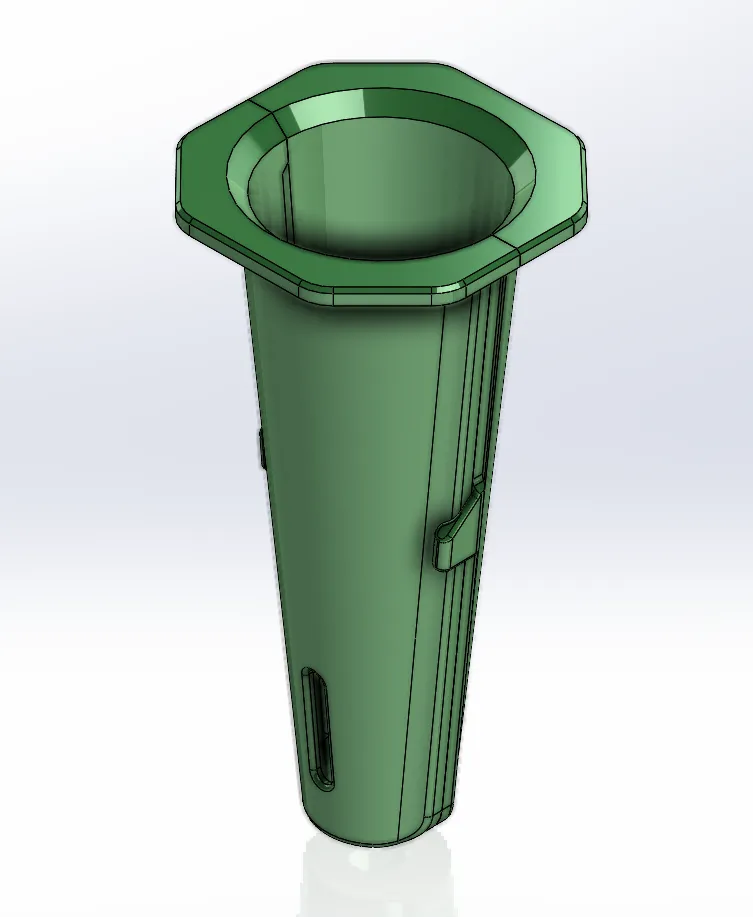

Pot:

This is the pot itself. It consists of two parts that snap together. PLA seems to hold
up pretty good for this part, but PETG or ABS might be a better choice.

Top Plate:

This parts connects to the bottom tray with the four beams and holds the pots

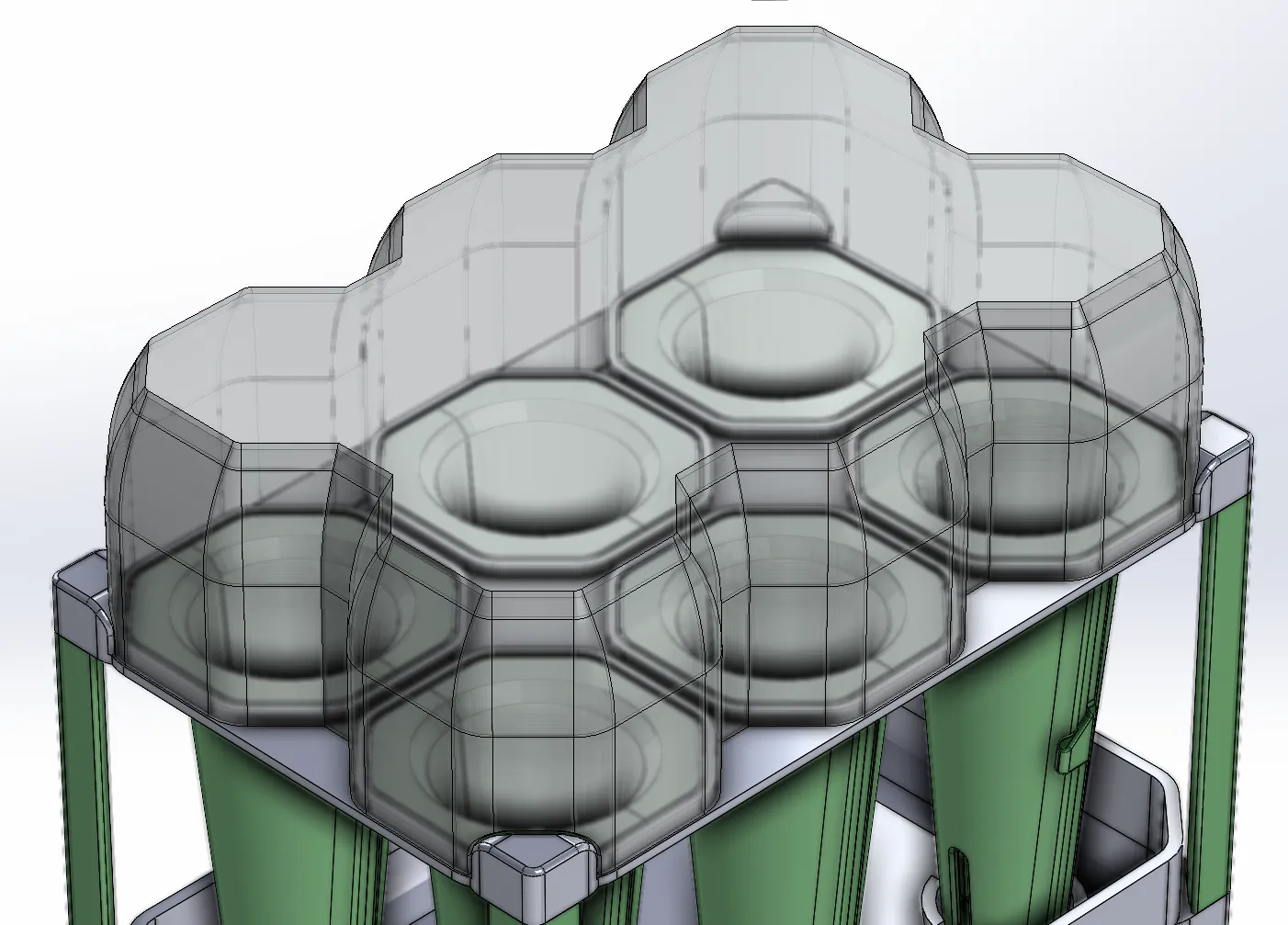

Greenhouse Dome:

This is a clear cover which provides a warm and humid environment for the seedlings.
This part is provided in a separate print profile and should be printed in clear PETG or PC:

— OPTIONAL ---

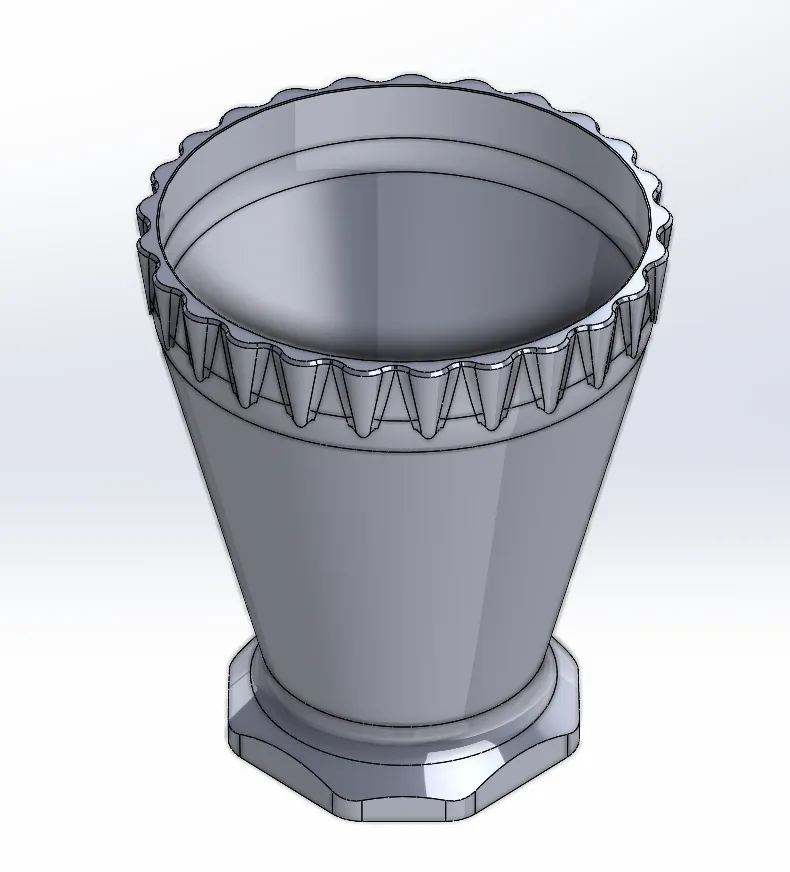

Dirt Funnel:

The funnel makes it easier to fill the pots with dirt

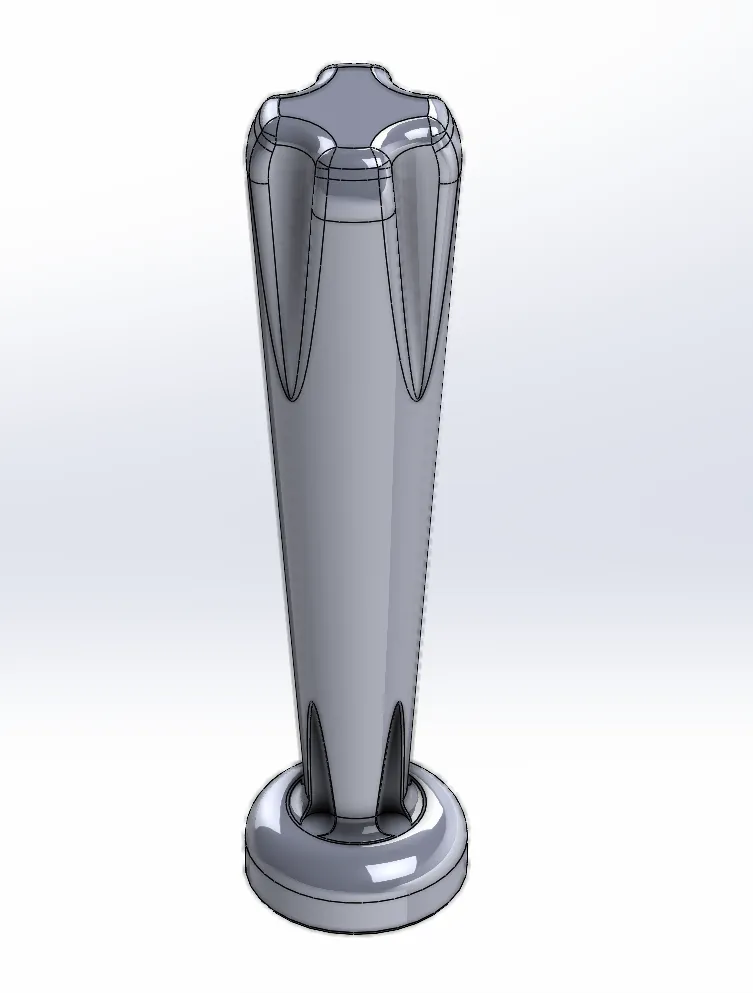

The Pestle:

Use this to gently pack the dirt.

Comment & Rating (768)

@lucky4meman

Boosted

Print Profile

0.16mm layer, 2 walls, 15% infill

Takes a while to print, but the outcome is worth it. Starting on my third set now for my wife. Edited: Just added a photo of the sets so far. All printed in ABS

(Edited)

The designer has replied

@Makefy

Thank you :)

(Edited)

@vietfarmer21

look great! i never use abs before. any tips and trick on how to get it to print

@lucky4meman

Boosted

Replying to @vietfarmer21 :

I just went with the normal ABS profile for Bambu Labs, but I did put a brim on the funnels since there isn't much contact area with the plate. (I printed one batch without it, but one of them tipped over at the very end). Then just made sure I had a clean plate and everything stuck without issues. I put all the green items on one plate and then all the black items (colors based on my print) on another and was able to print the whole thing in just two plates.

(Edited)

@0jkensler0

I ran out of filament partway through my print and ended up with something amazing. Now I'm trying to figure out how to swap filament mid-layer on purpose, lol Fantastic model btw, made five of these already. Printing all opaque parts on a single plate and the cap as a second, follow-up plate.

The designer has replied

@TheChef

Play with the paint option in the slicer. Paint by layer is fun.

@user_2975075564

Slice your model, go to the layer you want to change, right click on the layer slider and then select change filament

@Makefy

Thank you :)

@outdoorseh

Boosted

Print Profile

Greenhouse Dome

printed great and works like a charm!!!

The designer has replied

@Makefy

Looks great! Happy planting season 🌱😊

(Edited)

@vietfarmer21

did u print in pla?

@outdoorseh

Boosted

Replying to @vietfarmer21 :

I printed the lower parts in PLA+ and the top on Bambu PETG translucent. this sits under full spectrum lights inside to start seeds

(Edited)

@Enki

printed great! if I had to give some constructive feedback, it would be that the seed pods could use a pull out tab or some kind of removal mechanism to make pulling them out of the tray easier when in use.

The designer has replied

@Makefy

Thanks a lot :) I have thought about this but not found a good solution yet

@Enki

Replying to @Makefy :

maybe some dog ears on the top of each half or if they were quarter of an inch taller maybe so there was a slight lip between them and the base but that is my least favorite option honestly, ocd lol. either way great model!!

@markcm

Boosted

Replying to @Makefy :

Maybe similar to oneeighityseven said with the dog ears but in a "slip ring" separate part that you would insert the pod into before inserting the pod into the stand so that the pods can still print the same way (I had to use a brim on the pods too, one or two would always come loose from the bed and wreck the print without a brim).

@user_3914247397

Print Profile

Greenhouse Dome

Printed fine in clear PETG and works very well!

The designer has replied

@Makefy

Thank you :) Happy planting!

@brdoyle14

Print Profile

0.16mm layer, 2 walls, 15% infill

came out very nice. recommend printing the funnel with a brim

The designer has replied

@Makefy

Thank you :)

@user_2975075564

Print Profile

0.2mm , 2 walls, 15% infill, fast print

Great model it prints really well and the tolerances are just perfect. I printed mine in PETG on 0.2 layers and managed to reduce the print time a little too.
