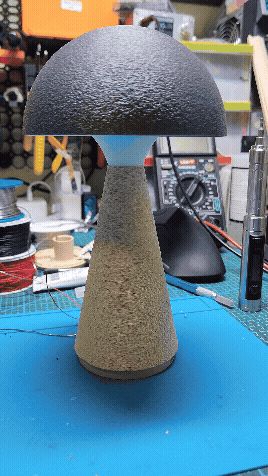

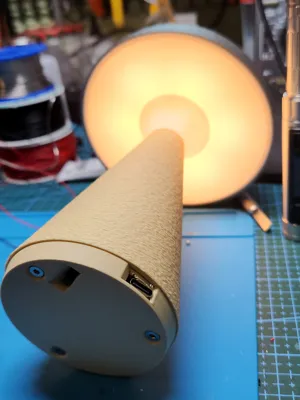

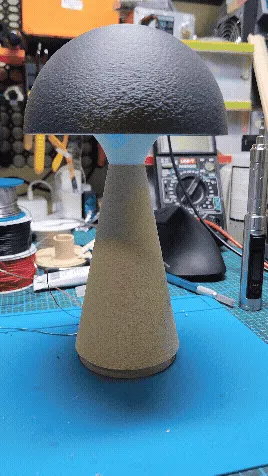

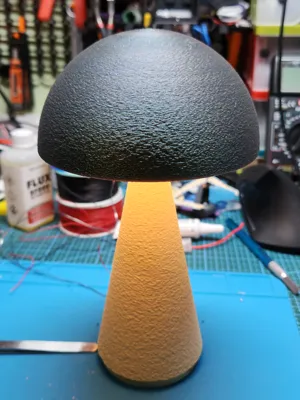

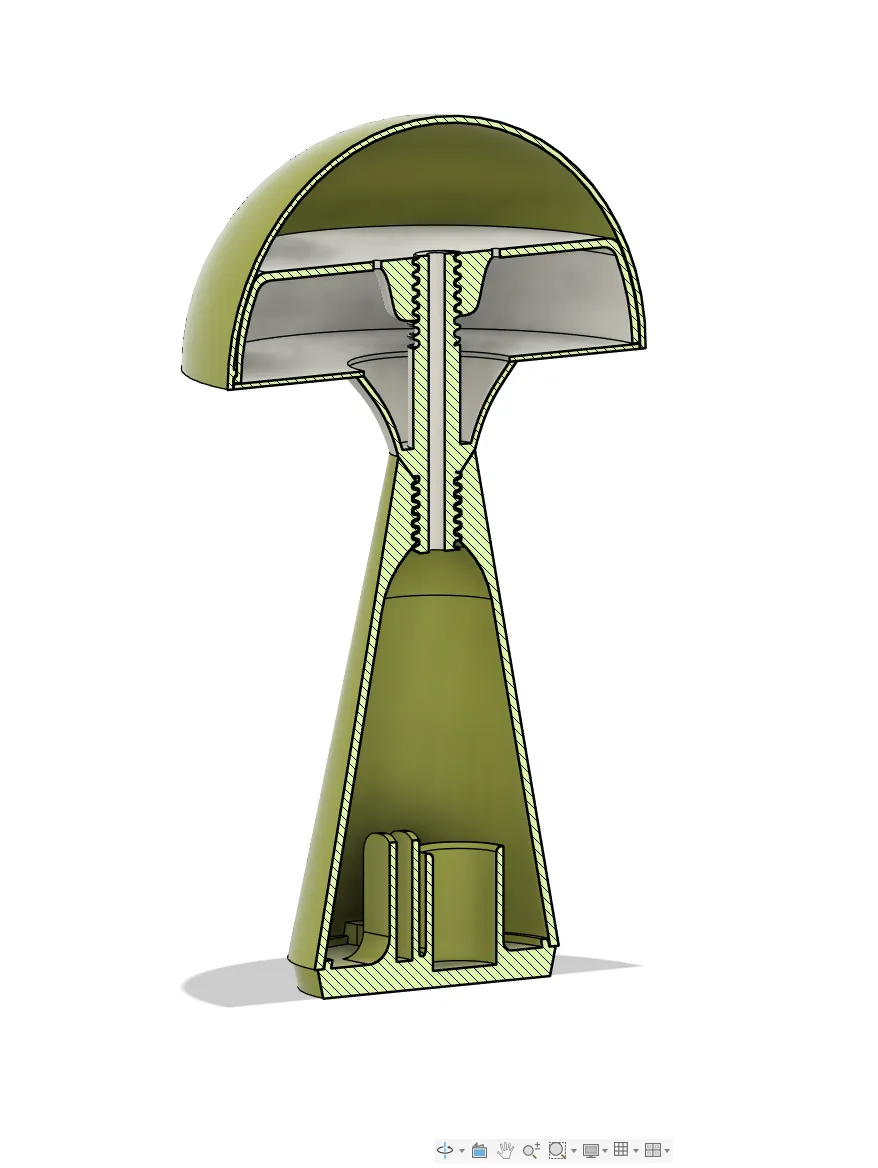

Simple touch desk lamp based on Arduino and TTP223
Print Profile(1)
Description
Simple touch lamp for DIY assembly.

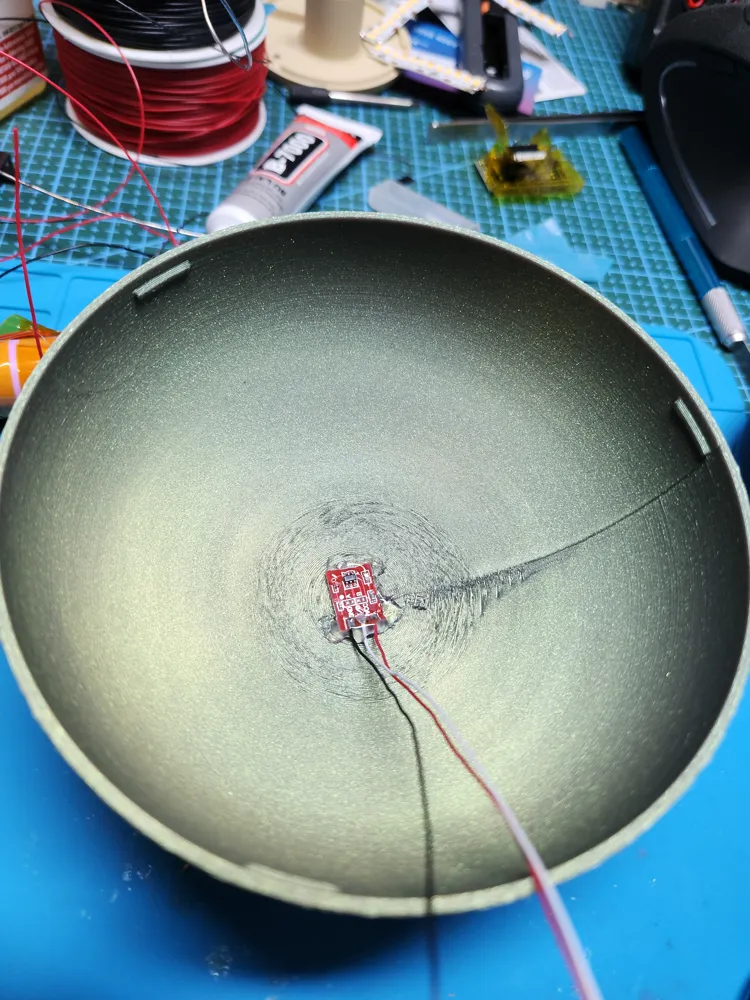

You have to use hot glue for TTP223. For me all parts fit together nicely, but to make it more sturdy i recommend using a bit of glue for screw and top cover.
I have used Arduino Pro mini but for easier programming arduino nano should work as well.

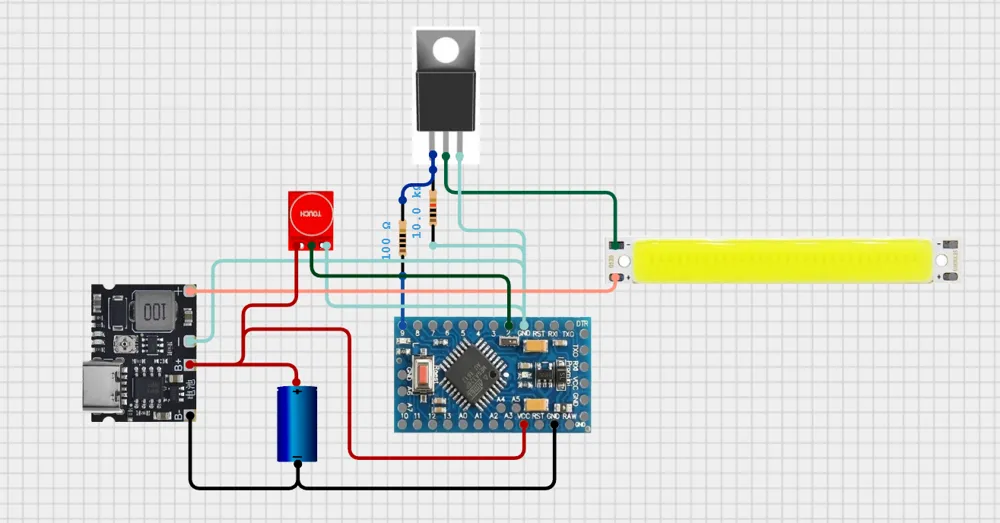

Code and wiring available on my github: https://github.com/Keralots/LedLamp-with-touch-button

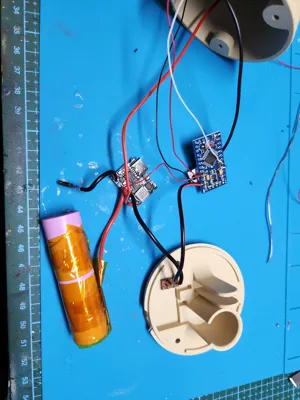

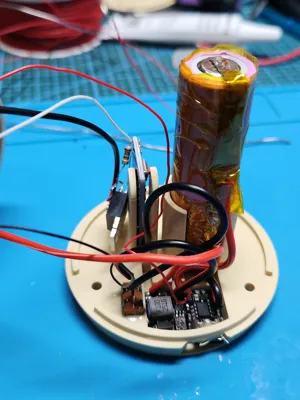

BOM (check github as well):
- Arduino pro mini / Arduino nano
- TTP223
- TP4056 (preferably with integrated boost converter)

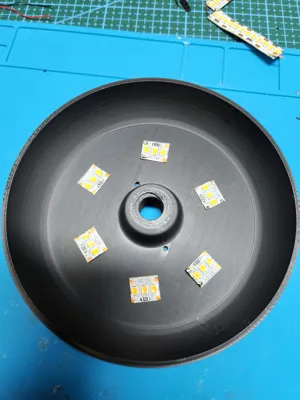

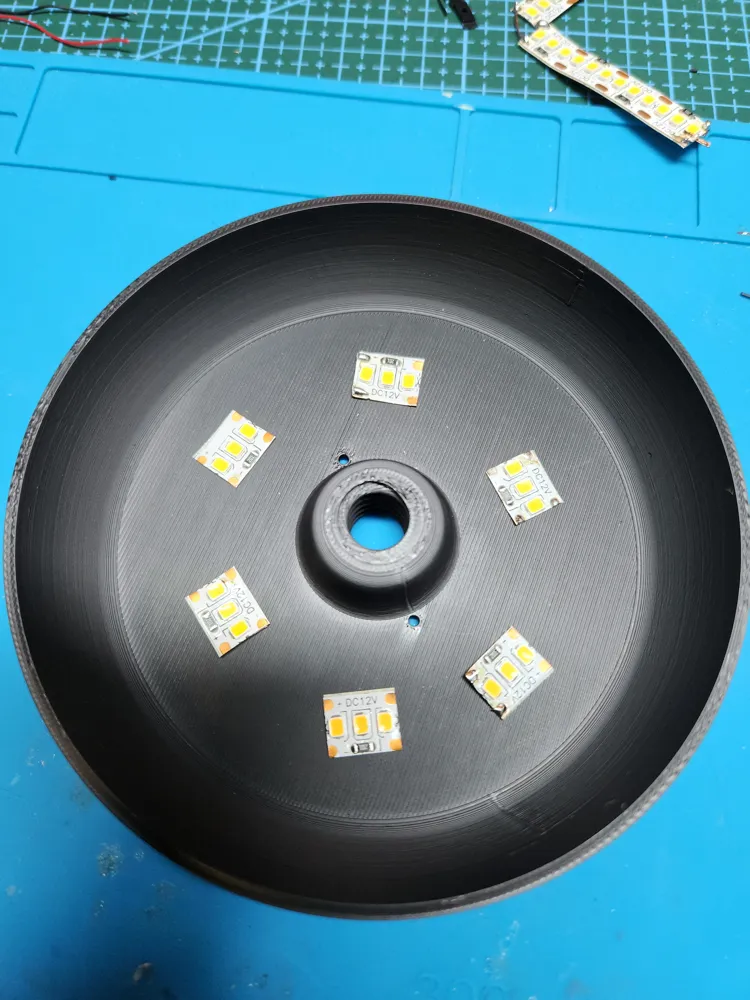

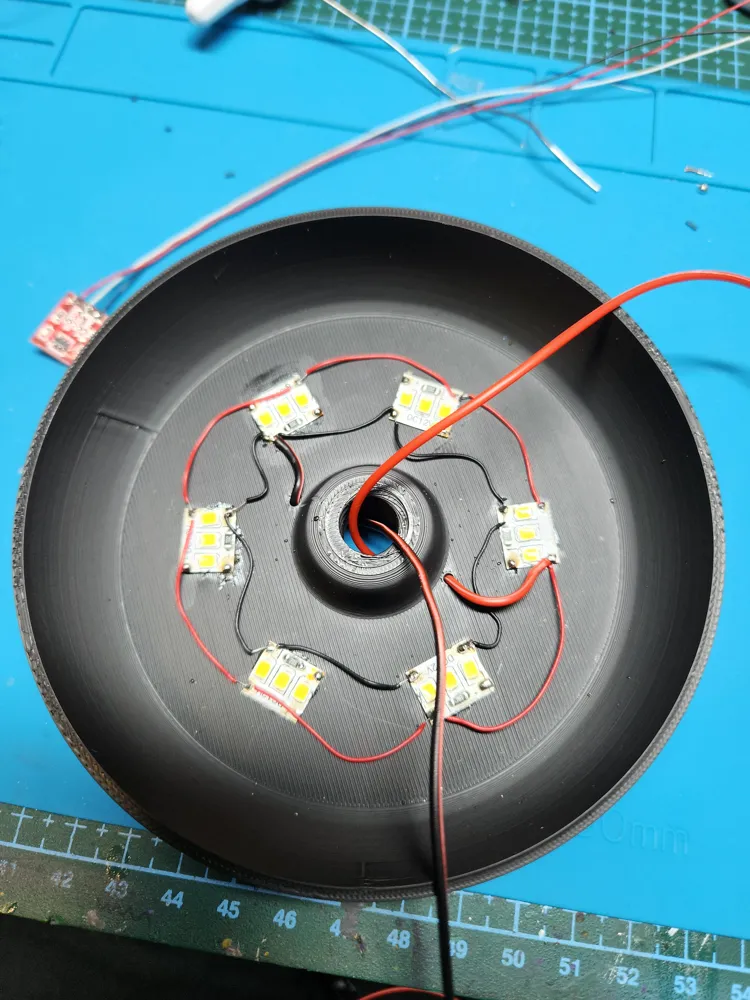

- Any led, I have used 12V version
- IRLZ44N N-channel MOSFET (Switches the 12 V LED strip via PWM)
- 10 kΩ and 100Ω resistors
- 18650 battery.
- 3x M3 screws
Optional: slide switch
