DIY BUTTON BOX

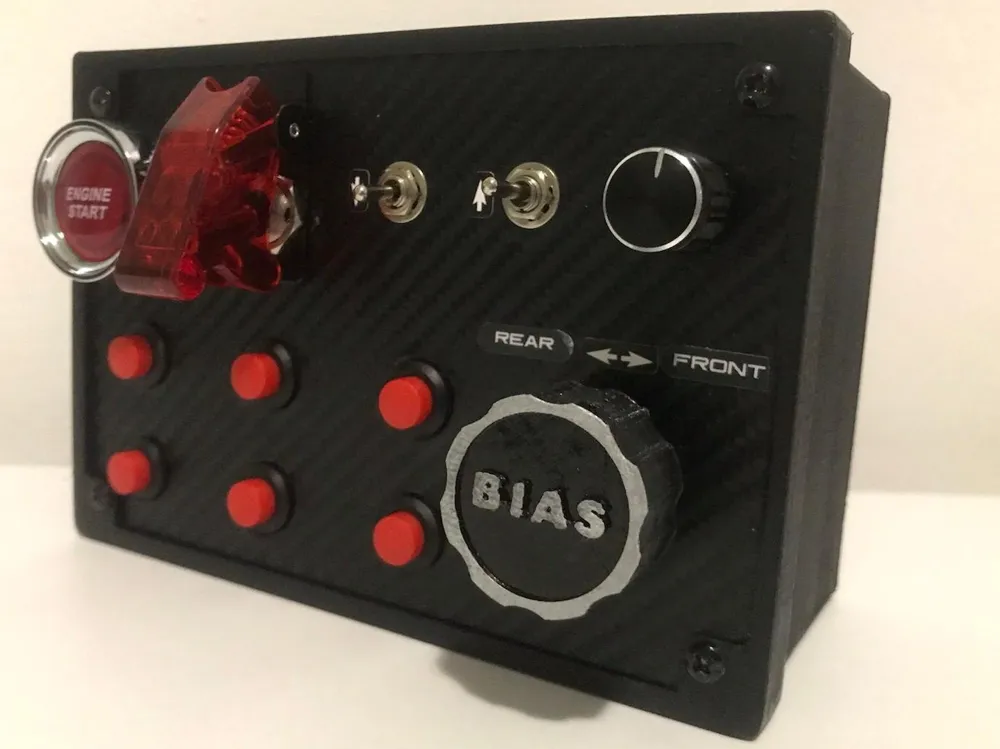

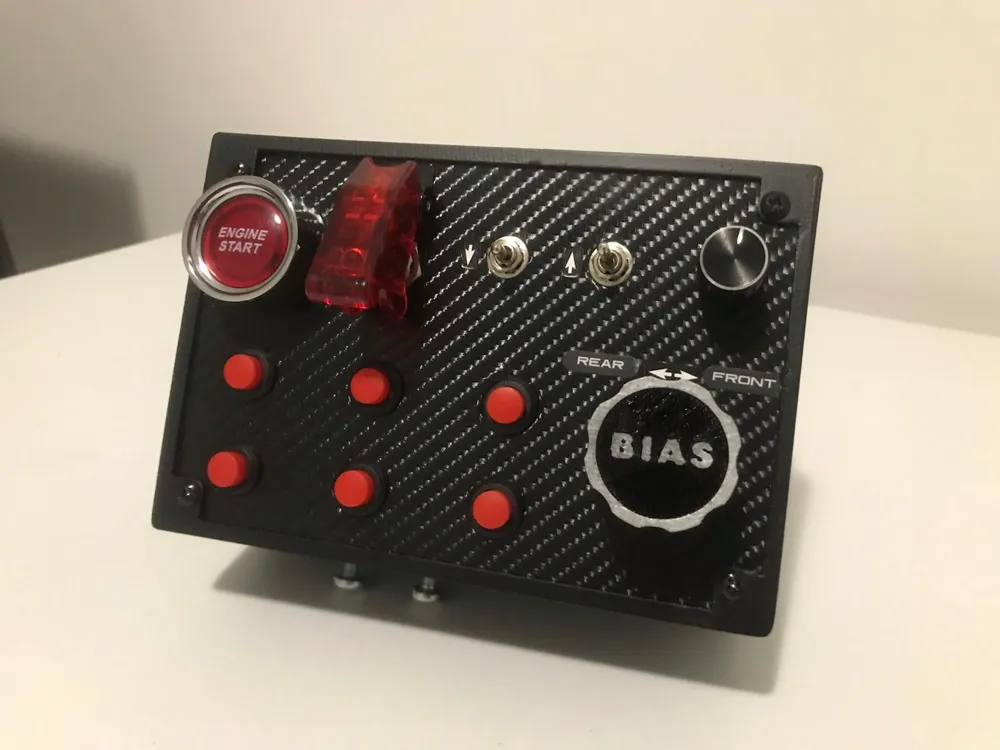

A simple button box with a simple and clean, classic, essential design.
I added the carbon film then painted with glossy transparent for a "gloss" effect, but if you have a carbon plate pei it works perfectly.
To develop the hardware i used simhub, really simple. on youtube you can find many videos that explain how fix the arduino pro micro with simhub, sim hub also provides you with the wire diagram.


No supports needed
printing with pla/ pla plus or petg
Height: 0.25 for the box and 0.10 for the cover and the frame.

Bolts req:
_(4 pcs)Screws (wooden screws are also fine) M3 x 10/15 mm

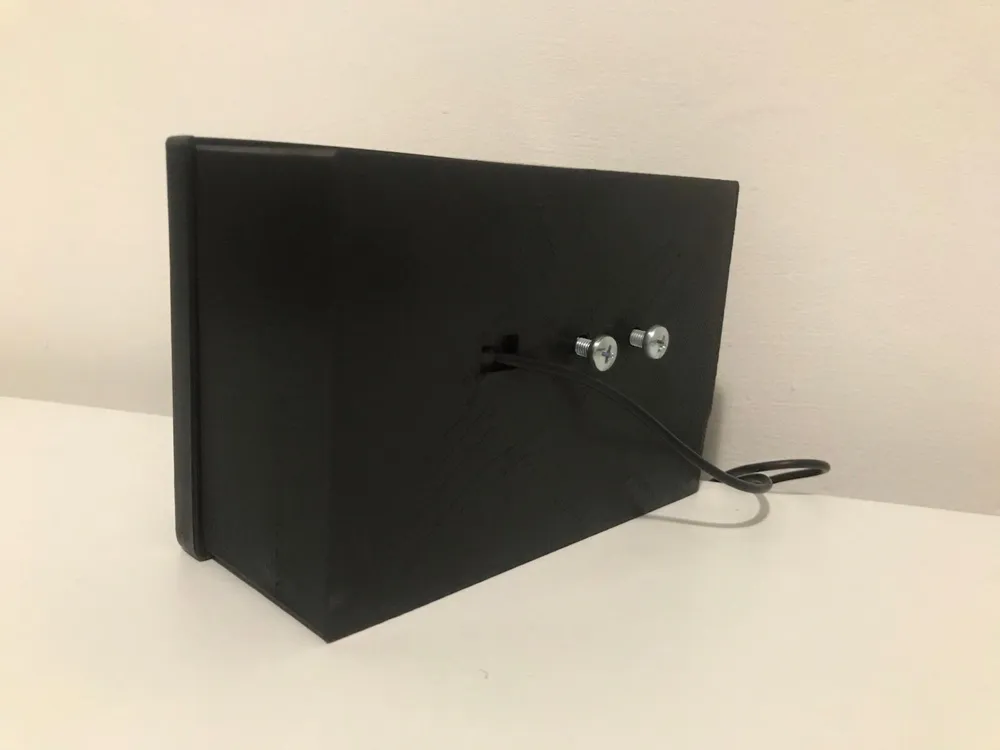

_2 or 4 M5 nuts to fix the box in a mount (if you need a personalized mount just write me)
_2 or 4 M5 bolts (about 10 to 20 mm)

links:
buttons (6): https://es.aliexpress.com/item/1005004556149934.html?spm=a2g0o.productlist.main.17.2e8fkGNtkGNtyF&algo_pvid=cc19aba2-a768-447d-bb3a-4a227e6dd561&aem_p4p_detail=202403070852221334184749120720002002013&algo_exp_id=cc19aba2-a768-447d-bb3a-4a227e6dd561-8&pdp_npi=4%40dis%21EUR%211.49%210.99%21%21%211.59%211.06%21%40211b600a17098303419923427e8c6c%2112000029599079919%21sea%21ES%210%21AB&curPageLogUid=2Rote0fWQWMH&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=202403070852221334184749120720002002013_9

arduino pro micro (clone):
https://es.aliexpress.com/item/1005005921690245.html?spm=a2g0o.productlist.main.1.66fc423fxubIc4&algo_pvid=71ca8943-40e3-4275-b7da-8693aa9cbdce&aem_p4p_detail=202403070855592533779839410560002076337&algo_exp_id=71ca8943-40e3-4275-b7da-8693aa9cbdce-0&pdp_npi=4%40dis%21EUR%2114.62%210.99%21%21%21112.12%217.58%21%402103892f17098305595298717efefe%2112000034861043215%21sea%21ES%210%21AB&curPageLogUid=eDsWXbs15lfS&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=202403070855592533779839410560002076337_1

start and stop button:
https://es.aliexpress.com/item/1005003225713654.html?spm=a2g0o.productlist.main.3.543269e1brlmOT&algo_pvid=e7995770-8847-4629-b47e-b531073c8027&aem_p4p_detail=202403070857307517780850775200001188406&algo_exp_id=e7995770-8847-4629-b47e-b531073c8027-1&pdp_npi=4%40dis%21EUR%213.49%213.49%21%21%213.71%213.71%21%40211b618e17098306503196490e0fd5%2112000024743859006%21sea%21ES%210%21AB&curPageLogUid=nnqwJpOfGzJM&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=202403070857307517780850775200001188406_2

big switch:
https://es.aliexpress.com/item/1005006323676567.html?spm=a2g0o.productlist.main.41.5104ZA3gZA3g52&algo_pvid=f2c4fdc6-f6c1-4b1a-8600-351a0525ec98&aem_p4p_detail=202403070859017807072975287850002018816&algo_exp_id=f2c4fdc6-f6c1-4b1a-8600-351a0525ec98-20&pdp_npi=4%40dis%21EUR%211.15%210.98%21%21%211.22%211.04%21%40211b812f17098307416248132e1aaf%2112000036763913236%21sea%21ES%210%21AB&curPageLogUid=gFKXfeD6kGwN&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=202403070859017807072975287850002018816_21

small switches(2):
https://es.aliexpress.com/item/1005006187821324.html?spm=a2g0o.productlist.main.61.5104ZA3gZA3g52&algo_pvid=f2c4fdc6-f6c1-4b1a-8600-351a0525ec98&aem_p4p_detail=202403070859017807072975287850002018816&algo_exp_id=f2c4fdc6-f6c1-4b1a-8600-351a0525ec98-30&pdp_npi=4%40dis%21EUR%211.49%211.49%21%21%2111.43%2111.43%21%40211b812f17098307416248132e1aaf%2112000036190217380%21sea%21ES%210%21AB&curPageLogUid=In6a7060uVfM&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=202403070859017807072975287850002018816_31

rotary encoder(2):
https://es.aliexpress.com/item/1005001423308166.html?spm=a2g0o.productlist.main.27.128e3b61NqxkWv&algo_pvid=edb2c7ca-a088-4cc6-a003-2906423974c4&aem_p4p_detail=20240307090127502387256048920002080616&algo_exp_id=edb2c7ca-a088-4cc6-a003-2906423974c4-13&pdp_npi=4%40dis%21EUR%213.84%213.84%21%21%214.09%214.09%21%40211b813f17098308869743776e2ccf%2112000016057152156%21sea%21ES%210%21AB&curPageLogUid=1DByx1L5fVGA&utparam-url=scene%3Asearch%7Cquery_from%3A&search_p4p_id=20240307090127502387256048920002080616_14

you will need a USB cable (Android) to connect to the Arduino, of the length you prefer, but I recommend at least 1.5 meters upwards
