WF3Dprinting

Warhammer Chainaxe - Assembly Instructions.pdf

cover





Black Axe Head


Black - Grips


Grips and Teeth Silver


Axe Head Plates Gold


Spikes Silver


Handle Rings Gold


ALT Handle Rings Gold (No Supports)


tgnmonster

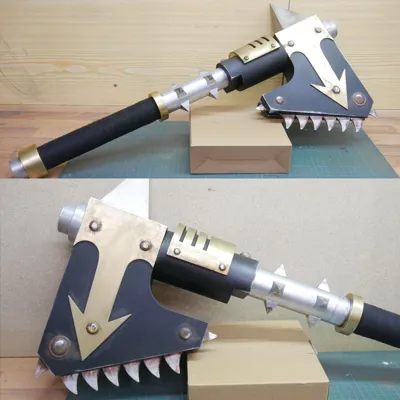

I printed this model and had a great time with it. I've split it into 7 plates broken down by color for easy printing on your Bambu printer directly from the app. Special thanks for the designer, this came out wonderfully!<ul><li>Plate 1 - Black Axe Head. I printed this in metallic bronze (see picture) and think it came out rather nice.</li><li>Plate 2 - Black grip parts and decoration</li><li>Plate 3 - Silver grip parts, ring, rivet, and blade teeth</li><li>Plate 4 - Gold axe head decorations</li><li>Plate 5 - Silver spikes</li><li>Plate 6 - Gold decoration for below the axe head (requires supports), and grip rings</li><li>Plate 7 - Alternate Gold plate to build the Gold decoration for below the axe head without supports, and grip rings. If you print this plate, you will not need plate 6.</li></ul>

0.2mm layer, 3 walls, 15% gyroid infill - Plates split by color

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

The model is split in to several pieces to fit on to a printer with a build volume of 25 x 21 x 21 cm or 9,84 x 8,3 x 8,3 in. (Example Prusa MK3) All parts are rotated for optimal printing with minimal supports.For assembly I recommend using 1x 6mm rod with a length of 600 mm.There is an assembly instruction (.pdf). If you have any questions please let me know.You can also see a video about the build process right here: https://youtu.be/d8tuUpRjr64These files are for personal use only.

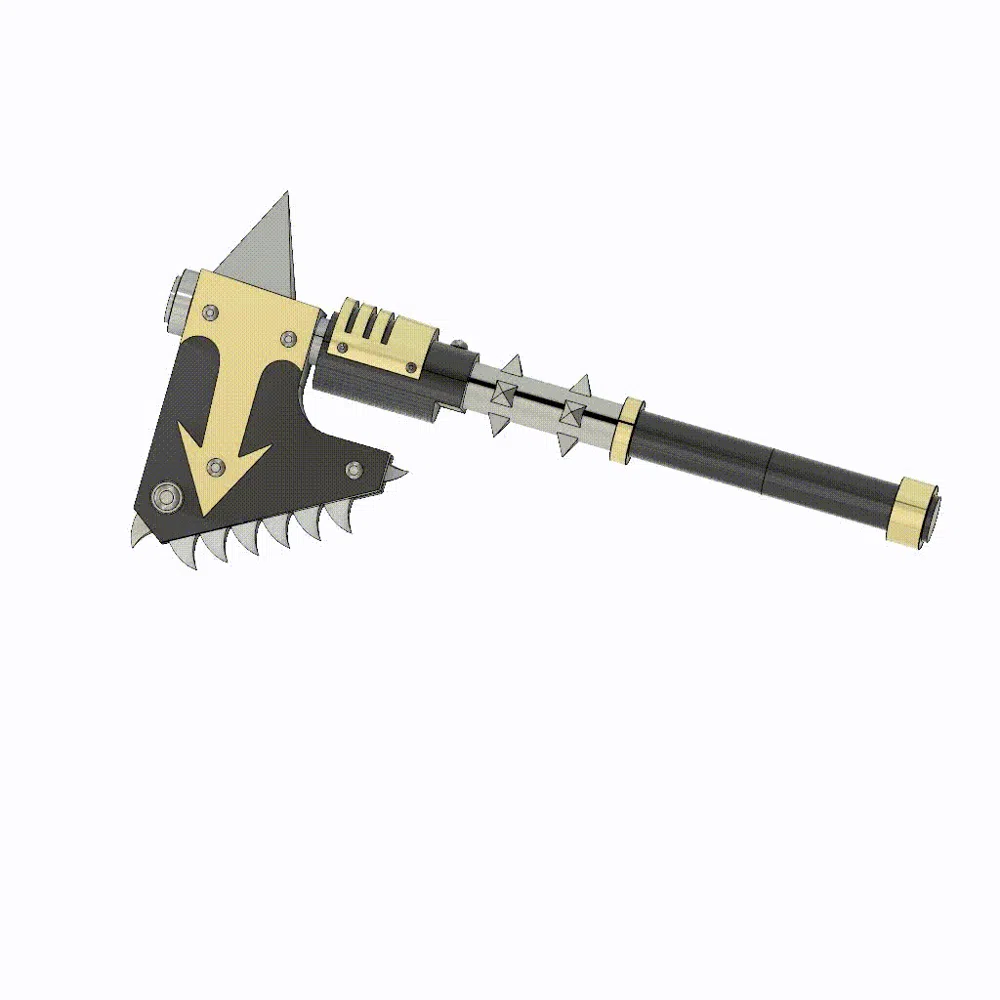

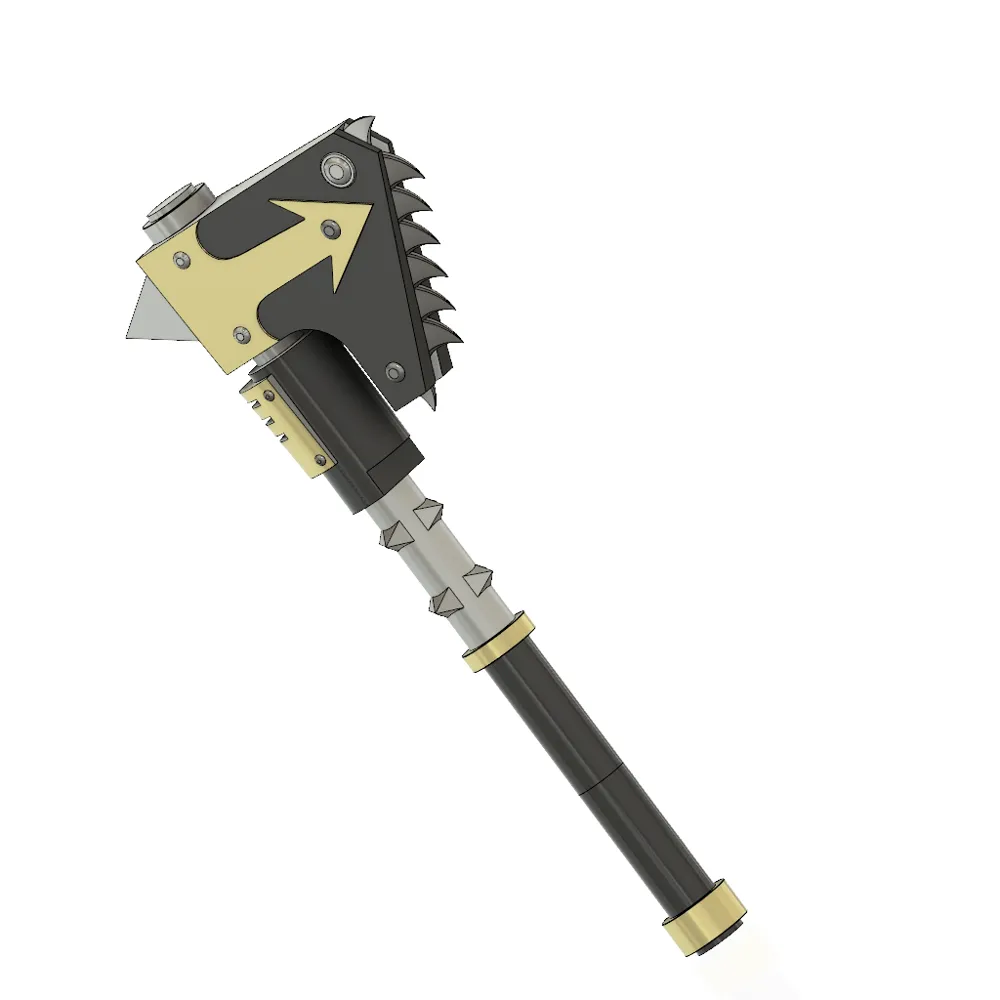

40K CHAINAXE
