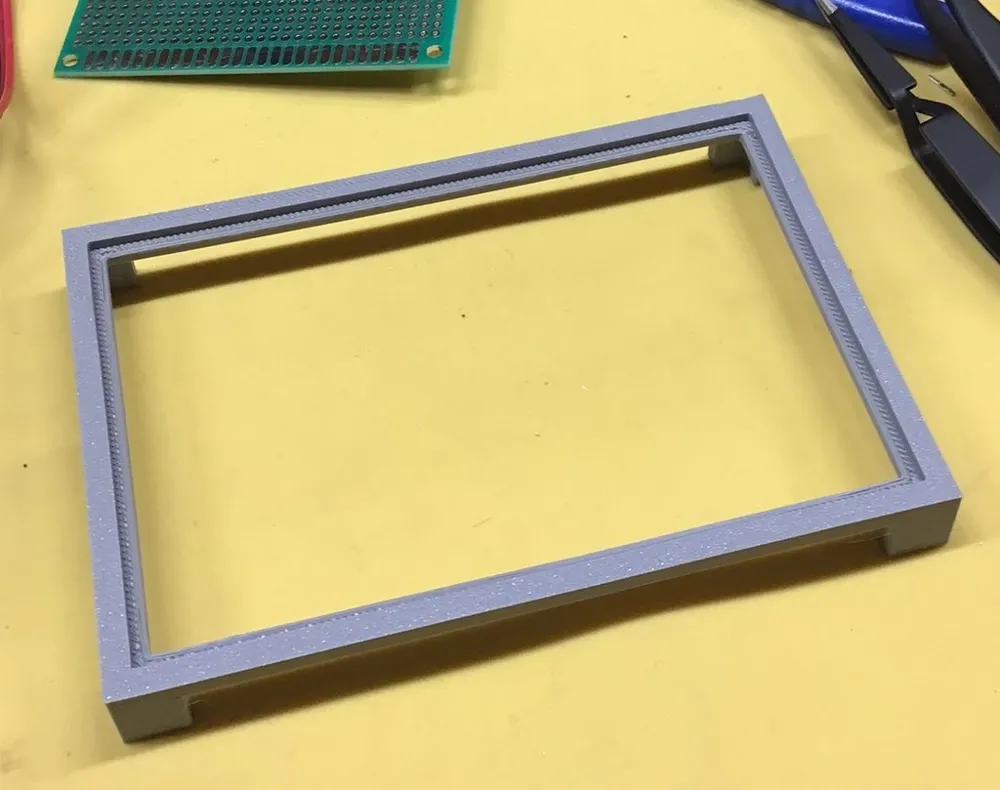

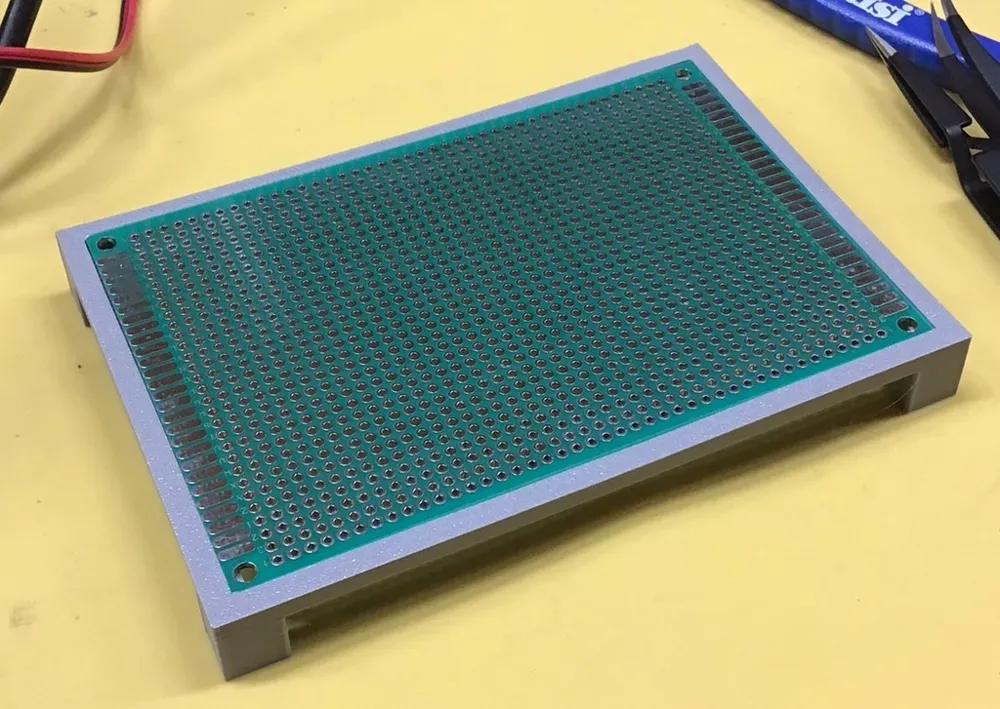

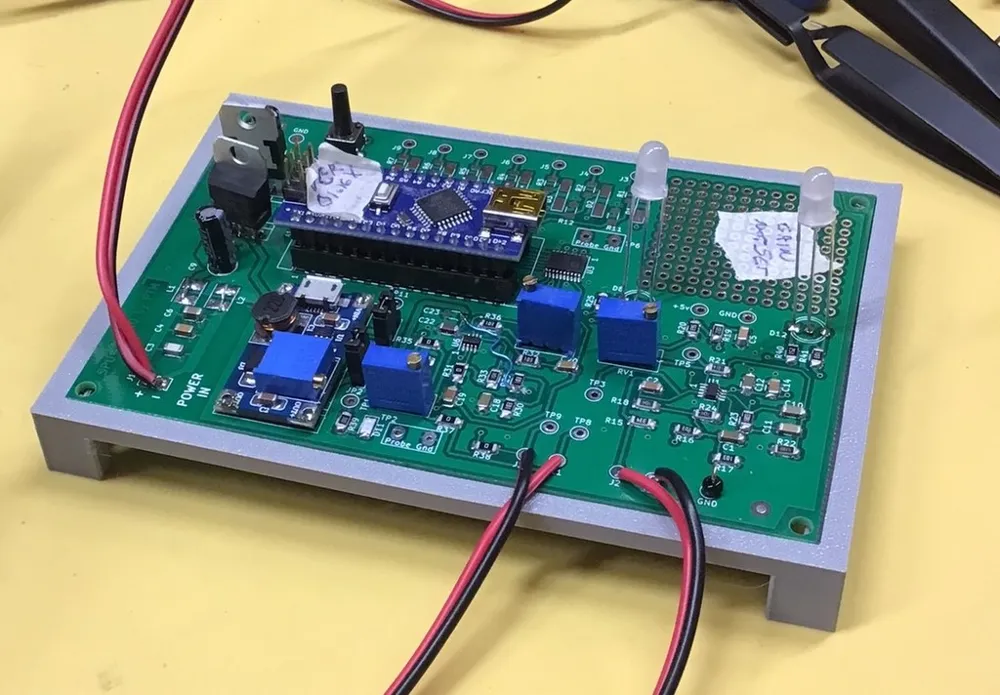

This design is a frame to hold a PCB while you are assembling or testing it. It is not a clamp like a Panavise but just keeps the printed circuit board supported above the workbench surface so at sits flat while you work on the PCB. It's design holds a 120mm by 80 mm PCB but can easily be change the dimensions by scaling the X and/or Y in the slicer.
Print Settings
Printer Brand:
Creality
Printer:
Ender 3
Rafts:
Doesn't Matter
Supports:
Yes
Resolution:
0.2mm
Infill:
20-30%
Notes:
Print it upside down (legs up), with supports.
