Description

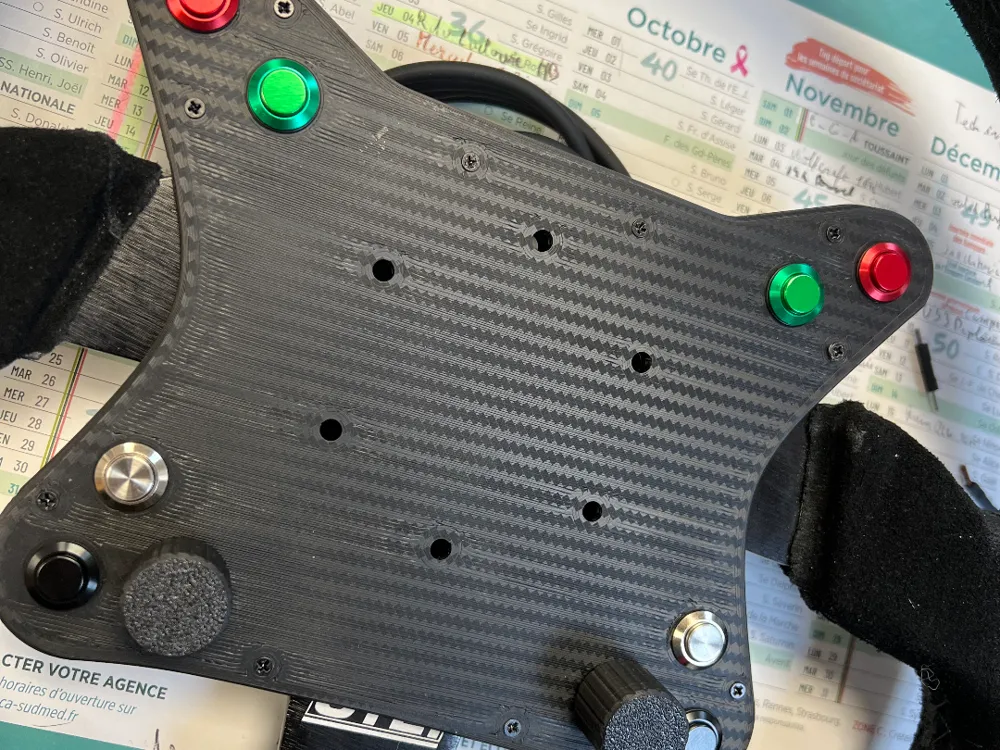

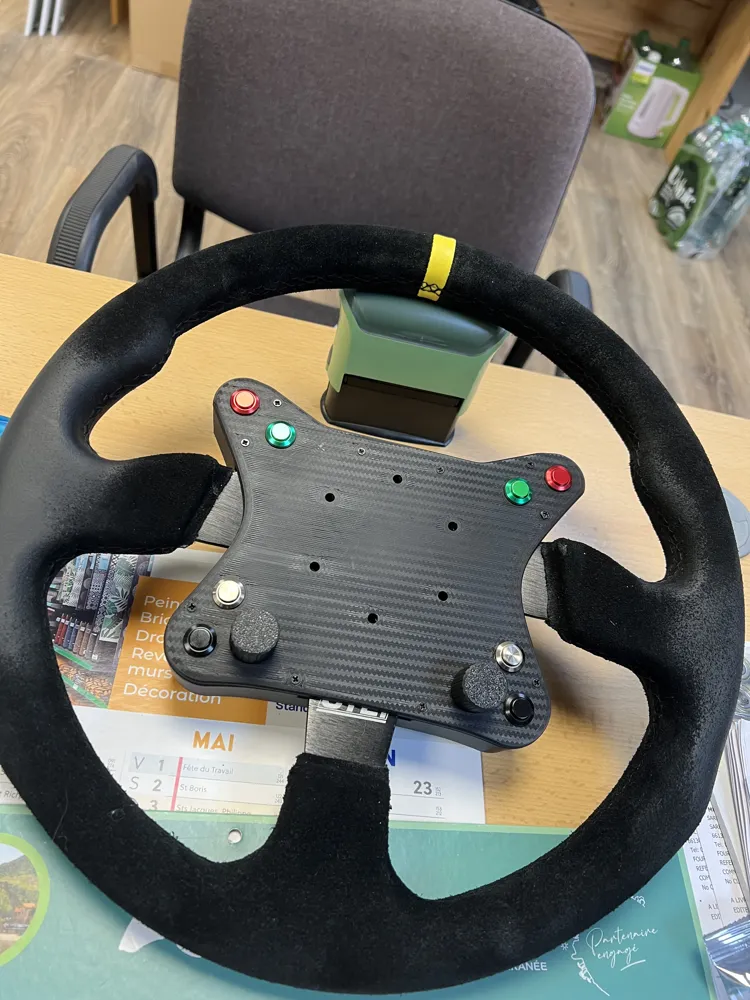

Here is a button box made for my GT2i steering wheel, it includes 8 buttons + 2 rotary encoders with push button. This model is tested for a 33cm round GT2i steering wheel.
The steering wheel is 'sandwiched' in the button box.
I used an Arduino Pro Micro ATmega32U4, 8 momentary buttons, and 2 KY-040 encoders + M2x8mm screws
Warning: model only tested on a GT2i steering wheel and not necessarily compatible with other models (untested). Furthermore, the QR used is an Asetek Invicta with an extension.
