Fidget measuring ring

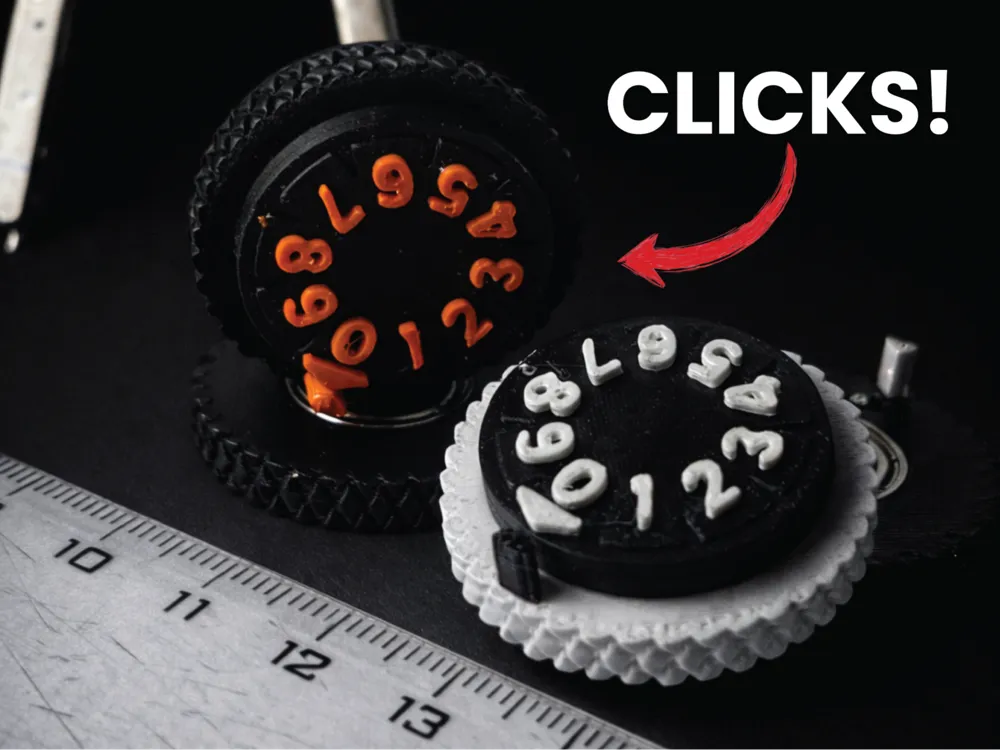

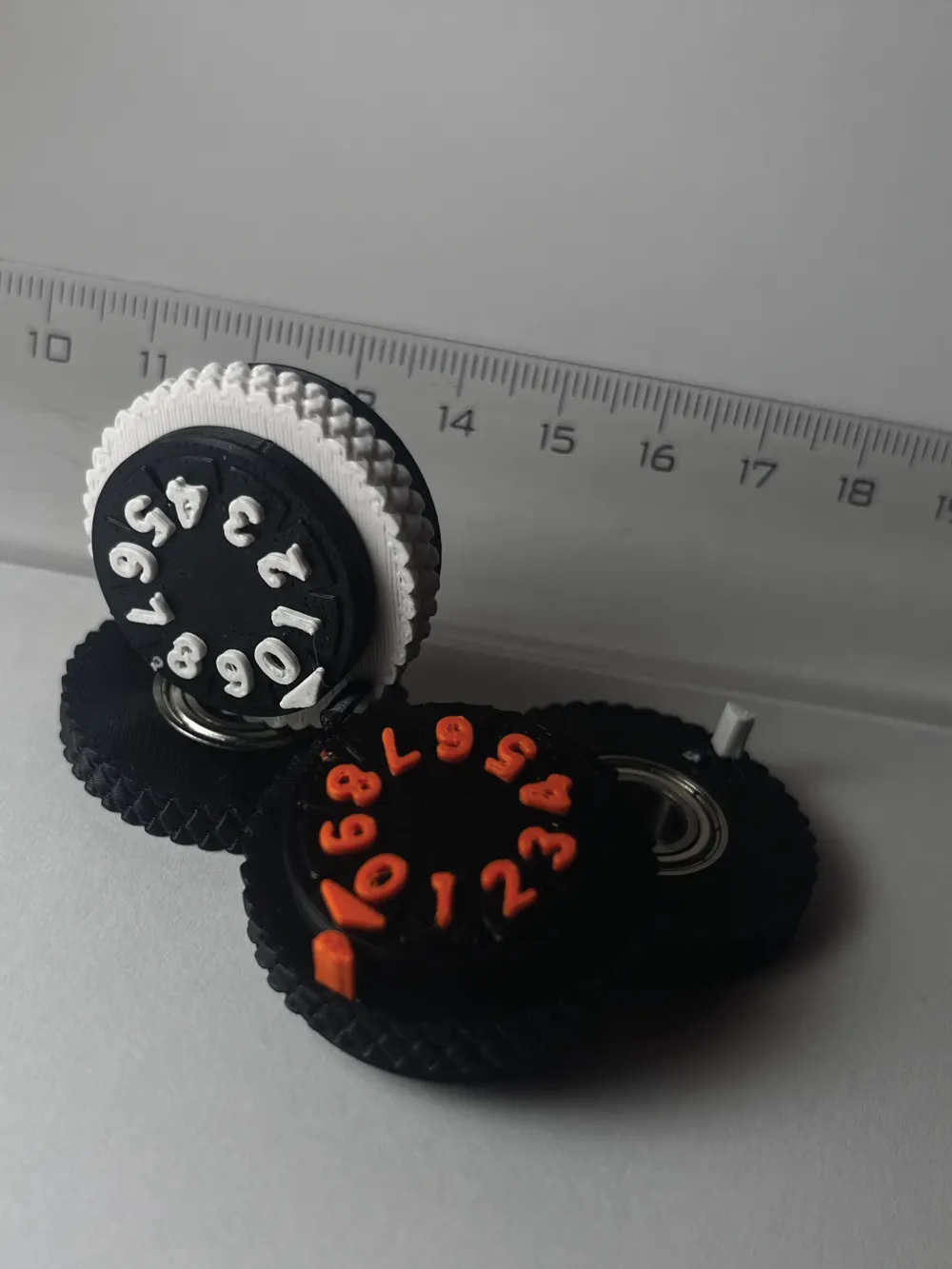

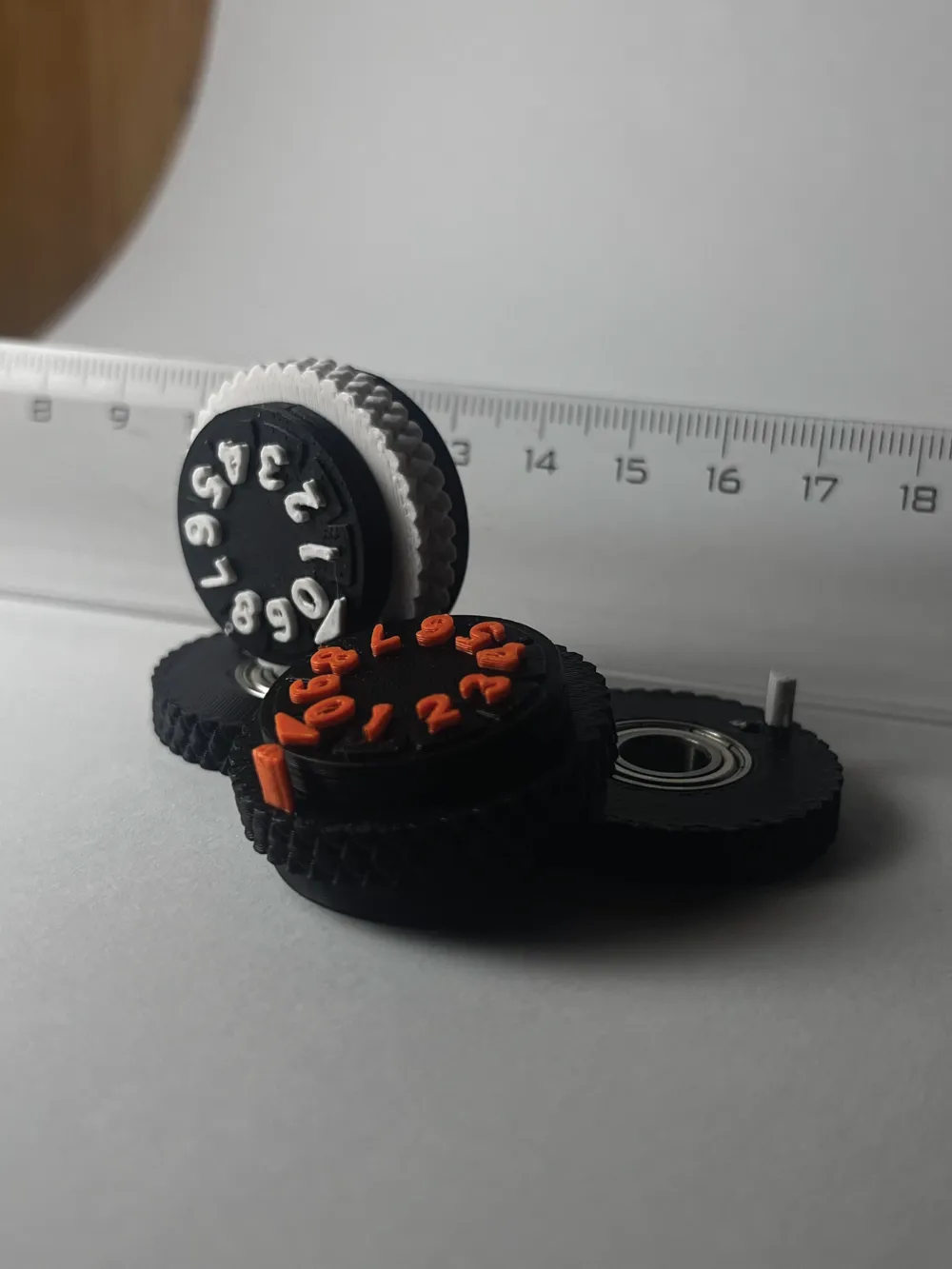

This Fidget Measuring Ring is a compact, satisfying measuring wheel designed for both utility and play. It measures distance in 0,5cm increments, giving a tactile and audible click every 10 centimeters thanks to an internal 3-magnet detent system. Smooth rolling is ensured by a 688ZZ bearing, making it fun to fidget with while staying accurate.

No post-processing is required after printing — just a simple assembly.

✨ Features

• 📏 Measures in 0,5 cm increments
• 🧲 Magnetic click feedback using three 2×2 mm magnets
• 🔄 688ZZ bearing for smooth rotation
• 🧩 Snap-fit design with minimal glue
• 🎨 Optional two-color print support
• 🛠 No sanding or finishing needed

🔧 Assembly Instructions

1. Glue one magnet into the hexagonal hole in the body.
2. Let the glue fully dry.
3. Insert the other two magnets — they will snap into place automatically.
4. insert bearing to the wheel. Place the wheel on top (magnets go to the hole freely - NO GLUING).
5. Glue the middle piece and the dial together.
6. Do NOT glue the dial to the body — align the pins and snap them together.

That’s it! Simple and clean.

🖨 Printing Notes

• The print is tuned for snap-fit assembly.
• If you feel too much friction, slightly adjust tolerances or scaling to your preference.

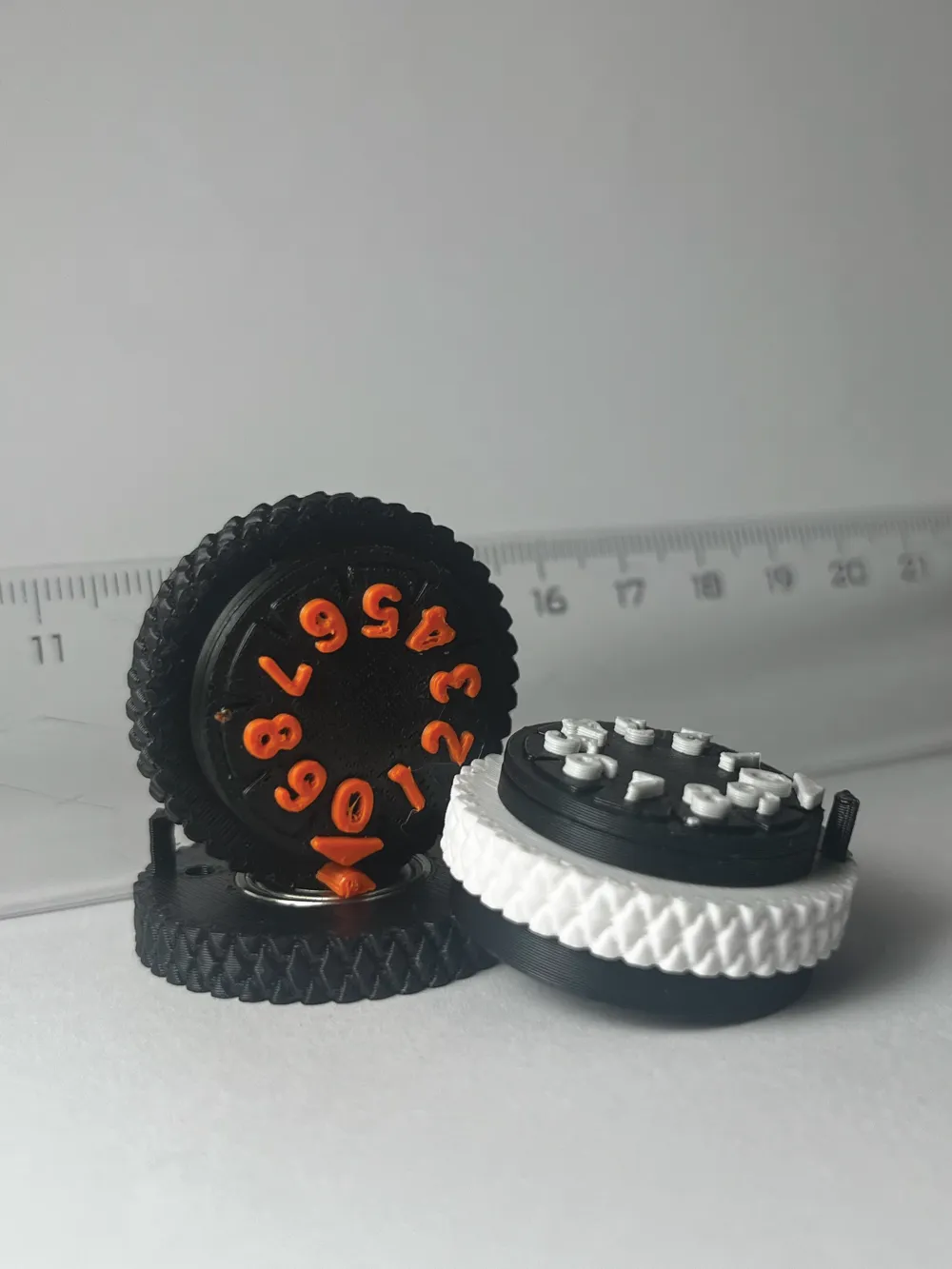

• For a two-color version, use the second print profile:
  • A PAUSE is included so you can swap filament mid-print.
• ⚠️ IRON ONLY THE DIAL — NEVER THE BODY

  • Ironing the body will affect tolerances and snap fit.



Perfect as a desk toy, quick measuring tool, or satisfying clicky fidget.
If you enjoy tactile feedback and clean mechanical design, this one’s for you. 😄
