Mobile phone flash diffuser

📱💡 The Ultimate Diffuser (or how not to look like a fool in the dark)

Let's face it: when the power goes out at home or you're camping trying not to die, or see what you're eating for dinner, you pull out your phone's flash and disaster strikes. You either blind the person in front of you, or you see nothing because the beam is narrower than your brother-in-law's mind. 🤡

I've designed this little marvel (because if I don't praise myself, who will?) to turn that laser beam from your phone into a soft, cozy lantern fit for a civilized person.

🛠️ Info for Makers (what matters to you)

• All at once: It's designed so you can print everything in one go on the same build plate. No waiting, no forgotten parts. Yes, the diffuser tube in white or transparent and the rest in whatever color you want, all at once.
• Fast: You'll have it in just over 2 hours. Less time than it takes to decide what to watch on Netflix. 🕒
• Universal: Works with any smartphone. Yes, even that brick you call a phone.
• Ninja-level compact: When you're done, everything stores inside the tube.

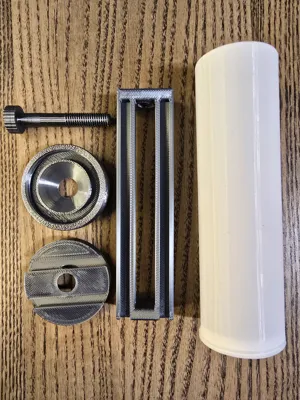

• Assembly for dummies: It assembles in seconds. Check out the photos and the step-by-step guide! ❤️

📖 Assembly Guide (Level: "I don't even need to look")

The photos clearly show how it goes, but in case you're having a thick day, like I usually do, here's the step-by-step:

1. Place the phone face down.

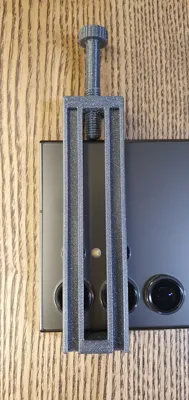

2. Place the clip on top, so the flash is right in the middle of the two rails.

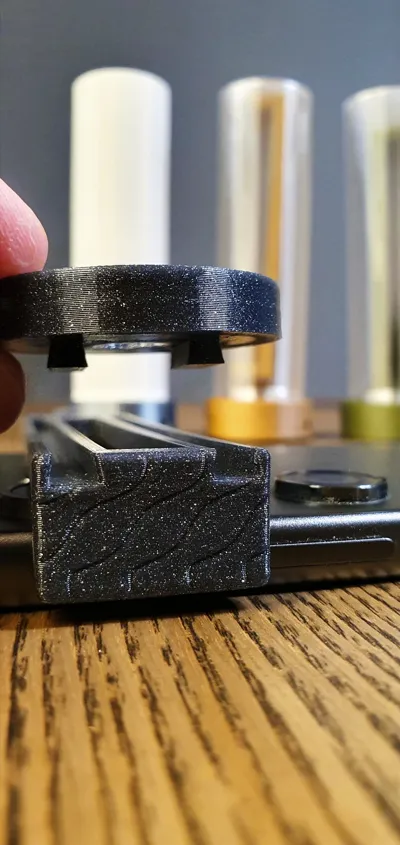

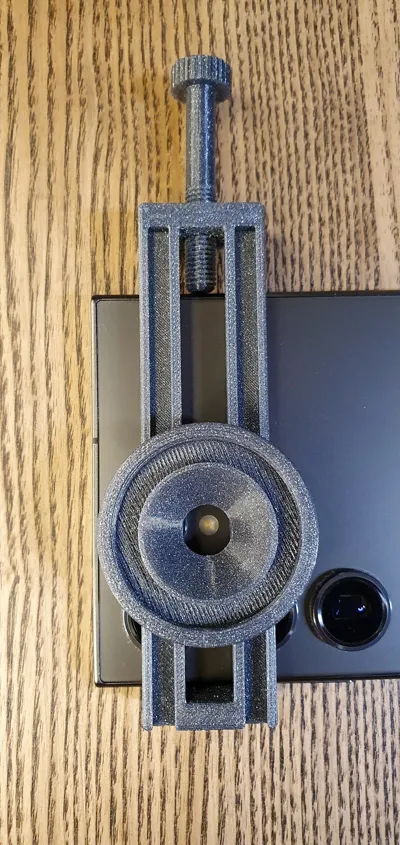

3. Insert the round piece into the clip and slide it until the flash peeks through the little hole.
4. Screw in the bolt until everything is securely fastened to the phone (don't overdo it, Hulk, we don't want to break anything).

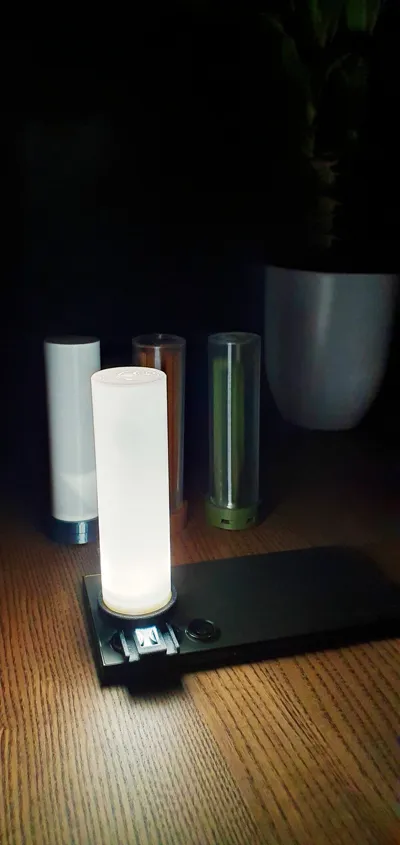

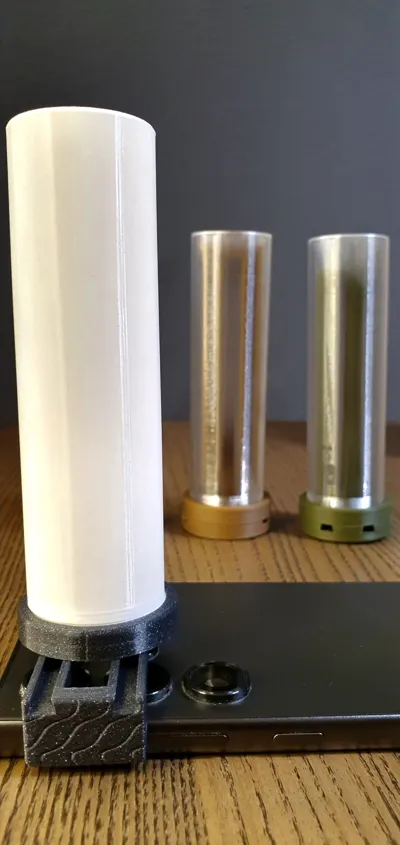

5. Screw the diffuser tube onto the round piece and... LET THERE BE LIGHT! 💡✨

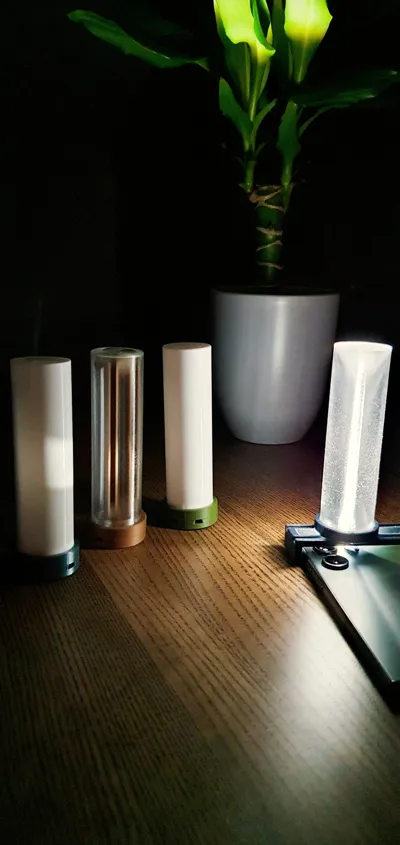

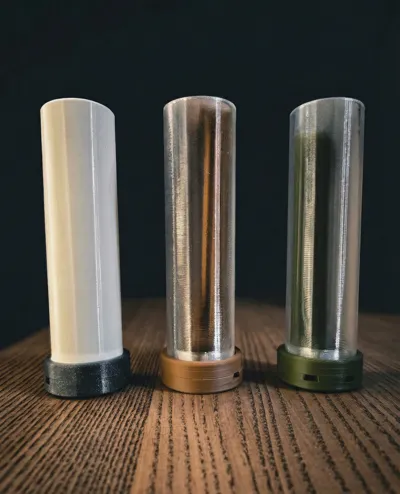

🎨 2 Versions (choose your side):

• White Screen (Zen Mode): Ideal for a relaxing atmosphere. Use any white PLA. If you use a "lithophane" type, the light passes like sun rays through curtain sheers. 👻
• Translucent Screen (Party Mode): If you have PETG Translucent, get ready. It's like putting a glass over the flash: Light everywhere! 🌟

Tip for connoisseurs: I've included a profile for PETG where the support interface comes out smoother than my brain at 6 AM. It's not mandatory, but it comes out super smooth.

📸 Upload your photos! I want to see where this improvised lantern ends up working.

👉 And if you like useful designs (or gadgets you didn't know you needed), follow me. 🔥
