3D Printed Gearbox

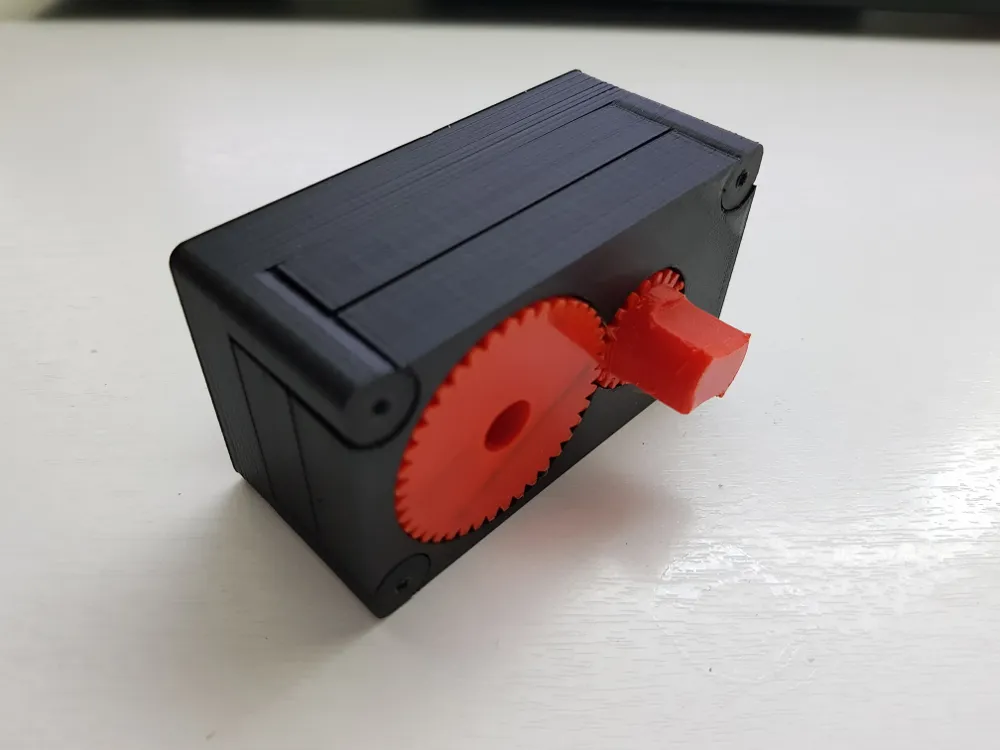

This is a compact, fully 3D printable multi-stage spur gearbox.

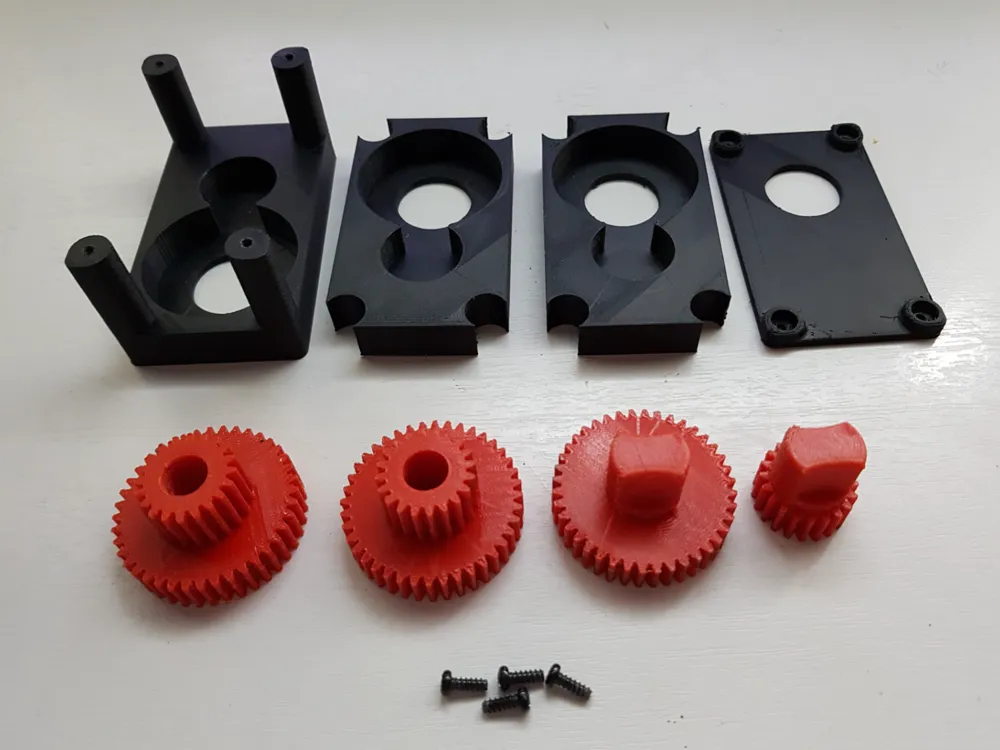

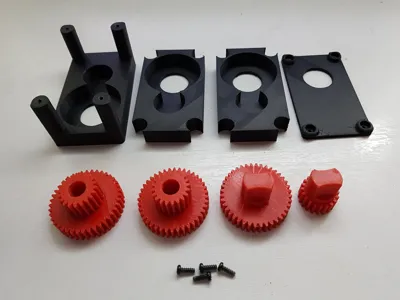

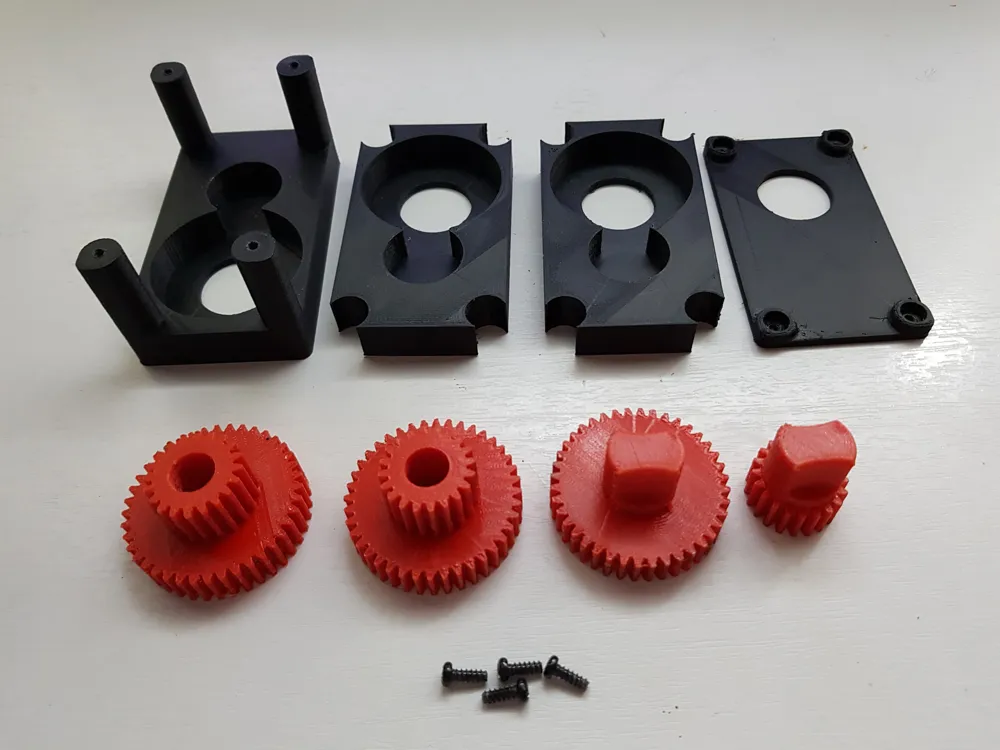

To assemble, print:
- 2× double (compound) gears
- 2× gear housing parts
- The remaining gears and cover
The gearbox was designed in CATIA using a parametric method, so gear sizes can be easily adjusted without redesigning everything from scratch.
If you have any issues with printing or assembly, feel free to contact me.
