Desiccant Spool Tumbler - Airflow Remix Remixed by KYZ Design

Remixed by

KYZ Design

3D Printer>3D Printer Accessories

Print Profile(4)

All

A1 mini

P1S

P1P

X1 Carbon

X1E

Standard

Designer

2.3 h

1 plate

4.9(90)

(PTEG) Fast print 0.24mm layer, 2 walls, 15% infill

1.6 h

1 plate

5.0(22)

0.2mm layer, 2 walls, 40% infill

4.9 h

1 plate

5.0(15)

4 Copies - 0.2mm layer, 2 walls, 40% infill

6.2 h

1 plate

5.0(5)

Boost

148

323

161

897

1.2 k

Released

Description

Update 16/04/2024 - before printing, check out this new model!

Differences of the remix compared to the original

Twist cap:

Crossbar changed to nubs to increase vent area
Frame thinned from 2mm to 1.6mm to increase vent area and reduce print time
Vent wall thinned
Vent wall separated into a different STL to allow better control over pint settings in the slicer

Main body

Vent area diameter increased from 40.6mm to 46.8mm
Minor changes to increase internal capacity and reduce print time
Vent wall thinned
Vent wall separated into a different STL to allow better control over pint settings in the slicer

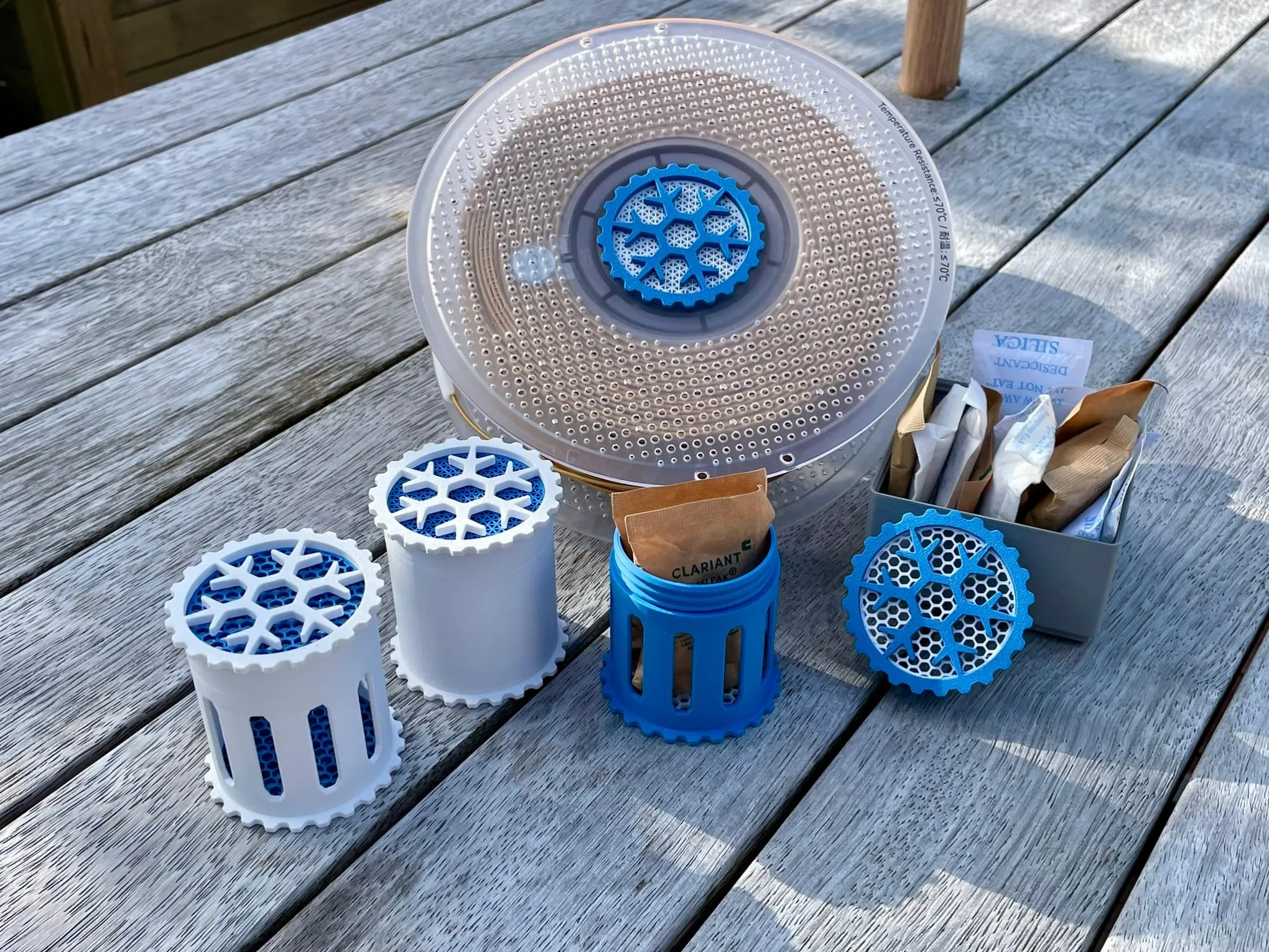

Version with slotted holes on the sides added - the extra venting allows the whole canister to be dried in a microwave or oven a little faster (doesn't make much difference inside a spool)

Lock

“Spool Lock Extended 16mm” added - to work with wider spools.

Fitment tested on:

Prusament spools
Bambu spools
eSun spools

50% triangular infill works well for the vent walls.

Import the main part and the mesh part together to make sure they're aligned.

Mine are printed in Prusament ASA and seem fine when I put them in the microwave to refresh the desiccant.

Ironing the top surfaces made a nice flat look!

This model was originally posted here on 14 September 2023.

If you have Bambu spools, you might be interested in this one

spool desiccant holder

Comment & Rating (161)

@user_156401763

Brand new to 3d printing so looking for some input. I have printed the center spool twice. Bambu P1S/AMS with Bambu PLA. The first was a brand new roll of red PLA. The mesh was barely attached around the edges and was not fully formed. Was soft and could almost blow hard on it and knock it out. Second attempt was the green PLA. Same result. Door closed, top on. Imported and sliced with Bambu-no changed to standard PLA settings. Any help on what I might change to get the results that others are getting. Rest of the parts were perfect. The mechanical engineer part of me loved the tool to open the fill and the funnel. Sorry, but photos were at about 4:30 this am and I did not have my glasses with me-looks way better without the glasses. Thanks

The designer has replied

@KYZDesign

hi, you need to use “Arachne” wall generator setting, instead of “classic”. the setting may have changed to classic when you changed printer in the slicer.

@KYZDesign

alternatively, you can print straight from the phone app to ensure it uses the right settings

(Edited)

@user_156401763

Replying to @KYZDesign :

That was the issue. Thank you. Worked perfect. Great design.

@HotFix

Print Profile

(PTEG) Fast print 0.24mm layer, 2 walls, 15% infill

I had to print an adapter for some of my spools with a larger hole. This is a great desiccant holder and it helps add some weight to my somewhat empty spools to hold them down in the AMS. Printed in PETG.

@blackstarphotog

Maybe a good idea to share the adaptor in case someone has the same issue as you? :) looks like a great print. Gonna print my own one of the coming days.

@HotFix

Replying to @blackstarphotog :

Absolutely - here you go: https://makerworld.com/en/models/136759#profileId-149812

(Edited)

@blave1

Outstanding design... I'm printing my NINTH one. Nice work! (See image) I like to mix colors for something like this. I used Bambu PETG clear and Translucent Teal. One of the thing that impresses me with this is that the circular desiccant sealer plate, which has a very fine thread, screws into the main body with no problem. I also like what I'll call the "maximum bead surface exposure" design feature. I will probably print another six. I want to have these in my AMS and all of my bag-sealed spools.
