Multi-Angle Pipe Notcher Jig – Tube Marking Guide for Welding, Roll Cages & Exhaust Fabrication
Description
Precision Pipe Notching – Made Simple
This multi-angle pipe notcher jig is designed to deliver accurate, repeatable tube marking for fabrication and welding work—without the need for expensive or complex machinery.
Whether you're building a roll cage, exhaust system, handrail, or custom frame, this jig allows you to quickly align and mark pipes at common angles with confidence and consistency.
Key Features

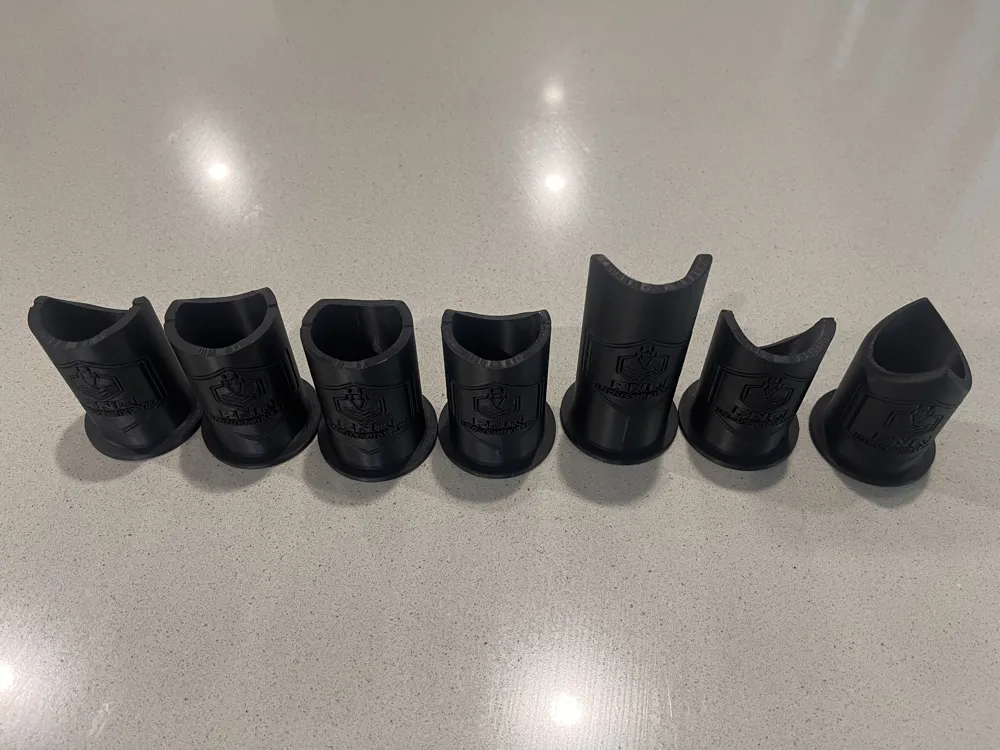

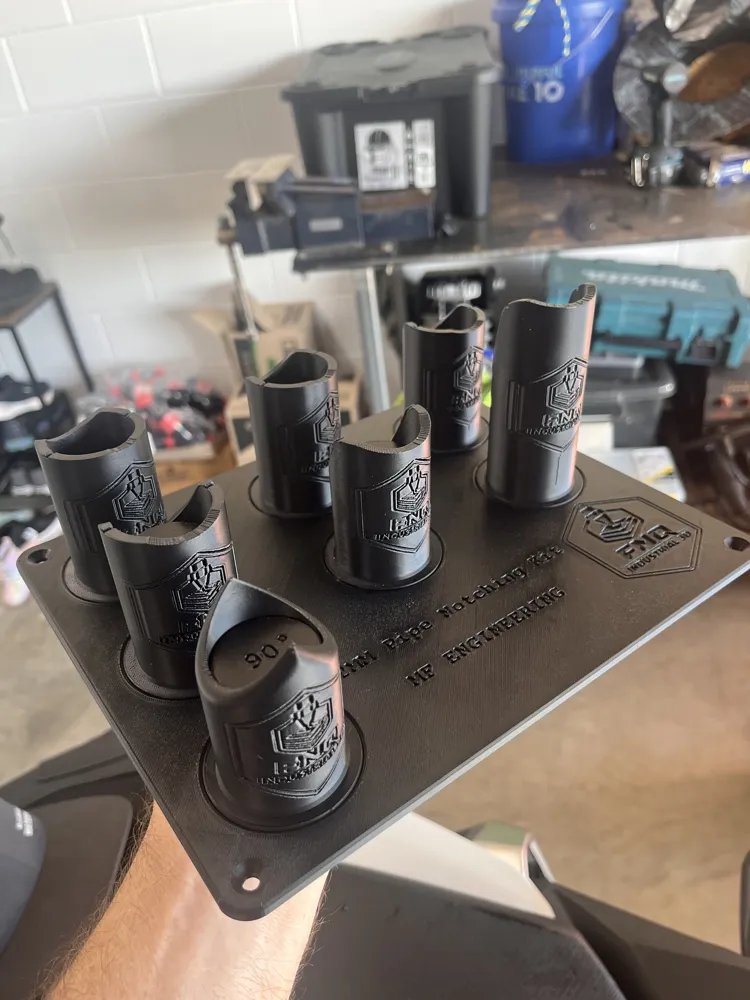

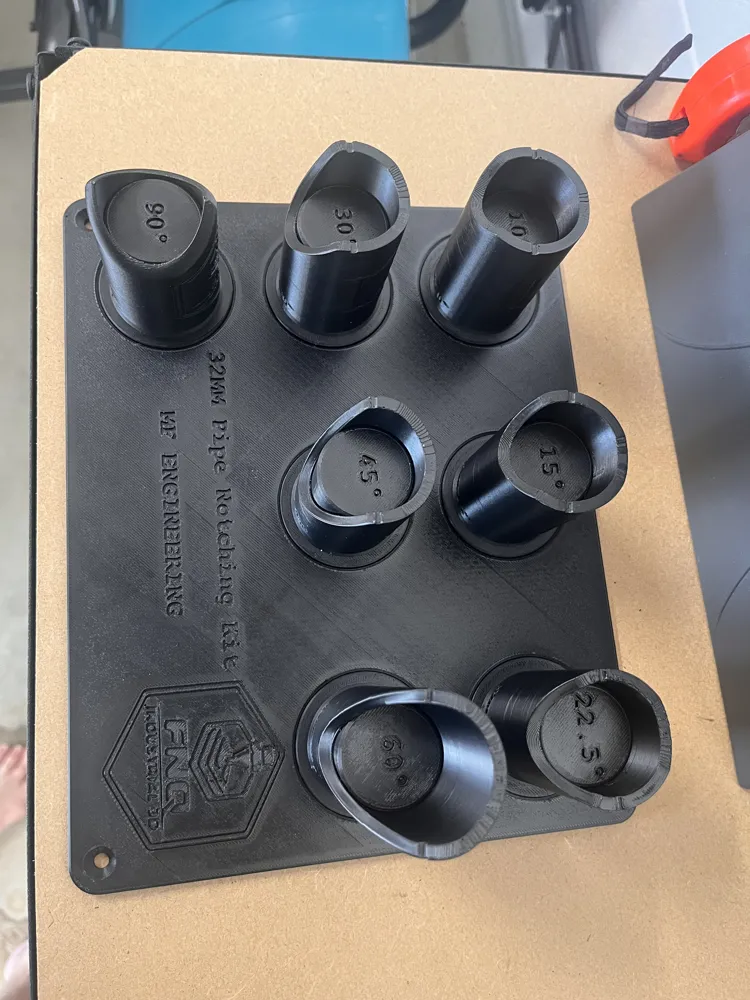

- Multiple fixed-angle guides for common fabrication cuts
- Ensures consistent and repeatable alignment
- Clearly marked angles for fast, error-free setup
- Compact and durable design suited for workshop environments
- Works with steel, aluminium, and alloy tubing
Built for Real Workshop Use
Designed as a practical engineering tool, this model prioritises:
- Structural strength
- Easy handling during marking
- Reliable accuracy across repeated use
Unlike improvised templates, this jig provides a repeatable workflow, saving time and reducing material waste.
Designed & Manufactured by FNQ Industrial 3D
This model has been designed and developed by FNQ Industrial 3D, with a focus on producing functional, workshop-ready tools rather than display-only prints.
Each design is created with real-world usability, durability, and repeatability in mind—suited for fabricators, trades, and hands-on applications.
Support the Project
If you find this model useful and would like to support future designs, you can do so here:
https://buymeacoffee.com/fnqi3d
Support helps drive new releases, additional sizes, and ongoing improvements.
Common Applications
- Roll cage and motorsport fabrication
- Exhaust and intake pipe preparation
- Handrails and structural frames
- General welding and metal fabrication
Future Updates & Sizes
If this model gains enough support through likes, downloads, and boosts, additional sizes and variations will be developed and released.
This ensures future versions are driven by real user demand, covering a wider range of tubing sizes and applications.
Licensing & Usage
- Personal use only
- Commercial use is not authorised
- Resale, sharing, or redistribution of the files or printed parts is strictly prohibited
Important Notes
- This is a marking and alignment jig, not a cutting tool
- Final accuracy depends on user setup and cutting method
- Designed as a workshop aid for fabrication preparation
