If you like the model or can use it, I would be very happy about a boost 😊 This way you support my designs and help more people find it. Thanks for looking and happy printing!

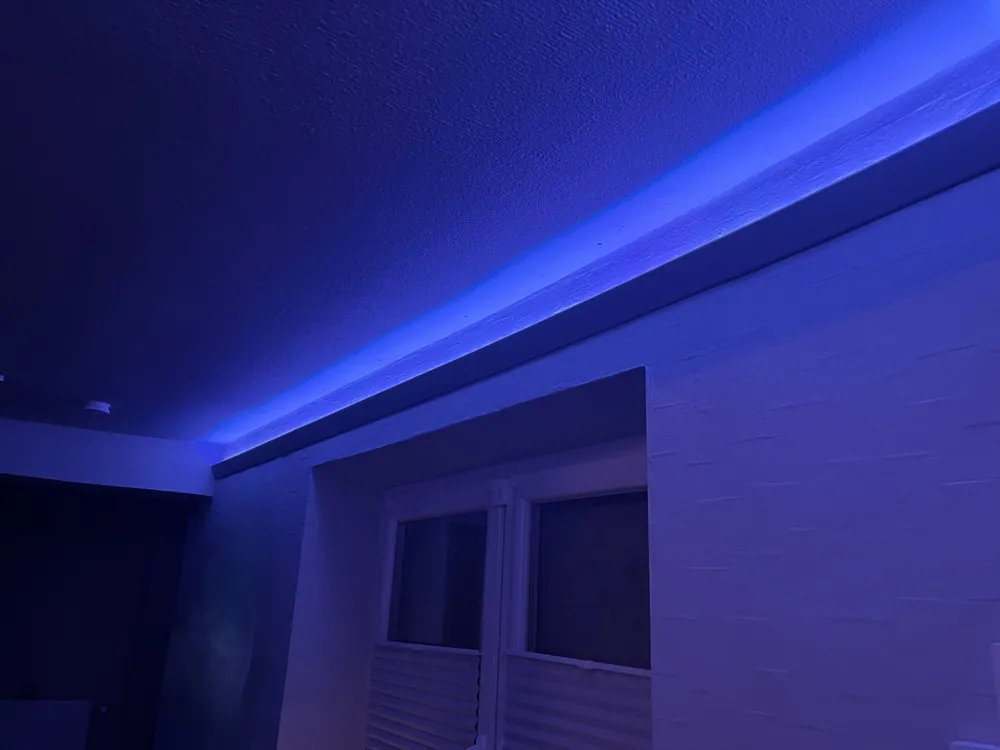

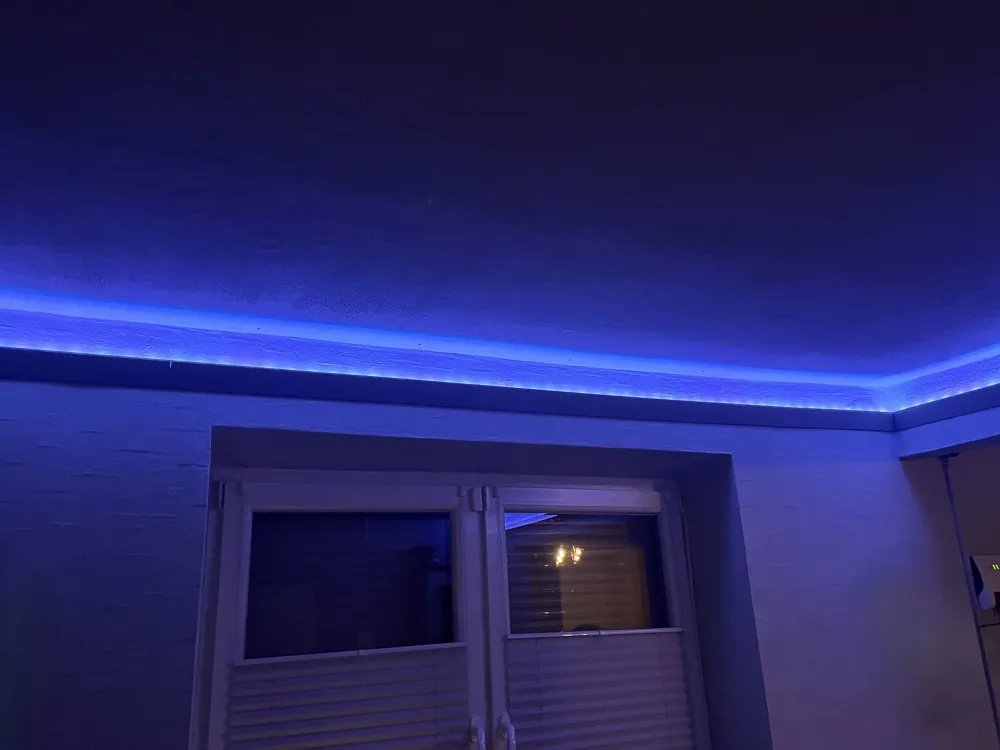

I designed this LED ceiling strip myself to have a simple solution for indirect lighting with LED strips. It is suitable for wall mounting and provides even, indirect light in the room
The profile is designed for common LED strips and can be adjusted in length as needed. It can be printed without support material, preferably standing on its front face
The design is deliberately simple and can be used well in living rooms, hallways, or offices. Dimensions, angles for the corners can be easily adjusted in Bambu Studio if needed

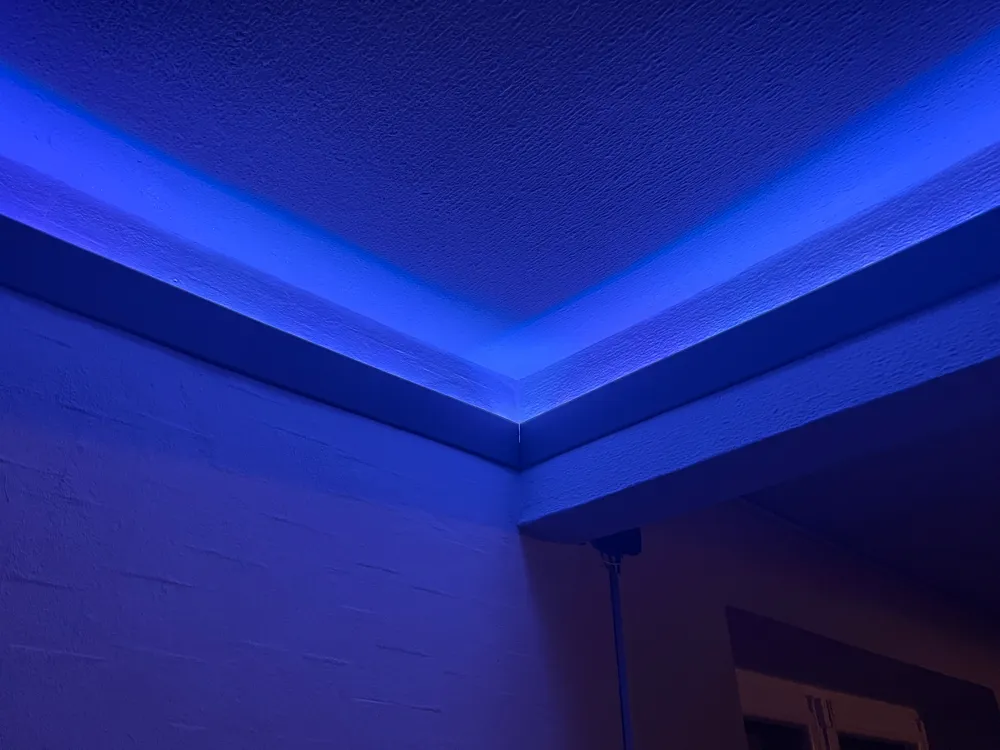

Tip for cutting corners:
I measured the corner angle with a protractor on the wall and then calculated it in Bambu Studio
Procedure:
Divide the measured angle by 2
Subtract the result from 90°
Use the calculated angle in the cutting tool
Example: Wall angle: 96°
96 / 2 = 48
90 − 48 = 42
In this example, an angle of 42° is set when cutting (Axis: Y)
Then, move the height until the desired length is reached
I cut the part in two steps:
First, a straight cut at 90° to the desired dimension (e.g., 6 cm)
Then the angled cut directly at the edge of these 6 cm
This way, clean corner pieces can be created for any wall geometry
I have ordered an LED strip that works with Alexa
No brand product – own design
