Threaded Pen Holder
Print Profile(0)
Description

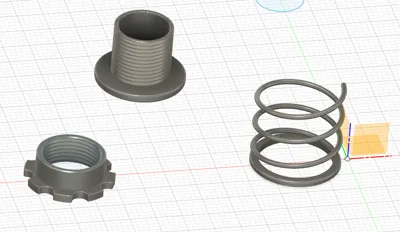

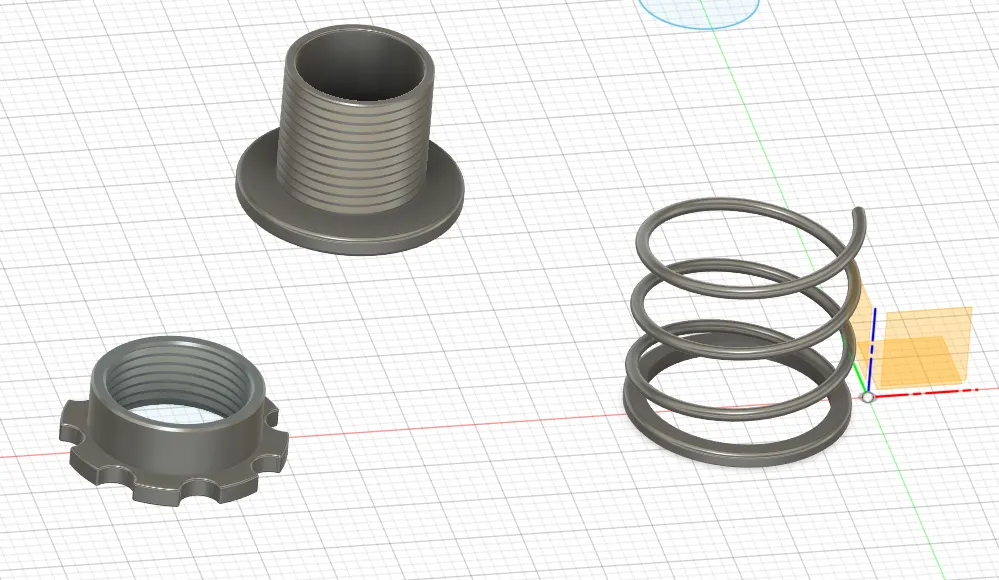

Universal Threaded Adapter with Spring Guide (Modular Design)
Looking for a stable, reliable solution for your mechanical projects? This design combines a precise ISO thread with an integrated spring retainer, ideal for buttons, switches, valves, or damping mechanisms.
Why download this model?
- Precise Tolerances: The thread is optimized to run smoothly "out of the box" without tedious post-processing.
- Stable Spring Guide: The coil sits firmly and securely on the base, preventing slipping under load.
- Print-Optimized: The design was created to require minimal support and maximize layer strength.
- Versatile: Perfect as a spare part or as a base for your own CAD remixes.
Technical Details & Print Settings
To ensure the best functionality, I recommend the following settings:
- Material: PETG (for flexibility/durability) or PLA+ (for maximum stiffness).
- Layer Height: 0.16mm or 0.2mm (for clean threads).
- Infill: At least 20% (Gyroid recommended for mechanical stress).
- Walls: 3-4 wall lines for maximum stability of the thread core.
- Support: Only necessary if your printer has difficulties with the spring's overhangs (usually works without!).
Assembly Note

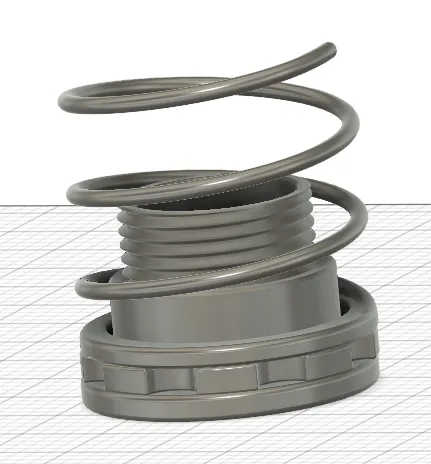

Simply place the spring on the lower shaft and screw in the threaded piece. A drop of silicone oil on the thread works wonders for the feel!
Like the design? I appreciate all feedback and photos of your finished prints! If you have any questions or need a specific size, just write it in the comments.
Happy Printing! 🚀
