Glasses case
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4.7 h
1 plate
Open in Bambu Studio
Boost
10
29
2
1
22
12
Released
Description
A glasses box designed to be printed in place, inside dimensions are roughly 15*(6*6) cm (center) and 15*(3*4) cm (sides) but it can easely be adjusted by “stretching” the model in any cad software.
initialy designed for sport and shooting glasses, can be used for any kind of glasses.

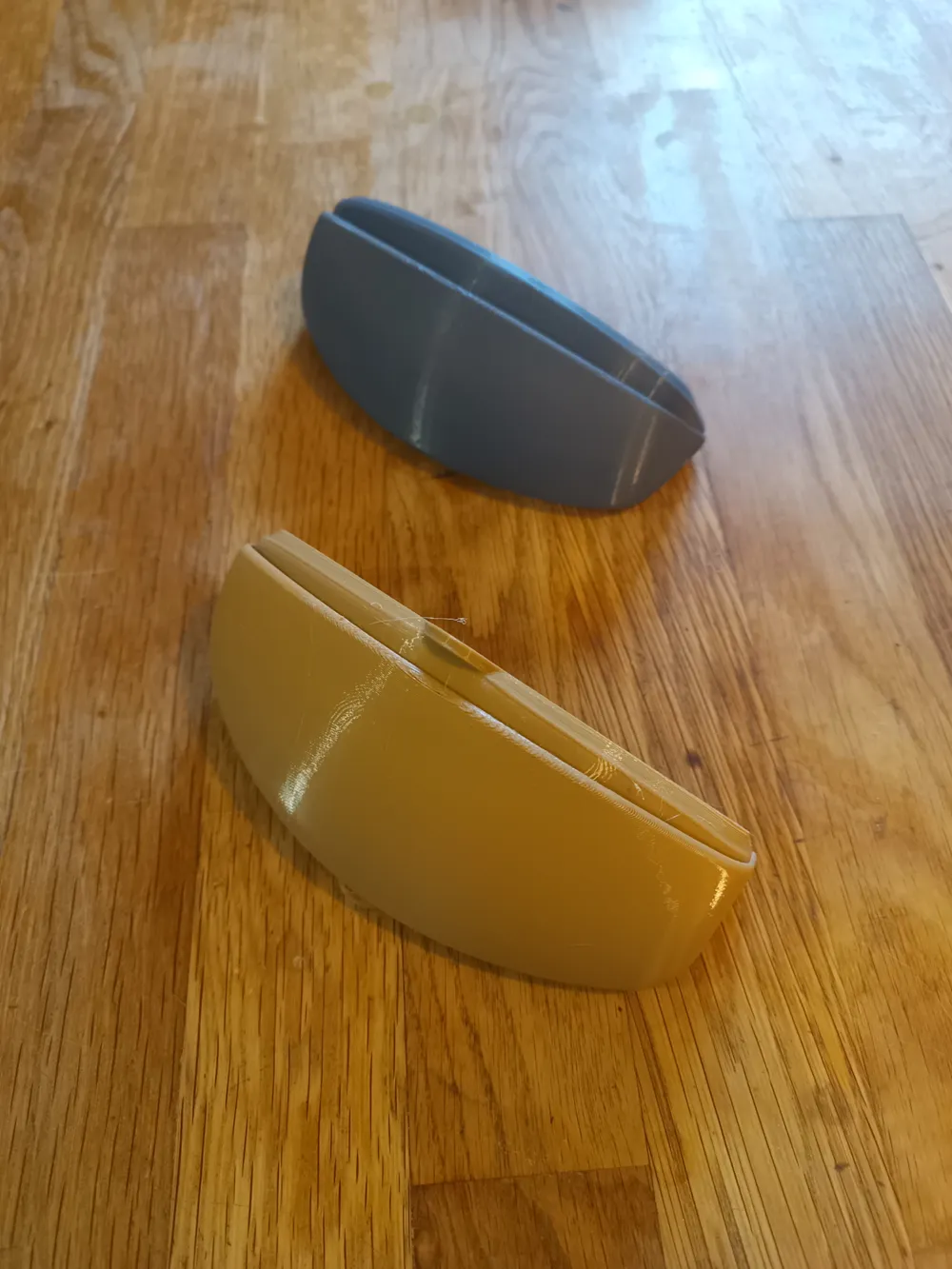

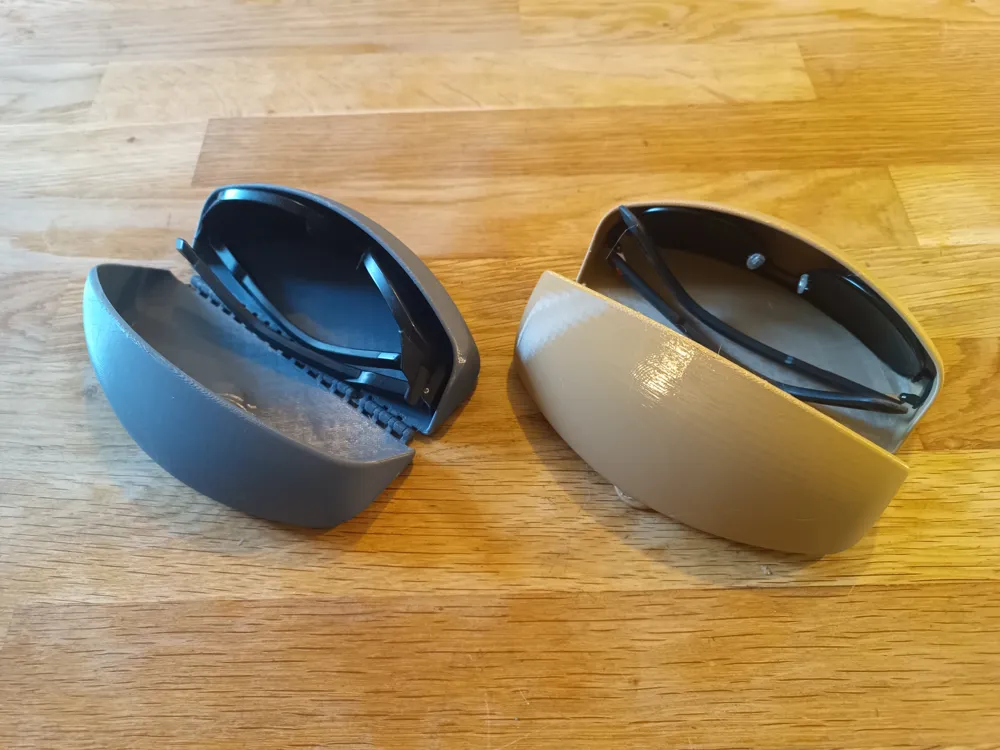

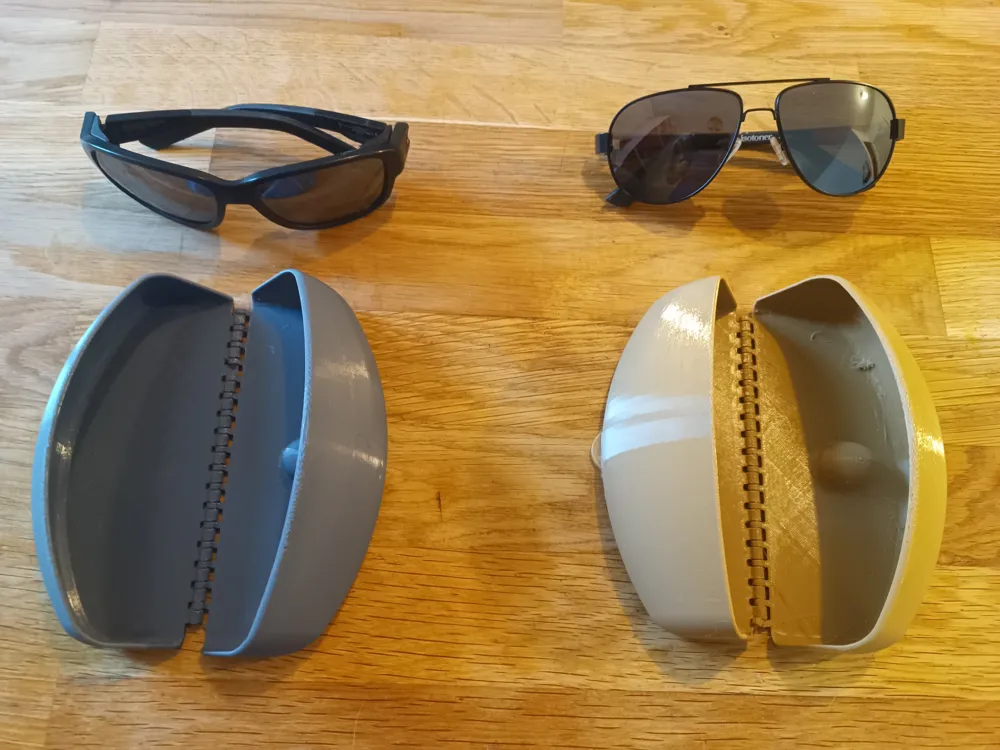

In the picture the grey one is the V1 and the tan one the V2, the V2 is the one shared.
Simplicity and efficience in mind, no screw, no magnet, no filament joint or assembly, one print. The friction in the joint and between the two curved face keep the case shut. used in alpine and military context, never broke.
Out of the print plate, slowly increase the force to fold the part until a light snap ocure and you should be good to go.
