Description
18/02 Updated 165mm depth with extra sizes
Length size added. 150mm,175mm,200mm,225mm,250mm.
Description
Multiboard Flat Tray
Needed a tray to use on a multiboard, but all original multiboard tray are not flat, and the size are quite fixed.

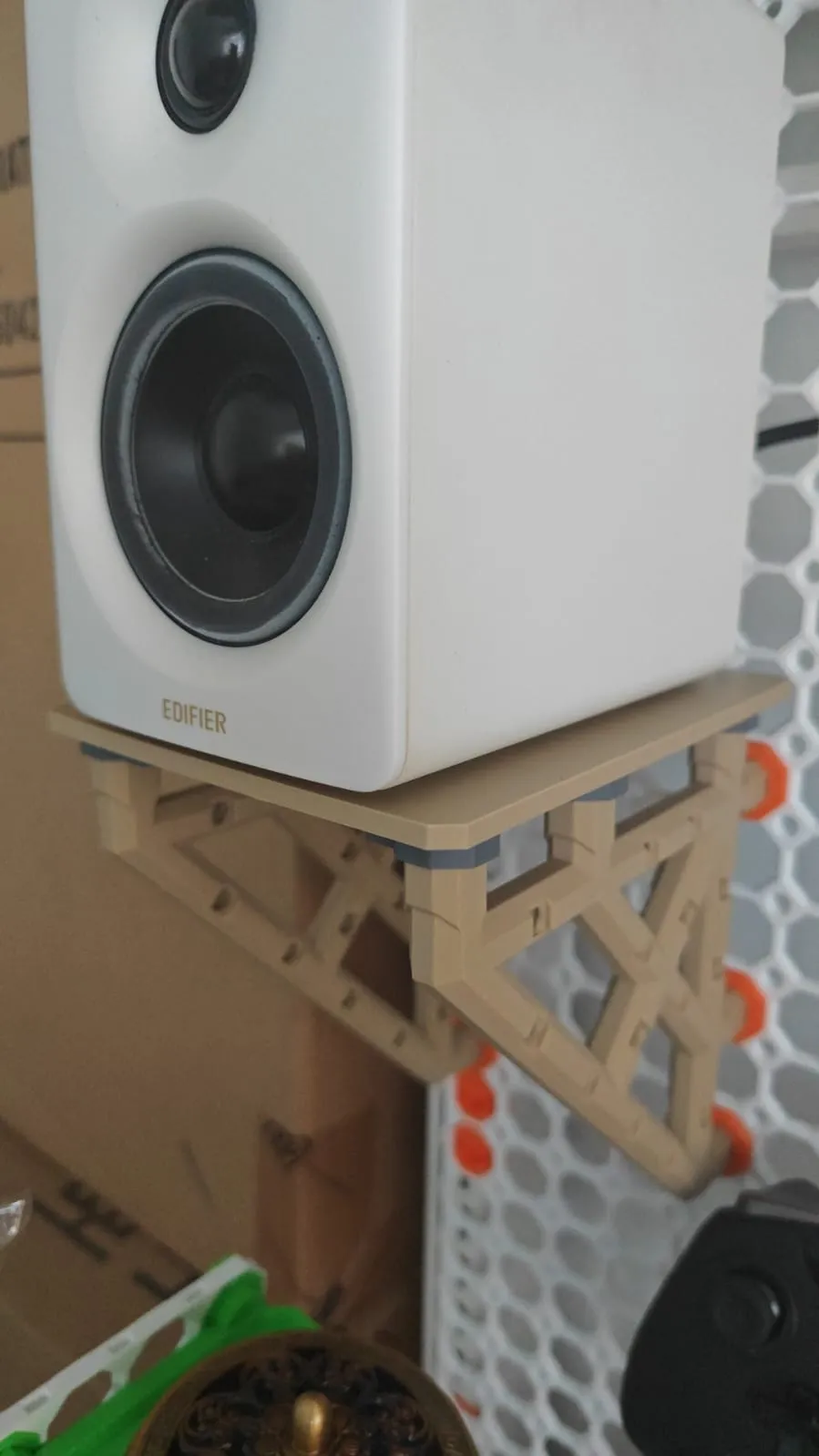

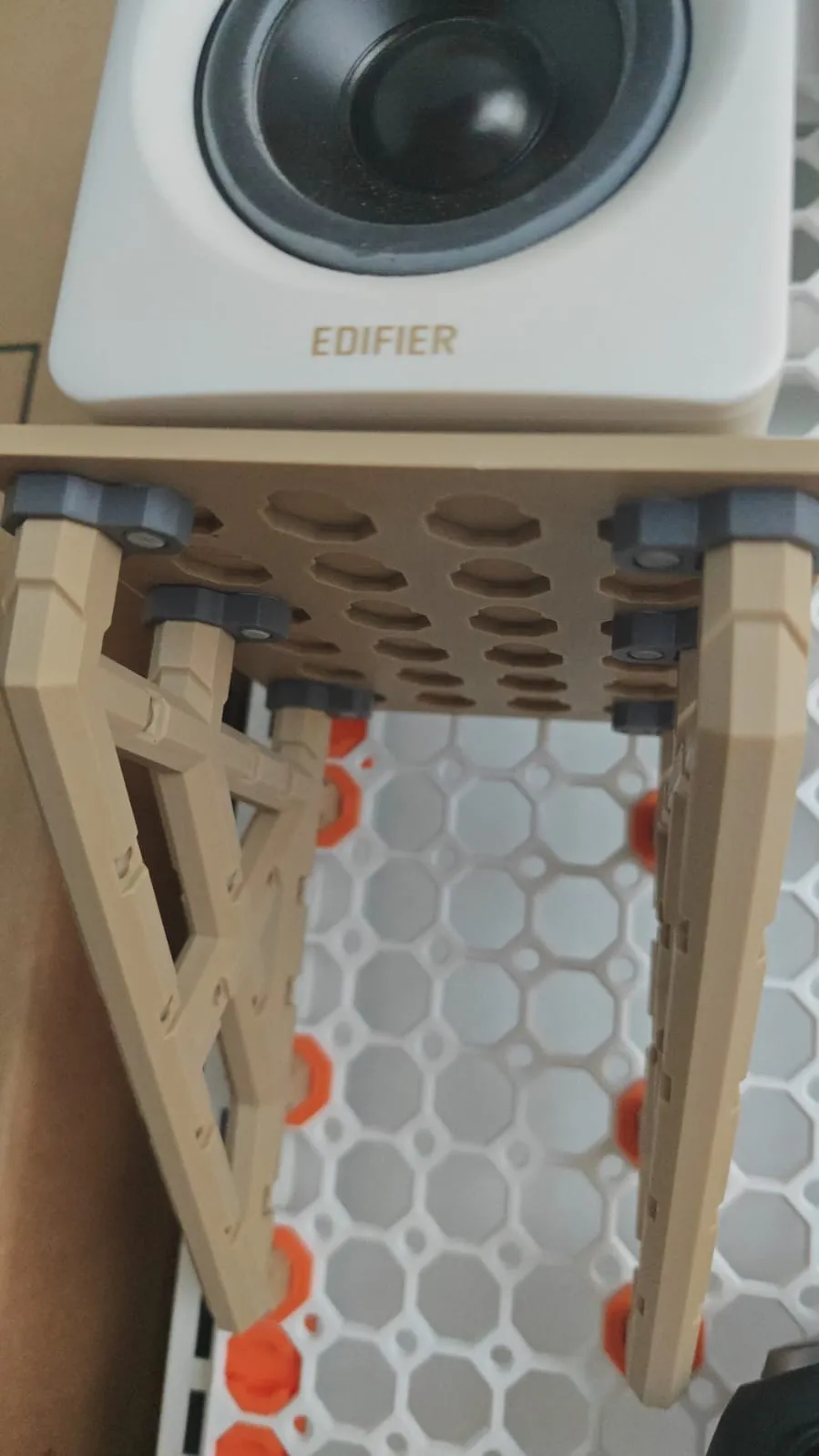

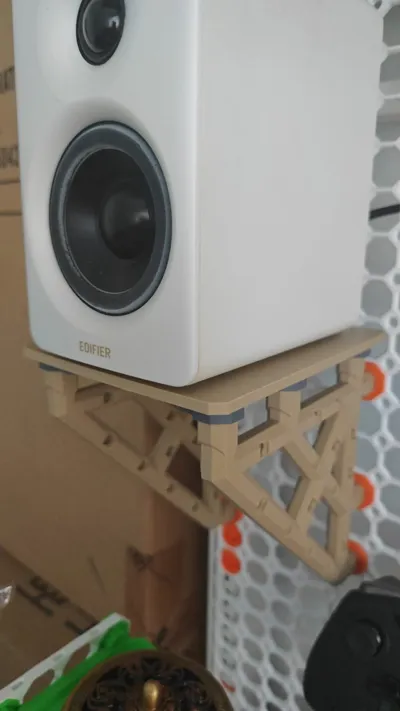

Design a flat tray to hold the edifier speaker without extra space wasted.
Size of tray is 125mm by 165mm.
You will need to know what is needed to mount the tray. For this, all the other parts can be downloaded from the official multiboard
6x6 bracket https://thangs.com/designer/Multiboard/3d-model/6x6%20MU%20Bracket%20-%20Bolt-Locked%20Inserts-999510
Bracket-Fix Point Joint https://thangs.com/designer/Multiboard/3d-model/Bracket-Fix%20Point%20Joint-1183172
Small Thread - Fix Point https://thangs.com/designer/Multiboard/3d-model/Small%20Thread%20-%20Fix%20Point%20%28Folded%29-1123334
If other sizes of tray are needed, will help to do with a little boost.
Boost Me (for free)
Enjoying the design? A boost would really help support my work! ⭐✨
