Attachment for your Dewalt DCL077 12v/20v Light to use as a light box, or color filter. Sized so each piece can fit on an A-1 Mini build plate.

Fun project if you have one of these grossly overpriced Dewalt lights. I also made a version to fit the BambuLab lithophane LED panel, so check that out if interested.

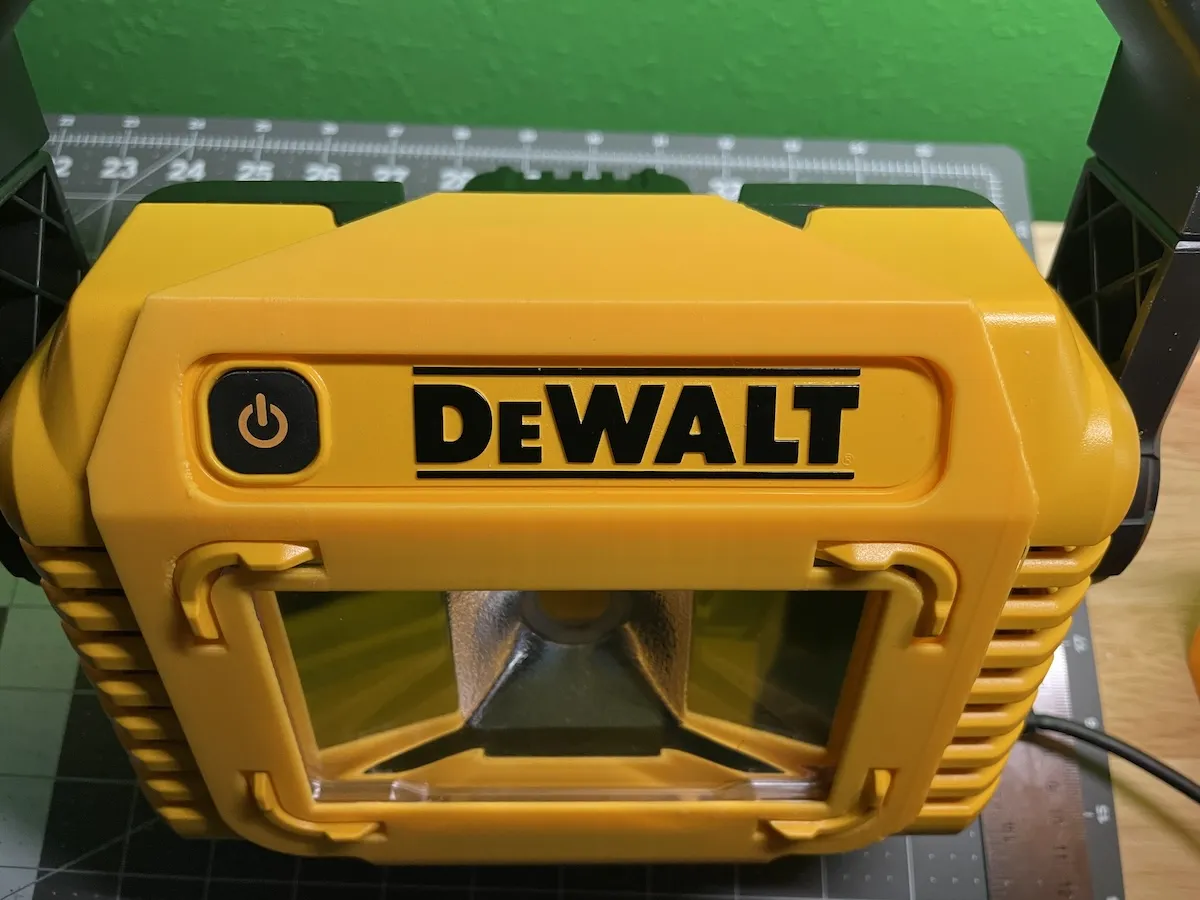

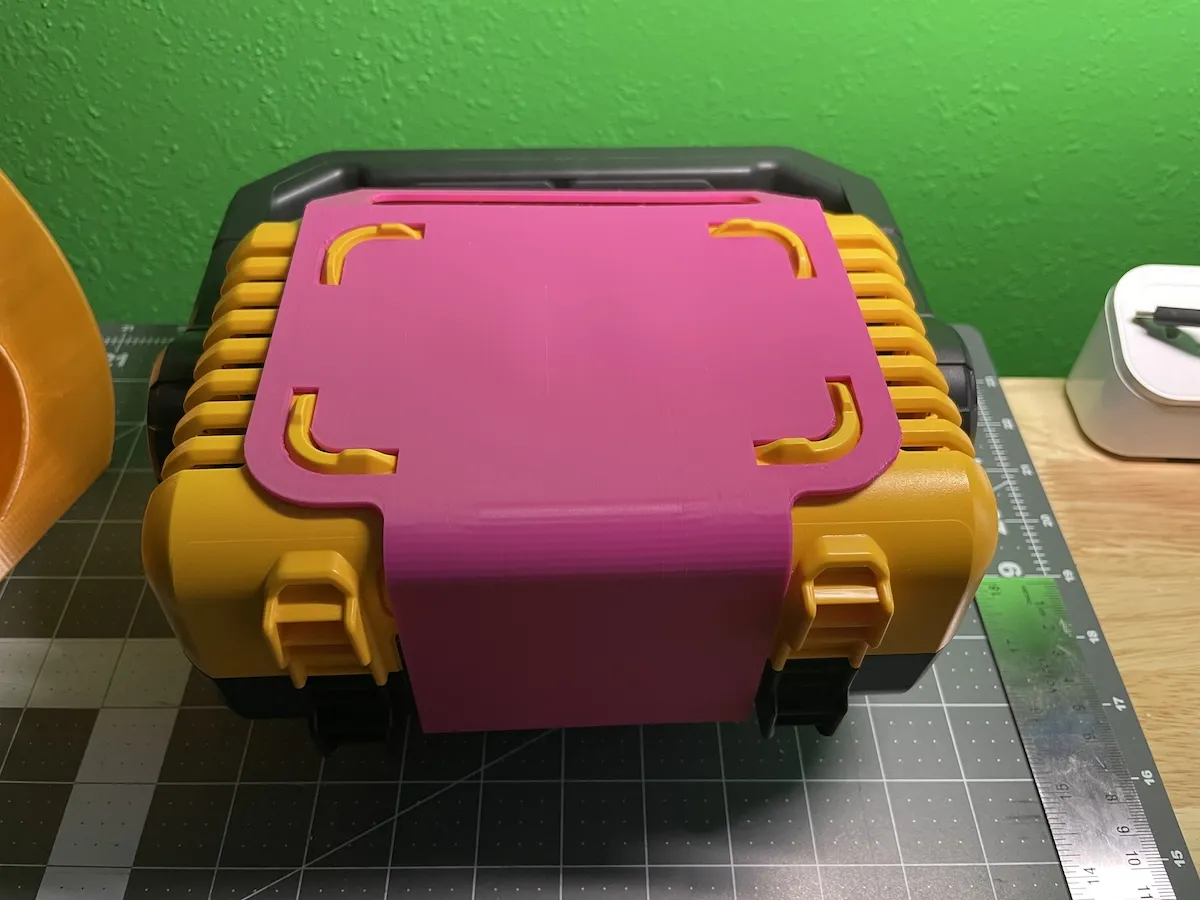

Attachment snaps onto the light fixture. Two versions, one to fit a color filter and adapter to place a display object on top, and one ‘solid’ adpater to just filter the color of the light.

Filter is a 67.5mm x 111.5mm x 2mm+/- depending on desired effect. 2mm is good for magenta, yellow, and other semi translucent filaments. I also did a 3mm translucent blue filter which worked nicely with the diamond.

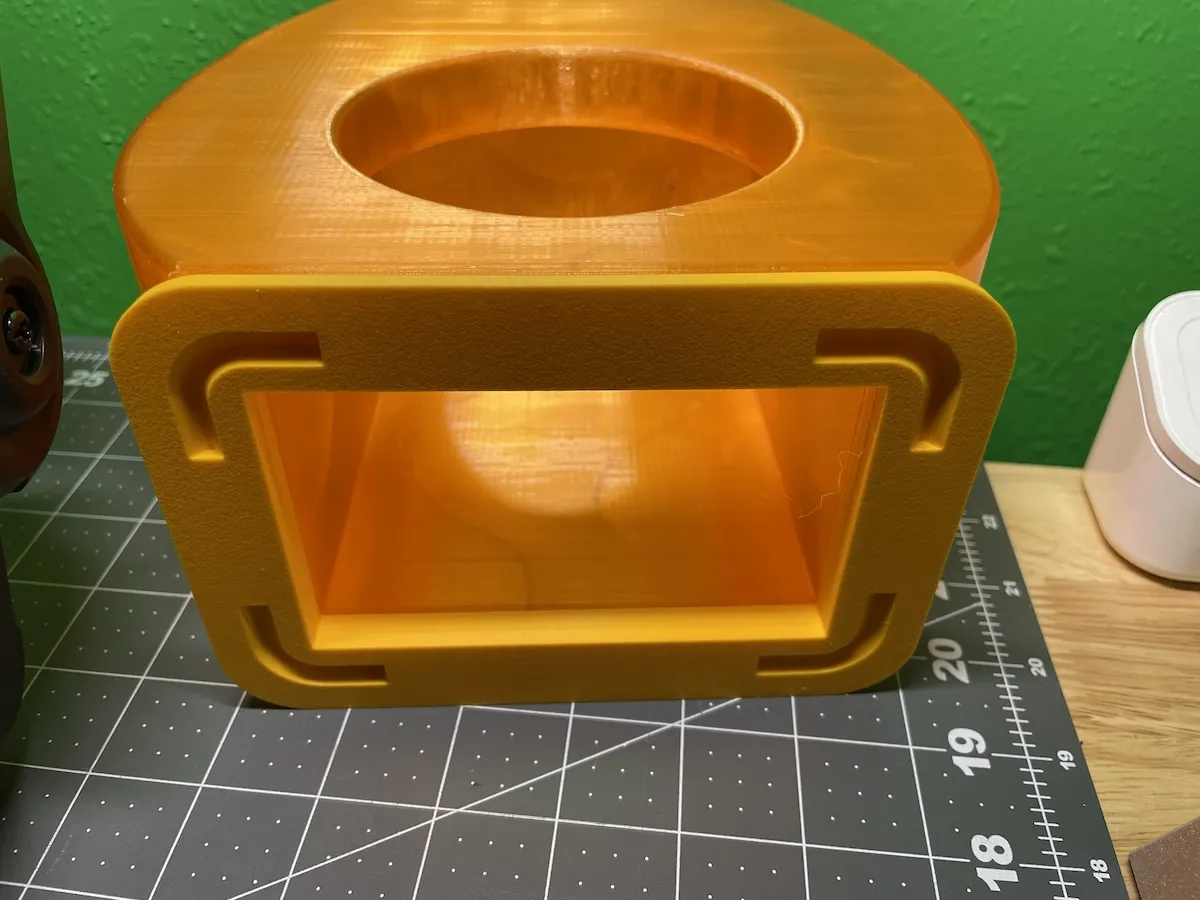

Adapter piece sits on top. It does not lock into place onto the light, but does lock onto whatever you put on top -

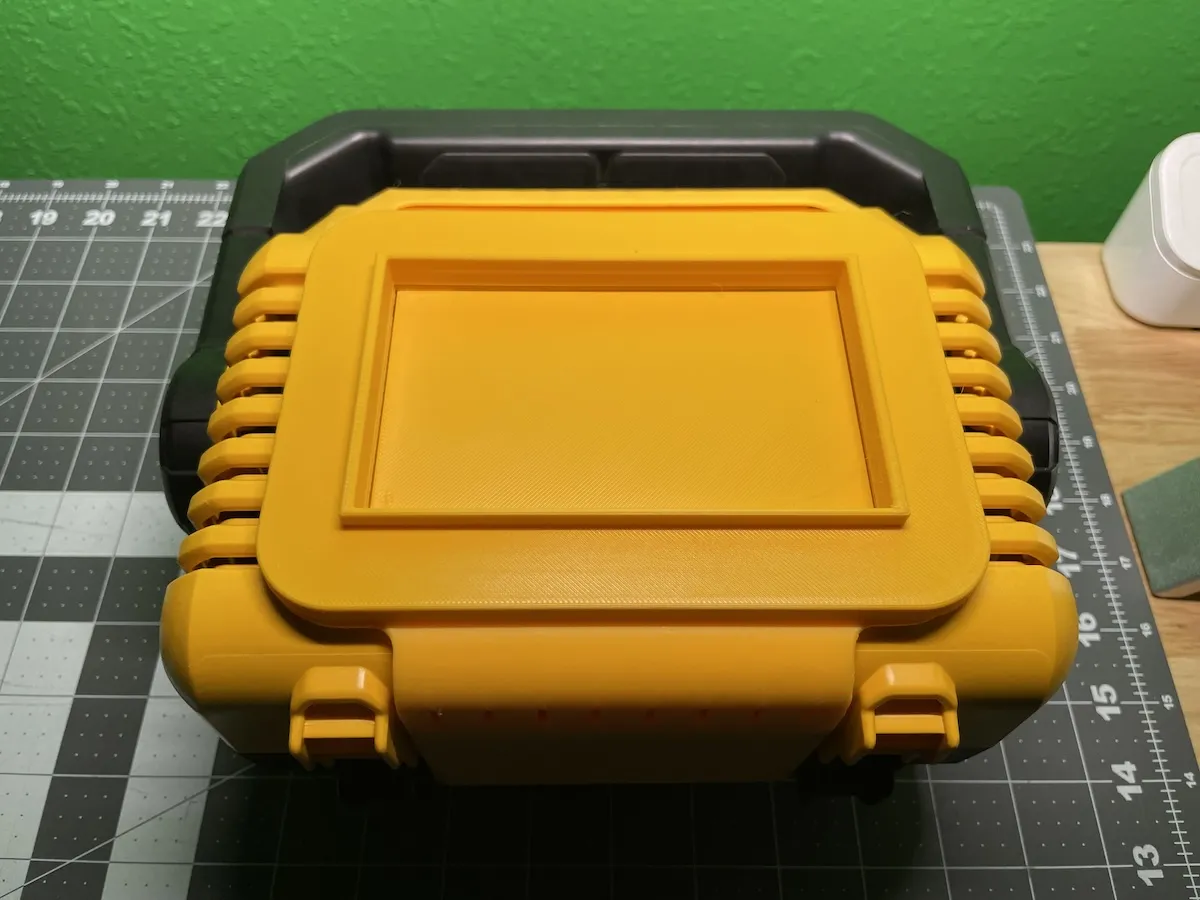

And there you go -

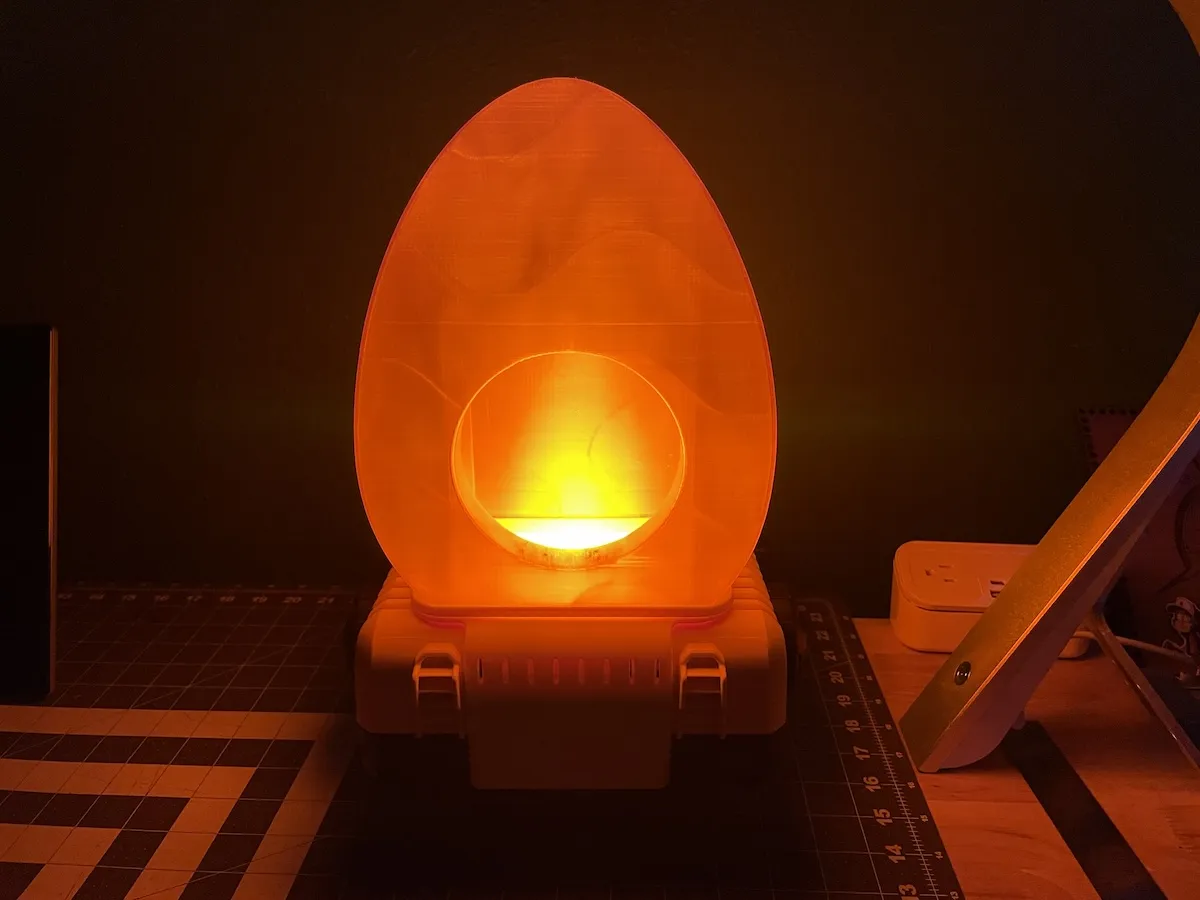

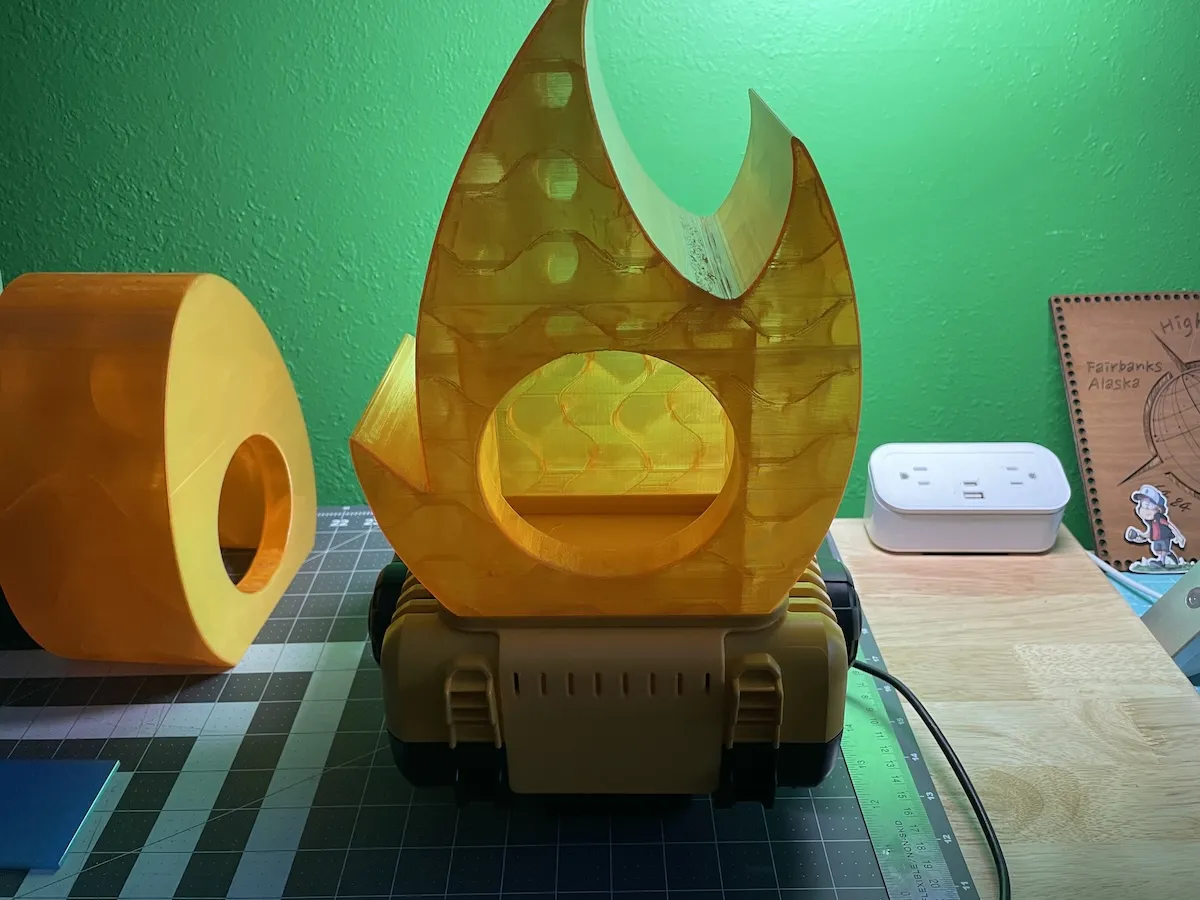

I made an Egg, Flame and Diamond translucent PETG models to try out. Posted separately. Using the yellow ‘Filter’, Orange Translucent PETG is pretty nice.

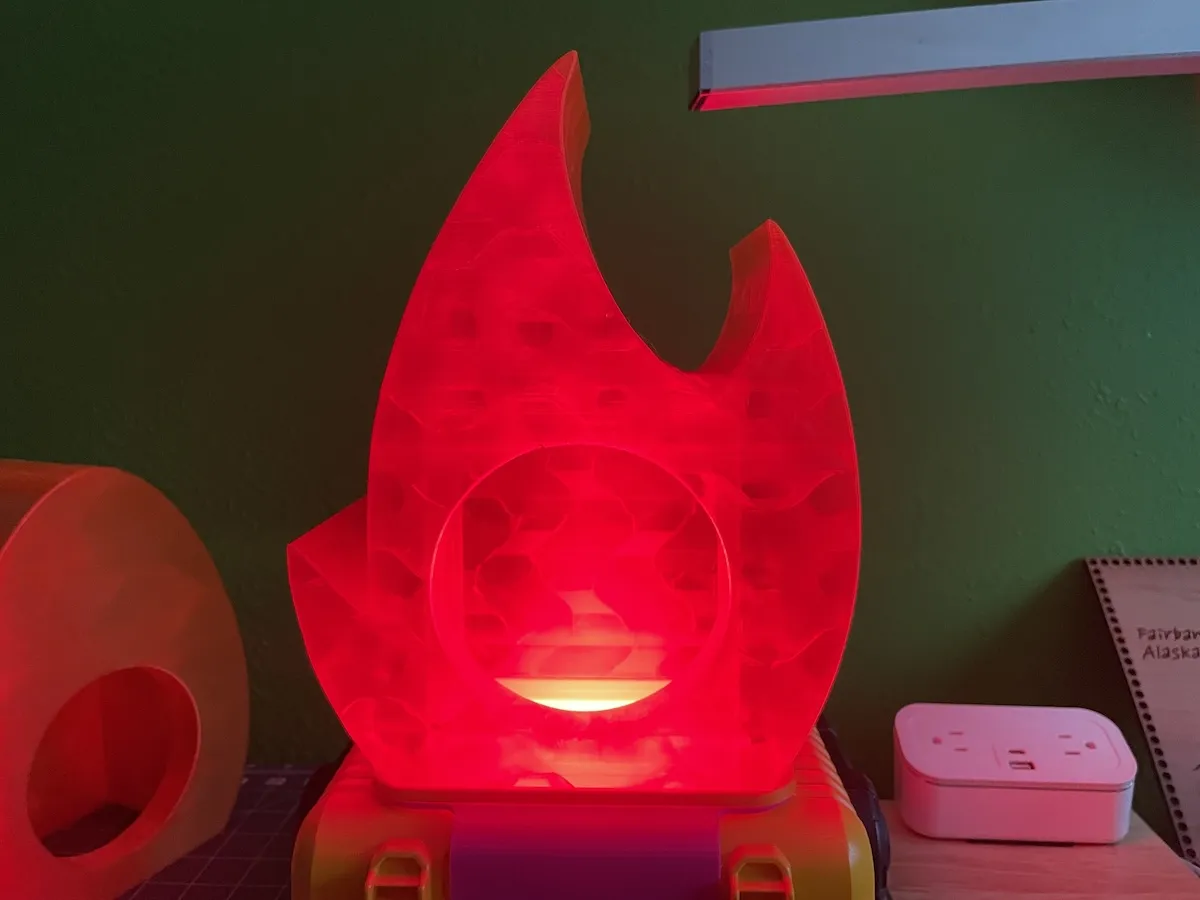

But using Magenta - 2mm - Lights up the Orange Translucent PETG in vibrant Red - with a 2% Gyroid infill = nice….

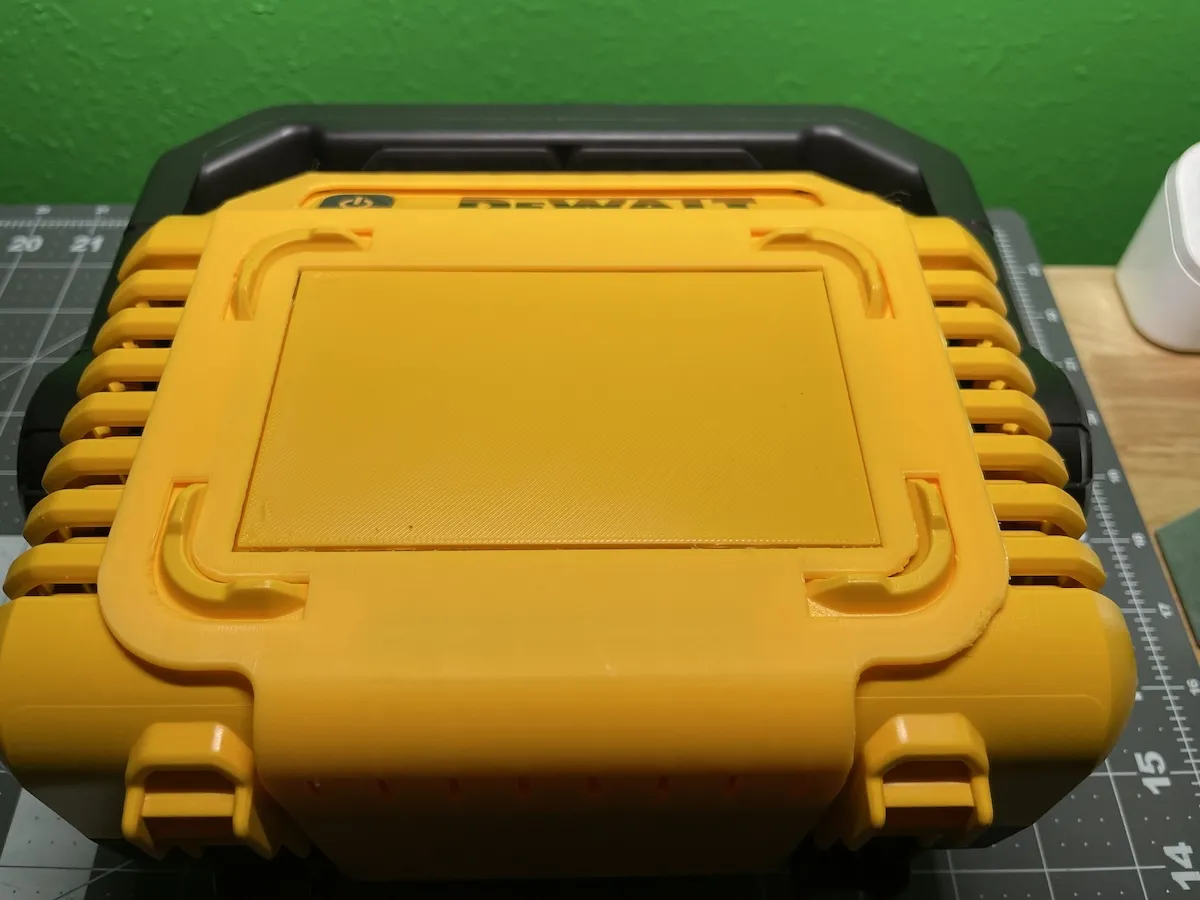

Making the 'solid' version of the Attachment, in Magenta, makes your otherwise blinding dewalt light a nicer ‘red’ light that can be used at night. Especially outdoors -

Fun Fusion360 design project. I'll add links in this description above for the lithophane led panel kit and the egg/diamond/flame pieces once posted.

Thanks!
