legs for tabletop SKÅDIS by sagatxxx

sagatxxx

Household>Office

Print Profile(4)

All

X1 Carbon

P1S

P1P

X1E

2x m2 - 0.2mm layer, 2 walls, 15% infill

Designer

28 min

1 plate

4.7(20)

2x 0.2mm layer, 2 walls, 15% infill

Designer

39 min

1 plate

4.7(6)

4x m2 - 0.2mm layer, 2 walls, 15% infill

Designer

48 min

1 plate

4.3(4)

4x m1 - 0.2mm layer, 2 walls, 15% infill

Designer

1.1 h

1 plate

5.0(2)

Open in Bambu Studio

Boost

106

263

386

229

Released

Description

If you like my design please don't forget to give me a boost!

Edit 1-1-24:

I have added 3 more versions adjusting the panel space downwards, to make it fit better, you have one with -0.3 another with -0.5 and another with -0.7 mm.

I hope it fits better now, if anyone needs a specific measurement, please use the comments, I will respond as soon as possible

----------

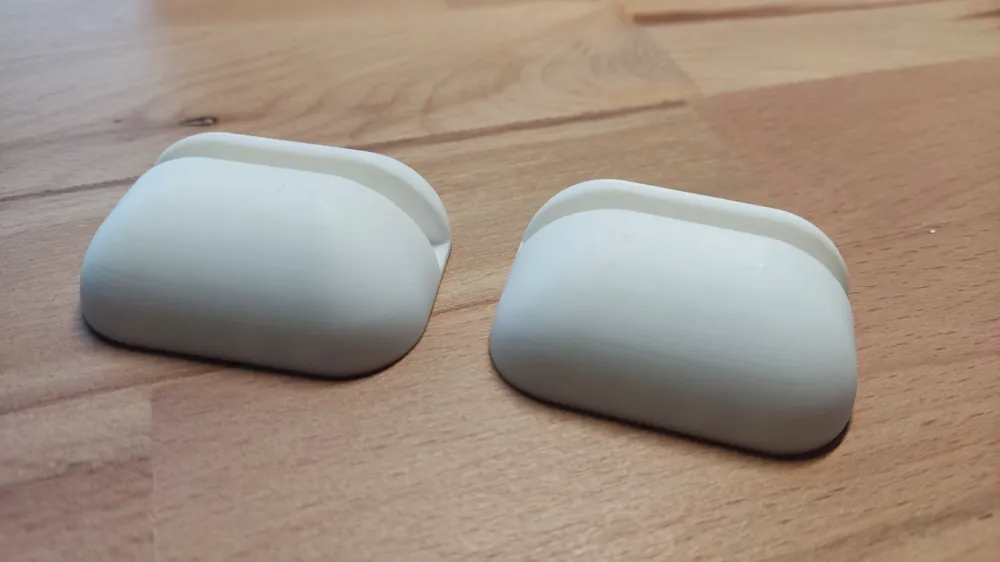

legs for SKÅDIS top, to create a wall protector, not suitable for hanging slightly "heavy" things.

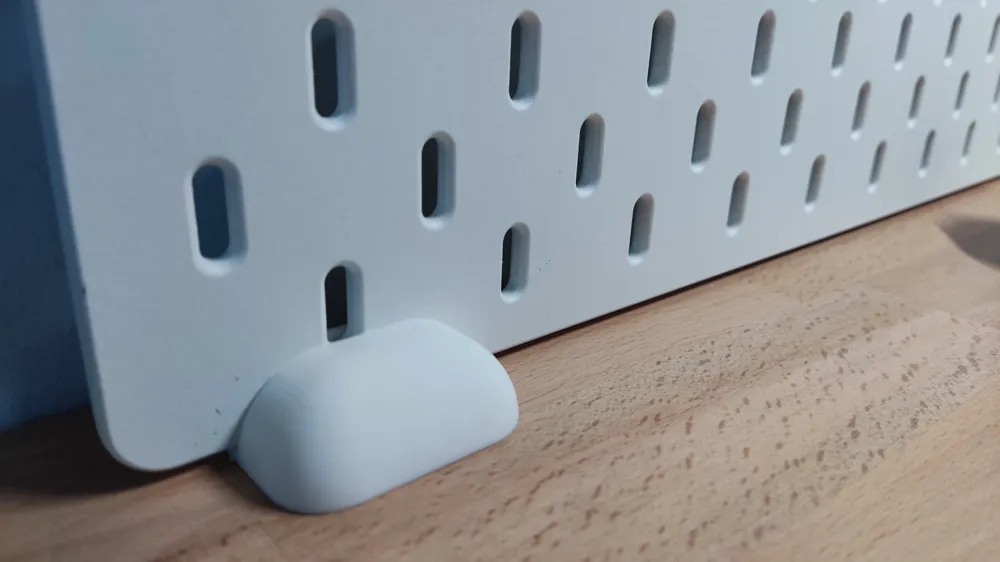

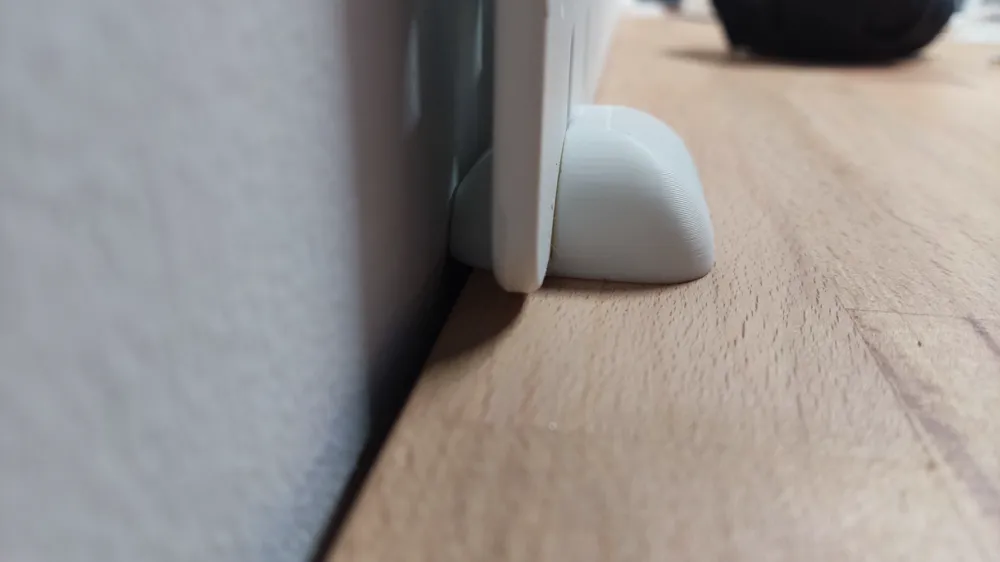

I have created a simple model that allows the SKADIS board to be placed as a wall protector, so that the wall does not get stained when objects are brought close to it, such as pens or other common things in an office.
Be careful, heavy things cannot be hung from it, it only accepts clamps safely

skadis

Comment & Rating (45)

@riceball

Print Profile

2x m2 - 0.2mm layer, 2 walls, 15% infill

okay but a bit loose. Edit: Fixed it with a bit of cork tape. Snug enough for me. The gap between the legs and the "A1 mini" Skadis board (also printed) was 0.3mm. My cork tape was 0.7mm.

(Edited)

The designer has replied

@sagatxxx

Thank you very much for your response and your evaluation. I have added 3 more versions (see raw files )by adjusting the space, you have one with -0.3, another with -0.5 and another with -0.7 mm. I hope it fits better now Happy new year!

(Edited)

@riceball

Replying to @sagatxxx :

Thanks! I'll try out the other one in the future. Just to put the information out for future reference, the 0.3mm was derived from measuring the Skadis board (by user: Vellanix) and the Legs using calipers, then subtracting.

(Edited)

@Ber3D

Print Profile

2x m2 - 0.2mm layer, 2 walls, 15% infill

According to me, needs to be higher

The designer has replied

@sagatxxx

thanks! If you want I would appreciate a boost! 🚀

@accuweld

Print Profile

2x m2 - 0.2mm layer, 2 walls, 15% infill

(Edited)

The designer has replied

@sagatxxx

And what's my fault for a low rating😭? The support is designed to only protect the wall and at most hold some paper, not to hang anything on it, it is explained in the description 😫

@accuweld

Replying to @sagatxxx :

my bad, they are nice I’m still using them

(Edited)

@sagatxxx

Replying to @accuweld :

❤️

@wickedwitch

I am new and wa t to print these but I have an A1 mini - any chance to get the file to print on the mini?

The designer has replied

@sagatxxx

no problem, download the printing profile and change the printer model in bambustudio. The other settings work perfectly for you.

@didldiprint

Print Profile

2x 0.2mm layer, 2 walls, 15% infill

bit loose but with some glue it is fine

@bock_ch

Print Profile

4x m2 - 0.2mm layer, 2 walls, 15% infill

sie könnten noch etwas höher sein würde besseren Halt geben habe 8stck bei 2x56x56 Platten in Benutzung.

@40k_contrast

Print Profile

2x 0.2mm layer, 2 walls, 15% infill

nice

@tuenn

Print Profile

2x m2 - 0.2mm layer, 2 walls, 15% infill

Danke

@snoba77

Print Profile

2x m2 - 0.2mm layer, 2 walls, 15% infill

a bit loose fitting to the skadis. this is useful if you’re leaning the top board against the wall and you don’t want the bottom of the board to slide out but by itself it can’t hold a larger/heavier board upright 90 degrees
