Description

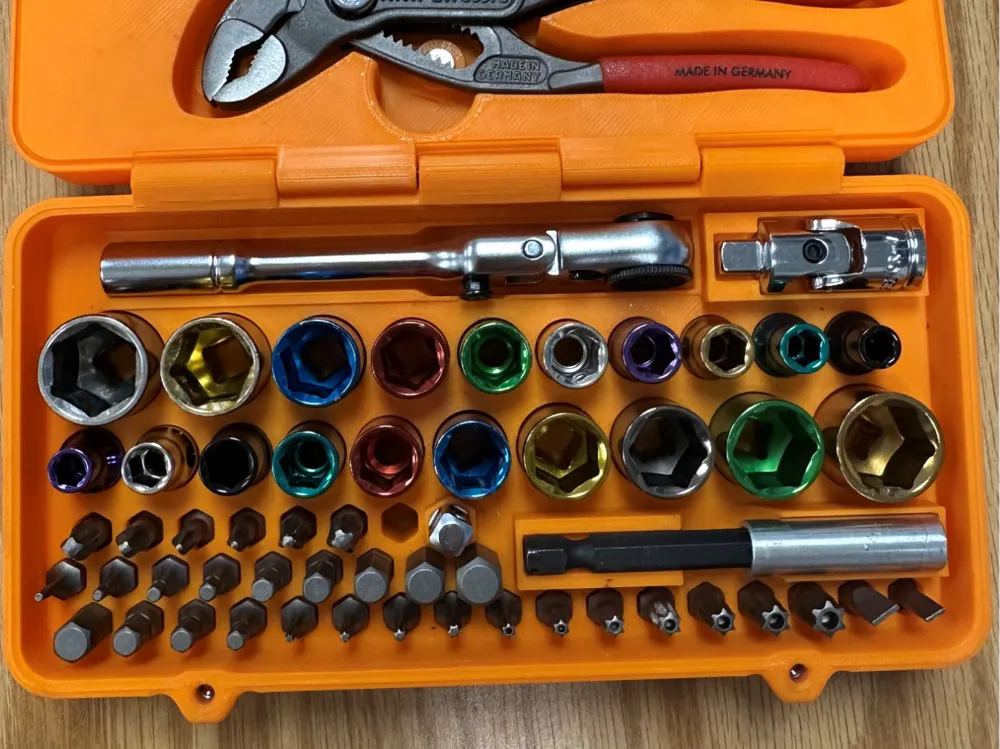

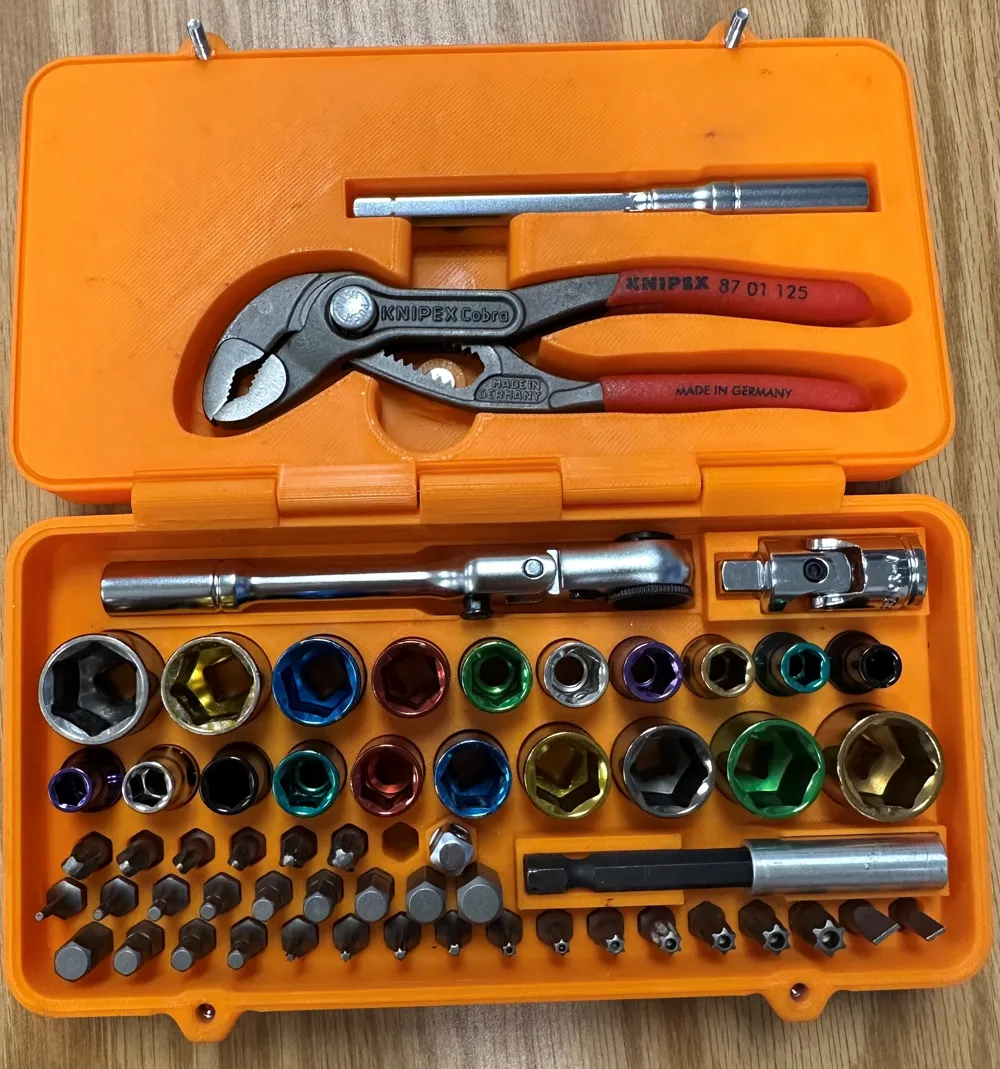

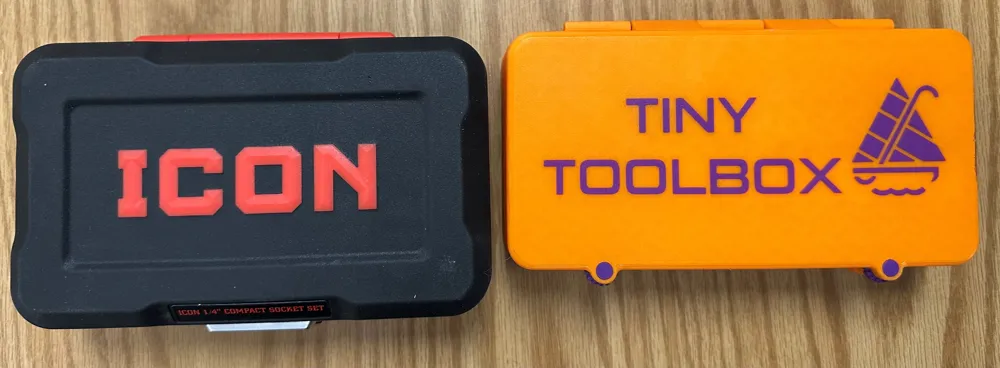

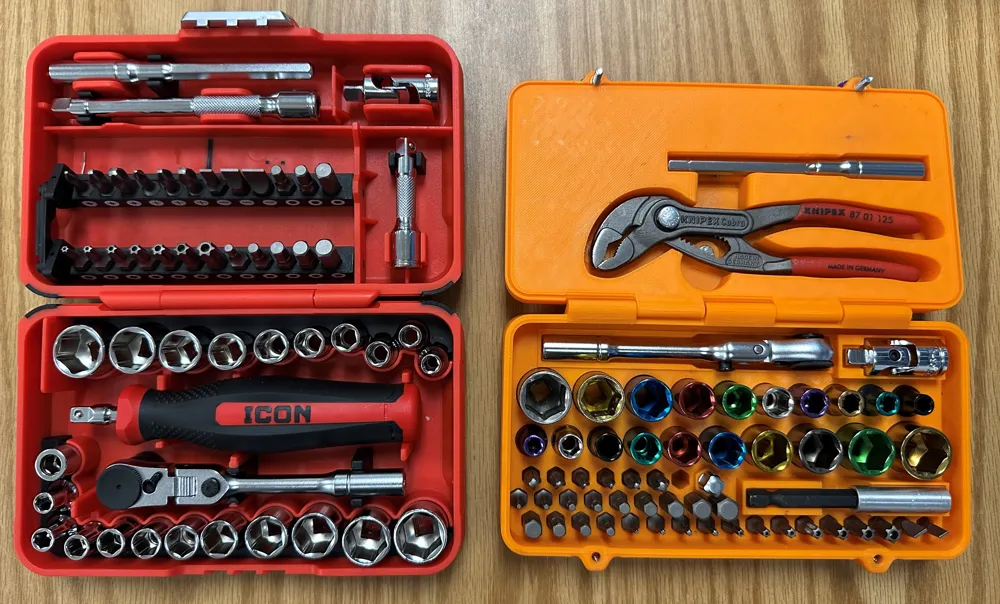

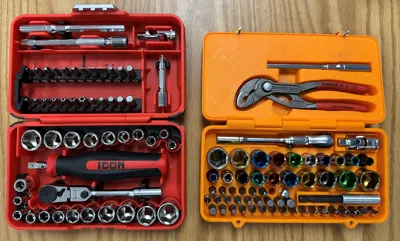

This is my original version of the Icon Meme Toolbox that holds the Meme Tool contents along with set of metric and standard sockets, socket swivel, 3" extension and Knipex pliers. The top and bottom need minimal supports around the screw latch area. I printed this with PLA+ at 15% infill and have not had any issues with it. The latch is intended to use two M3 Hex Cap Screws that are 16mm long. The lid uses 5 magnets that are 6mm round by 2mm tall. The Meme Tool (for those not aware) is the ICON Locking Flex-Head Ratchet and Bit Set, 35-Piece. The sockets (both metric and standard) are Pittsburgh brand bought at Harbor Freight.  The swivel was bought in a set of three sizes from Harbor Freight. The 3" extension was also purchased at Harbor Freight. The Knipex are the 4.92" Cobra model purchased from Amazon. All in this box has about $110 in tools and fits in roughly the same space as the larger (and I think less capable) ICON 1/4 in. Drive Compact Socket and Bit Set, 52-Piece. That is what is pictured in the comparison.
