Hand Drill
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
3.1 h
2 plates
Open in Bambu Studio
Boost
277
742
20
7
157
97
Released
Description
Content has been automatically translated.

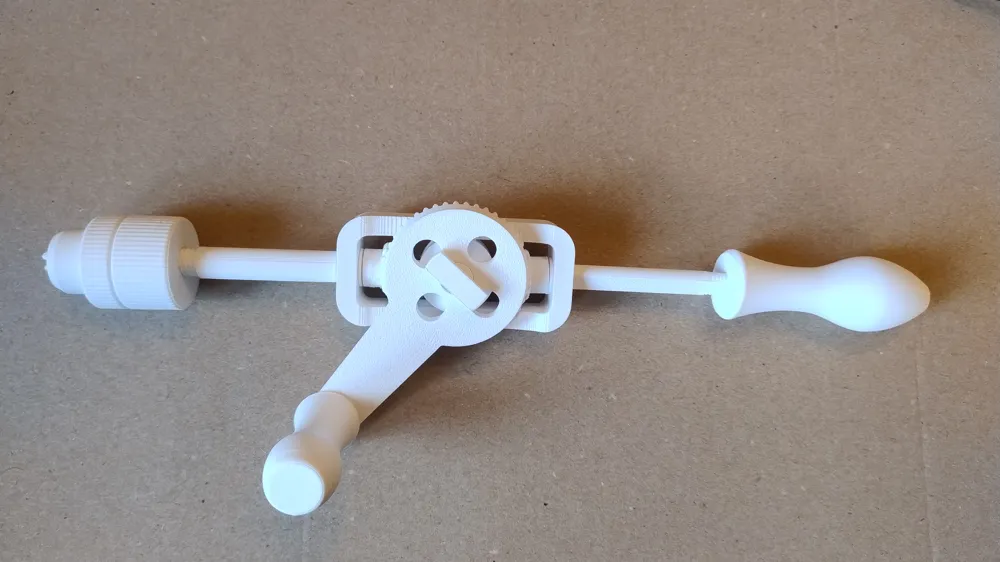

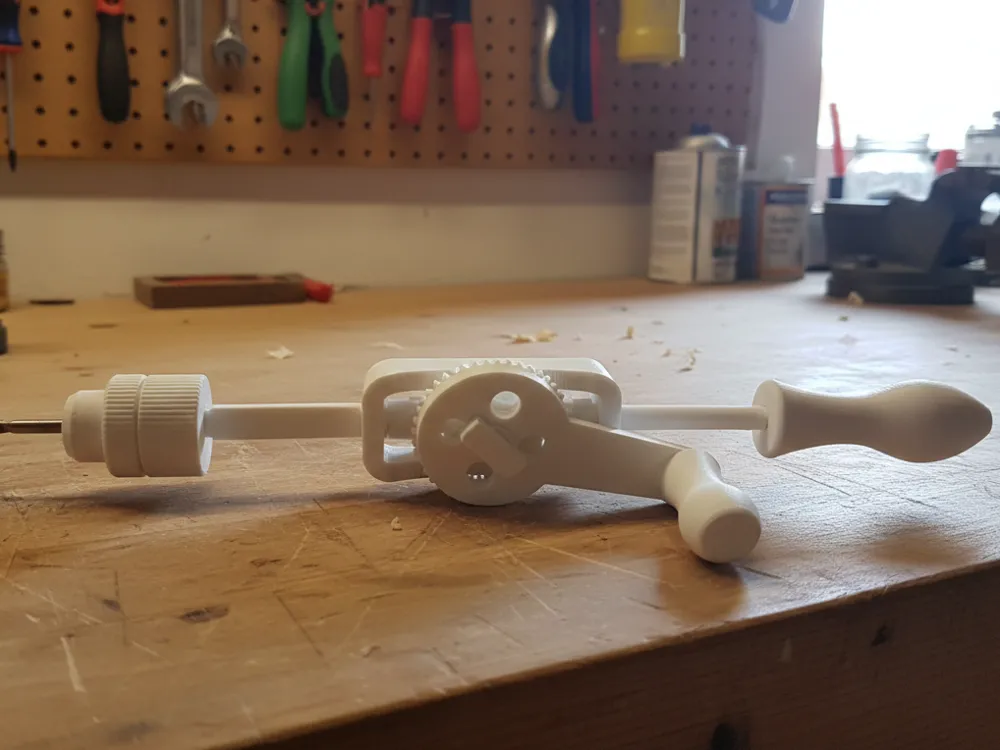

Hand drill with 2 pinions, the rotation ratio is 1:3
The chuck was modified from the model by MK_Design
Assembly:

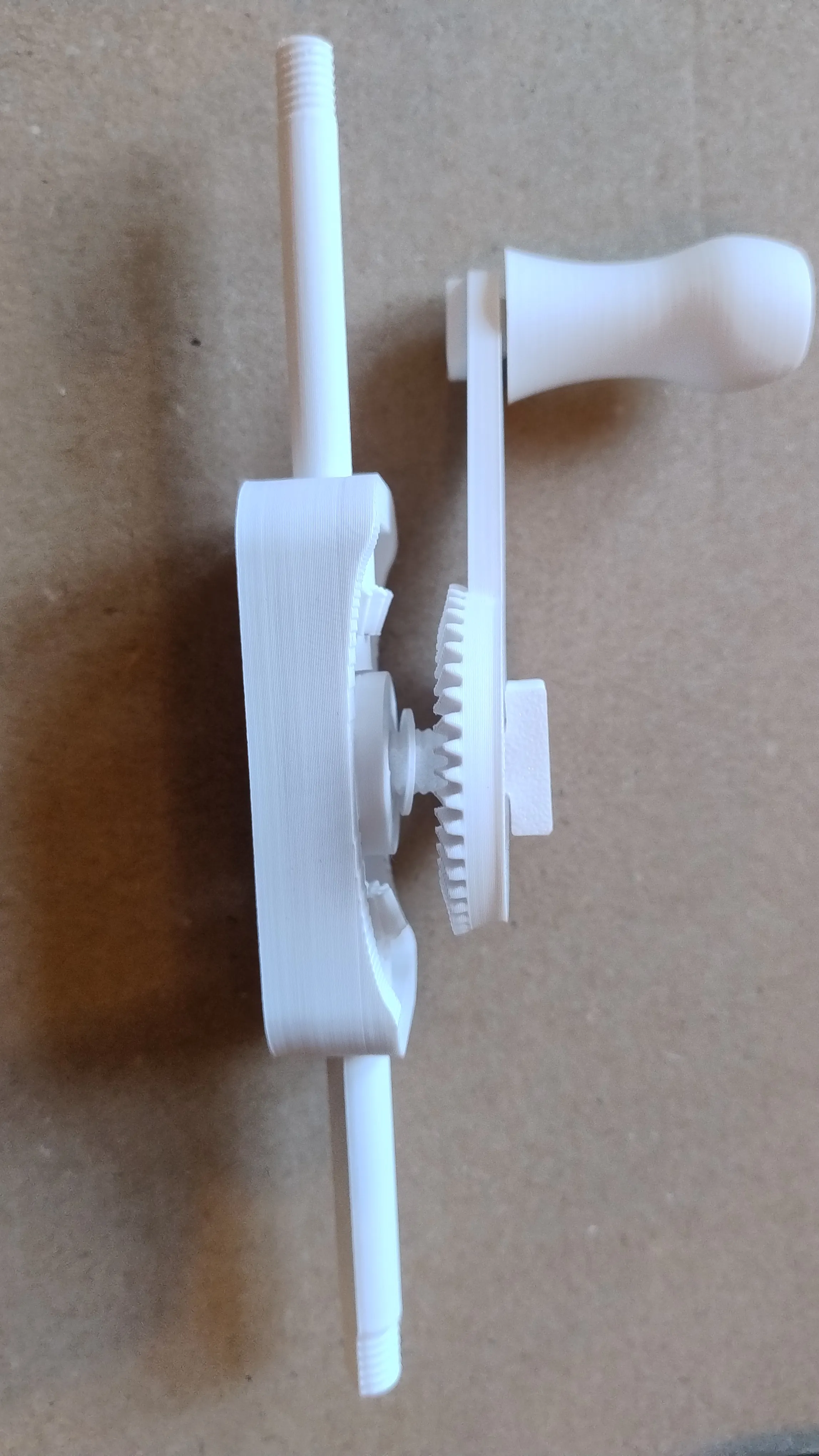

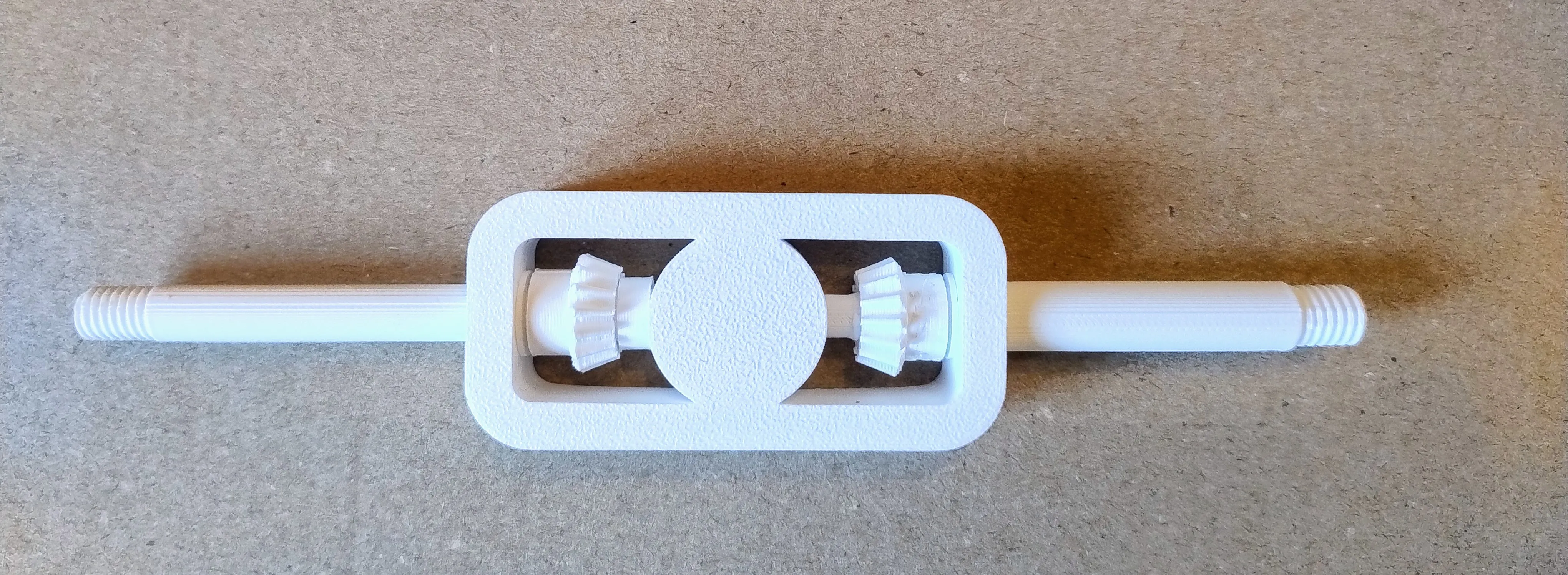

Insert the pinions and washers into the sides of the frame; one pinion is threaded and screws onto the axle, the second axle screws into the frame
Screw the pin onto the frame and under the gear insert a large washer
Screw on the handles and the chuck
For chuck assembly follow the link:
Hand Drill Chuck 1mm to 7mm or 1mm to 10mm - Free 3D Print Model - MakerWorld
Boost Me (for free)
I hope you liked the model. Thanks for the boost!
