Emberleaf Board Game Insert

Hello, this is my storage solution for a board game called EMBERLEAF!

Before I get into the details, this was designed for myself and how I play/set up the game. Basically what I'm saying is please read the full description before you go ahead and print it for yourself!

All items were printed using Bambu PLA Basic filament excluding the logo box which used PLA Wood.

Colours can be changed with the fill tool in the slicer for player boxes.

!!!!! PLEASE NOTE THIS WAS DESIGNED FOR THE RETAIL VERSION OF THE GAME !!!!!

Extras that I have:

• Trophies & Bonuses Expansion Pack (more info below)
• Hero Pack 1
• Hero Pack 2
• Hero Pack 3
• Custom Tokens (more info below)

Things I don't have:

• Bag’o’Upgrades
• Bag’o’Banners
• Bag’o’Colours

• Neoprene Mats

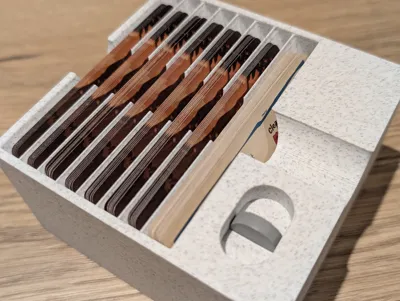

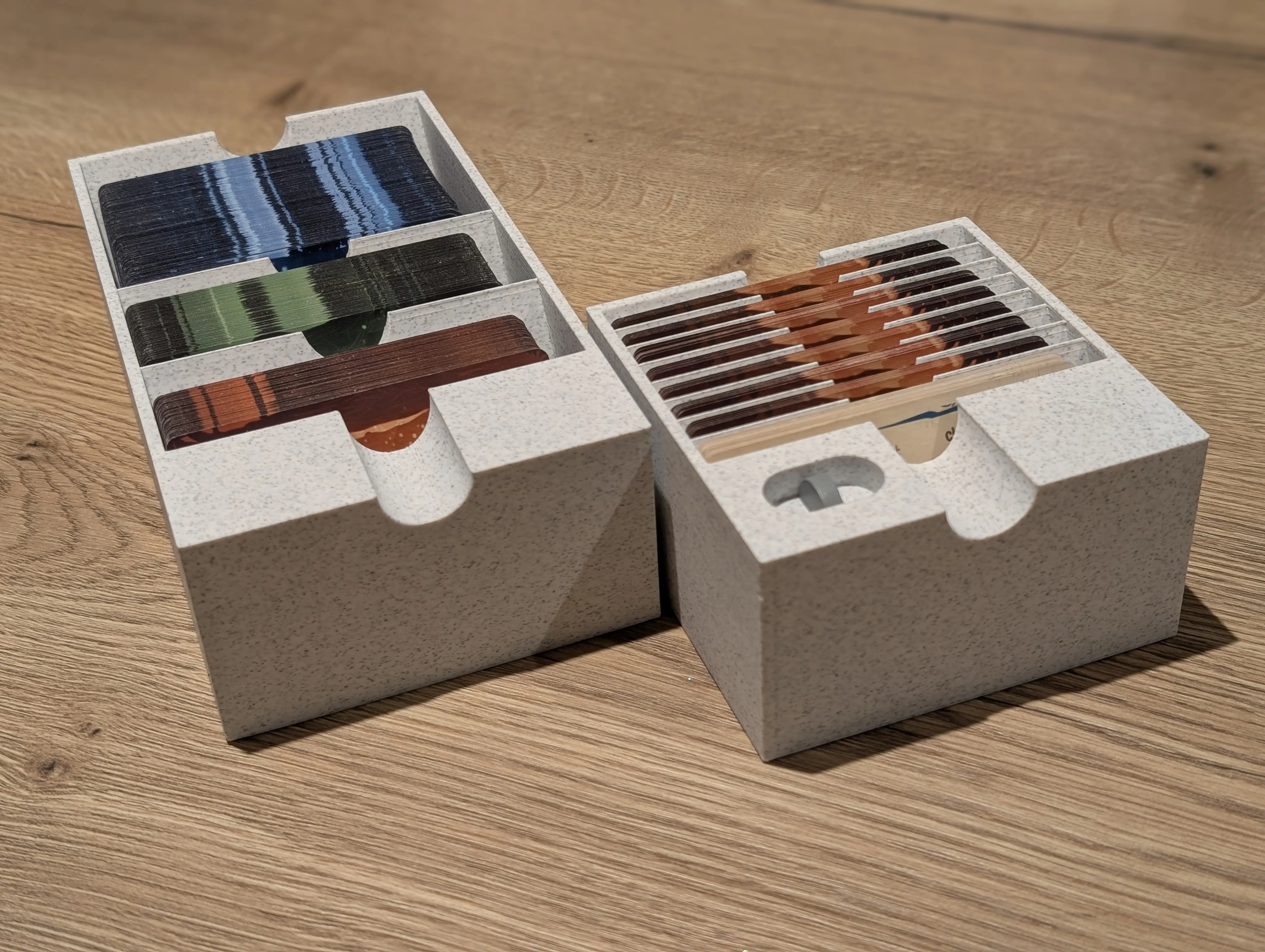

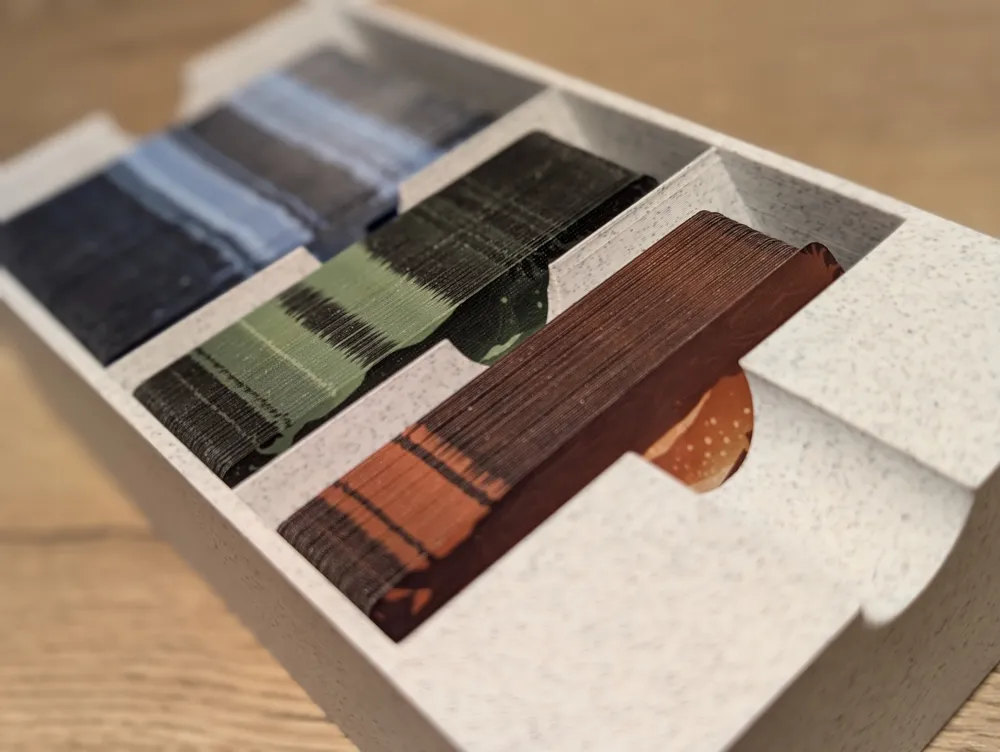

(above) The card holders were designed for cards in sleeves (which I have tested using 67x92mm sleeves

and can confirm they will fit but please note this may cause slight lid lift)

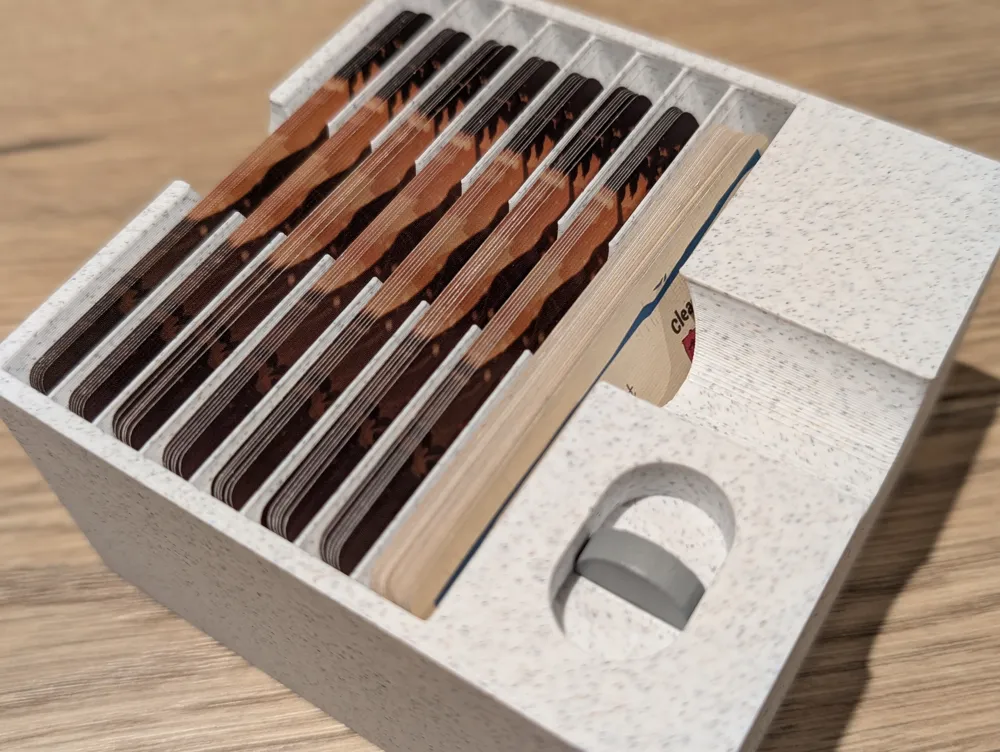

There are slots for Favour cards, Sister cards and Hero cards. On the smaller block there is room for

each Starter Deck (A-G) plus the Info/Help cards. There is also a place for the Grey Tracker Token.

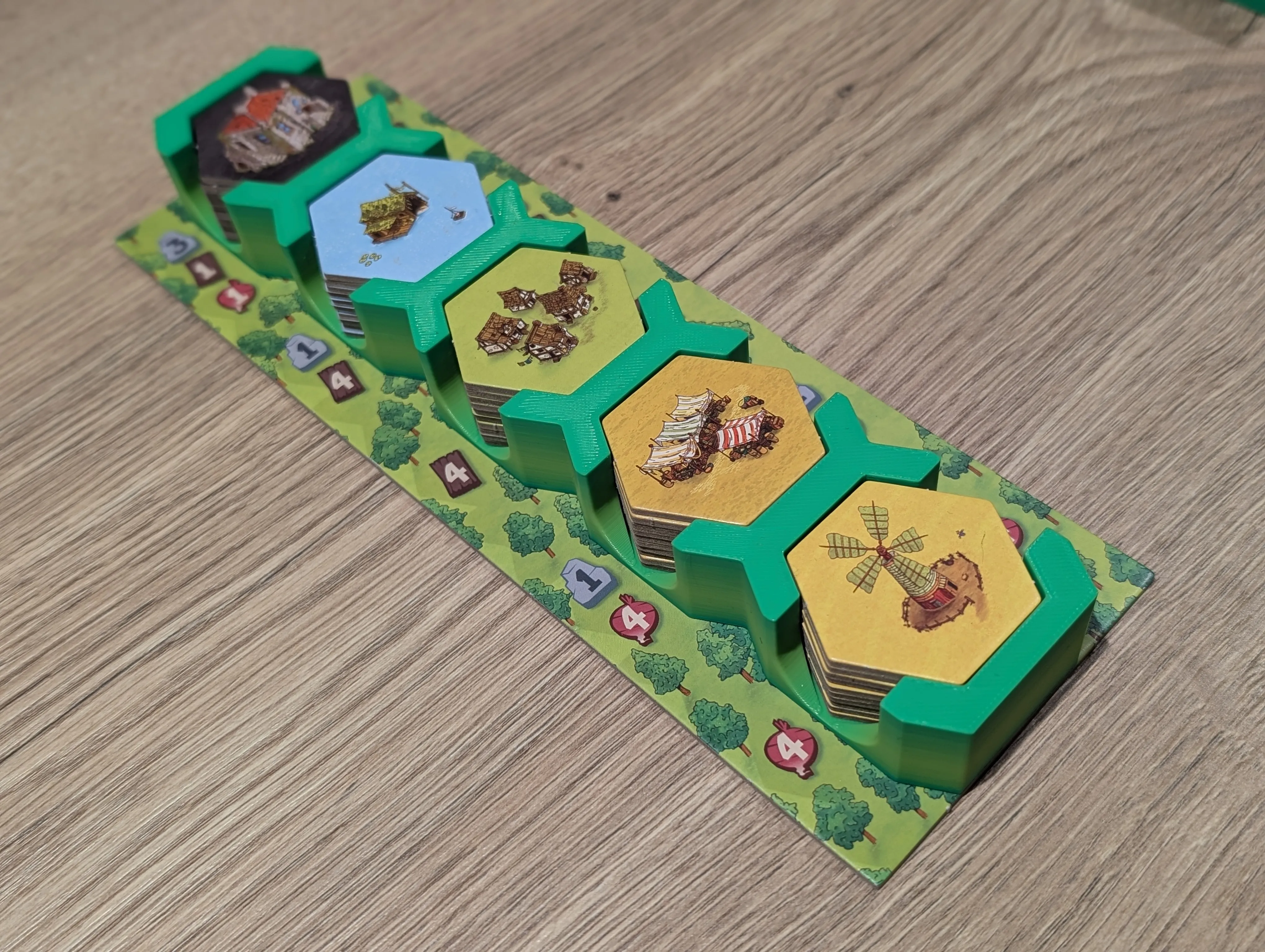

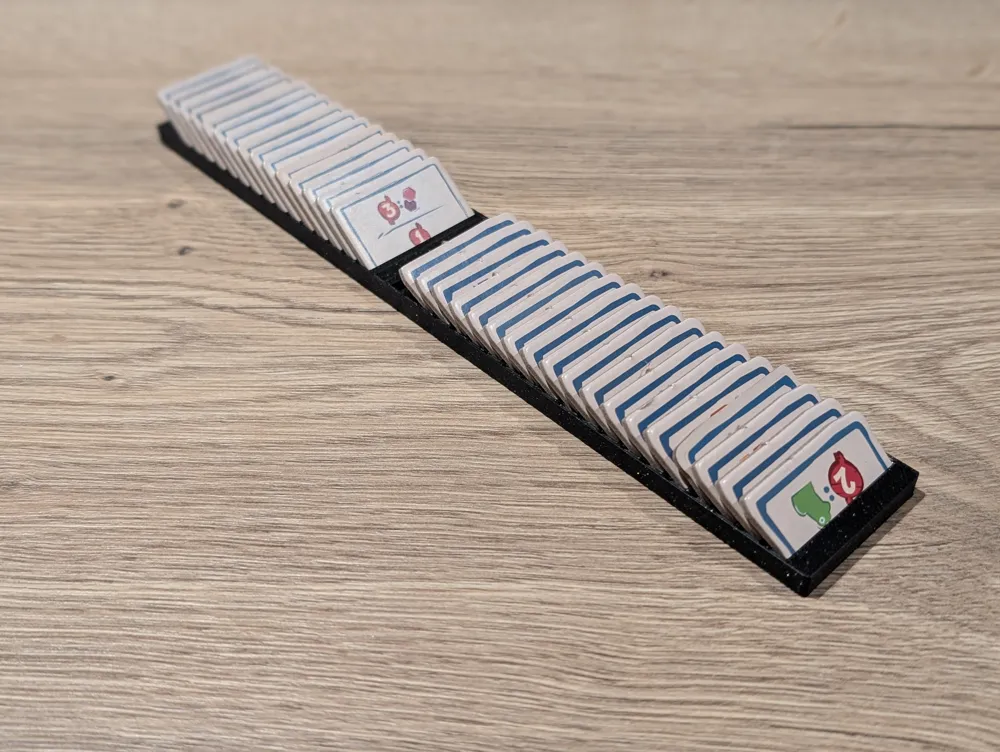

(above) Self explained really!

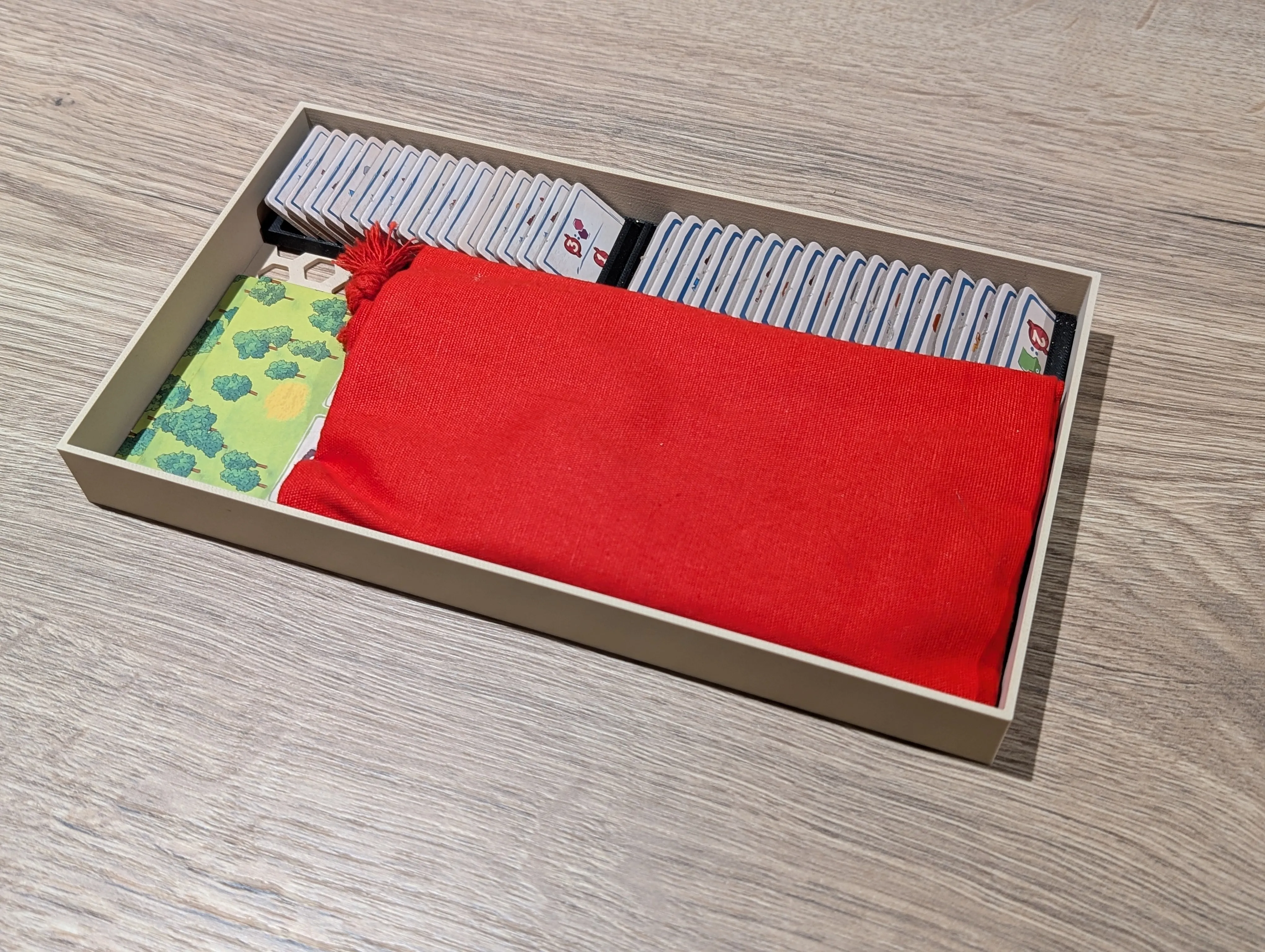

(above) This is where I keep:

Building and Tracker Boards, Dangerous Areas, Trophies and the Bonuses.

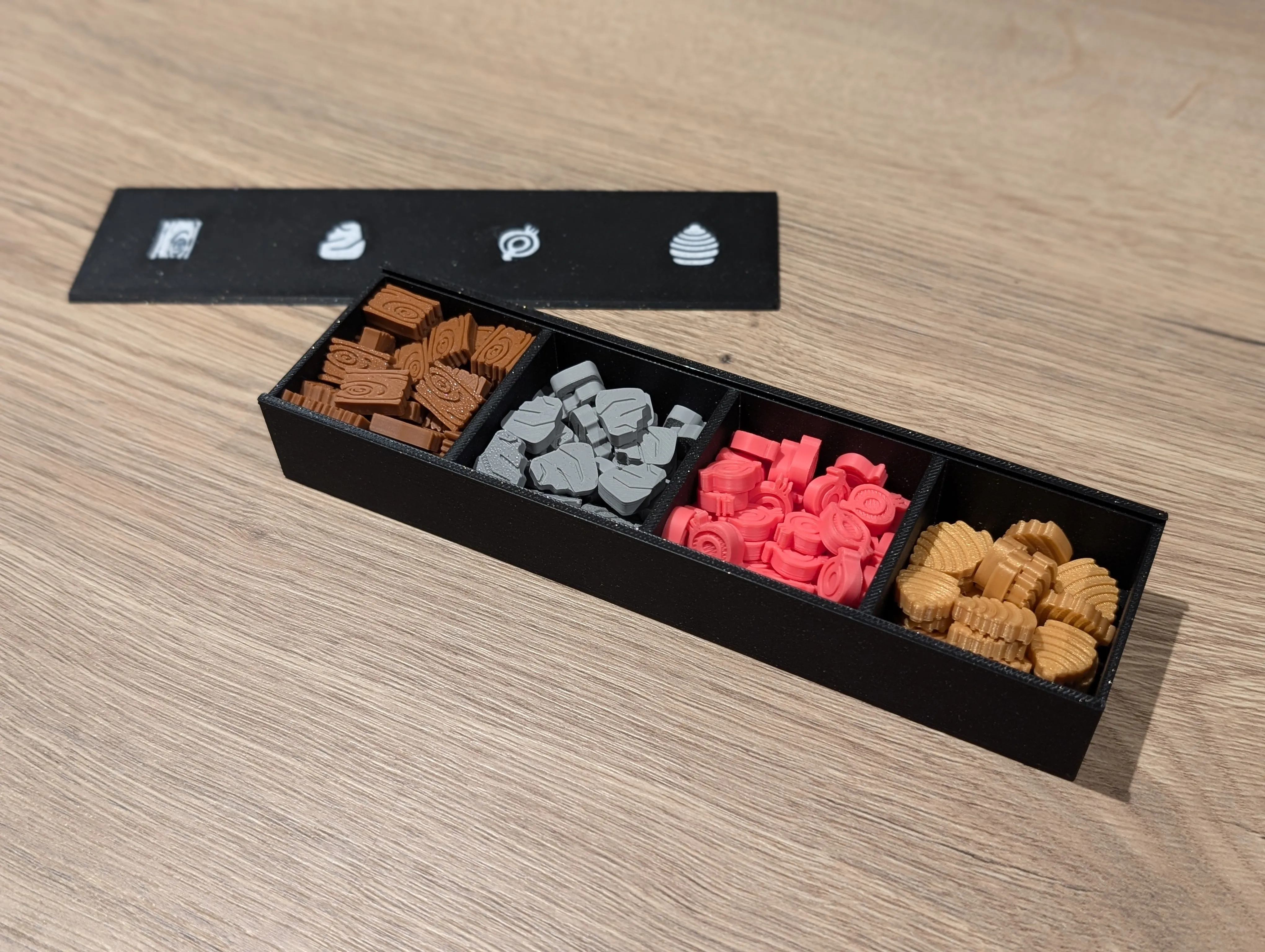

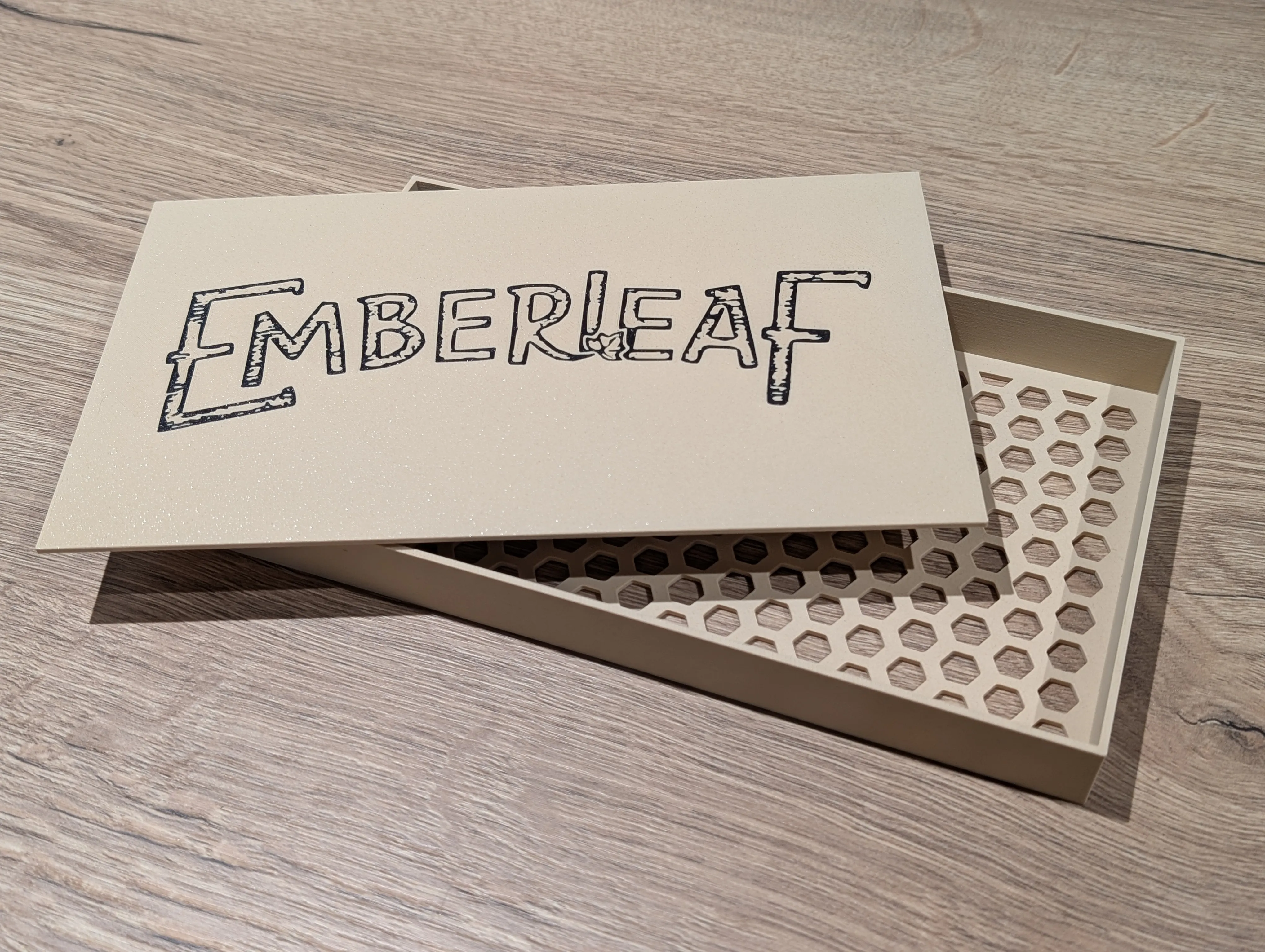

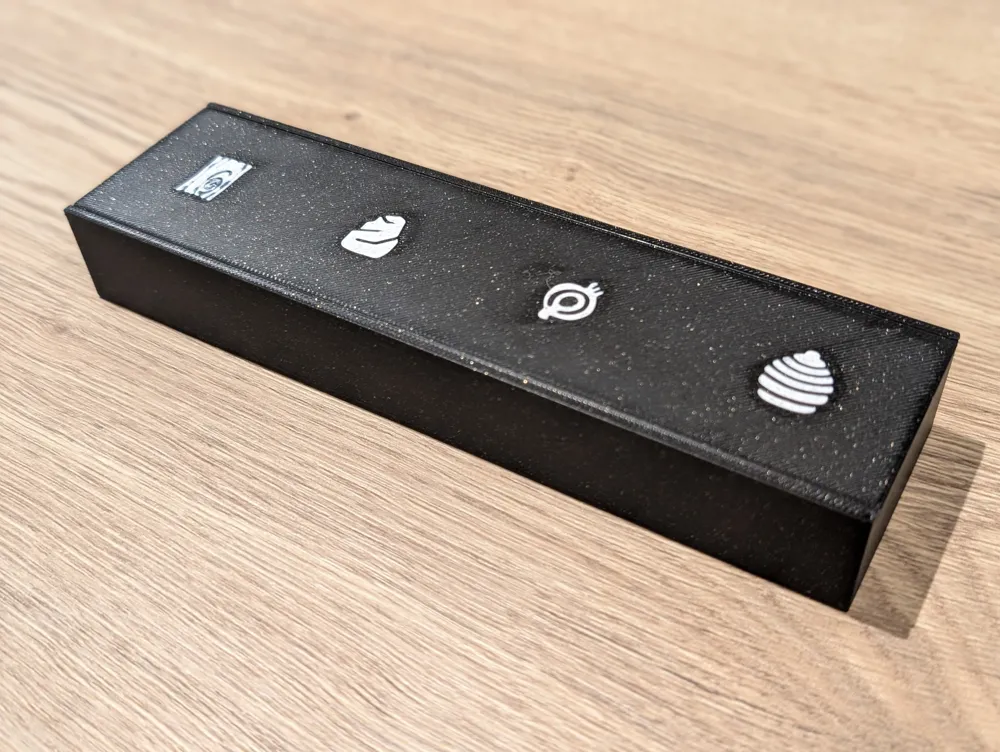

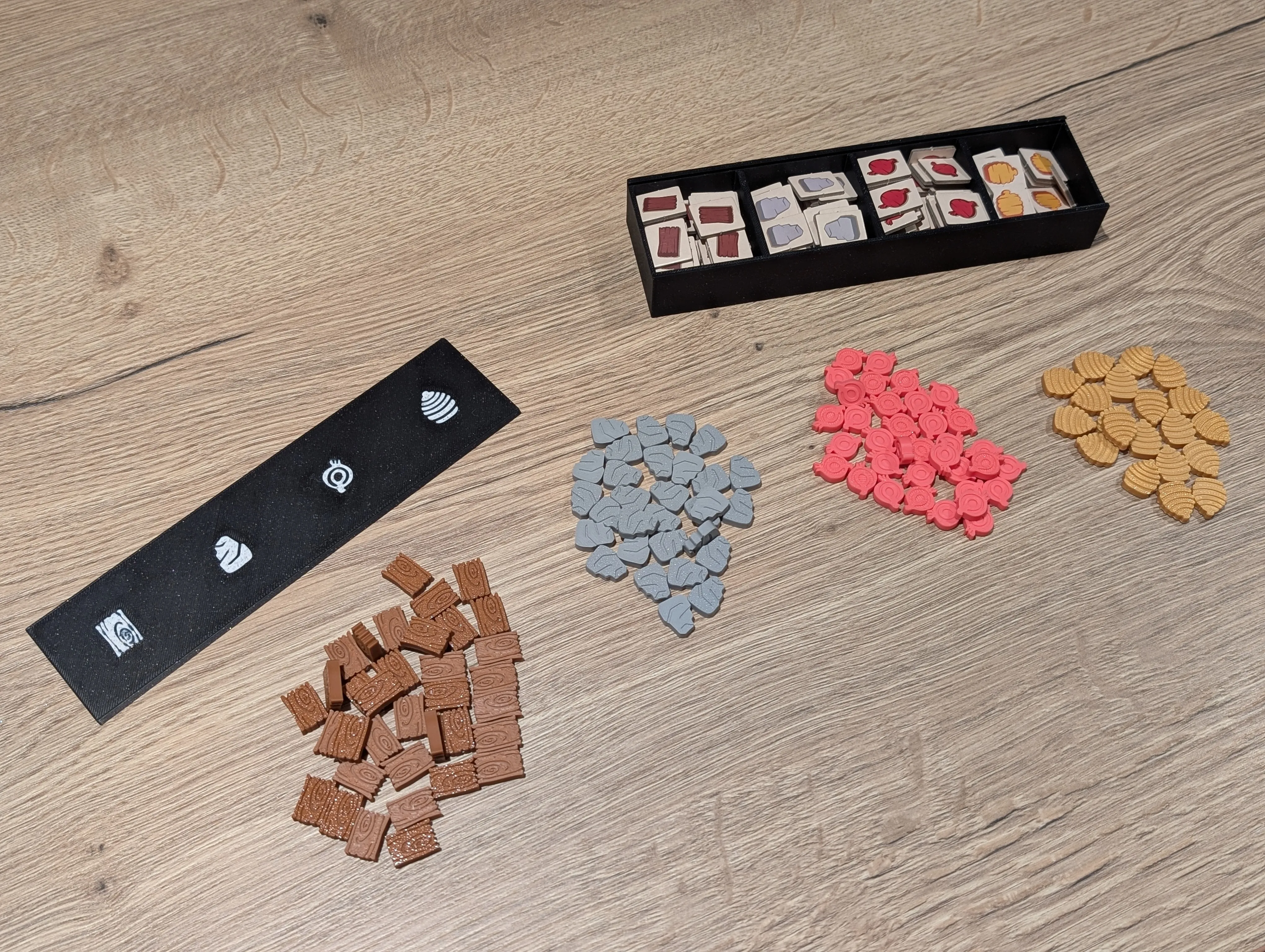

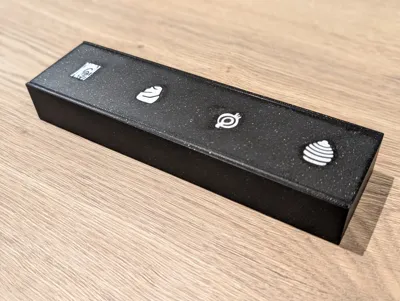

(above) Resource storage with custom tokens which were created by BreadBaron and can be found here.

Side note the original card resources have been tested and will also fit.

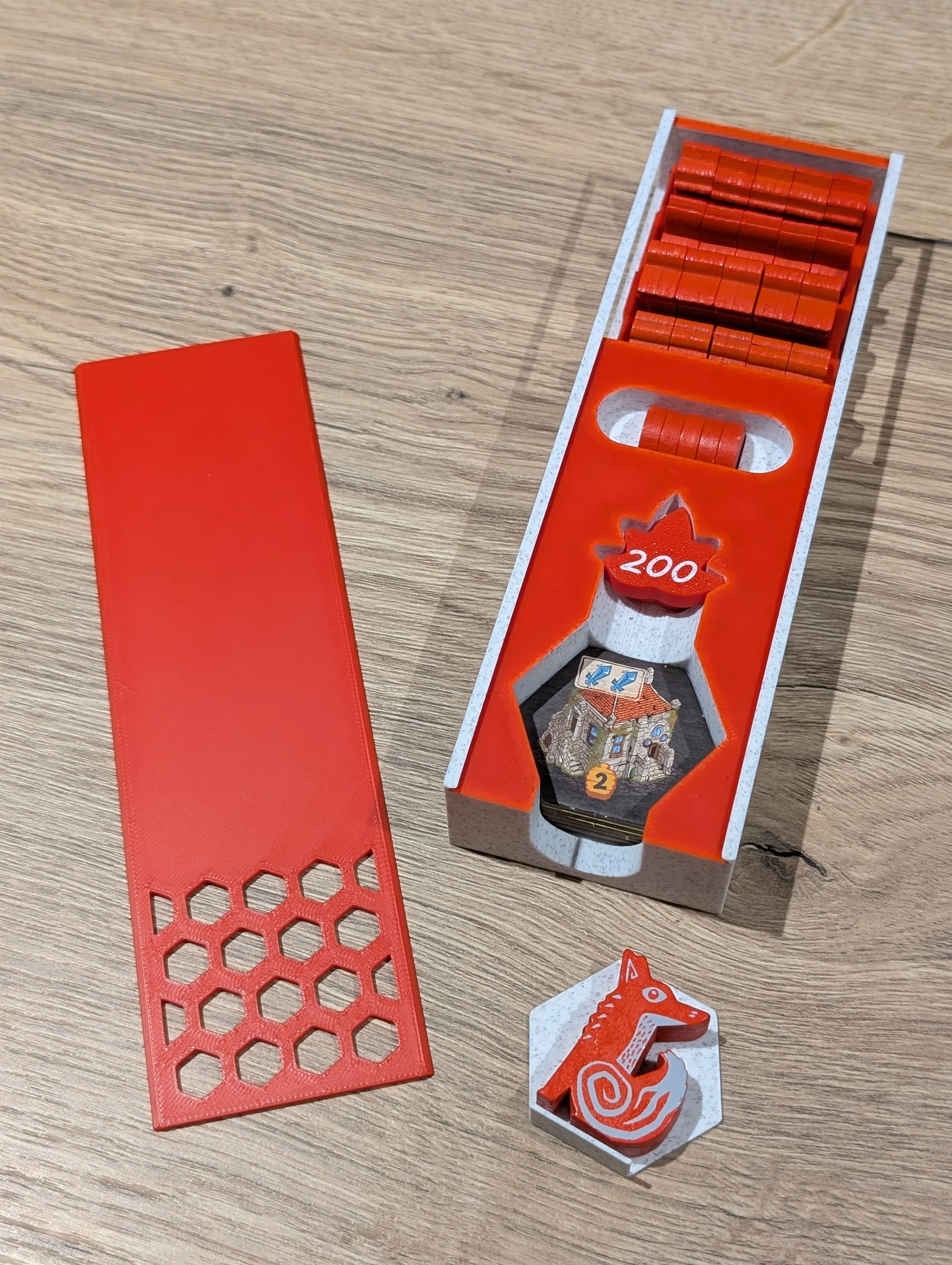

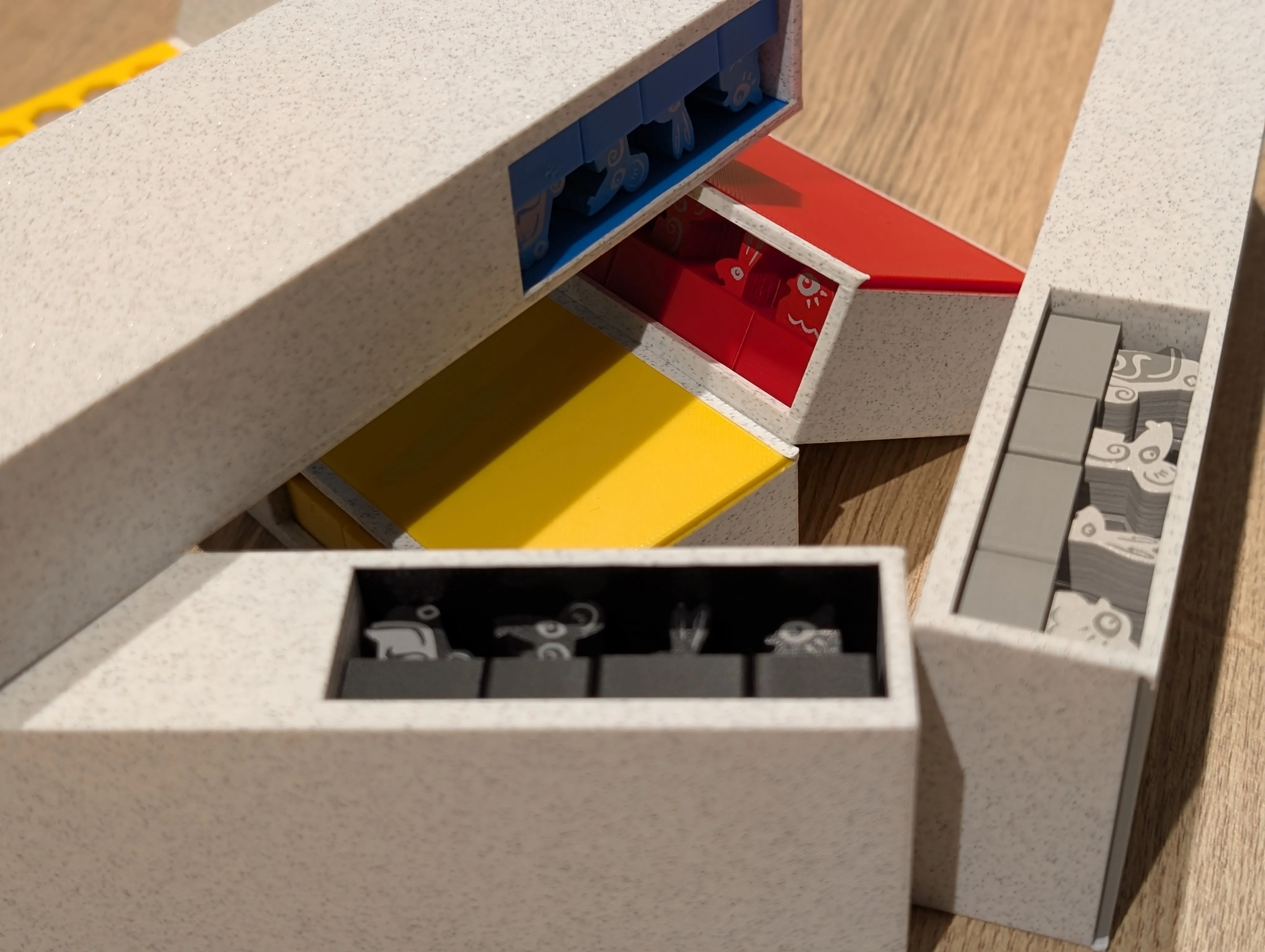

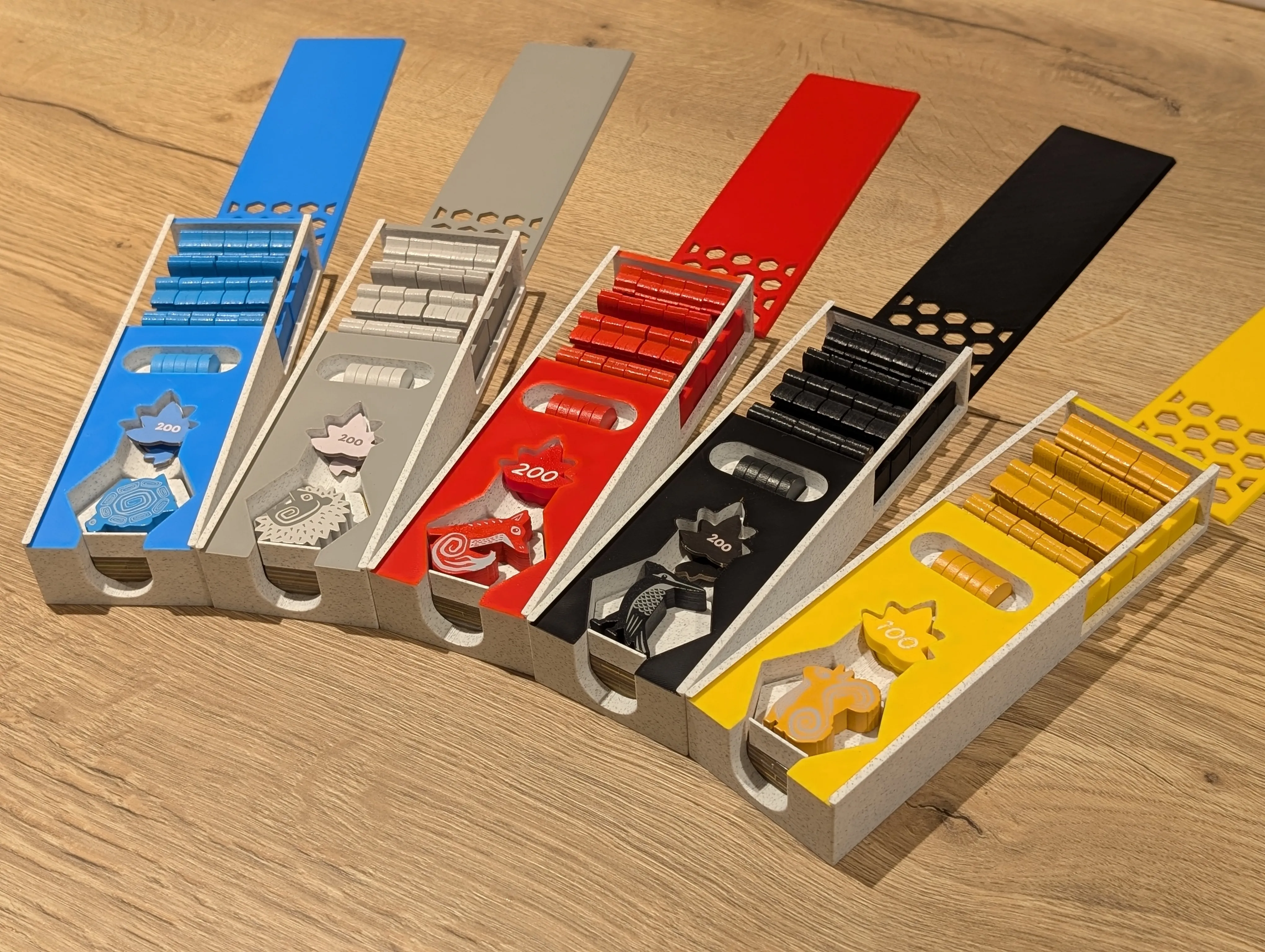

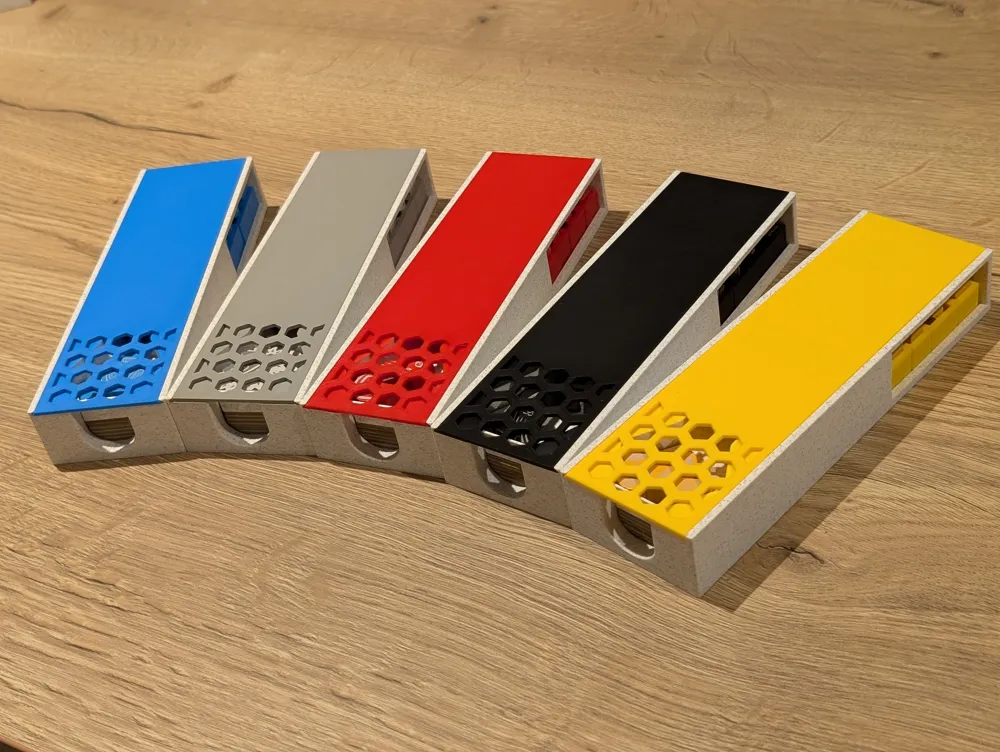

(above) Each player has their own storage box which houses:

20 x Villager Animals

1 x Hero Figure

5 x Favour Discs

5 x Starter Building Tiles

2 x Scoring Leaves (paper version) alternatively you can use ones created by BreadBaron and can be found here.

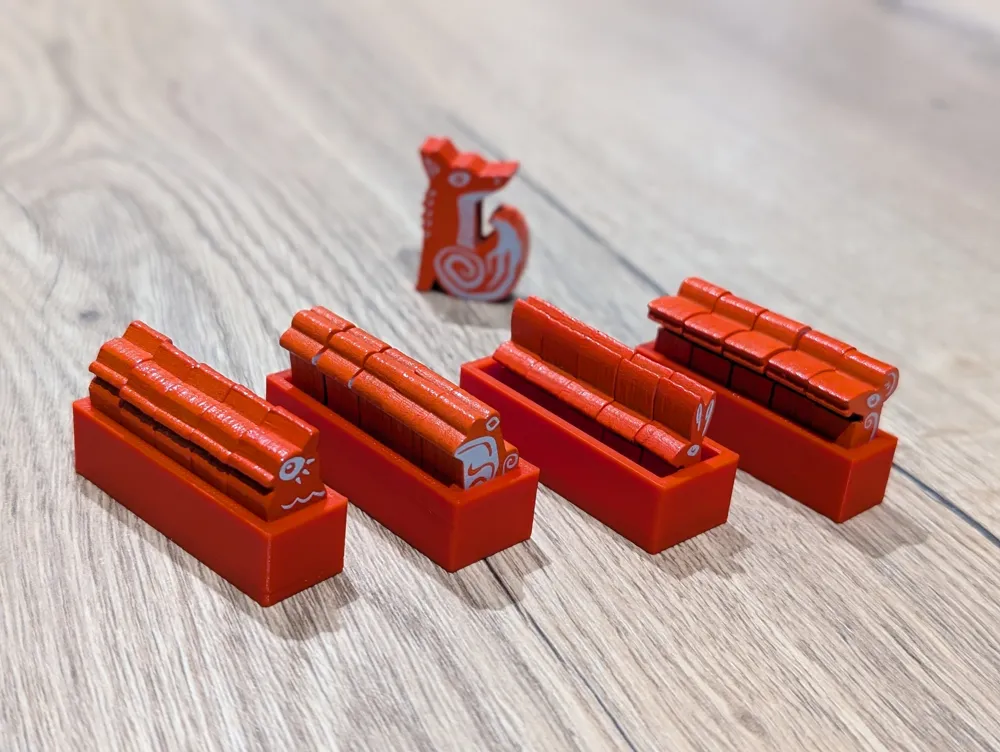

(above) The 4 different Villager Animals have little trays to set them down onto the fellowship board for quicker game start.

When packing the animals back into the box it can be a bit fiddly but after a few attempts they are not too bad.

I wanted them to not be able to fall out when moving the box around which is why they have been designed this way.

(above) Each Hero Figure has a little shelf that sits on top of the building tiles,

this is so they cannot slide out of the hole at the bottom of the storage box.

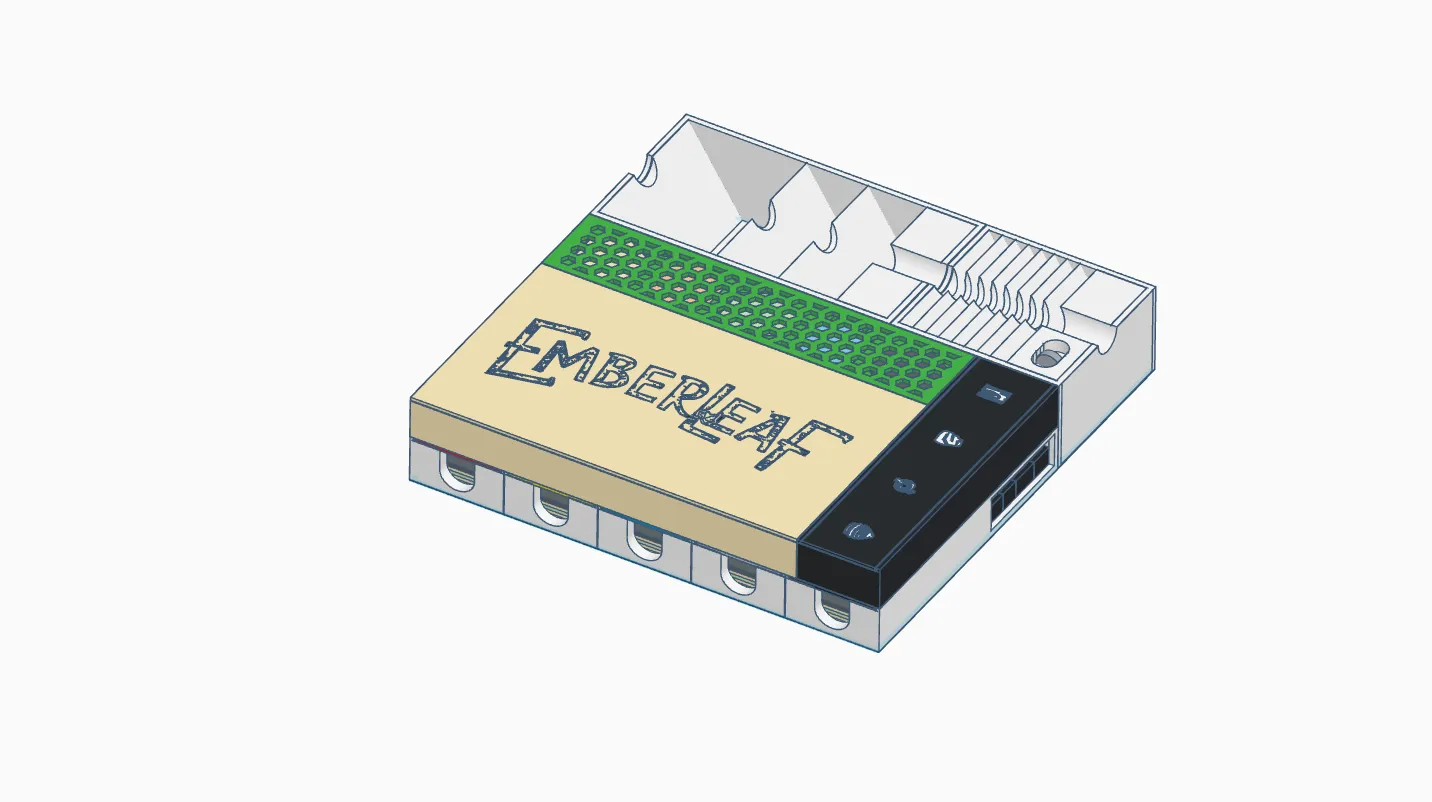

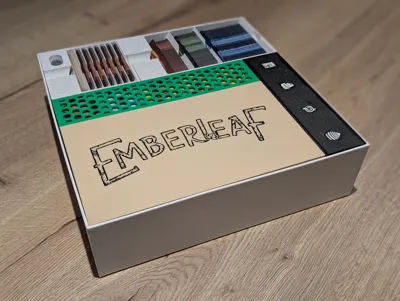

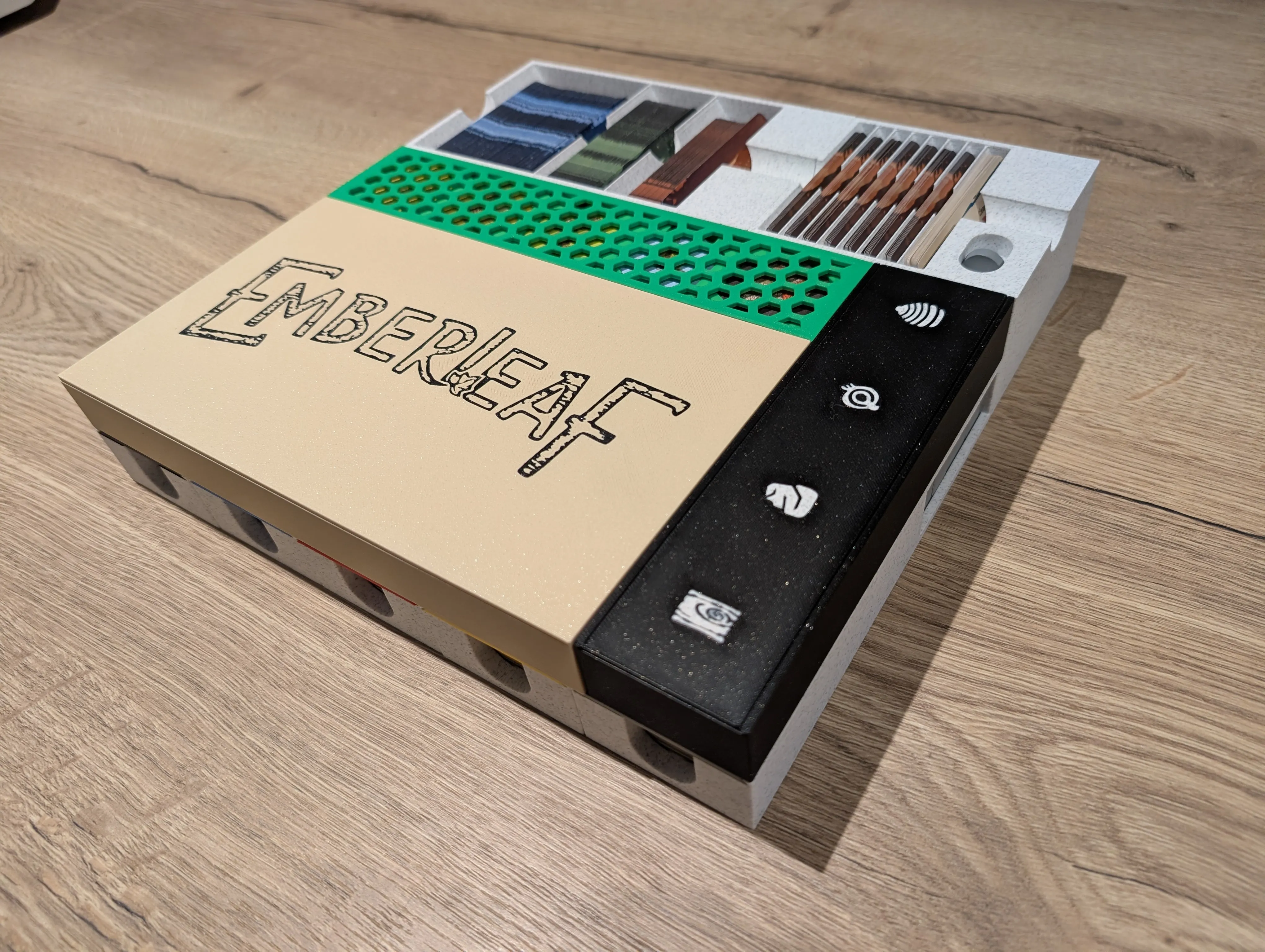

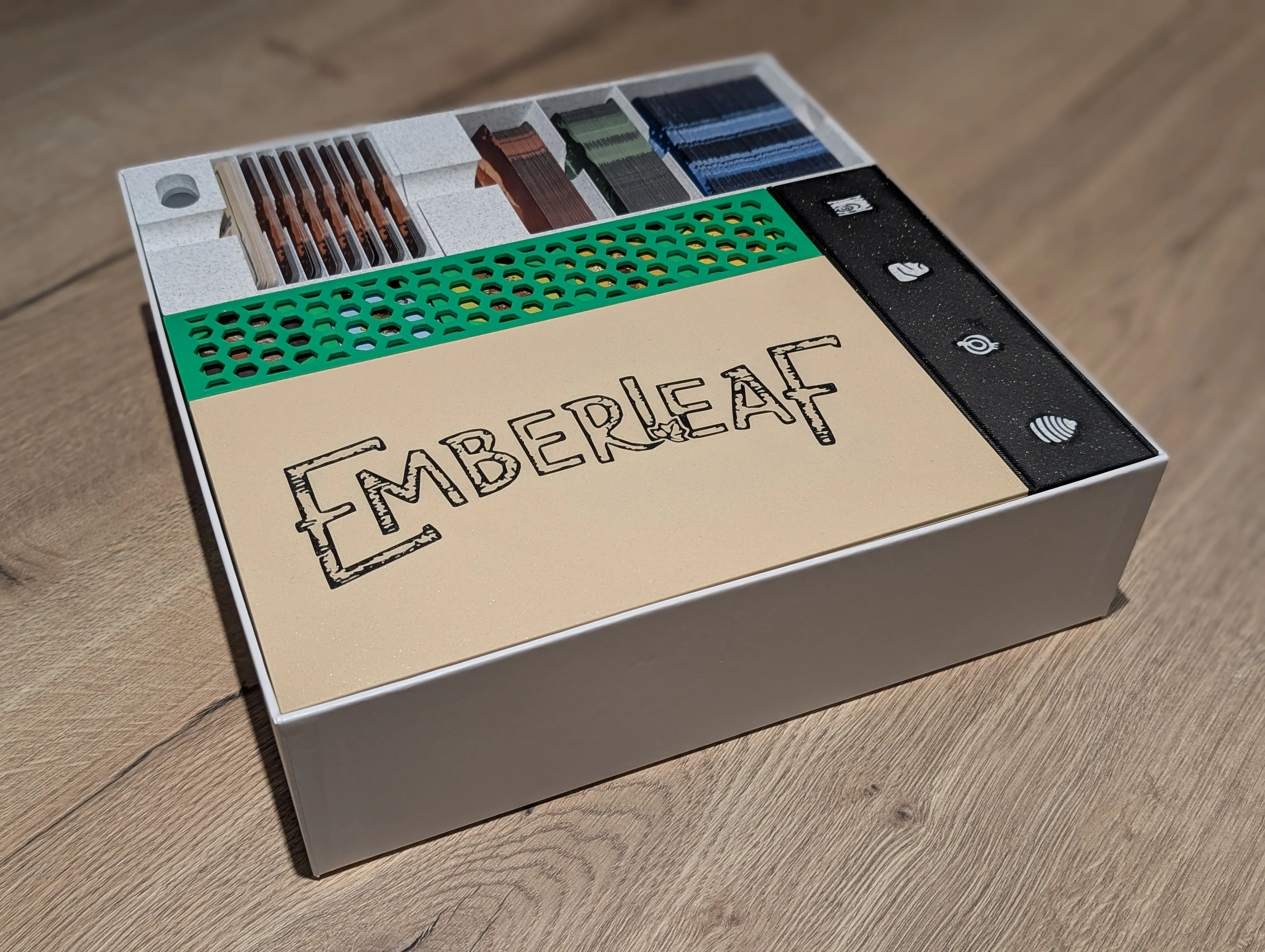

(above) This is the intended layout within the box, below this will be the game board, 5 fellowship boards and the instruction books.

Final note - with the tight tolerances that I had to work with there is a slight 1-2mm lid lift..

This can remedied by forgetting about it because its not the end of the world ;)
