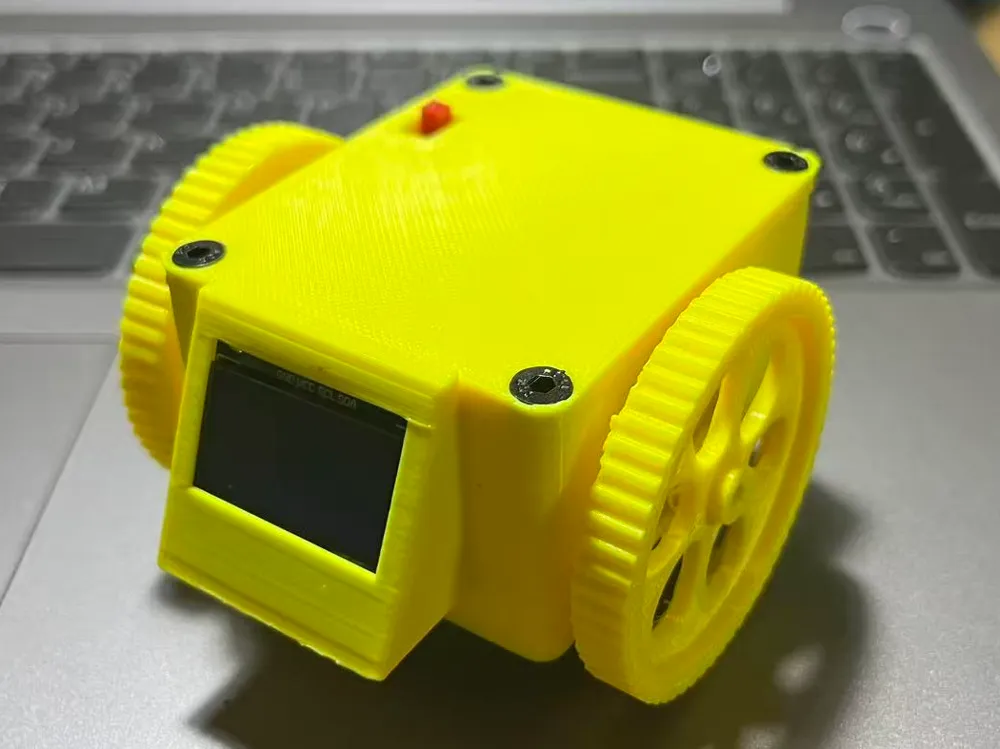

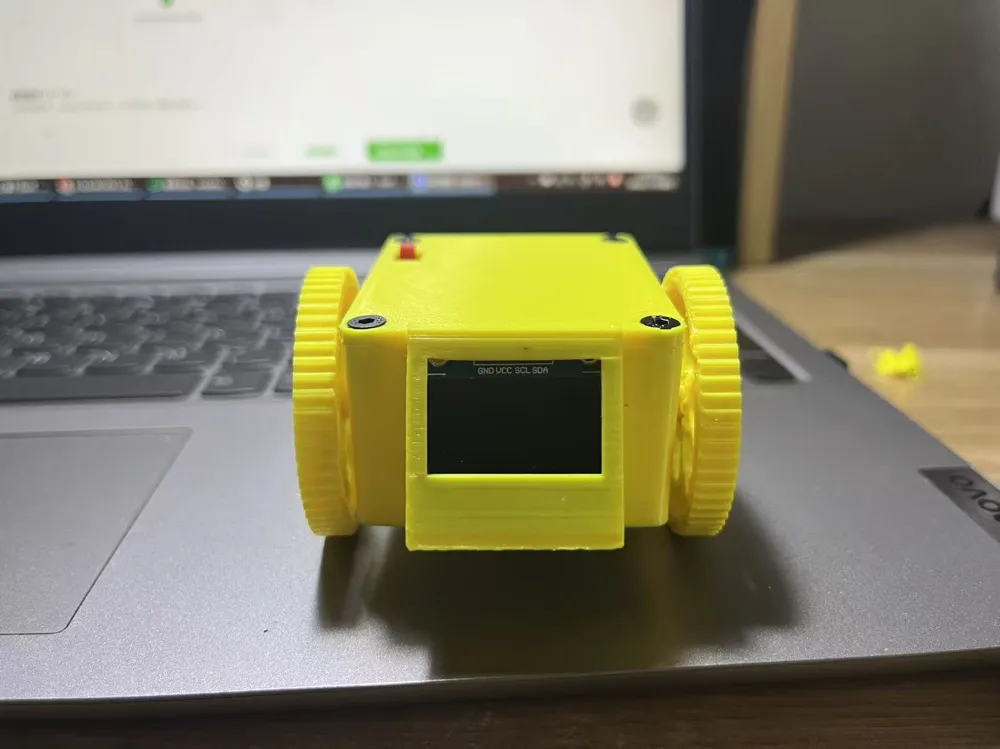

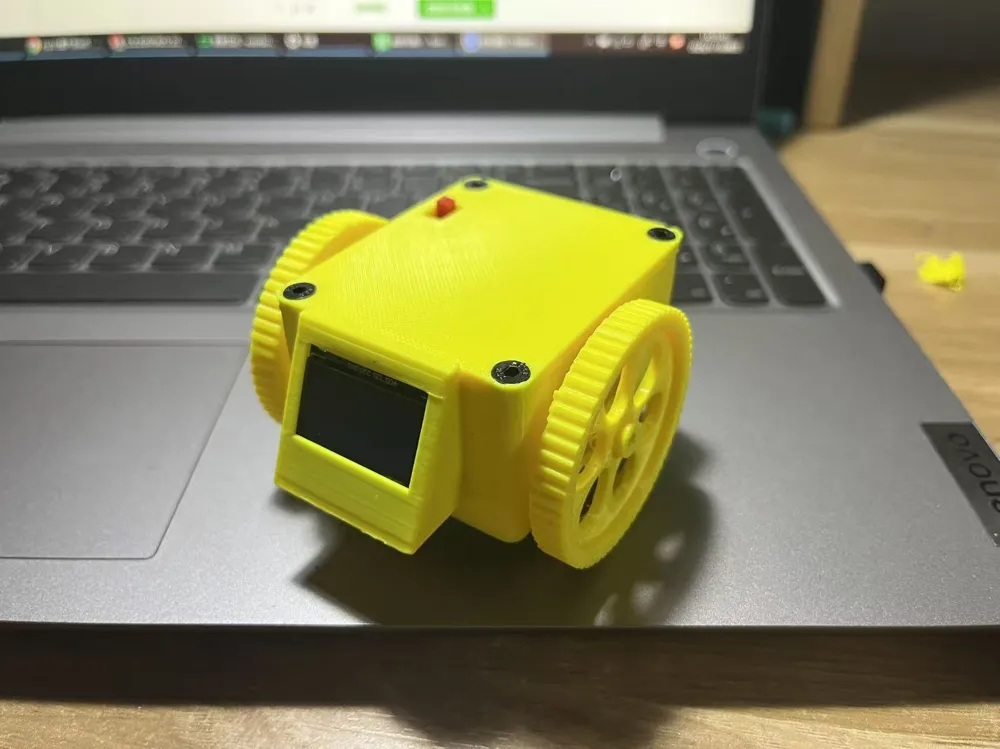

Desktop Robot
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.7 h
1 plate
Open in Bambu Studio
Boost
14
31
0
0
26
5
Released
Description
Content has been automatically translated.
The program and electrical component configuration of the desktop robot is derived from https://bcntl9uxy905.feishu.cn/wiki/GimEwTsWfiFViWkpv8ccnC3knah, Author: Qianqiu Wobu Jian
Based on the ESP32-C3 Super Mini development board

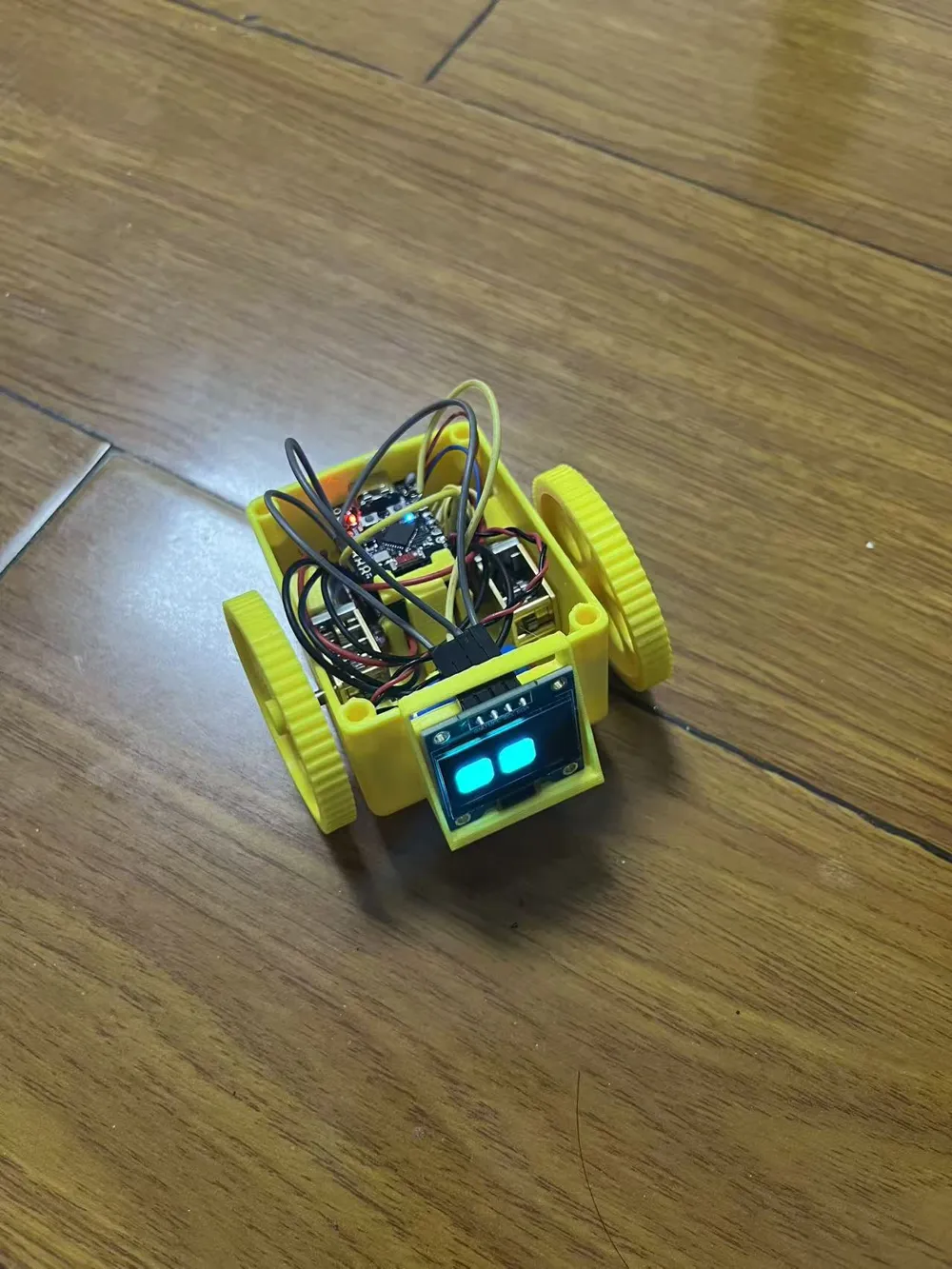

The circuit has been slightly modified, retaining only one Type-C port. Apart from the main control board, the other internal circuit boards are not fixed. See the Step file for details

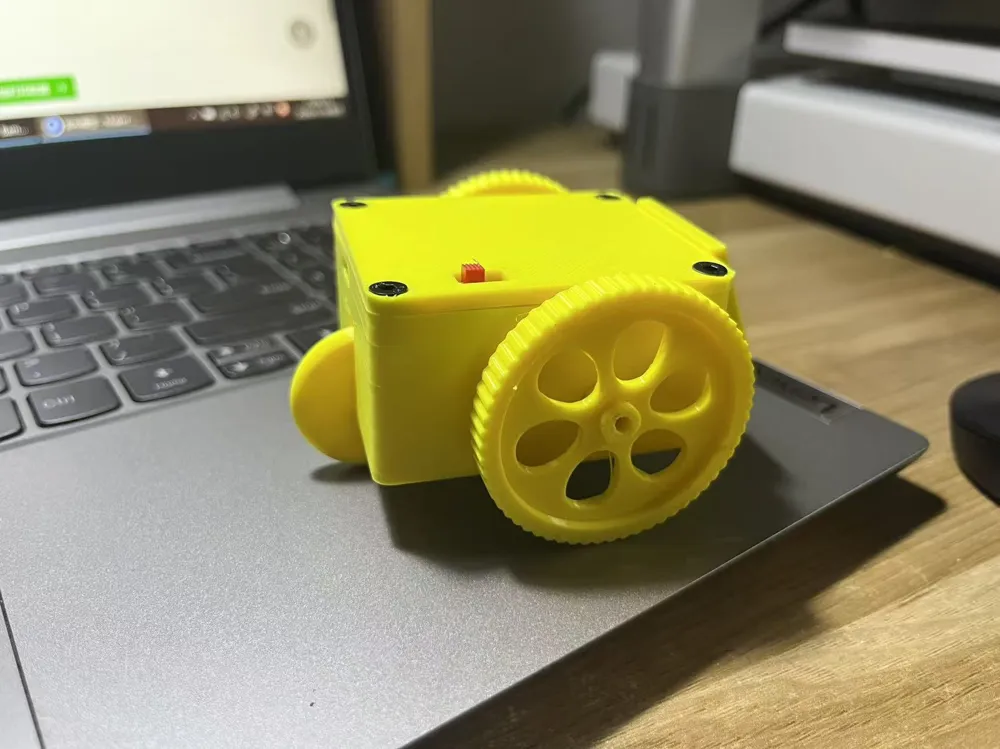

The wheels on both sides, if printed directly with PETG, will have shrinkage. The middle hole needs to be sanded and expanded. It is recommended to modify the parameters according to your material and 3D Printer conditions before printing
