Customizable parametric bracket profiles generator

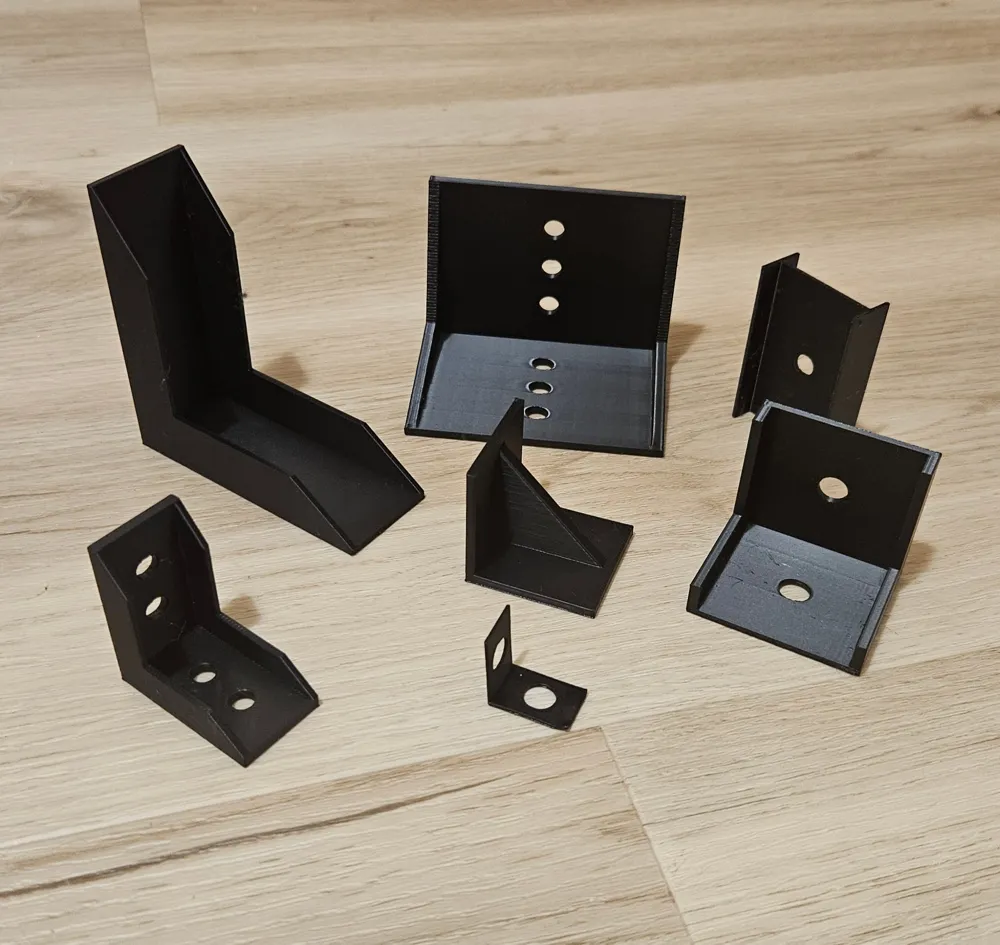

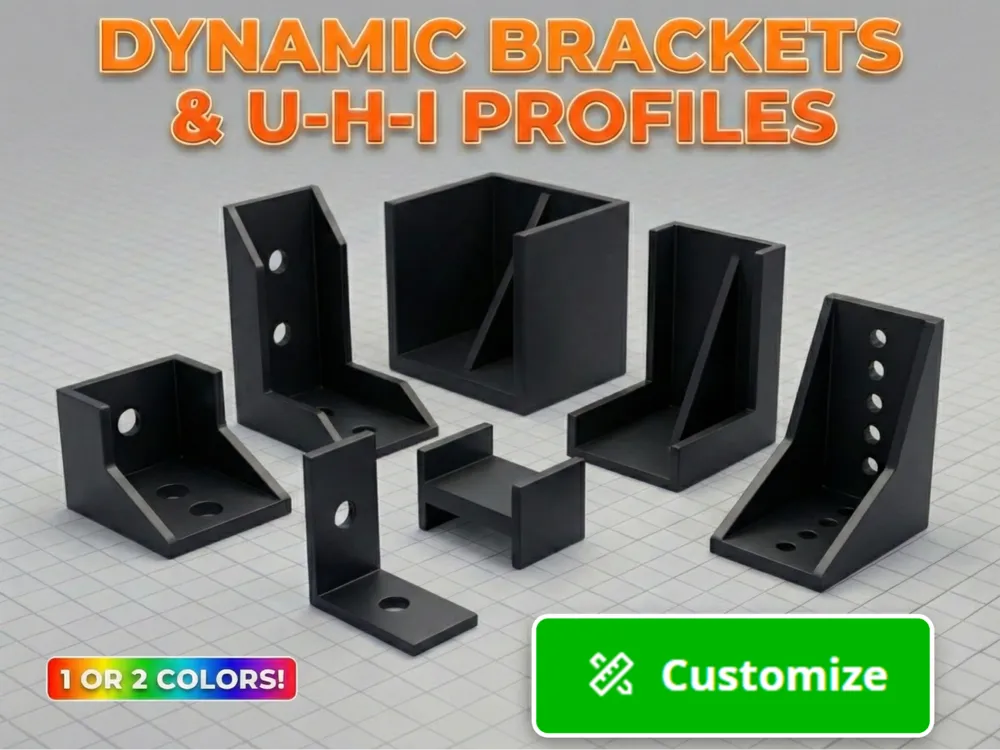

Dynamic Brackets & Profiles: The Ultimate Structural Generator (One or Two colors!)

I designed this tool as a quick way to generate hardware for anything from simple furniture repairs to custom hobby projects, without needing to open CAD software or even know how to use it.

Key Features

• Fully Parametric: Adjust length, width, height, and wall thickness to suit any load requirement.
• Dynamic Holes: Customize hole diameters and quantities (if needed)

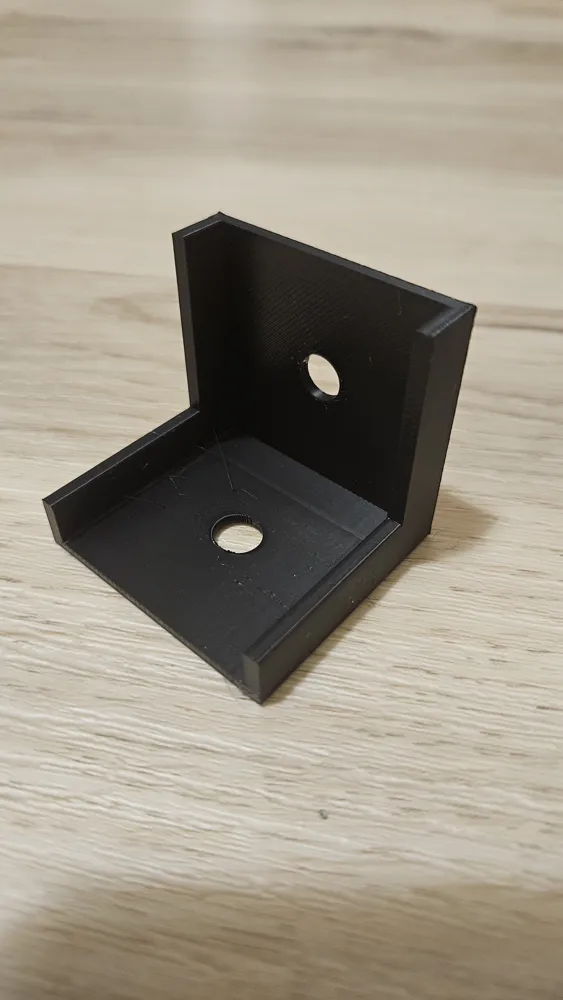

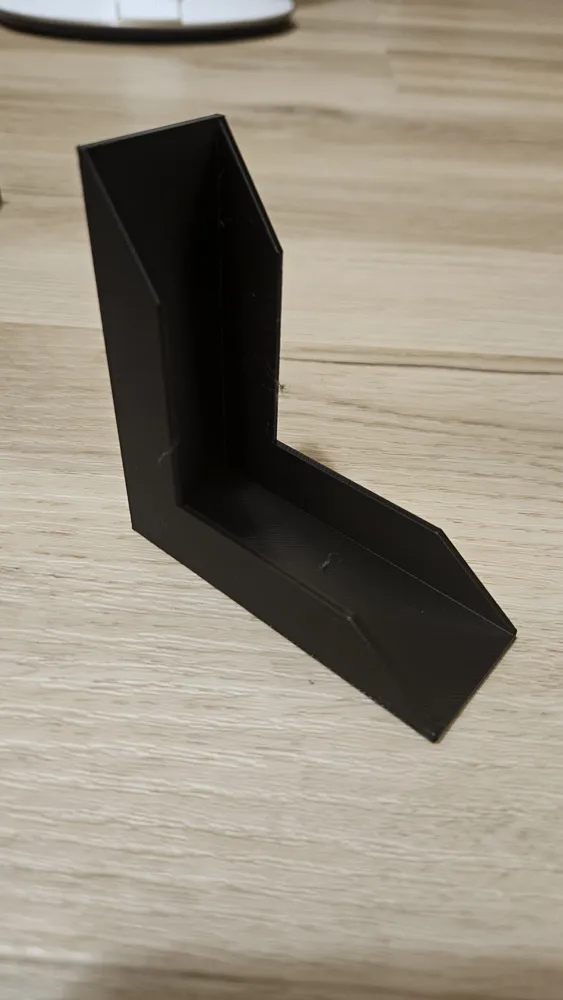

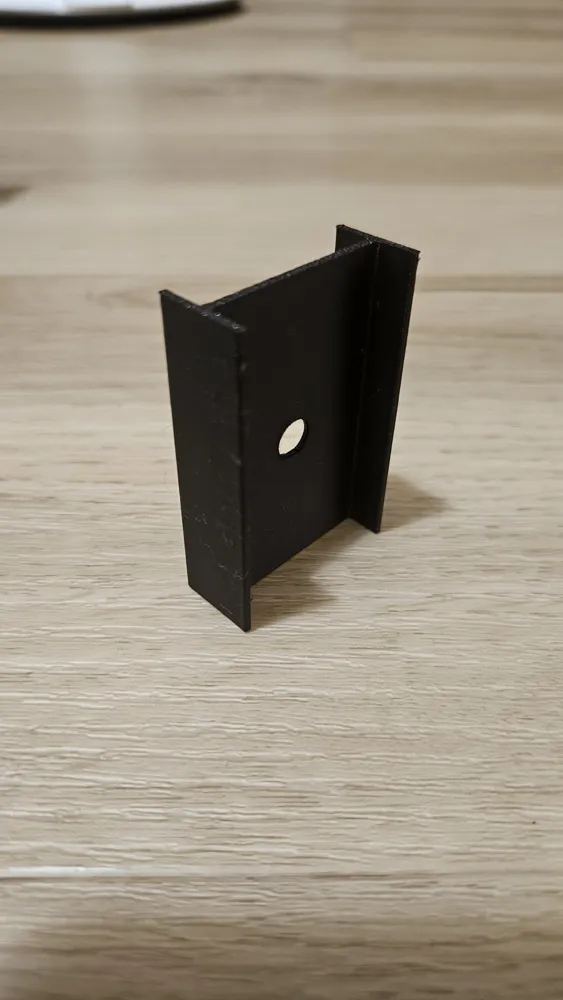

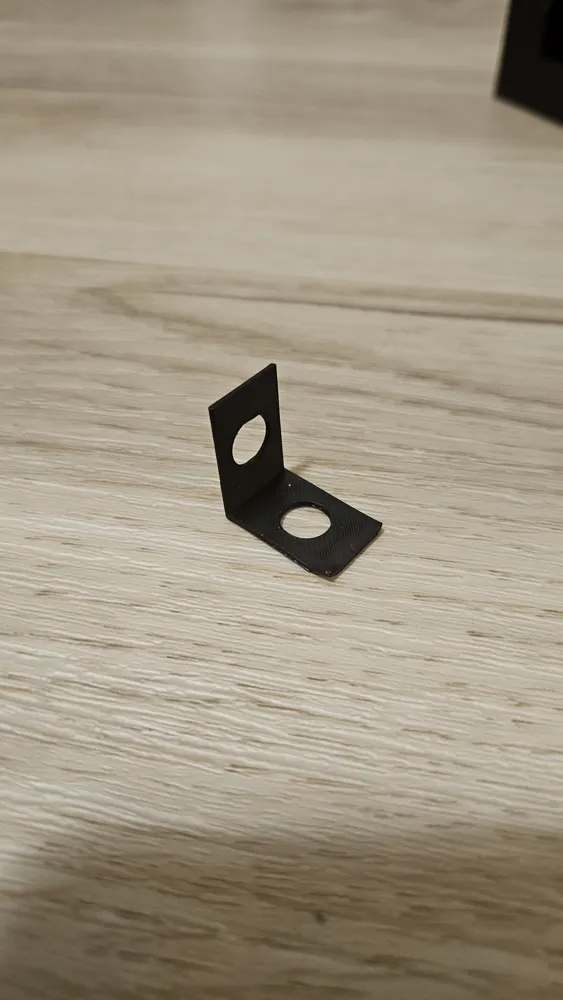

• Multi-Profile Support: Customize the parameters to get the profile you need
• Built-in Strength: Optional supports can be toggled to provide maximum rigidity
• No need to add supports

How to Use the Generator

1. Define Dimensions

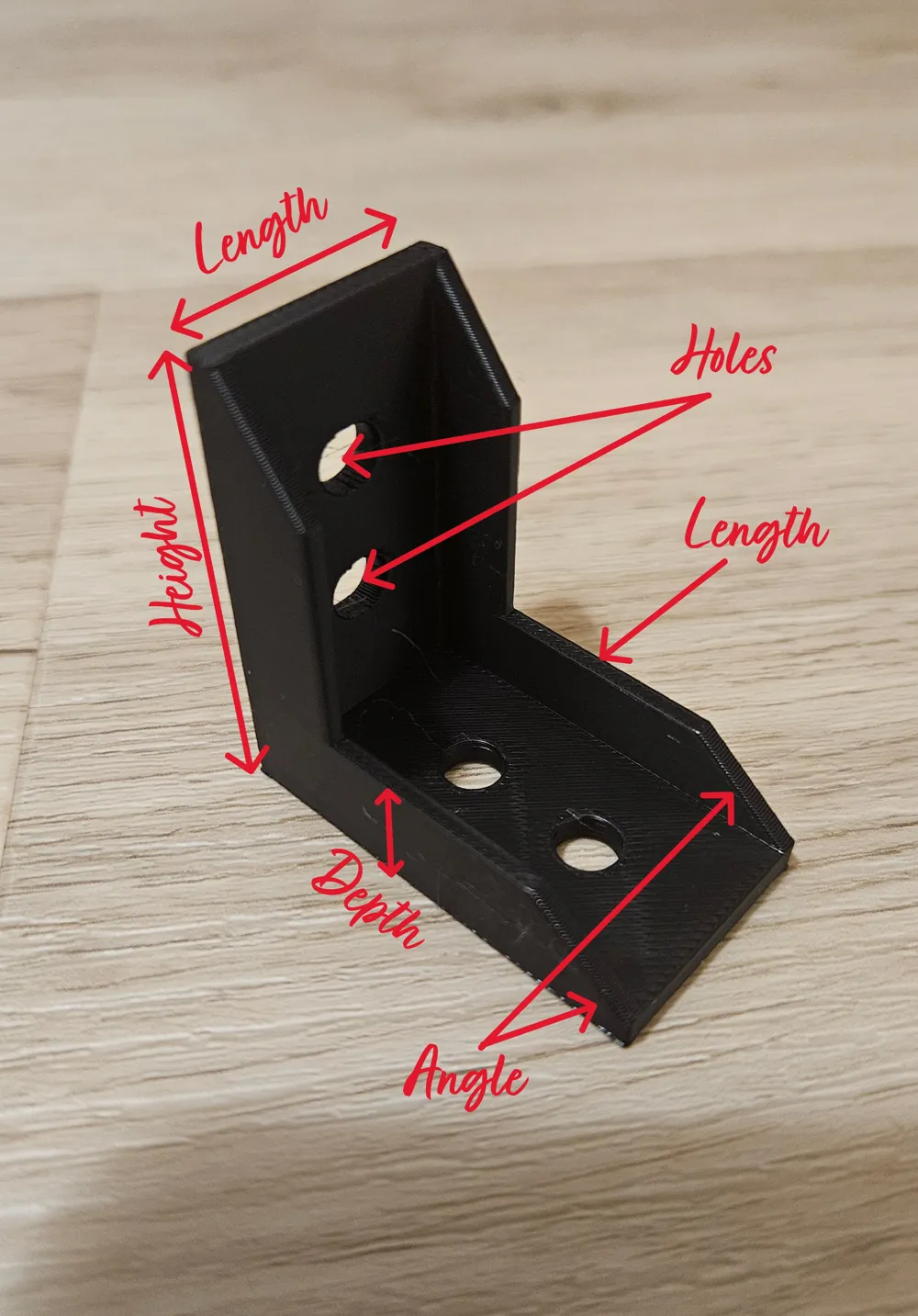

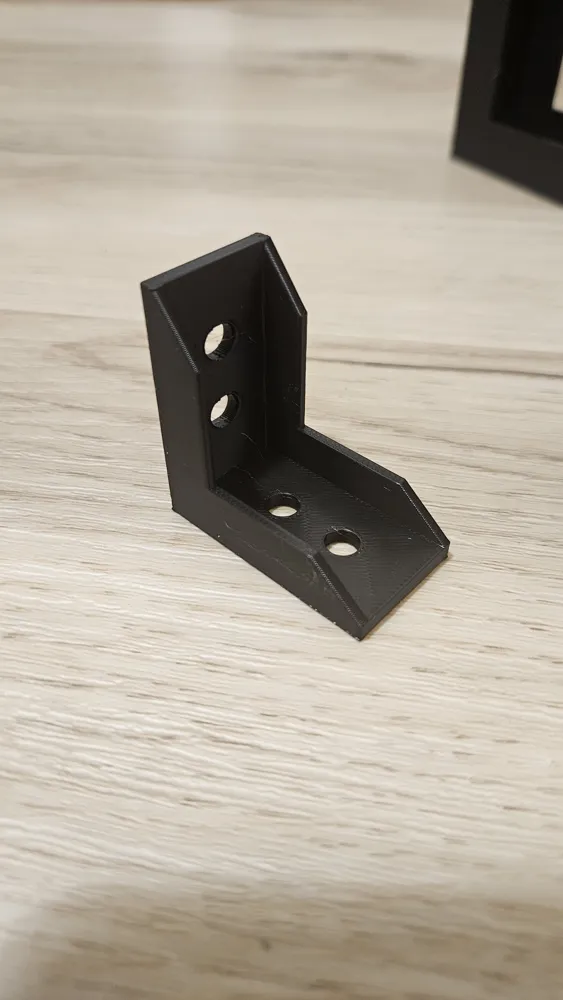

• Main Body: Adjust internal_length (the base) and internal_web_height (the vertical rise).
• Thickness: Set the thickness for the main body and flange_thickness for the mounting lips. I recommend at least 2mm.

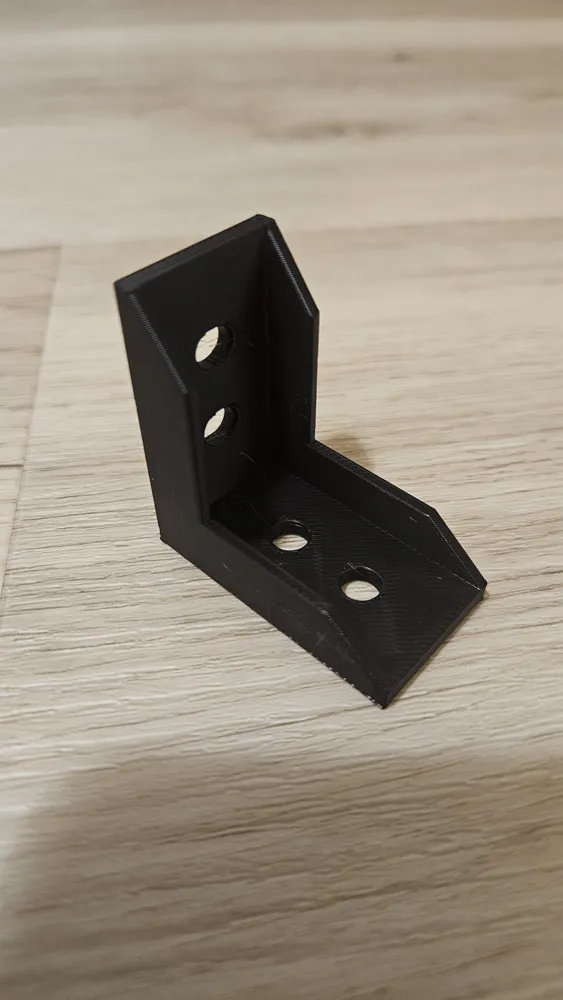

• Flange Angle: Use the flange_angle slider to create a tapered or "stepped" end on your flanges for a cleaner aesthetic or specific fit.

3. Configure Mounting Holes

No need to do math! The script features Dynamic Spacing:

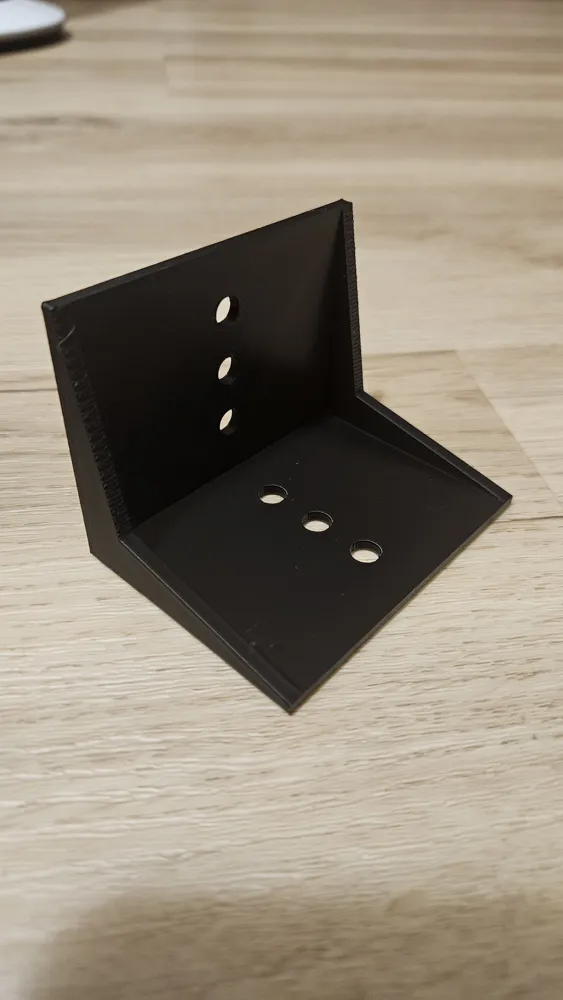

• Set the number_of_holes you need.
• Adjust holes_diameter (e.g., 3mm for M3 screws, 5mm for M5).
• The script will automatically center and space the holes perfectly across the length of your bracket.

4. Add Heavy-Duty Reinforcement

If your bracket needs to hold significant weight:

• Toggle use_heavy_support to True.

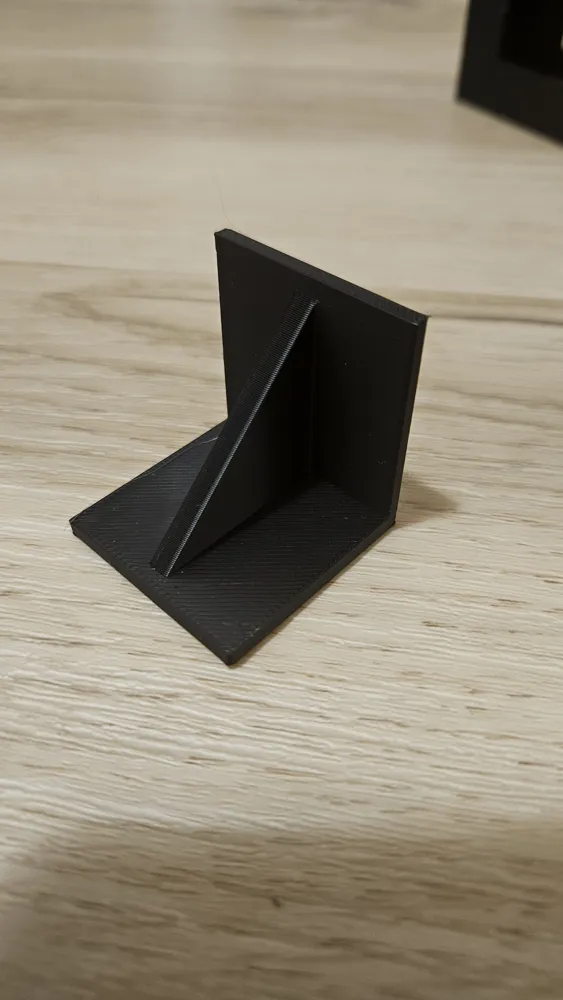

• This adds a triangular gusset (rib) between the web and the flange.
• Adjust heavy_support_thickness to match your stress requirements.
• Probably you want to remove the holes in this case
