Description
There is now a V2 of this design: https://makerworld.com/en/models/2312703-customizable-parametric-window-vent-v2

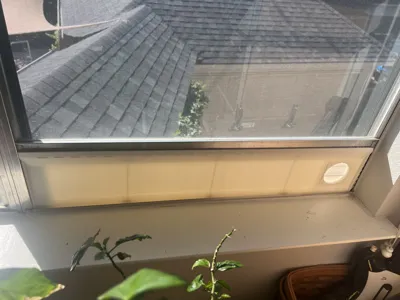

A parametric window vent system I designed based off of a few I saw on makerworld and printables.
Use the customize button on the right, below the print profiles, to customize your own.
Input the window lip thickness, window size, hole size, and how many sections you want so it will fit in your printer.
There are other settings in the parameters you can change to your needs.

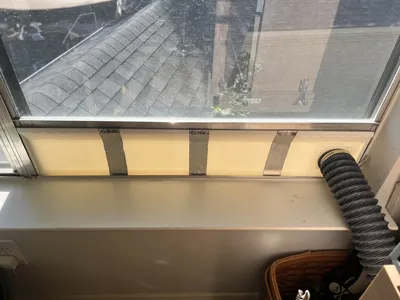

I used some weather tape between the seals and a little bit of foam at the edges to seal in the window.
I also combined these two prints into my final print using bambu studios scaling and assembly feature.
https://makerworld.com/en/models/179972-ventilation-grill-fan-outlet-with-moveable-flaps
https://makerworld.com/en/models/1333844-twist-lock-adapter-hose-mobile-air-conditioner
I plan on revisiting this project with ASA and some tweaks later, please comment suggestions and improvements you would like to see.
