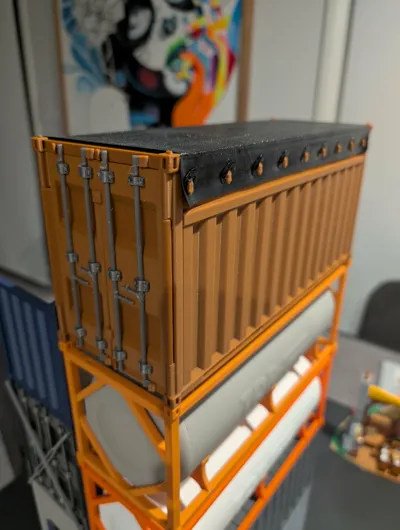

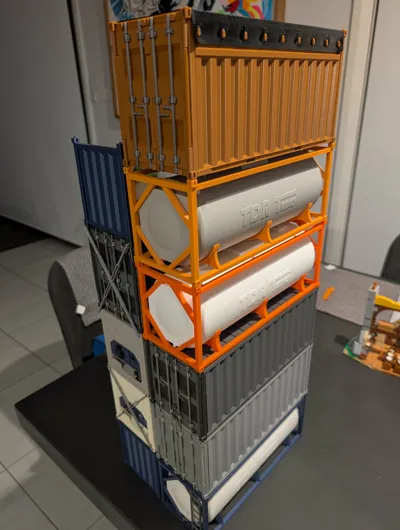

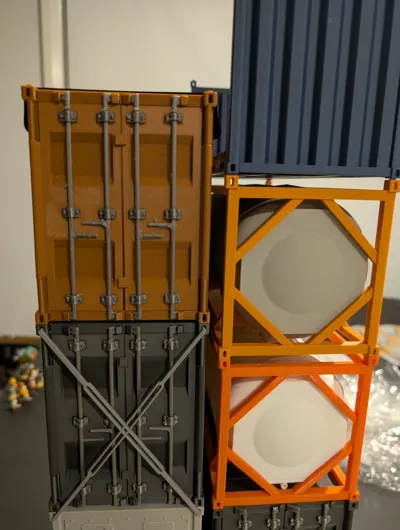

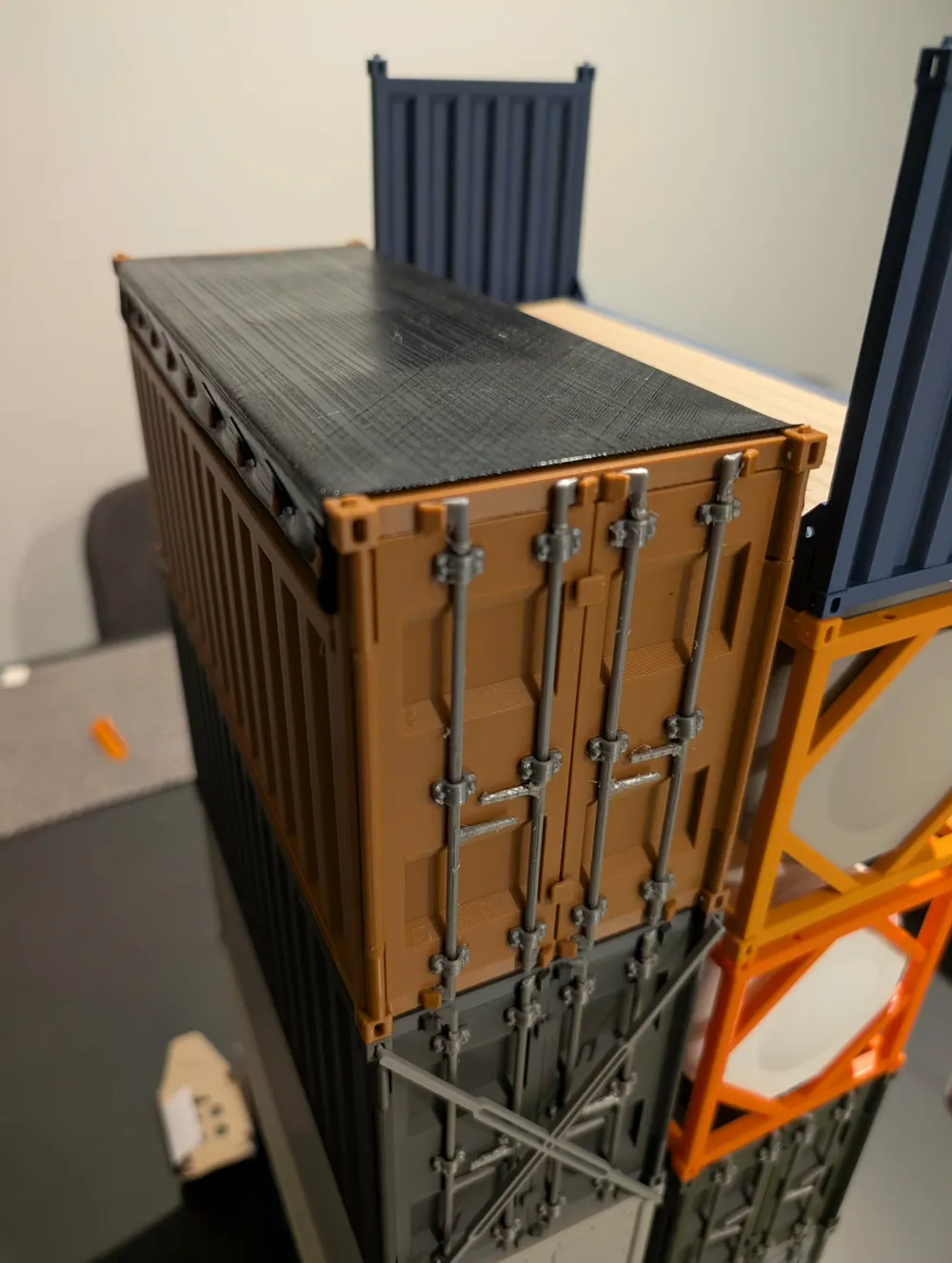

the latest to joint the stackable shipping container series is the open top high cube shipping container. similar to previous high cube with the exception of its open top and tpu cover with eyelets that line up to anchor points on the shipping container.
assembly: build upside down start with sides and ends then floor frame sections gluing along the way with ca glue,
glue the 6 points and insert the shipper floor.
affix the door bars ensure the stop collar is at the top and lock tab face correct way then using pliers push the brackets into holes evenly.

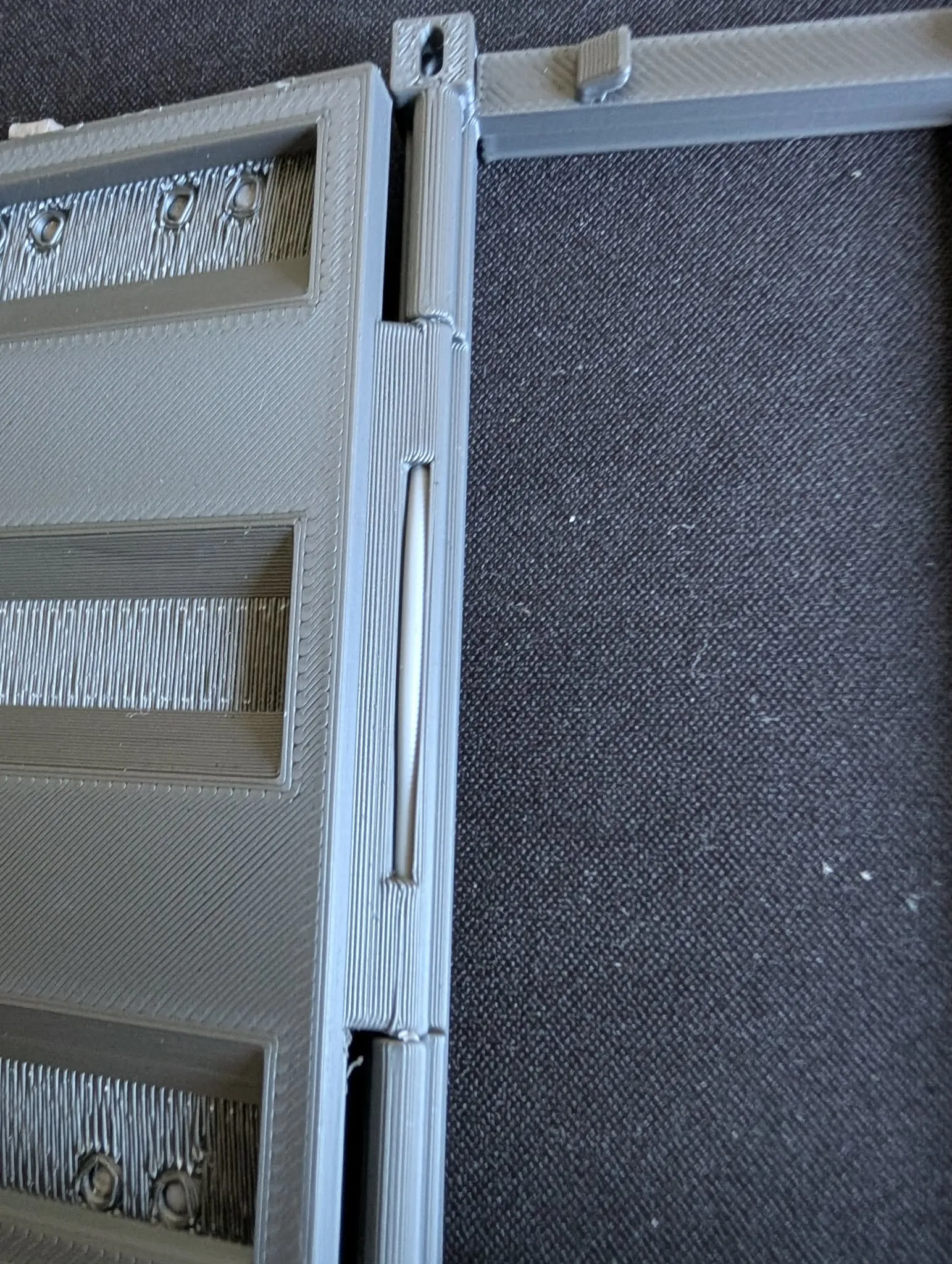

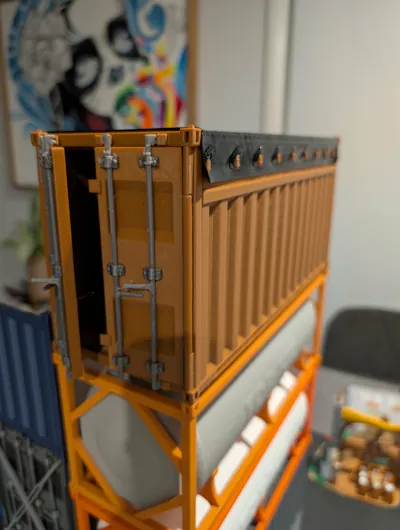

to mount the doors, bend and insert a piece of filament into the slot in the back of the hinge pushing through and into corresponding hinge point on container. a small amount of heat may be needed to ensure filament lays flat in the hinge channel after installation to not obstruct range of movement.
(please note : adjustment of the hinge opening may be necessary depending on the accuracy and quality of print as they may vary.)
Boost Me (for free)
If you like this or any of my other models, give it a boost it helps me out and its free
to adjust hinge opening use a 2mm drill bit or similar tool
the frame for the floor should be arranged as shown with pins facing up wards front rear middle are labelled accordingly.
why not check out the entire series here. https://makerworld.com/collections/19123014
