Floppy Samples
Print Profile(4)
Description
An alternative way to print your filament samples…
Floppy Samples!
The walled sections are for 1mm, 2mm, 4mm, 6mm and 8mm.
The examples are all printed with a 0.4mm nozzle, and a 0.1mm layer height.
The external dimensions of the floppy are 40.05mm x 41.85mm x 2mm.

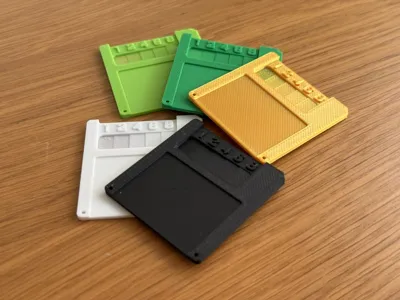

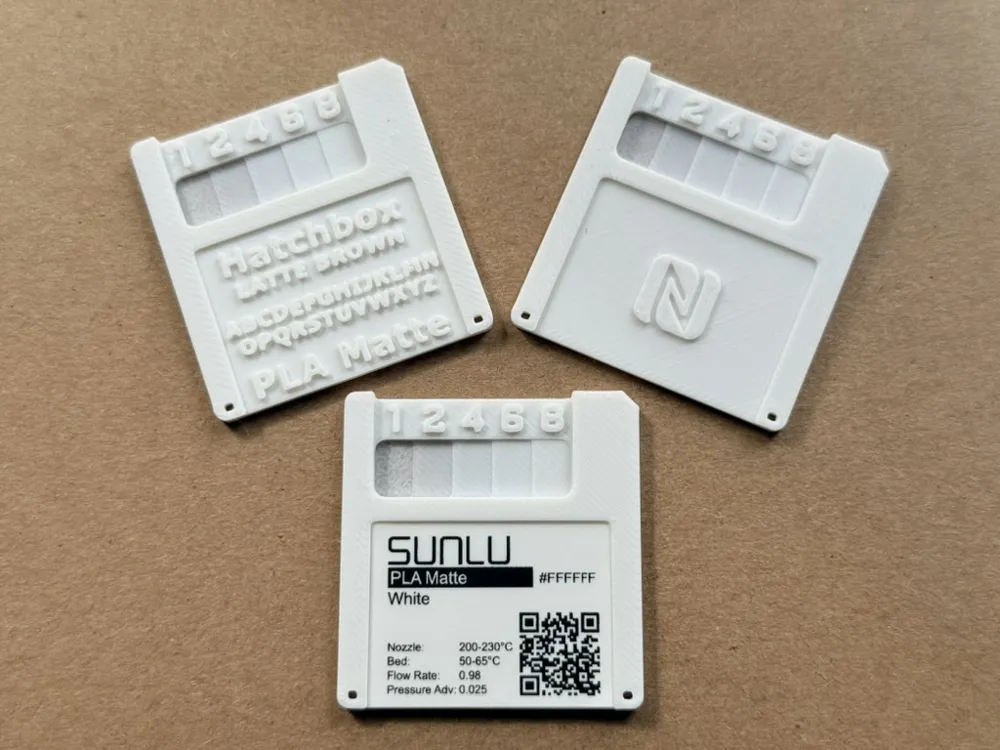

There are three variations:
- Standard (for a printed label
- With text (customise in slicer)
- NFC

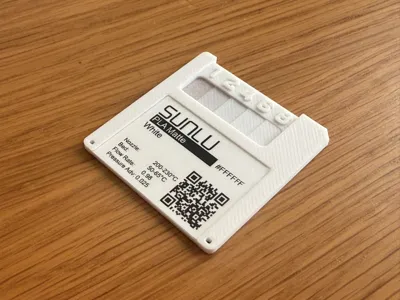

Floppy Samples (Standard)
This supports a label of size 32mm x 24mm.
Personally, I use https://3dfilamentprofiles.com/ and the Brother P-touch CUBE printer for the labels.
Floppy Samples (with text)
In case you don't have a label printer, customise the text in Bambu Studio to your liking.
Floppy Samples (NFC)
This supports the NTAG215 NFC standard, with a diameter of 25mm and thickness of 0.2mm.
Make sure it's not the NFC card, but the NFC sticker. The difference is the thickness of the NFC.
Printing info:
- Set a pause at layer 10
- Insert the NFC sticker
- Print layer 11 at a slower speed
(this should exist in the print profile)
