SharkBite Insertion Depth Tools
Print Profile(1)
Description

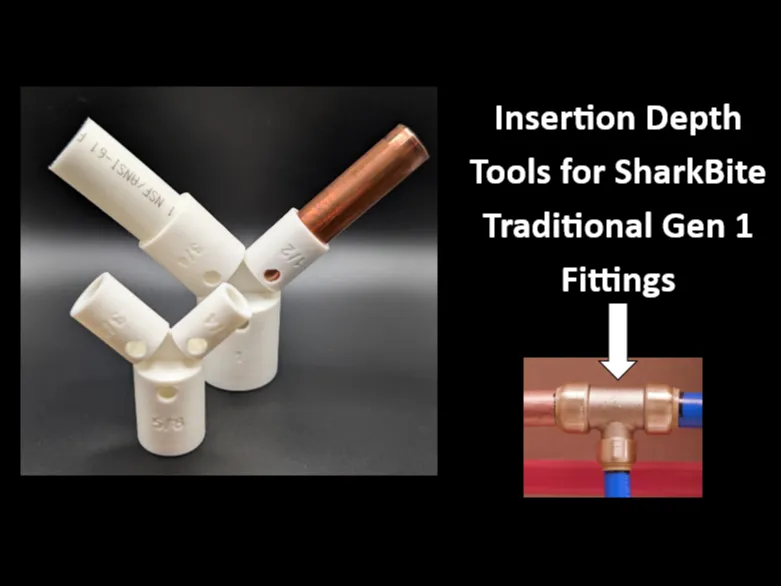

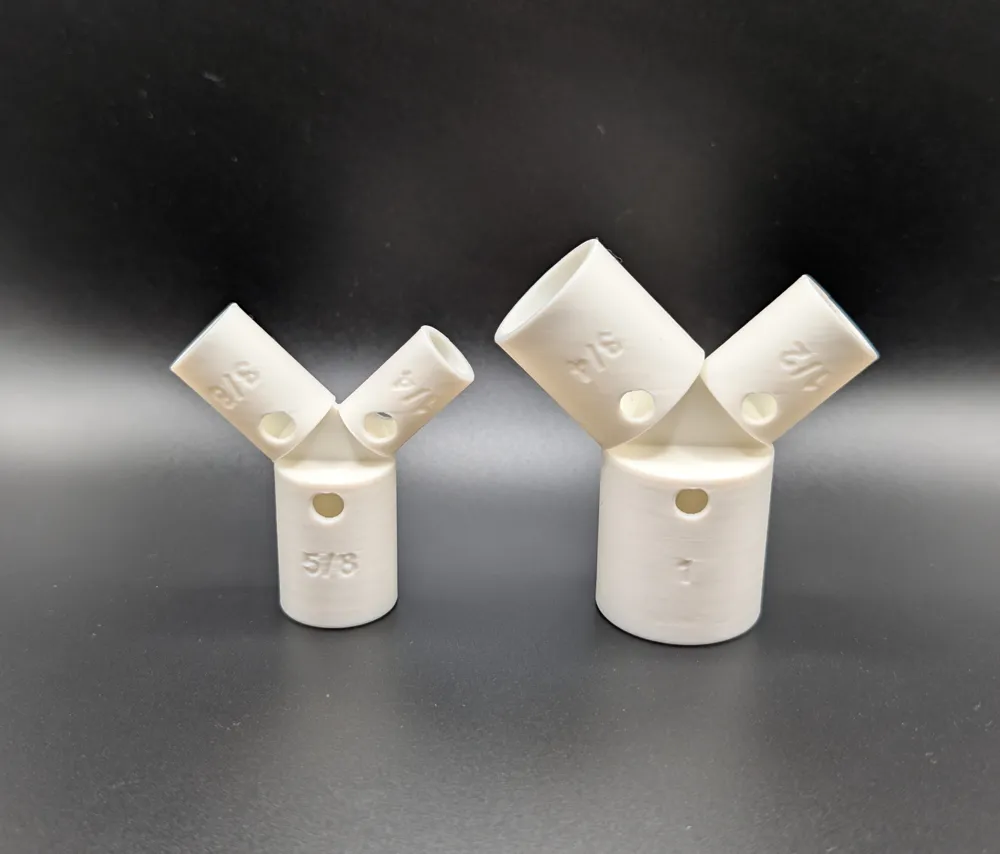

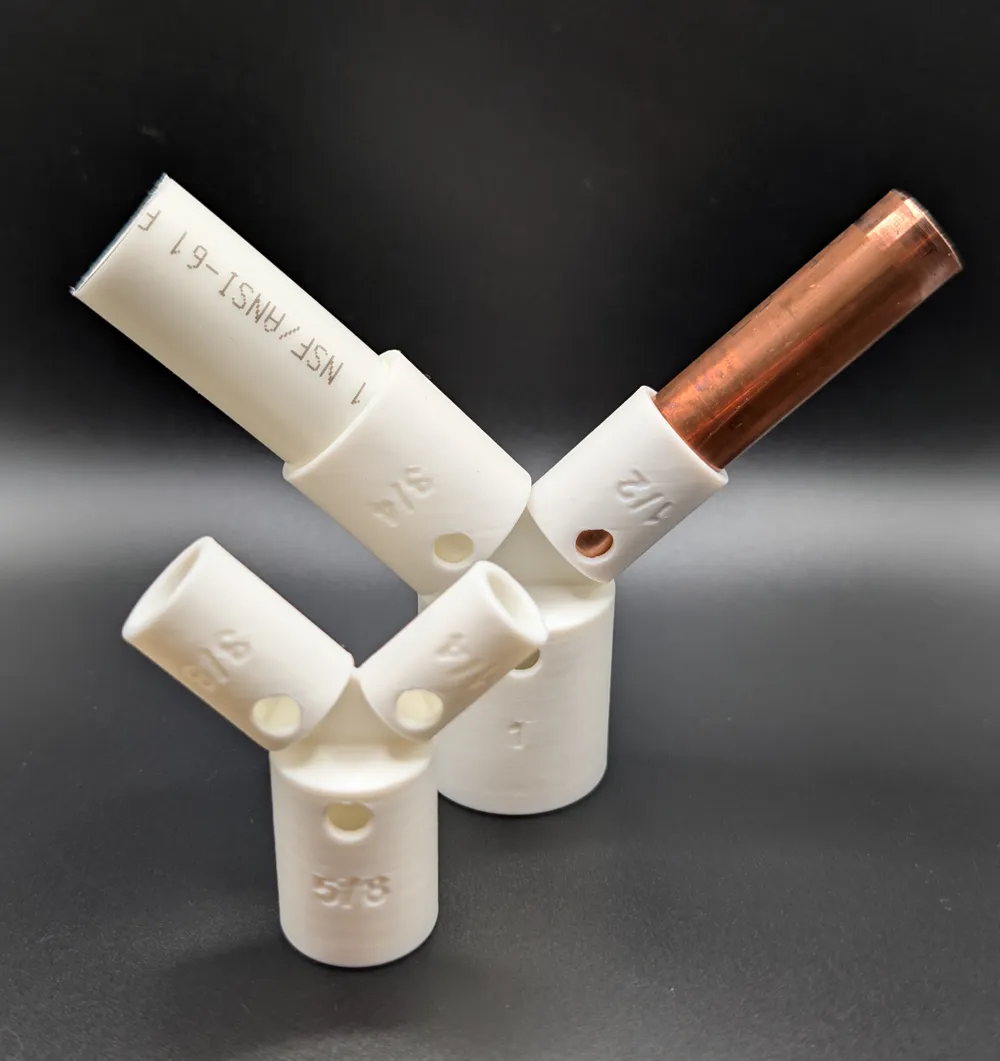

These are insertion depth tools for SharkBite Generation 1 push-to-connect fittings (these are not for the new high pressure “Max” fittings). The three most common pipe sizes (1/2, 3/4 and 1.0 inch) are all on one tool for convenience, and the other three typical sizes (1/4, 3/8 ans 5/8 inch) are on a second tool. I have added a view hole at the lowest point of each size to ensure the pipe is all the way to the bottom of the tool.
The model does require supports for the bottom facing tool (included in print profile). The support also helps stabilize the print since the bed contact area is relatively small.
