Wonky Valentine Heart Jewelry Box (Multi-Drawer)

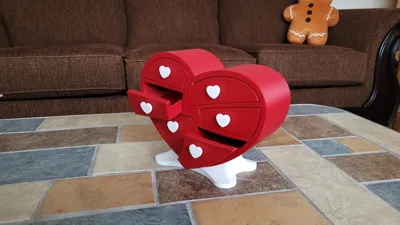

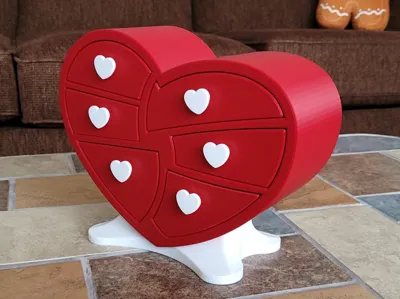

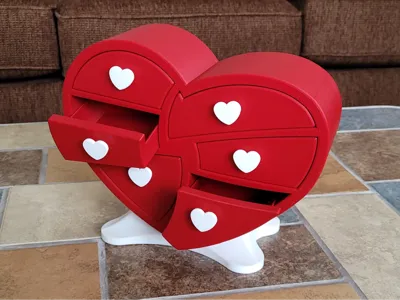

This wonky Valentine heart jewelry box started as an idea while driving — and turned into a fun, functional 3D print with multiple drawers and lots of personality.

This is not meant to be perfectly symmetrical.
The “wonkiness” is intentional and part of the charm.

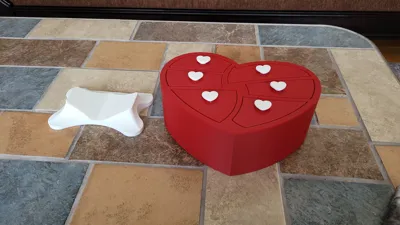

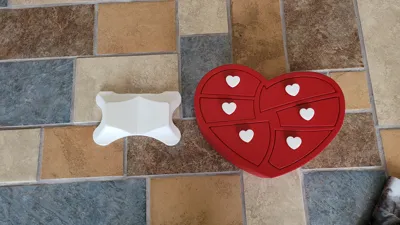

The model prints as multiple parts and assembles easily. Once finished, it makes a great Valentine gift, desk piece, or jewelry organizer.

Designed in Fusion 360 and printed on a Bambu printer, but it should work well on most properly tuned machines.

Enjoy

Commercial licensing:
This model is free for personal, non-commercial use on MakerWorld.
Small-scale commercial print licenses are available — please contact me directly if interested.

🧰 ASSEMBLY INSTRUCTIONS

Base + Heart

• The heart glues onto the base
• Line the back of the heart flush with the back of the stand
• You can also position it slightly forward or backward if you prefer — it’s your choice
• I really like Gorilla glue and specifically this one because the bottle has the dropper tip and the brush option. This is an Amazon affiliate link to the Gorilla Glue https://amzn.to/3Ty2u9V

👉 Apply glue, align carefully, and let it fully cure before use.

Drawer Handles (Heart Knobs)

• The small heart handles are designed as a snug press-fit
• Press them into the front of each drawer

On the back side of each handle:

• A washer presses onto the pin inside the drawer
• This washer is also a tight press-fit

I did not glue mine — the press-fit held securely.
If you want a permanent hold, a small drop of Gorilla Glue will lock it in place.
Totally optional.

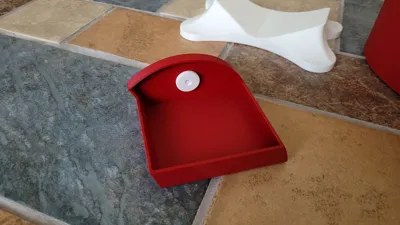

Drawers

• The drawers are designed to slide freely
• No sanding should be required on a well-tuned printer
