Parametric Funnel
Print Profile(1)
Description
Parametric Funnel – Fusion 360
Description:

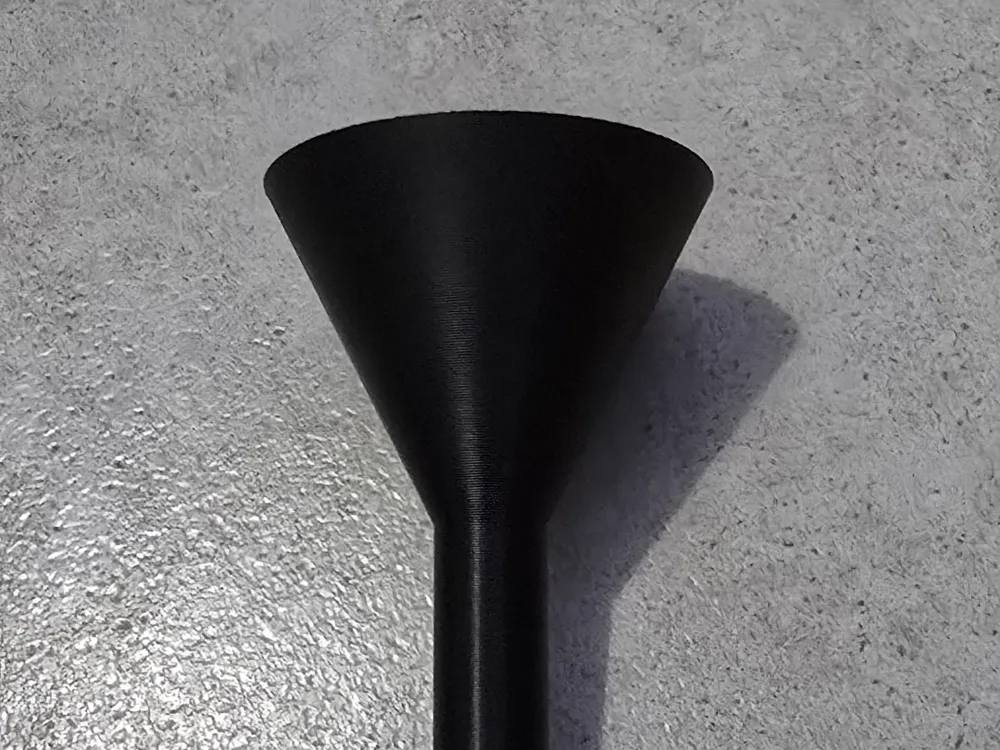

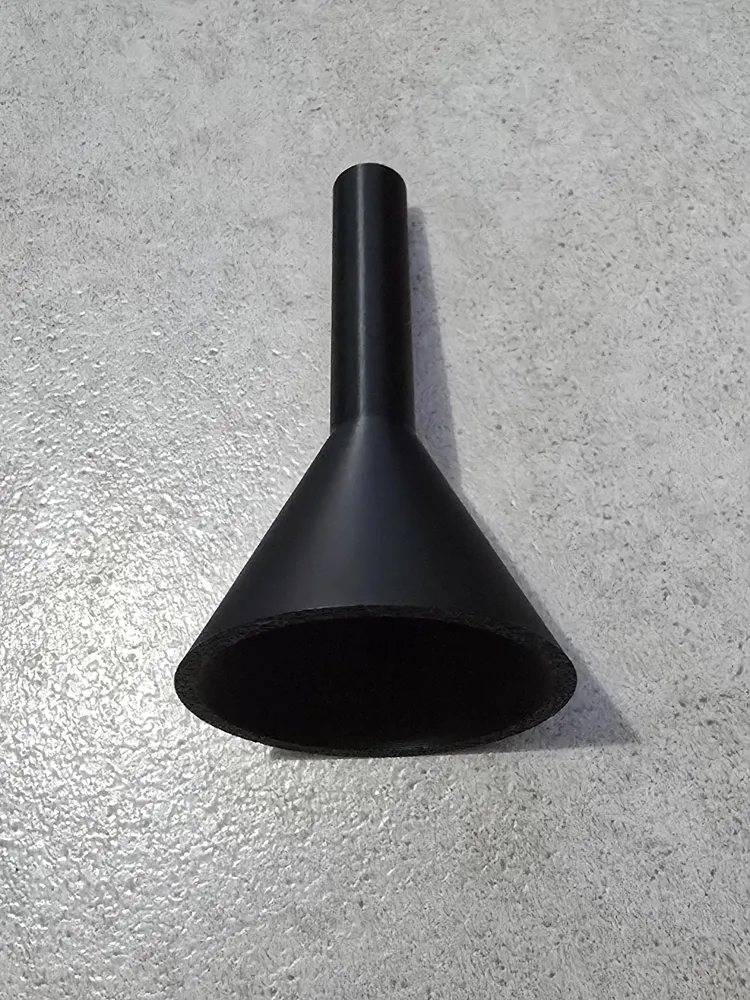

This fully parametric funnel was designed in Fusion 360 to easily adapt to many uses: filling bottles, cans, tanks, technical prints, workshop, etc.
Thanks to the modifiable parameters, you can quickly adjust the main dimensions without having to remodel the part:
- top diameter,
- outlet diameter (tube),
- funnel height,
- tube length,
- wall thickness.
The model is clean, robust and optimized for 3D printing.

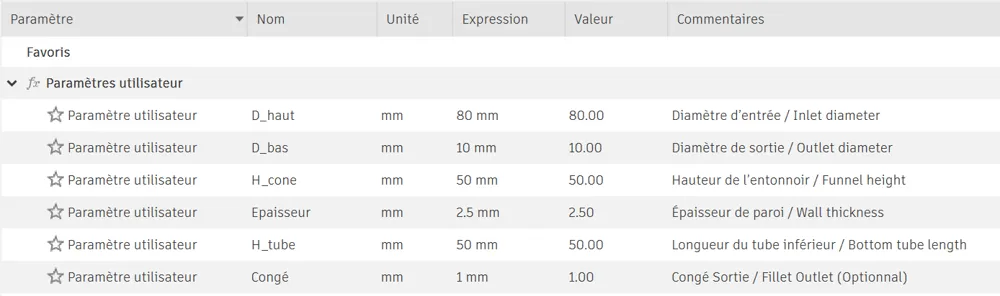

Adjustable Parameters (Fusion 360):
- Input Diameter
- Output Diameter
- Cone Height
- Tube Length
- Wall Thickness
To adjust it, you must download the .f3d file
All parameters are centralized in the Modify > Parameters menu.
3D Printing:

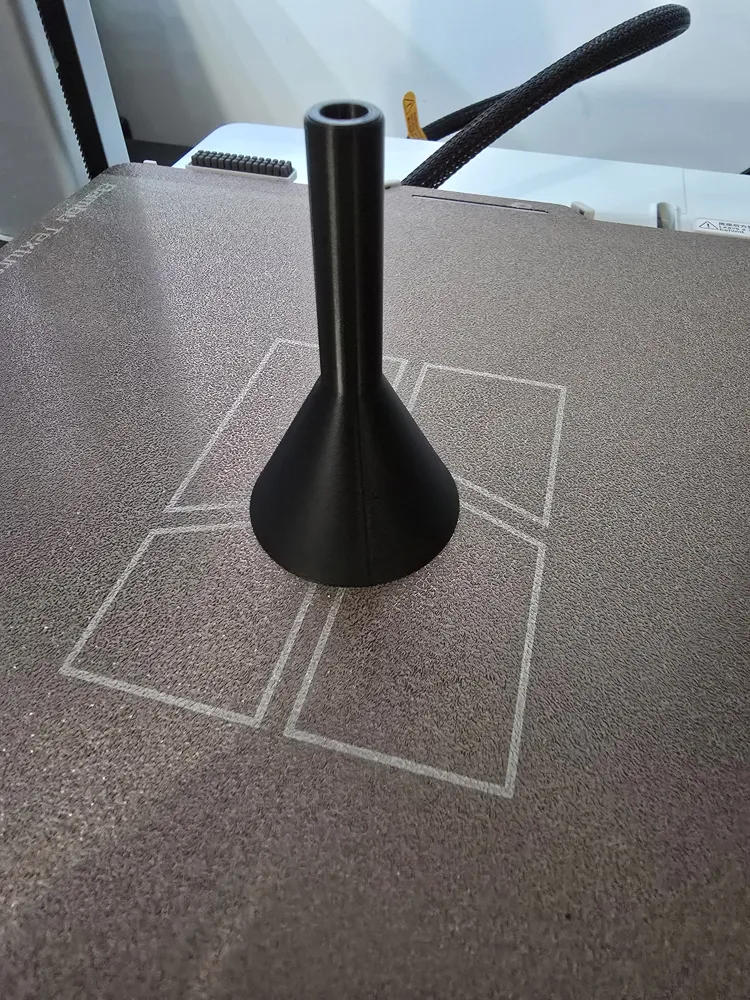

- Recommended Orientation : Tube upwards
- Supports : no supports
- Infill : 10–20 % (depending on use)
- Recommended Materials :
- PLA → common use
- PETG → liquids, better resistance
Advantages:
✔ Parametric model
✔ Easily customizable
✔ No supports
✔ Ideal for workshop, home, or lab
Files included:
- Fusion 360 parametric file
- STL or 3MF export ready to print
