Description

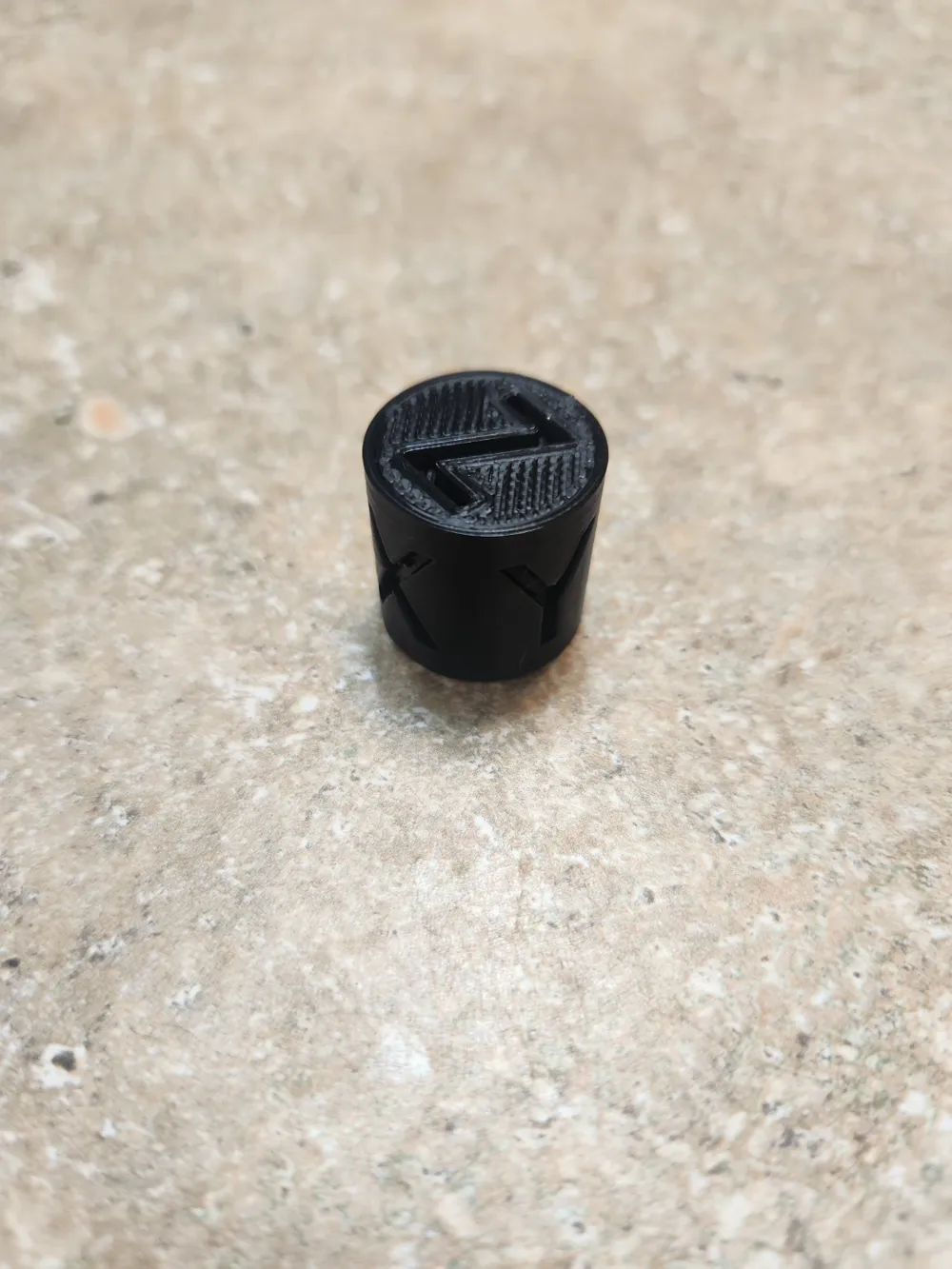

This is a simple remix of the XYZ cube. It is just the XYZ cube expert it is a cylinder instead of a cube. This could be used if you need to test cylinders (especially with something cut into the cylinder) for whatever reason.

How I Designed This

I used Fusion 360 and made a circle on top that went to the inside of the letters (the closest they got to the center) and then I cut the letters deeper into the cube and then extruded the circle. I just found this to be the quickest way to get the letters to be the same depth all around and the same depth as the normal cube. Then I drew a circle on top and put off the corners.

Category: 3D Printing Tests
